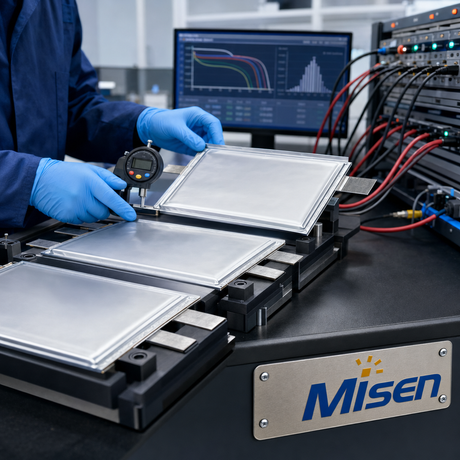

A large-format pouch cell can look excellent on a datasheet and still be the wrong cell for a production battery pack.
The rated capacity may be correct, but the voltage drop could be too high under load. A few samples may perform well, while the production lot shows a wider spread in capacity or internal resistance. The cell may also fit the initial drawing but expand beyond the available module space after repeated cycling.
These problems become more serious as cell capacity and pack voltage increase. One weak cell in a high-voltage series string can limit usable capacity, trigger early BMS protection or create an unexpected hot spot. Mechanical issues such as damaged tabs, weak seals and uncontrolled swelling can be even harder to correct after the module structure has entered production.
For this reason, large-format pouch cell procurement should not move directly from datasheet review to a bulk purchase. A more reliable process includes three stages:
Engineering sample validation
Pilot-lot consistency evaluation
Safety, documentation and delivery approval
This guide explains what battery integrators, OEMs and procurement teams should check at each stage.
Before testing begins, the buyer and supplier should agree on the actual operating requirements.
At minimum, the requirement sheet should include:
Nominal and maximum pack voltage
Required capacity and usable energy
Series-parallel configuration
Normal charge and discharge current
Peak current and peak duration
Operating and storage temperature
Available cell and module dimensions
Weight limit
Expected cycle life
Cooling method
Compression structure
BMS voltage and temperature limits
Required communication functions
Target application and certification requirements
Sample and annual order quantities
Without this information, a laboratory may confirm that a cell meets its datasheet while failing to confirm that it is suitable for the intended battery system.
A 1C discharge test, for example, says little about a project that operates at 0.3C continuously but experiences short 4C power peaks. Likewise, a room-temperature capacity result does not answer whether the cell can support an outdoor energy storage system or cold-climate vehicle.
This stage may be called the A-sample or B-sample stage in some development programs, although the terminology varies between companies.
Its purpose is to answer two questions:
Does the cell deliver the performance claimed by the supplier?
Does it remain suitable under the customer’s real operating conditions?
Begin with the physical cell before running electrical tests.
Check:
Cell model and production code
Chemistry and nominal voltage
Length, width and initial thickness
Tab position, width, thickness and polarity
Tab material
Cell weight
Pouch surface condition
Seal edges and folding dimensions
Insulation and protective film
Manufacturing date and batch number
Dimensions should be measured using an agreed method. This is especially important for thickness because measurement pressure can affect the result.
The customer should also confirm whether the dimensions shown on the drawing refer to a fresh cell, a cell at a defined state of charge or the maximum thickness expected during service.
For replacement projects, matching the nominal capacity is not enough. Tab position, cell thickness, voltage range, thermal contact surface and compression requirements must also fit the existing module.
Capacity should be tested under the supplier’s specified reference conditions before moving to application-specific conditions.
Record:
Charge current
Charge cutoff voltage
Constant-voltage termination current
Rest time
Discharge current
Discharge cutoff voltage
Chamber temperature
Measured capacity in Ah
Delivered energy in Wh
Coulombic and energy efficiency
Testing only amp-hour capacity can be misleading. Two cells may deliver similar Ah results but different usable energy because their voltage curves are different.
After the reference test, repeat the evaluation at the current levels expected in the real application. Typical programs may include 0.5C, 1C and a higher rate, but the final test points should come from the customer’s load profile rather than a generic checklist.
AC resistance is useful for rapid production screening, but it does not fully describe voltage drop and heat generation under a real load.
DC internal resistance, or DCIR, should therefore be measured using a defined current pulse at controlled conditions. Useful SOC points may include 20%, 50% and 80%.
The test report should state:
Starting SOC
Cell temperature
Pulse current
Pulse duration
Voltage sampling points
DCIR calculation method
Recovery time between pulses
DCIR normally changes with SOC, temperature and aging. Comparing values measured under different conditions can create a false conclusion.
For high-power applications, the most important result is not necessarily the lowest resistance value. The buyer should confirm that voltage sag and temperature rise remain acceptable during the actual peak-load event.
Temperature testing should reflect the intended operating environment and remain within the cell manufacturer’s declared limits.
A project may evaluate discharge performance at temperatures such as −20°C or 55°C, but these should not be treated as universal test points for every pouch cell.
Important results include:
Available capacity
Energy retention
Voltage plateau
DCIR
Peak-power capability
Temperature rise
Charge acceptance
Recovery after returning to room temperature
Low-temperature charging requires particular care. A cell that can discharge at a low temperature may not be safe to charge at the same temperature without current reduction, preheating or another control strategy.
Some thickness change during cycling is expected in pouch cells. The engineering question is whether it remains compatible with the module structure.
The test should define:
Initial SOC and thickness
Measurement force
Fixture or compression method
Applied preload or pressure
Charge and discharge conditions
Cell temperature
Number of cycles
Thickness at selected SOC points
Permanent thickness change after rest
A preload such as 0.05–0.1 MPa may be used in some development programs, but it is not a universal value. The correct compression level depends on cell chemistry, construction, surface area and the manufacturer’s recommendations.
Testing the cell freely without a fixture may not represent its behavior inside a real module. On the other hand, using excessive compression can hide expansion temporarily while increasing mechanical stress.
The validation fixture should therefore resemble the intended module as closely as practical.
Top and side seals protect the electrodes and electrolyte from moisture and contamination. Weak sealing can eventually lead to gas generation, leakage, corrosion or premature capacity loss.
Depending on the project and supplier capability, seal evaluation may include:
Visual inspection
Seal-width measurement
Peel-strength testing
Leak testing
Helium leak testing
High-temperature storage
Humidity exposure
Electrolyte contamination inspection
The supplier should provide the applicable test method and acceptance criteria. Buyers should avoid comparing seal-strength numbers from different suppliers unless the sample preparation and test method are equivalent.
Large-capacity cells may carry substantial current through relatively small connection areas. Poor welding, excessive contact resistance or incorrect busbar design can create a local hot spot even when the cell body remains within a normal temperature range.
During load testing, measure temperature at:
Positive tab
Negative tab
Welded connection
Busbar interface
Cell center
Cell edge
Expected module hot spot
The test fixture should use a connection method representative of the final pack. Temporary clamps or undersized cables may add resistance and distort the result.
After testing, inspect the tabs for discoloration, cracking, deformation, damaged seal areas and weakened welds.
Full cycle-life validation can take months, so it should start as early as possible.
The test should define:
SOC window
Depth of discharge
Charge and discharge current
Temperature
Compression method
Rest periods
End-of-life capacity
Resistance-growth limit
Thickness-growth limit
Early-cycle results can help identify abnormal heat, rapid resistance growth or excessive swelling. However, a short test cannot prove a long cycle-life claim. Long-term cycling should continue while later project stages move forward.
Good engineering samples do not guarantee a consistent production lot.
For a battery pack, the distribution of performance is often more important than the best individual result. A string of well-matched cells usually performs better than a string containing a mixture of unusually strong and weak cells.
Testing 30–50 cells from the same pilot lot can provide a useful early view of parameter distribution. However, the correct sample size depends on:
Lot size
Application risk
Supplier history
Test cost
Whether the test is destructive
Agreed AQL
Customer and regulatory requirements
For formal lot acceptance, the buyer should use an agreed statistical sampling plan rather than treating 30 or 50 cells as a universal rule.
Samples should be selected across the lot, not taken from one carton or one part of the production run.
For each parameter, record:
Mean
Minimum and maximum
Range
Standard deviation
Outliers
Position within the agreed specification
Cp and Cpk can be useful for evaluating process capability, but only when the process is reasonably stable and the specification limits are clearly defined. A Cpk value calculated from a small, unrepresentative group can create false confidence.
The objective is to understand whether the supplier has a controlled process, not simply to produce an attractive spreadsheet.
OCV and AC resistance are practical for rapid incoming inspection and cell grouping. DCIR provides more information about behavior under load.
All measurements should use the same:
SOC
Rest time
Cell temperature
Instrument
Frequency, for AC resistance
Contact method
Current pulse, for DCIR
Large differences can cause uneven voltage drop, heat generation and usable capacity during pack operation.
The acceptable spread should be defined according to the cell model, pack configuration and application. A high-voltage series pack may require tighter matching than a lower-risk single-cell application.
Capacity matching is important because the lowest-capacity cell can limit the usable energy of a series string.
A tolerance within ±1% may be used as a target for tightly matched cells in some demanding projects, but it should not be presented as a universal acceptance limit. The buyer and supplier should agree on:
Test conditions
Rated capacity
Minimum acceptable capacity
Grouping window
Treatment of over-capacity cells
Retest procedure
Outlier rejection rules
Cells should be graded using comparable test data, not a mixture of supplier records and customer results obtained under different conditions.
Weight and thickness are useful supporting indicators of process stability.
Abnormal results may point to variation in:
Electrolyte filling
Electrode loading
Lamination
Gas generation
Seal structure
Pouch forming
Dimensional control
These indicators cannot diagnose a defect by themselves, but unexplained outliers should not be ignored.
Self-discharge testing helps identify cells with micro-shorts, contamination, separator damage or other latent defects.
A typical process includes:
Charge or discharge the cells to a defined SOC.
Allow sufficient time for voltage relaxation.
Measure and record the initial OCV.
Store the cells at a controlled temperature.
Measure OCV again after an agreed interval.
Calculate the voltage decay rate, often expressed in mV/day.
A 14–28 day observation period may be appropriate for some projects. Accelerated screening at an elevated temperature may also be used, but the results should not be compared directly with room-temperature data.
K value is sensitive to temperature, SOC, relaxation time and measurement accuracy. All cells must be tested under the same conditions.
Suspected outliers should be retested before a final decision. A single unusual voltage reading may come from temperature variation, incomplete relaxation or measurement contact rather than a true internal defect.
Each cell should be traceable to relevant production and inspection information.
Depending on the supplier’s system, this may include:
Cell model
Production date
Batch or lot number
QR code or serial number
Capacity result
OCV
AC resistance
Grade
Inspection date
Traceability is particularly important when a customer approves one pilot batch and later receives a volume order. The contract should define whether the bulk cells must come from the same production lot, an equivalent qualified lot or a controlled production process using the same materials and specifications.
Performance testing and safety qualification serve different purposes.
Routine incoming inspection cannot replace formal safety testing. Likewise, a transport test report does not prove that a cell is suitable for every end-use application.
Depending on the applicable standard and product, testing may include:
Vibration
Mechanical shock
Crush
Impact
Drop
Controlled penetration or other internal-short simulation
Needle penetration is not a universal requirement for every lithium-ion cell or every market. It should only be included when required by the applicable standard, customer specification or risk assessment.
Possible evaluations include:
Thermal cycling
High-temperature exposure
Low-pressure simulation
Humidity exposure
Long-term storage
Thermal propagation evaluation at module or pack level
Pouch cells do not normally rely on a conventional cylindrical safety vent. The test should therefore observe pouch swelling, seal rupture, leakage, venting behavior, fire, explosion and temperature response according to the applicable test method.
These may include:
External short circuit
Overcharge
Forced discharge
Overdischarge
Abnormal current
Protection-system failure simulation
Destructive and abuse testing should be performed by qualified personnel in a properly equipped laboratory. The exact procedure and acceptance criteria must come from the applicable standard, not from an improvised factory test.
For transport, lithium cells and batteries are evaluated under UN 38.3. Industrial and stationary applications may fall within standards such as IEC 62619, while road-vehicle cells may require evaluation under the IEC 62660 series. Additional national, customer or end-product requirements may also apply.
Testing the cell is only part of supplier qualification. The commercial agreement should also define what documentation will accompany the order.
Approved datasheet
Controlled mechanical drawing
Cell specification revision
Certificate of Analysis or batch inspection report
Capacity, OCV and resistance records
Batch and QR-code traceability information
Safety data sheet
UN 38.3 test summary
Applicable certification reports
Packaging specification
Storage and transportation instructions
Shelf-life and recommended storage SOC
Warranty terms
Where relevant, the buyer may also request:
Pouch laminate specification
Tab material declaration
Seal construction information
Material compliance declarations
X-ray or CT inspection records
Weld inspection records
Supplier change-control procedure
Some detailed material and process information may be proprietary. In that case, the contract should at least require the supplier to notify the customer before changing critical materials, dimensions, production processes or sub-suppliers.
X-ray or CT inspection can help identify internal abnormalities such as:
Misaligned electrode stacks
Folded or damaged layers
Tab-welding defects
Metal particles or burrs
Irregular internal spacing
Structural deformation
These inspections are usually performed on a sampling basis because of cost and test time. The sampling frequency should reflect the project risk and supplier performance history.
A statement such as “Grade A cells” is not enough for a technical purchase agreement.
The contract or quality agreement should define:
Approved cell model and drawing revision
Capacity limits and grouping window
OCV and internal-resistance limits
Thickness and weight tolerances
Appearance criteria
Self-discharge or K-value limits
Sampling method
Retest rules
Rejection conditions
Handling of defective cells
Replacement responsibility
Traceability requirements
Change-notification requirements
Required reports and certificates
It is also useful to retain approved golden samples from the engineering or pilot stage. These provide a physical reference if there is a later disagreement about dimensions, tabs, seals, appearance or packaging.
Even after a supplier has passed qualification, each delivery should receive incoming inspection.
A practical incoming process may include:
Packaging and label verification
Quantity and batch verification
Visual inspection
Random dimensional checks
OCV screening
AC resistance screening
Weight checks
Capacity testing on selected cells
Review of CoA and traceability data
Inspection levels can be adjusted according to supplier performance. A new supplier or a lot with previous abnormalities may require tightened inspection, while a stable supplier with a strong history may justify a reduced plan.
However, critical characteristics should not disappear from incoming control simply because earlier samples performed well.
Before approving volume production, confirm that:
The cell fits the electrical and mechanical design.
Capacity and energy have been verified under defined conditions.
Continuous and peak-current performance match the application.
DCIR and temperature rise are acceptable.
Low- and high-temperature behavior has been evaluated where required.
Thickness growth has been tested in a representative fixture.
Seal and tab quality have been reviewed.
Pilot-lot consistency is acceptable.
Self-discharge outliers have been screened.
BMS settings have been validated.
Required safety and transport documents are available.
Batch traceability has been confirmed.
Acceptance criteria are written into the purchase agreement.
Sample approval does not allow uncontrolled material or process changes.
When sourcing large-format pouch cells, datasheets are the starting point—not the final approval.
Engineering samples show whether a cell can meet the project’s basic performance and integration requirements. A pilot lot reveals whether the supplier can reproduce that performance consistently. Safety testing, traceability and a clear quality agreement determine whether the product is ready for long-term commercial use.
The most practical rule is simple:
Do not evaluate only the best sample. Evaluate the process that will produce every cell in the order.
Careful validation adds time and cost at the beginning of a battery project, but it is far less expensive than redesigning a module, sorting thousands of cells or managing a field failure after delivery.
At Misen Power, we support commercial and industrial battery projects with large-format NMC, LiFePO4, LTO, semi-solid and other pouch cell options. Based on the customer’s voltage, capacity, current, dimensions, temperature range and application, we can assist with cell selection, sample evaluation, cell grading and matching, BMS coordination and battery pack integration.
If you are evaluating pouch cells for a new project or replacing a discontinued cell model, send us your application requirements, load profile, available dimensions and estimated quantity. Our team can help review suitable cell options before you move to a bulk order.
There is no universal sample quantity. Testing 30–50 pilot-lot cells can provide an initial view of parameter distribution, but the final sampling plan should consider lot size, application risk, test cost, supplier history and the agreed AQL.
AC resistance is useful for rapid screening, but DCIR provides more information about voltage drop and heat generation under load. Demanding battery packs should evaluate capacity, OCV, AC resistance, DCIR and self-discharge together.
The correct range depends on the application and pack design. A tightly matched high-voltage pack may use a narrow grouping window, sometimes around ±1%, but this should be agreed according to the cell model and test conditions rather than treated as a universal rule.
A period of 14–28 days may be used for detailed screening, although the correct duration depends on cell chemistry, SOC, temperature and the supplier’s approved method. Shorter tests may be used for production screening if they have been correlated with longer-term results.
No. UN 38.3 is primarily associated with transport testing. End-use safety requirements depend on the application, market and applicable cell, battery or equipment standards.
If the final module uses compression, testing in a representative fixture is strongly recommended. The pressure should be based on the cell manufacturer’s guidance and module design rather than a universal value.
Provide the application, system voltage, required capacity, continuous and peak current, operating temperature, size and weight limits, expected cycle life, BMS requirements, sample quantity and estimated volume demand.
