Misen 119Ah NMC Pouch Cell – 3.7V 440.3Wh High-Energy EV Battery Cell

Model: K119
Cell Chemistry: NMC Lithium-ion Pouch Cell
Cell Grade: Grade A

Brand:
Misen
Cell Grade:
Grade A
Nominal Capacity:
119Ah
Nominal Voltage:
3.7v
Weight:
1620g
Size(mm):
548 × 103 × 12.9 mm
Cycle Life:
≥ 3000 times

Quantity:
Availability:





Inquire Add to Basket

Product Overview

Key Features

Technical Parameters

Design & Dimensions

Application

Product Overview

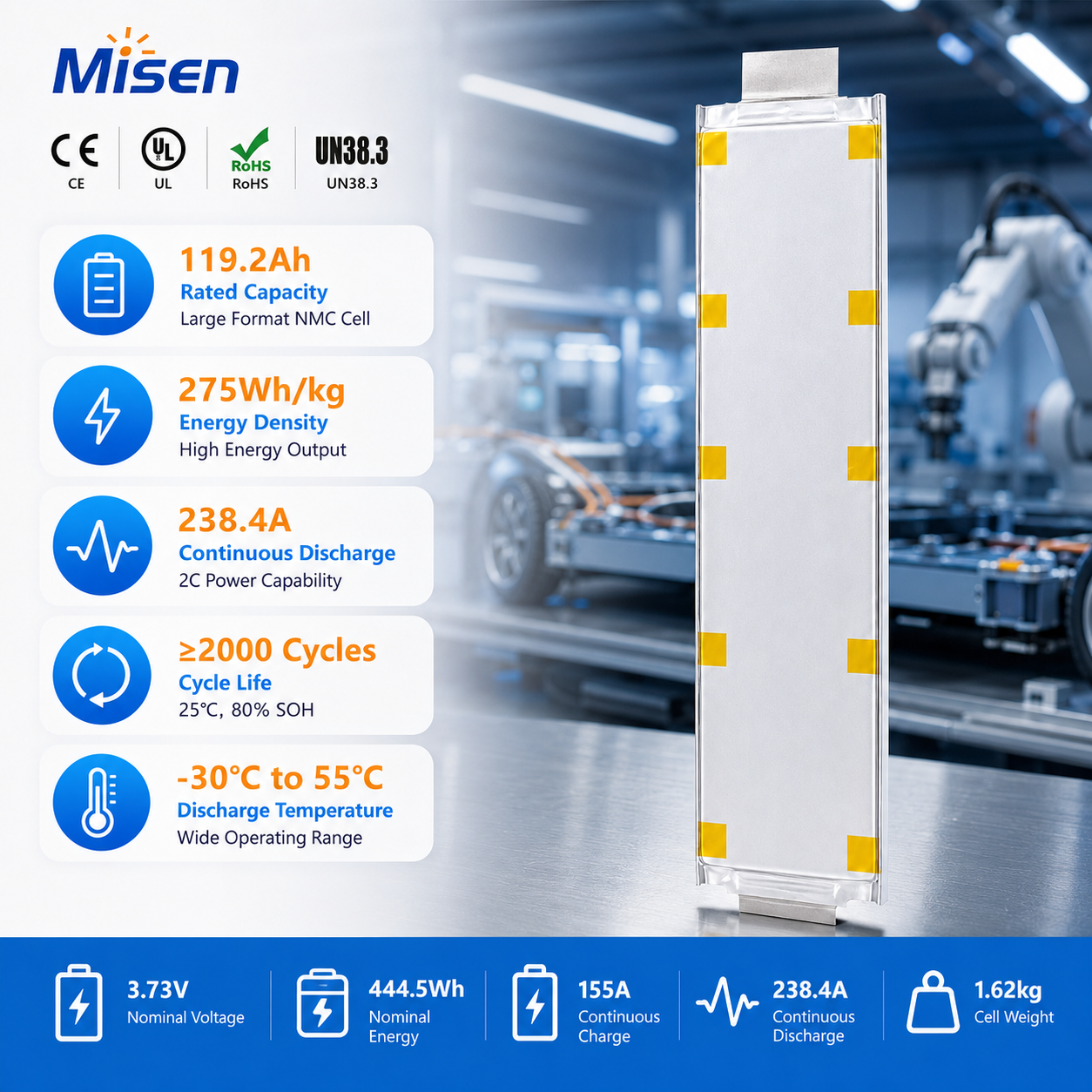

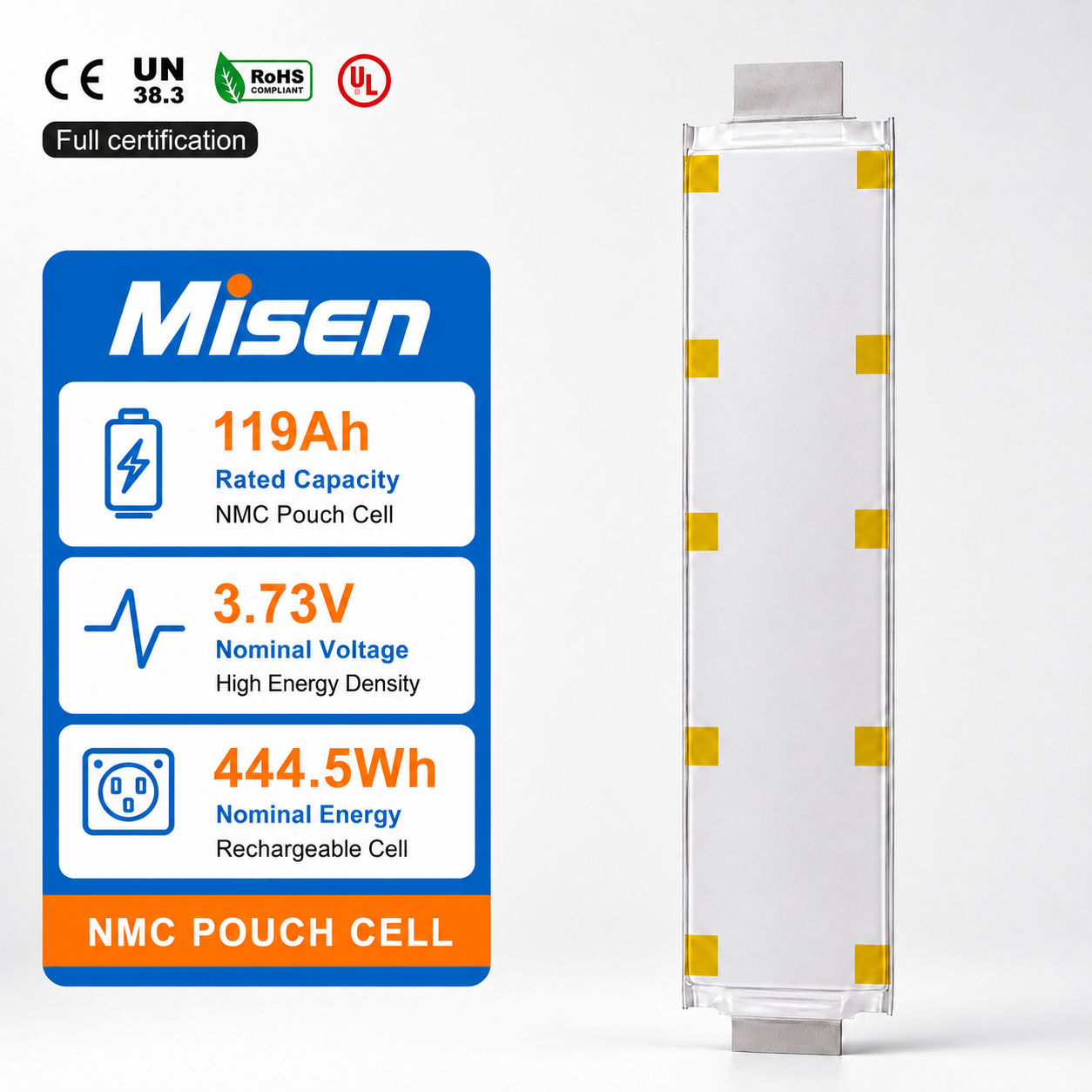

The Misen 119Ah is a high energy density Lithium-ion NMC pouch cell designed for electric vehicles, EV battery retrofit, commercial vehicles, marine systems, AGV, robotics, industrial battery packs and high-energy battery module projects. Its large-format pouch structure provides high single-cell energy, stable performance and flexible module integration for demanding power applications.

With a nominal voltage of 3.73V and a nominal capacity of 119.2Ah, the cell delivers approximately 444.5Wh of nominal energy. It uses 39.7A as the standard charge and discharge current and supports 155A continuous charging and 238.4A continuous discharging at 25°C. Fast charging from 15% to 80% SOC takes approximately 30 minutes under specified conditions.

Featuring an energy density of 275Wh/kg and 610Wh/L, the 119Ah pouch cell helps increase battery pack energy while maintaining efficient space and weight utilization. Its DC resistance of 1.0±0.2mΩ at 25°C and 50% SOC helps reduce voltage drop, heat generation and power loss during high-current operation.

The cell body measures approximately 548 × 103 × 12.9 mm, with an overall reference length of approximately 612 mm, and weighs 1.62±0.02 kg. It can be integrated into customized battery modules using BMS, busbars, insulation materials, compression structures, wiring, connectors and protective housings according to different project requirements.

The cell supports charging from -20°C to 55°C, discharging from -30°C to 55°C and storage from -40°C to 60°C. Under 0.5C charge, 1C discharge, 100% DOD and 25±2°C test conditions, cycle life reaches ≥2000 cycles with 80% SOH. It also supports ≥1500 cycles at 45°C under the specified cycle test conditions.

Specifications and performance data are based on specified laboratory test conditions. Actual performance may vary depending on the application, battery system design and operating environment. Detailed technical documentation is available upon request.

Key Features

High Energy Lithium-ion Pouch Cell
The Misen 119Ah is a high energy density lithium-ion NMC pouch cell designed for electric vehicles, EV battery retrofit, commercial vehicles, marine systems, AGV, robotics and customized high-energy battery modules.
119.2Ah Large Capacity and 444.5Wh Energy
Features 3.73V nominal voltage and 119.2Ah nominal capacity, delivering approximately 444.5Wh nominal energy for high-energy battery pack and module integration.
High Energy Density Design
Provides energy density of 275Wh/kg and 610Wh/L, helping increase battery pack energy while maintaining efficient space and weight utilization in electric mobility and industrial power applications.
Stable Charge and Discharge Performance
Uses 39.7A as the standard charge and discharge current and supports 155A continuous charging and 238.4A continuous discharging at 25°C. Fast charging from 15% to 80% SOC takes approximately 30 minutes under specified conditions.
Low Internal Resistance and Long Cycle Life
Features DC resistance of 1.0±0.2mΩ at 25°C and 50% SOC, helping reduce voltage drop, heat generation and power loss. Cycle life reaches ≥2000 cycles at 25°C and ≥1500 cycles at 45°C under the specified test conditions.
Wide Operating Temperature Range
Supports charging from -20°C to 55°C, discharging from -30°C to 55°C and storage from -40°C to 60°C, making it suitable for electric mobility, marine and industrial power systems.

Technical Parameter

Brand	Misen	Model	119Ah NMC Pouch Cell
Cell Chemistry	Lithium-ion NMC	Cell Type	Lithium-ion Pouch Cell
Nominal Voltage	3.73V	Nominal Capacity	119.2Ah
Voltage Range	2.8V ~ 4.35V	Nominal Energy	444.5Wh
Energy Density	275Wh/kg, 610Wh/L	DC Resistance	1.0±0.2mΩ
Continuous Charge Current	155A	Continuous Discharge Current	238.4A / 2C
Fast Charge	15% ~ 80% SOC, Approx. 30 min	Cycle Life	≥2000 Cycles at 25°C; ≥1500 Cycles at 45°C
Operating Temperature (Charge)	-20°C ~ 55°C	Operating Temperature (Discharge)	-30°C ~ 55°C
Dimensions (W × L × T)	103 × 548 × 12.9 mm; 612 mm Overall Length (REF.)	Weight	1.62±0.02kg
Certification	Please Confirm Available Documents Before Ordering	Application	EV, EV Retrofit, Commercial Vehicle, Marine, AGV and Robotics

All parameters are based on specified laboratory test conditions. Actual performance may vary depending on test methods, operating conditions, battery system design and batch consistency.

Design & Dimensions

The Misen 119Ah lithium-ion NMC pouch cell is designed for high-energy vehicle and industrial battery systems, offering high single-cell energy, strong discharge capability and flexible module integration. The dimensions below provide key references for module design, cell layout planning, compression structures, insulation and customized battery pack development.

Cell Body Size (W × L): 103±1 mm × 548±1 mm
Overall Length Including Tabs: Approximately 612 mm (REF.)
Cell Thickness (T): 12.9±0.2 mm
Cell Weight: 1.62±0.02 kg
Design Advantage: 119.2Ah large-capacity pouch cell with 444.5Wh nominal energy, 275Wh/kg gravimetric energy density and 610Wh/L volumetric energy density for compact, lightweight and high-energy battery module design.
Assembly Suggestion: Reserve sufficient space for tab connection, compression fixtures, insulation materials, busbars, BMS wiring, thermal management and protective structures during battery module and pack assembly.

Notes: The 548 mm value refers to the main cell body length, while the approximately 612 mm overall reference length includes the exposed tabs. Thickness and weight are measured under specified test conditions. Confirm the latest engineering drawing, dimensional tolerances and compression requirements before tooling, module design or mass production.

Application

The Misen 119Ah lithium-ion NMC pouch cell is designed for high-energy battery systems requiring high single-cell energy, strong discharge performance, fast charging and efficient module integration. Typical applications include the following electric mobility, marine and industrial power projects:

Electric Vehicles & EV Battery Retrofit
Suitable for passenger electric vehicles and battery retrofit projects requiring 444.5Wh single-cell energy, 275Wh/kg energy density and 238.4A continuous discharge capability.
Commercial & Utility Vehicles
Can be used in electric buses, trucks, utility vehicles and specialized electric mobility platforms where high energy, reliable power output and efficient battery module design are important.
Marine & Unmanned Surface Vehicles
Applicable to electric boats, marine equipment and USV battery systems requiring a lightweight pouch structure, high energy density and stable discharge performance.
AGV, Robotics & Industrial Equipment
Suitable for AGV battery packs, mobile robots, automated equipment and industrial power systems where high single-cell energy and strong continuous discharge help improve runtime and system performance.
Customized Battery Modules & Packs
Can be integrated into customized lithium battery modules using BMS, busbars, insulation materials, compression fixtures, thermal management, connectors and protective structures according to project requirements.

Application suitability may vary depending on system voltage, series-parallel configuration, pack structure, current demand, thermal management, operating conditions and regulatory requirements. Please consult our technical team for cell selection, module evaluation and battery pack integration support.
