Misen Catl Ncm 14.8V 4S1P 195Ah Lithium Ion Nissan Leaf Electric Car Module Nmc Battery Pack

Combining CATL’s advanced NMC cells with optimized structural design, this module delivers a 15% higher energy-to-weight ratio than standard modules, ideal for space-constrained EV applications .

Model:
14.8V 195Ah
Cell Grade:
Grade A
Nominal Capacity:
195Ah
Nominal Voltage:
14.8V
Cycle Life:
1500 times (80% of initial capacity at 0.2C rate, IEC Standard)

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

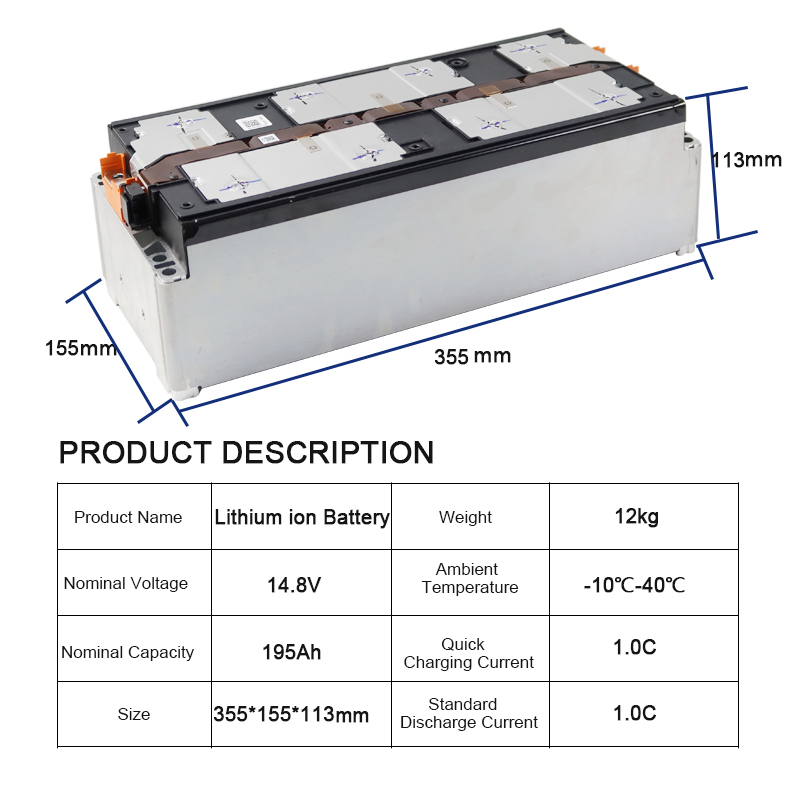

Technical Parameters

Nominal Voltage(V)：	14.8V
Discharge cut-off voltage：	14.8V
Nominal Capacity(mAh)：	195AH
1Max charge current：	1C
Max discharge current：	3C
Internal Resistance：	＜0.4mΩ
Charge Temperature(℃)：	0~45Centigrade
Discharge Temperature(℃)：	-20~60Centigrade
Storage Temperature(℃)：	-20~45Centigrade
Cycle life：	4000times

Product Description

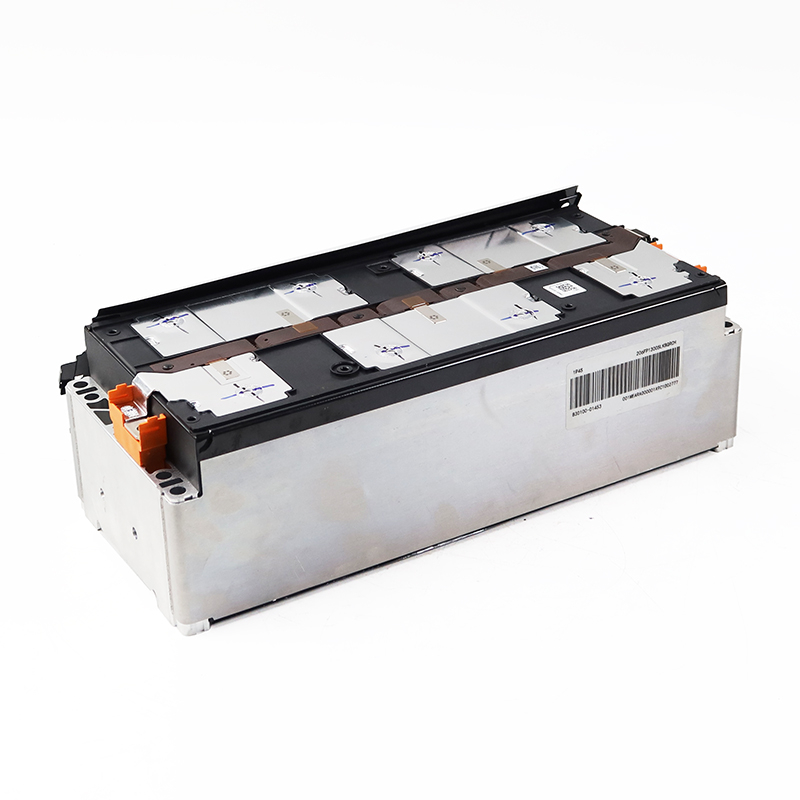

A high-capacity lithium-ion battery module engineered for electric vehicles and renewable energy systems, featuring a 4-cell series configuration (4S1P) with 195Ah capacity and automotive-grade NMC chemistry.

Key Features

1. Automotive-Grade Design

- CATL prismatic cells for high energy density and thermal stability .

- IP65-rated enclosure with shock/vibration resistance .

2. Smart Integration

- Pre-installed balancing harness and CAN communication interface for BMS compatibility .

- Laser-welded busbars to minimize resistance (<2.5mΩ) .

3. Safety & Compliance

- Certified to CE, UN38.3, and MSDS standards .

- Multi-layer protection against overcharge, short circuits, and thermal runaway .

Application

- Electric vehicles (cars, scooters, golf carts) .

- Renewable energy storage systems .

- Auxiliary power units for RVs and marine equipment .

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
