Misen Factory Wholesale Svolt 8S1P 86Ah 29.6v 30kwh NCM Lithium Rechargeable Battery Module Pack for RV Ev Vehicles

Misen Factory Wholesale Svolt 8S1P 86Ah 29.6v 30kwh NCM Lithium Rechargeable Battery Module Pack for RV Ev Vehicles

Introducing the 29.6V 86Ah Module Battery, a high-performance lithium-ion power solution designed for modern electric vehicles (EVs) and energy-intensive applications. Built with cutting-edge Nickel Manganese Cobalt (NMC) chemistry, this battery module delivers exceptional energy density, reliability, and adaptability across diverse environments.

Model:
29.6VV 86Ah
Cell Grade:
Grade A
Nominal Capacity:
86Ah
Nominal Voltage:
29.6V
Cycle Life:
1500 times (80% of initial capacity at 0.2C rate, IEC Standard)

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

Technical Parameters

Nominal Voltage(V)：	29.6V
Nominal Capacity(mAh)：	86AH
1Max charge current：	1C
Max discharge current：	3C
Internal Resistance：	＜1.5mΩ
Charge Temperature(℃)：	0~45Centigrade
Discharge Temperature(℃)：	-20~60Centigrade
Storage Temperature(℃)：	-20~45Centigrade
Cycle life：	4000times

Product Description

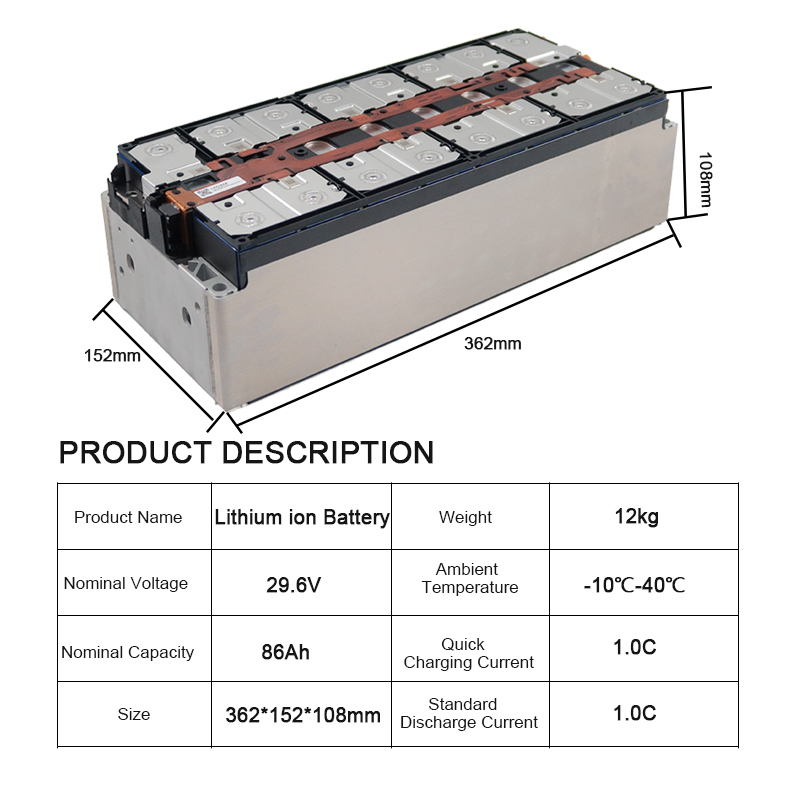

8S1P 86Ah EV Battery Module
A high-performance lithium-ion battery module designed for electric vehicles and energy storage systems, featuring 8 cells in series (8S1P) configuration with 86Ah capacity.

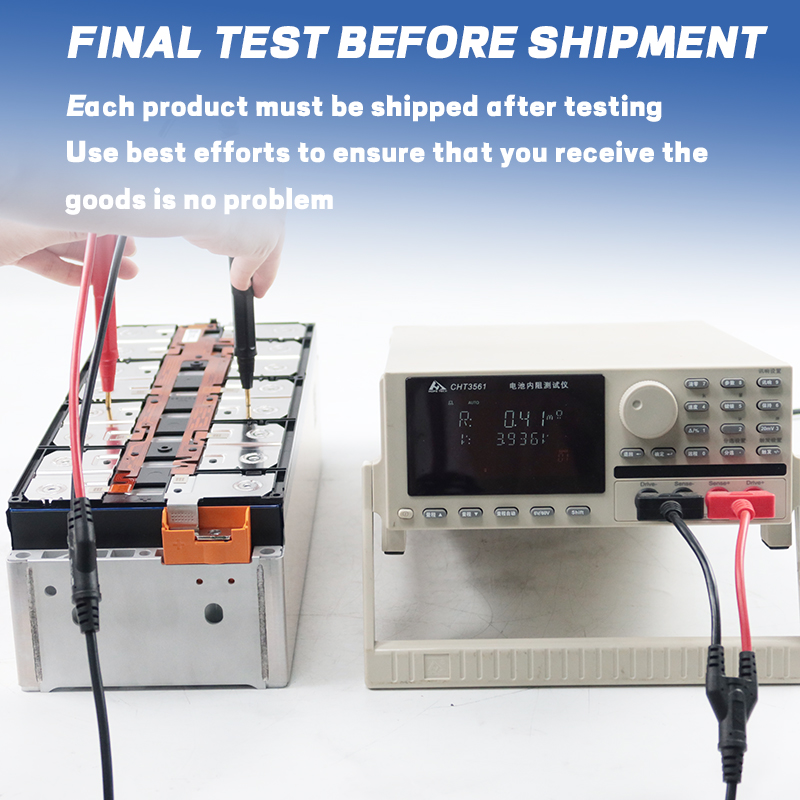

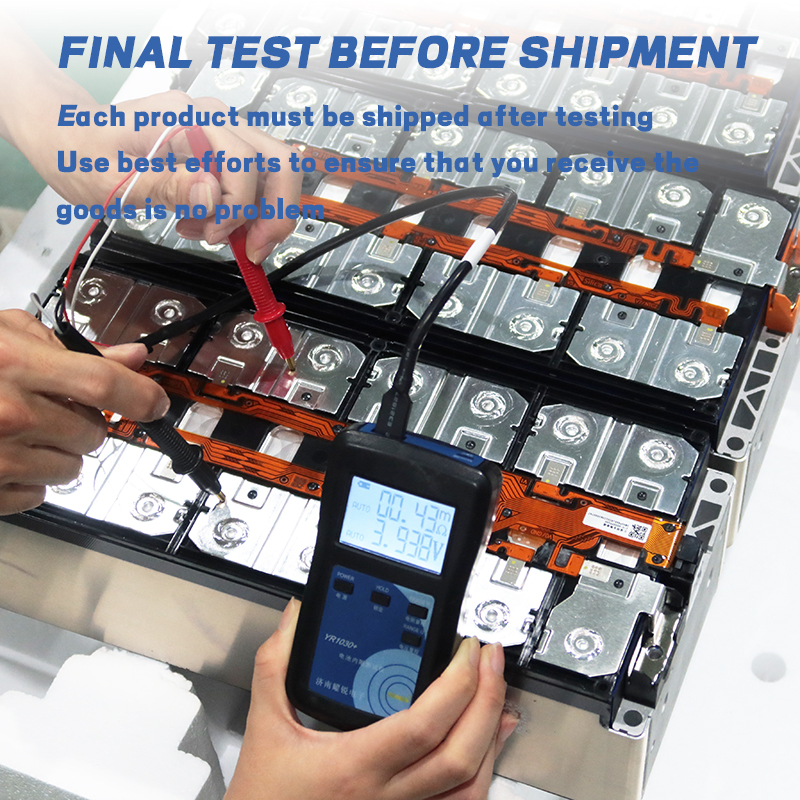

*All cells will be matched (voltage, capacity, resistance) before delivery. If need more please contact us online.

蜂巢 8S1P 86Ah (2)

Key Features

1. EV-Grade Construction

- Laser-welded busbars ensure low impedance connections

- IP65-rated enclosure with shock-resistant design

2. Smart Compatibility

- Pre-installed voltage balancing harness

- Standard CAN communication interface for BMS integration

3. Certified Safety

- CE, UN38.3, and MSDS certified

- Built-in thermal runaway protection

Application

- Electric vehicle battery packs (cars, scooters, golf carts)

- Renewable energy storage systems

- RV/Marine auxiliary power units

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
