GBT 3.7V 32Ah Pouch Cell NMC Battery

GBT 3.7V 32Ah Pouch Cell NMC Battery
High-Energy Density, Flexible Power Solution for Modern Applications

Brand:
Other
Model:
3.7V 32ah
Cell Grade:
Grade A
Nominal Capacity:
32Ah
Nominal Voltage:
3.7v
Weight:
0.5kg
Size(mm):

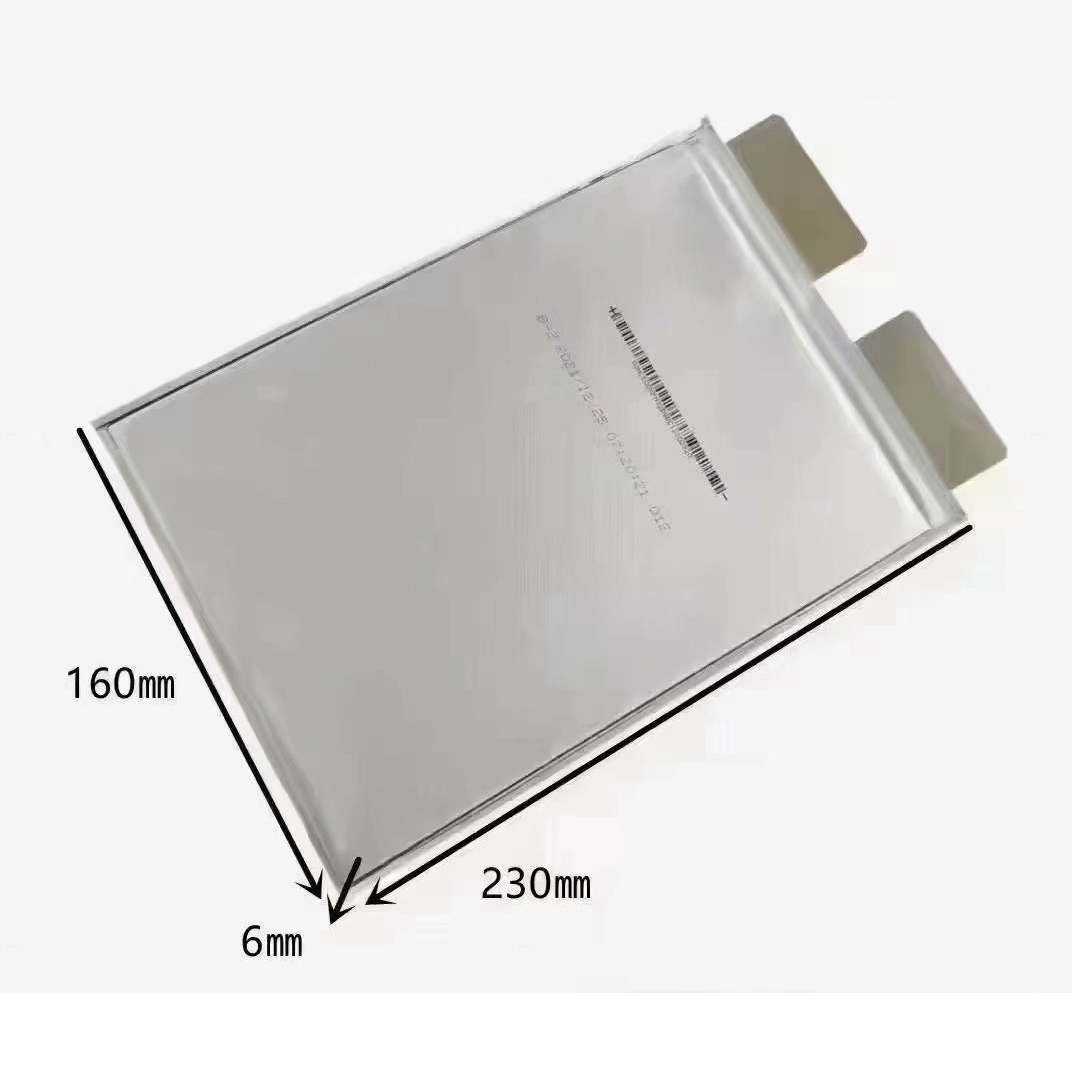

6.0*160*230mm
Cycle Life:
≥ 6000 times

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Introduction

Key Features

Application

Factory

Technical Parameters

Rated Capacity	32Ah (118.4Wh)
Nominal Voltage(V)：	3.7v
The charging ratio	3C continuous (0-45°C)
The discharge rate	5.6C
Chargeable	Yes
Nominal Capacity	32ah
Cycle Life	3000+ cycles @ 80% DoD
Weight	0.5kg
Dimensions (LWH)	6.0160230mm
Applications	Electric Power Systems,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle,used cars and so on.

Product Introduction

Electrical Performance

Charge Voltage: 4.2V

Standard Charge: 0.5C (16A)

Max Continuous Discharge: 1C (32A)

Peak Discharge (Pulse): 3C (96A)

Internal Resistance: ≤ 3.0 mΩ

Self-Discharge: < 3% per month at 25°C

Mechanical & Environmental

Pouch Material: High-strength aluminum laminate film.

Terminals: Ultrasonically or laser-welded tabs (configurable).

Robustness: Designed to meet standard vibration and shock requirements.

3.7v 32ah 1

Key Features

High Energy Density

NMC chemistry provides superior energy-to-weight and energy-to-volume ratios.

Enables longer runtime or reduced battery pack size for end products.

Flexible Pouch Design

Lightweight and adaptable form factor allows for custom-shaped battery packs.

Efficient use of irregular spaces within product designs.

Stable Performance

Consistent discharge voltage plateau for reliable power delivery.

Good rate capability supporting moderate to high power demands.

Enhanced Safety Features

Multi-layer laminated pouch structure with built-in safety mechanisms.

Stable electrochemical performance under standard operating conditions.

Wide Operating Range

Reliable functionality across a broad temperature spectrum.

Suitable for both indoor and outdoor applications.

Application

Light Electric Vehicles: E-bikes, e-scooters, electric motorcycles

Portable Power Stations: High-capacity mobile energy storage

Consumer Electronics: High-end drones, professional-grade power tools

Medical & Robotics: Portable medical devices, service and logistics robots

Backup Power: Compact UPS systems for networking and telecom

173ah (1)

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.

Certificate
