Home / Product / NCM Battery / NCM Pouch Cell / LG 3.7V 71Ah E71 NMC Rechargeable Pouch Cell Battery

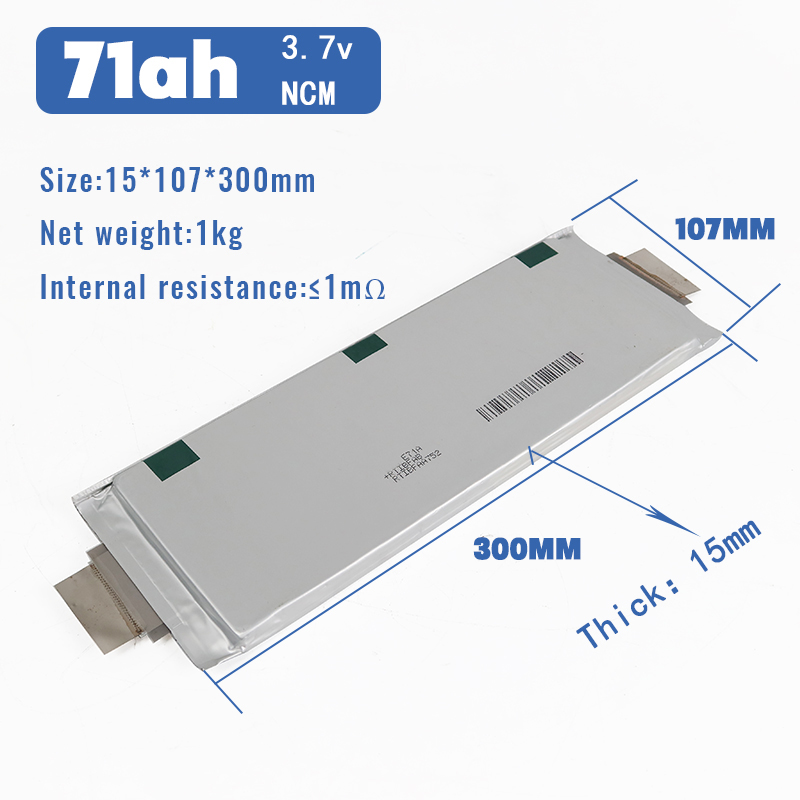

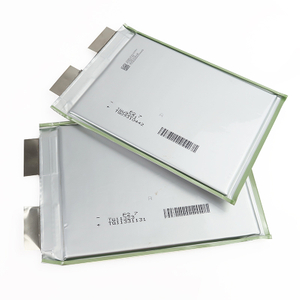

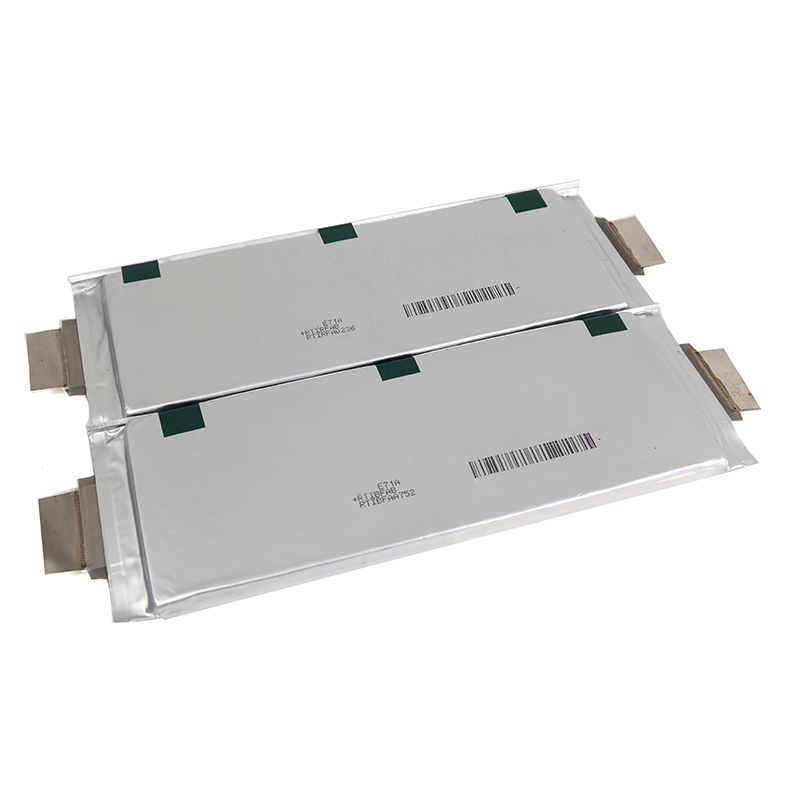

LG 3.7V 71Ah E71 NMC Rechargeable Pouch Cell Battery

The LG 3.7V 71Ah E71 NMC Pouch Cell Battery is a high-capacity, high-efficiency lithium-ion energy solution designed for large-scale energy storage and heavy-duty electric mobility.

Brand:
LG
Model:
NMC E71
Cell Grade:
Grade A
Nominal Capacity:
71Ah
Nominal Voltage:
3.7V
Weight:
1000g (estimated based on similar models)
Size(mm):
14*105*300mm
Cycle Life:
More than 2000 time

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

Technical Parameters

Nominal voltage	3.7V
Real Capacity	71Ah
Battery type	NMC
Internal resistance	≤ 0.6mΩ
Over charge cut-off voltage	4.2±0.05V
Continuous discharge current	71A 3C
Discharge Cut-off voltage	2.50V
Life cycles	More than 2000 time
Dimensions mm	14105300MM
Charge Voltage	~4.2V (standard for NMC cells)
Weight	1000g (estimated based on similar models)

Overview

✔ Chemistry: LiNiMnCoO₂ (NMC) – Optimized for energy density & longevity
✔ Nominal Voltage: 3.7V
✔ Capacity: 71Ah (263Wh per cell)
✔ Energy Density: ~250-270Wh/kg (industry-leading for pouch cells)
✔ Cycle Life: 2,000+ cycles (to 80% capacity at 0.5C/0.5C cycling)
✔ Charge/Discharge Rate:

Continuous: 1C (71A)
Peak (10s): 3C (213A)
✔ Operating Temperature Range:
Charge: 0°C to 45°C
Discharge: -20°C to 60°C (with derating below 0°C)
✔ Weight: ~1.1kg (lightweight for its capacity)

Key Features

✅ Unmatched Energy Storage

71Ah capacity provides 30-50% more energy than standard industrial pouch cells, reducing the number of cells needed in large battery systems.

✅ Superior Power & Efficiency

1C continuous / 3C peak discharge supports high-power applications without excessive voltage drop.

✅ Long Lifespan & Reliability

2,000+ cycles at 80% depth of discharge (DOD) ensures 5-10 years of service in most applications.

✅ Space-Saving Pouch Design

Slim 12mm profile allows for high-density stacking in battery modules, optimizing pack volume.

✅ Scalable for Large Systems

Ideal for 48V to 800V battery configurations, making it perfect for EV buses, ESS, and grid storage.

Application

Electric Vehicles (EVs) & Heavy-Duty Transport

Electric buses, trucks, and commercial fleets
Last-mile delivery vehicles & utility EVs
Marine & aviation auxiliary power

Energy Storage Systems (ESS)

Grid-scale battery storage (peak shaving, renewable integration)
Industrial & commercial backup power
Solar + storage hybrid systems

Industrial & High-Power Equipment

AGVs (Automated Guided Vehicles) & robotics
Forklifts, cranes, and heavy machinery
Telecom backup power & data center UPS

⚡ Specialized High-Energy Applications

Off-grid power systems
Military & aerospace energy solutions
Large-scale portable power stations

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
