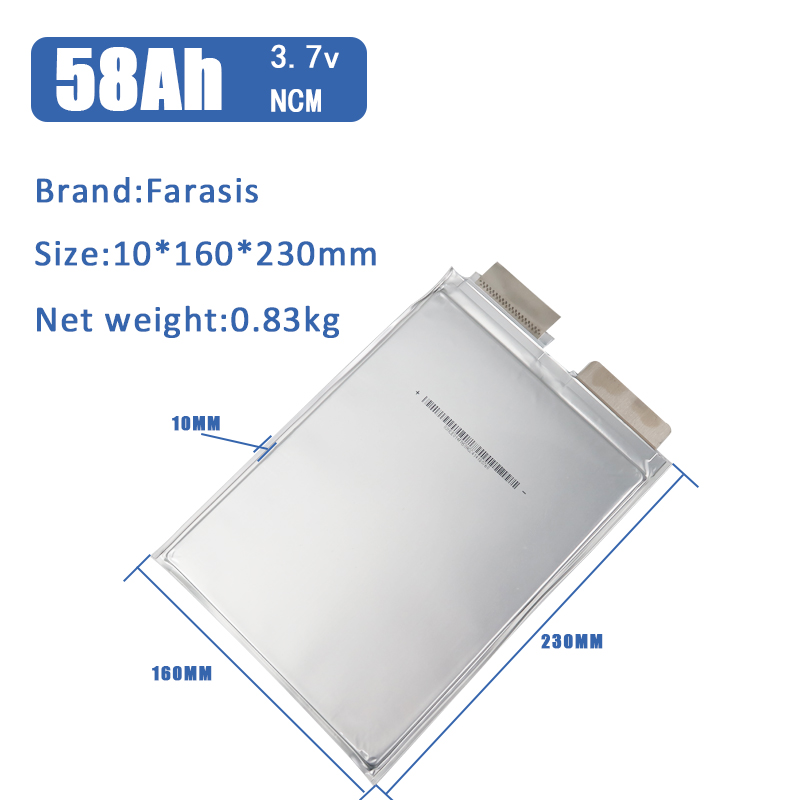

Farasis P53A 53Ah 3.7V NMC Lithium Pouch Battery Cell

Farasiss P53B P58 3.7V 58Ah Solar NMC Pouch Cell: High-Capacity Power for Electric Bikes

Brand:
Farasis
Model:
Farasiss P53B
Cell Grade:
Grade A
Nominal Capacity:
58ah
Nominal Voltage:
3.7v
Weight:
0.83kg
Size(mm):
10*160*230mm
Cycle Life:
≥ 2,000 times

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

Technical Parameters

Rated Capacity	53Ah
Nominal Voltage(V)：	3.7v
Cycle life	2000 Times
The charging ratio	1C
The discharge rate	3C
Chargeable	Yes
Nominal Capacity	53ah
Cycle Life	≥ 2,000 times
Weight	0.83kg
Dimensions (LWH)	10160230mm
Applications	Electric Power Systems,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle,used cars and so on.

The Farasiss P53B P58 3.7V 58Ah Lithium-Ion Polymer (LiPo) Pouch Cell—powered by advanced Nickel Manganese Cobalt (NMC) chemistry and designed for solar compatibility—meets this demand head-on. Tailored exclusively for e-bikes, this battery delivers exceptional range, durability, and convenience, making it the perfect upgrade for both personal and commercial users.

Brand	Module	SIZE (mm)	V&AH	Initial IR (1kHz)	KG
LG	L10D	13811143mm	2.3V 10Ah	≤0.5mΩ	0.35kg
	20A	14014145mm	3.2V 20Ah	≤0.5mΩ	0.37kg
	P1.7	1645225mm	3.7V 17Ah	≤1.2mΩ	0.4kg
	P2.7	1647.5232mm	3.7V 27Ah	≤1.2mΩ	0.6kg
	P34/P34B	1647.5232mm	3.7V 34Ah	≤0.8mΩ	0.6kg
	P37	1408266mm	3.7V 37Ah	≤0.8mΩ	0.65kg
	E41	12160190mm	3.7V 41Ah	≤0.7mΩ	0.95kg
	A7	34810145mm	3.7V 50Ah	≤1.0mΩ	0.9kg
	E63B	301.514.399.7mm	3.7V 60Ah	≤0.8mΩ	0.9kg
	E61	1009.8352mm	3.7V 61Ah	≤0.8mΩ	0.8kg
	JH3	16100350mm	3.7V 63Ah	≤0.5mΩ	1.84kg
	JP3	16100355mm	3.7V 63Ah	≤0.5mΩ	1.16kg
	E66	11.398357mm	3.7V 66Ah	≤1.2mΩ	0.9kg
	E71	30015107mm	3.7V 71Ah	≤0.8mΩ	1kg
	E76	32512145mm	3.7V 76Ah	≤0.8mΩ	1.15kg
	E78	5488100mm	3.7V 78Ah	≤0.8mΩ	1.12kg
SK	C33/E305	7.6210195mm	3.7V 30.5Ah	≤0.7mΩ	0.6kg
	S26/B26	10100320mm	3.7V 40Ah	≤0.8mΩ	0.65kg
	S11/B11	11174188mm	3.7V 43Ah	≤0.6mΩ	0.75kg
	D21	11100300mm	3.7V 50.5Ah	≤0.7mΩ	0.8kg
	S28/B28	9.5100354mm	3.7V 55.6Ah	≤0.7mΩ	0.75kg
	D23	14100300mm	3.7V 60Ah	≤0.8mΩ	085kg
	N60/E710A	11.5102342mm	3.7V 61Ah	≤0.6mΩ	0.9kg
	S22/B22	12125365mm	3.7V 75Ah	≤0.5mΩ	0.9kg
	S003A	14.5102.5531mm	3.7V 120Ah	≤0.6mΩ	1.7kg
Farasis		6160230mm	3.7V 29Ah	≤1.0mΩ	0.5kg
		7160230mm	3.7V 32Ah	≤0.9mΩ	0.6kg
		10161231mm	3.7V 53Ah	≤1.0mΩ	0.8kg
		10160230mm	3.7V 58Ah	≤0.7mΩ	0.83kg
		14.3294103mm	3.7V 73Ah	≤0.8mΩ	0.95kg
		8.2101542mm	3.7V 75Ah	≤0.7mΩ	1.05kg
		14295105mm	3.7V 76Ah	≤0.8mΩ	0.95kg

Key Features

1. Massive 58Ah Capacity for Extended Range

With a nominal voltage of 3.7V and a whopping 58Ah capacity, this cell stores 214.6Wh of energy—enough to power most e-bikes for 120–180 km per charge (depending on e-bike efficiency, terrain, and rider weight). This eliminates range anxiety for daily commuters, delivery drivers, and adventure seekers alike.

2. Solar Charging Compatibility

A unique standout feature: the battery is optimized for solar charging. Compatible with 12–24V solar panels or portable solar chargers, it allows you to top up the battery using renewable energy while parked (e.g., at work, during a hike) or on the go. This is a game-changer for:

Riders in areas with limited access to power outlets.
Delivery drivers looking to extend their workday without frequent stops.
Outdoor enthusiasts exploring remote trails.

3. Advanced NMC Chemistry for Durability

The battery uses Nickel Manganese Cobalt (NMC) cathode material—one of the most reliable chemistries for e-mobility—offering:

High energy density: More power in a compact form factor (critical for e-bike weight balance).
Long cycle life: Supports 500+ charge/discharge cycles (at 80% depth of discharge, DoD), meaning fewer replacements and lower long-term costs.
Thermal stability: Performs safely in extreme temperatures (-20°C to 60°C), making it suitable for all climates.

Application

1. Daily Urban Commuting

Ideal for commuters who travel 20–50 km daily (e.g., from suburbs to city centers). The 58Ah capacity eliminates the need to recharge mid-day, and solar charging lets you top up at work or a café.

2. Food & Package Delivery

Perfect for delivery drivers (Uber Eats, Amazon Flex, etc.) who spend 8+ hours on the road. The long range and solar charging ensure consistent power—no more stopping to recharge and losing income.

3. Outdoor Adventure

Great for off-road e-bike enthusiasts exploring remote trails or camping. Solar charging keeps you going when there’s no access to electricity, and the durable NMC chemistry handles rough terrain.

4. Shared E-Bikes

Ideal for shared mobility platforms (e.g., Lime, Jump) that need reliable, long-lasting batteries. The 500+ cycles reduce operational costs by minimizing battery swaps, and solar charging extends fleet uptime.

5. Cargo E-Bikes

Perfect for businesses using cargo e-bikes to transport goods (e.g., groceries, tools). The high capacity supports heavy loads, and solar charging ensures you never run out of power during deliveries.

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
