Kokam SLPB125255255G1H 85Ah 12C High Discharge Lithium-Ion Pouch Cell

Model: Kokam SLPB125255255G1H 3.7V 85Ah Pouch Cell
Type: High Power Lithium-Ion NMC Pouch Cell
Chemistry: LiNiMnCoO₂ (NMC)

Brand:
Other
Model:
3.7V 85ah
Cell Grade:
Grade A
Nominal Capacity:
85Ah
Nominal Voltage:
3.7v
Weight:
1.6kg
Size(mm):
268*265*11.9mm
Cycle Life:
≥ 6000 times

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Introduction

Key Features

Application

Factory

Technical Parameters

Model	Kokam SLPB125255255G1H
Rated Capacity	85Ah / 312.8Wh
Nominal Voltage	3.68V
Charging Rate	3C Continuous @ 25±3°C
Discharge Rate	8C Continuous / 12C Peak (≤10s)
Rechargeable	Yes
Nominal Capacity	85Ah
Cycle Life	≥6000 cycles @ 90% DOD, 1C/1C, 25±3°C
Weight	Max. 1.735kg
Dimensions (W × L × T)	268 × 265 × 12.6mm
Internal Resistance	≤0.4mΩ AC @ 1kHz, SOC 30±5%
Voltage Range	2.7V - 4.2V
Certifications	UL1642, UL1973, UN38.3, IEC62619, UL9540A
Applications	EV, UAV, high-power ESS, robotics, racing vehicles, industrial battery packs and high-current power systems.

Product Introduction

The Kokam SLPB125255255G1H is a 3.68V 85Ah high power lithium-ion NMC pouch cell designed for applications requiring high discharge performance, low internal resistance, and long cycle life. With up to 8C continuous discharge and 12C peak discharge, this cell is suitable for EV battery packs, UAV power systems, robotics, high-power ESS, racing vehicles, and other industrial battery solutions.

This 85Ah pouch cell features a nominal energy of 312.8Wh, low AC internal resistance of up to 0.4mΩ, and a cycle life of over 6,000 cycles under 90% DOD test conditions. Its high power-to-energy balance makes it a strong option for battery pack manufacturers and system integrators looking for reliable high-current lithium-ion cells.

Kokam SLPB125255255G1H 85Ah high power lithium ion pouch cell

Key Features

High Power Discharge Performance
Supports 8C continuous discharge and 12C peak discharge (up to 1020A for 10 seconds)
Low internal resistance with stable voltage output under high current loads
Suitable for EV, UAV, racing, robotics, and industrial high-power systems
Low Internal Resistance
AC internal resistance as low as 0.4mΩ at SOC 30±5%
Reduced heat generation and improved power efficiency
Helps maintain strong acceleration and stable system performance
Long Cycle Life
Over 6,000 cycles under 90% DOD test conditions
Designed for long-term high-power cycling applications
Excellent balance between power output and service life
Lightweight Pouch Cell Design
Flexible pouch structure enables compact and custom battery pack layouts
High gravimetric and volumetric energy density
Suitable for applications requiring weight and space optimization
Certified Industrial Quality
Certified with UL1642, UL1973, UN38.3, IEC62619, and UL9540A
Suitable for commercial and industrial battery pack integration
Widely used in high-performance lithium battery systems

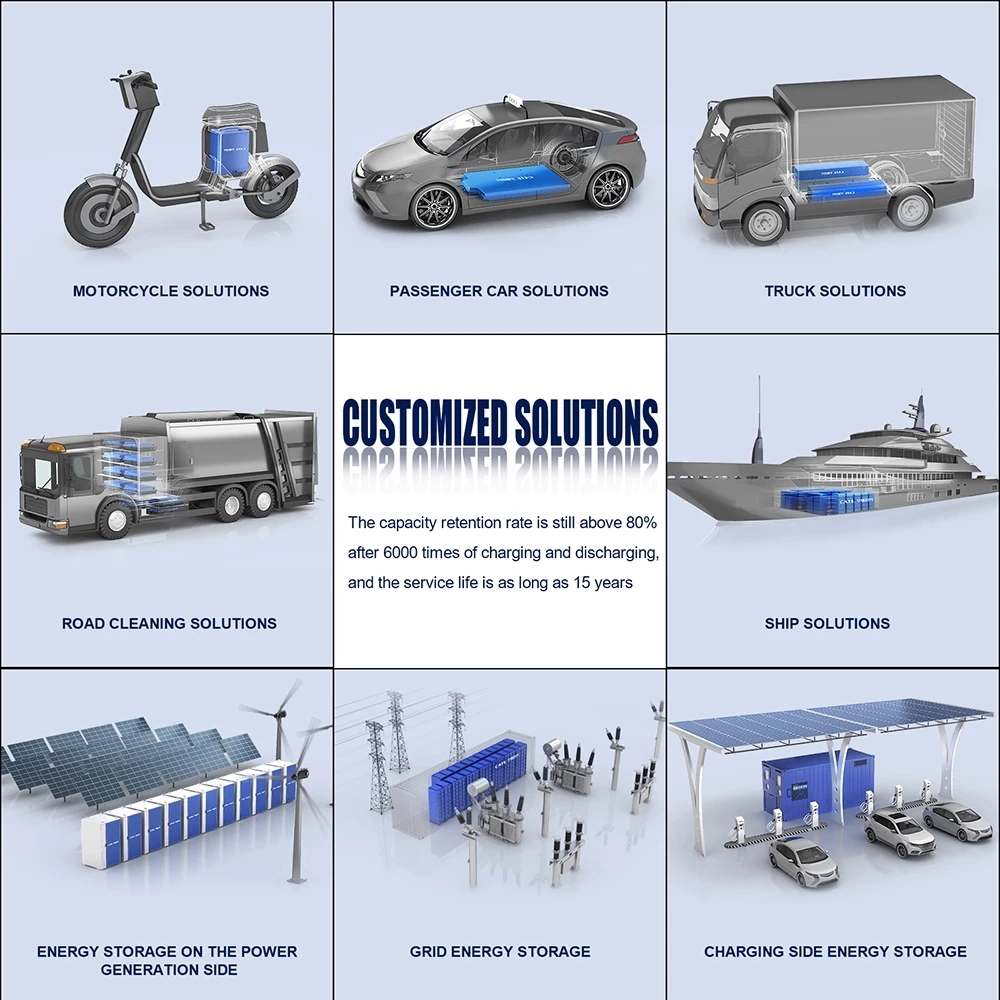

Application

Electric Vehicles (EV): High-performance EV battery packs, racing vehicles, and hybrid power systems.

UAV & eVTOL Systems: Suitable for drones, unmanned aircraft, and electric aviation applications requiring high discharge capability.

Energy Storage Systems (ESS): High-power ESS, peak shaving systems, and industrial backup energy solutions.

Robotics & AGV: Industrial robots, automated guided vehicles, and high-current automation equipment.

Marine Applications: Electric boats, marine propulsion systems, and high-power watercraft battery packs.

Portable & Industrial Power Systems: High-drain mobile power equipment, testing systems, and custom lithium battery pack integration.

85Ah
