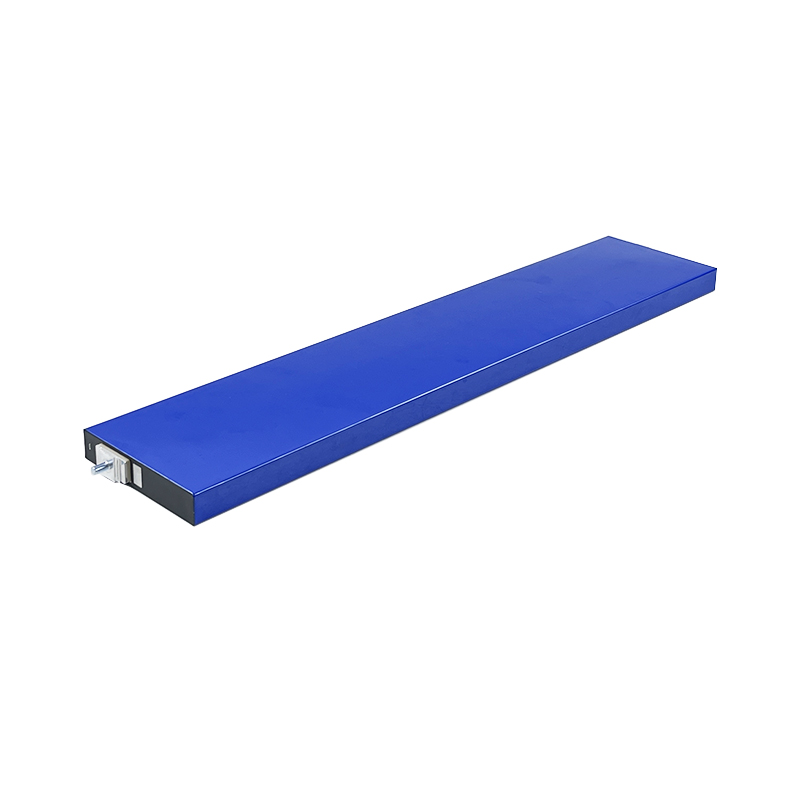

SVOLT
3.2V 184Ah
Grade A
184Ah
3.2V
3.35Kg ± 5 g

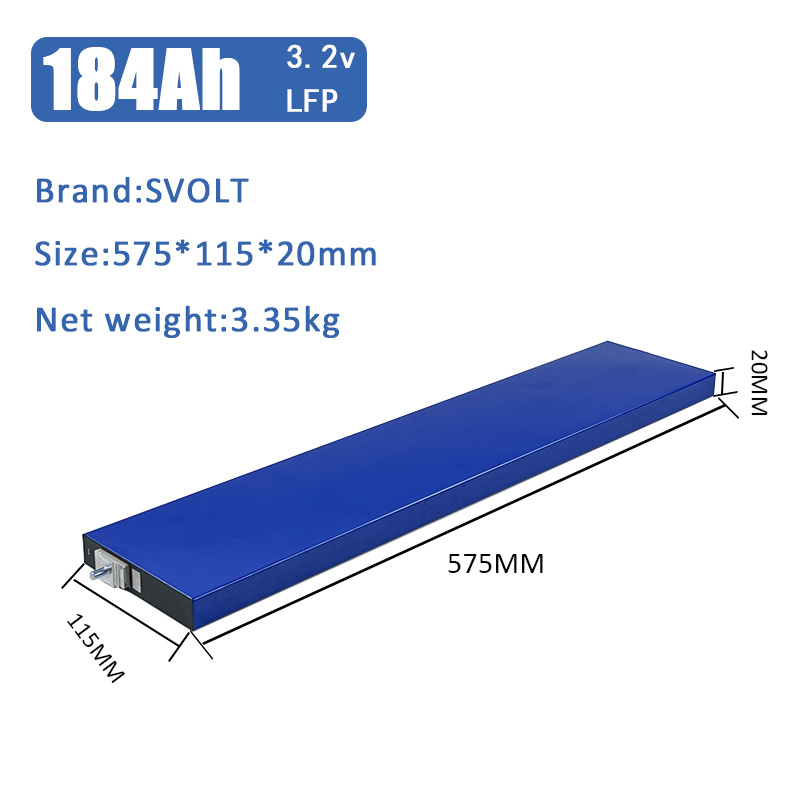

575*115*20MM
3000 times (80% of initial capacity at 0.2C rate, IEC Standard)
| Quantity: | |
|---|---|
Structural Design
Laser-welded aluminum alloy casing
Optimized internal structure for minimal resistance
Precision manufacturing for consistent performance
Performance Characteristics
Energy efficiency: >96% @ 0.5C rate
Self-discharge rate: <2% per month at 25°C
Low internal resistance for minimal voltage drop
Blade design integrates directly into pack structure, eliminating modules
40% higher space utilization compared to conventional prismatic cells
Significant reduction in pack components and assembly complexity
Enhanced Safety Performance
Thermal propagation resistance exceeding 30 minutes
Built-in flame retardant materials and pressure relief channels
Stable LFP chemistry with integrated thermal management channels
Exceptional Cycle Life
Engineered for over 6000 deep discharge cycles
Maintains >80% capacity after extensive cycling
20% longer cycle life compared to standard prismatic cells
Advanced Thermal Management
Integrated cooling channels enable direct cooling
Uniform temperature distribution (±3°C across cell surface)
Excellent thermal dissipation, 25% better than conventional designs
Superior Rate Performance
Continuous discharge capability: 1.5C (276A)
Peak discharge capability: 3C (552A) for 10 seconds
Fast charging supported up to 1C (184A)
Electric Vehicles: Structural battery packs for passenger EVs, commercial vehicles
Utility-Scale Energy Storage: Containerized ESS, grid-level storage projects
Marine Propulsion: High-capacity marine battery systems
Commercial Transport: Electric buses, trucks, and specialty vehicles
Stationary Storage: Large commercial and industrial backup power
Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.
These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.
We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.
Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
