CALB 3.7V 113Ah Prismatic NMC Battery Cell

The CALB 3.7V 113Ah Prismatic NMC Battery Cell delivers exceptional energy density and long cycle life in a compact, lightweight design.

Brand:
CALB
Manufacture:
Dongguan City, Guangdong
Model:
3.7V 113Ah
Cell Grade:
Grade A
Nominal Capacity:
113Ah
Nominal Voltage:
3.7V
Weight:
1.78Kg ± 5 g

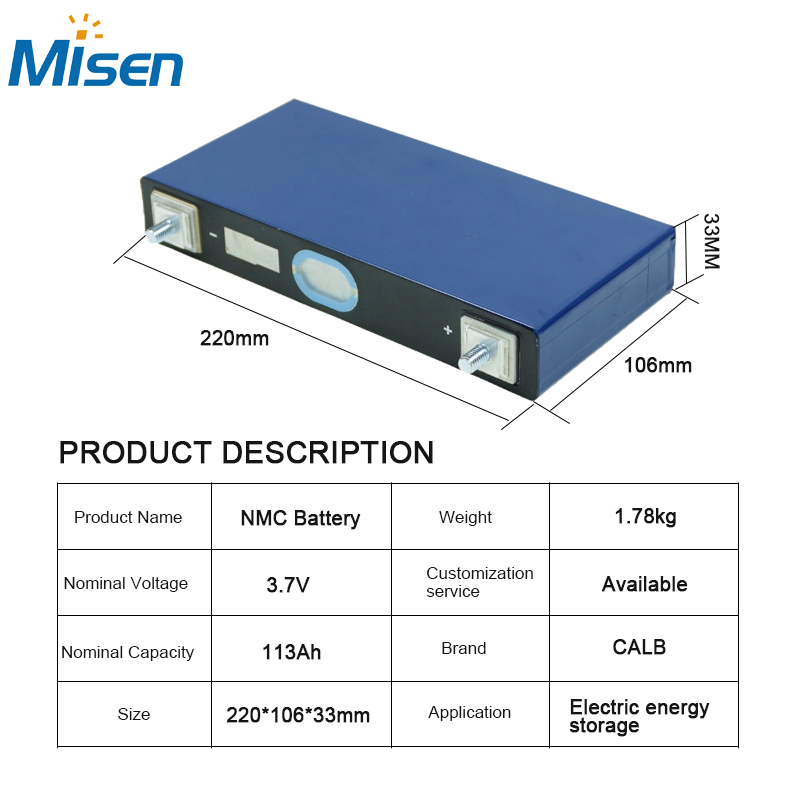

Size(mm):
220*106*33mm
Cycle Life:
≥ 3,000 times

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

Technical Parameters

Charging Rate

Model Number	CALB 3.7V 113Ah
Weight	1.78Kg ± 5 g
Storage Type	0 ℃ ~ 35 ℃(3months)
Product name	CALB 3.7V NMA battery
Nominal Capacity	113Ah
Nominal Electricity	235 Wh/kg
Peak Discharge	3C (339A) for 10 seconds
Charging Rate	High (NMC + ceramic)
Cycling Performance	0.5C standard (1C supported)
Storage Temperature	0 ℃ ~ 35 ℃(3months)
Charging Temperature	-10℃~60℃
Discharging Temperature	-35℃~65℃

Product Description

✅ The CALB 3.7V 113Ah Prismatic NMC Battery Cell delivers exceptional energy density and long cycle life in a compact, lightweight design. With dimensions of 220×106×33mm and weighing just 1.78kg, this cell is optimized for applications where space efficiency, reliability, and performance are critical. Ideal for electric vehicles, energy storage systems, and high-demand industrial applications.

✅ Economic Benefits

60% Lower Lifetime Cost vs. lead-acid (fewer replacements, no maintenance).
Space-Efficient: 30% smaller footprint than cylindrical cells of similar capacity.

✅ Customization Ready

Flexible Orientation: Can be mounted horizontally or vertically.
Scalable for 12V/24V/48V Packs (e.g., 4S1P = 12.8V/50Ah).

Key Features

⚡ Superior Energy Efficiency

418Wh per cell reduces the number of cells required in battery packs

540Wh/L volumetric density enables compact system design

Extended Service Life

2,500+ cycles at 80% depth of discharge – ideal for daily cycling applications

Low degradation rate – <20% capacity loss after 2,000 cycles

️ Enhanced Safety

Stable thermal performance – Resists thermal runaway propagation

UL/IEC/UN38.3 certified – Meets global safety standards

Space-Saving Design

33mm thickness allows efficient packing in battery modules

1.78kg weight reduces overall system mass

Application

⦁ Electric Mobility

Electric buses and commercial vehicles

Marine propulsion systems

Agricultural and construction equipment

⦁ Energy Storage Systems (ESS)

Grid-scale energy storage

Solar and wind energy integration

Industrial backup power systems

⦁ Specialized Applications

Telecommunications power backup

Medical equipment power systems

Aerospace and defense applications

大电芯应用

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
