Home / Product / NCM Battery / NCM Pouch Cell / Farasis 3.7V 76Ah P76D Pouch Cell NMC Li-ion Lithium Polymer Battery

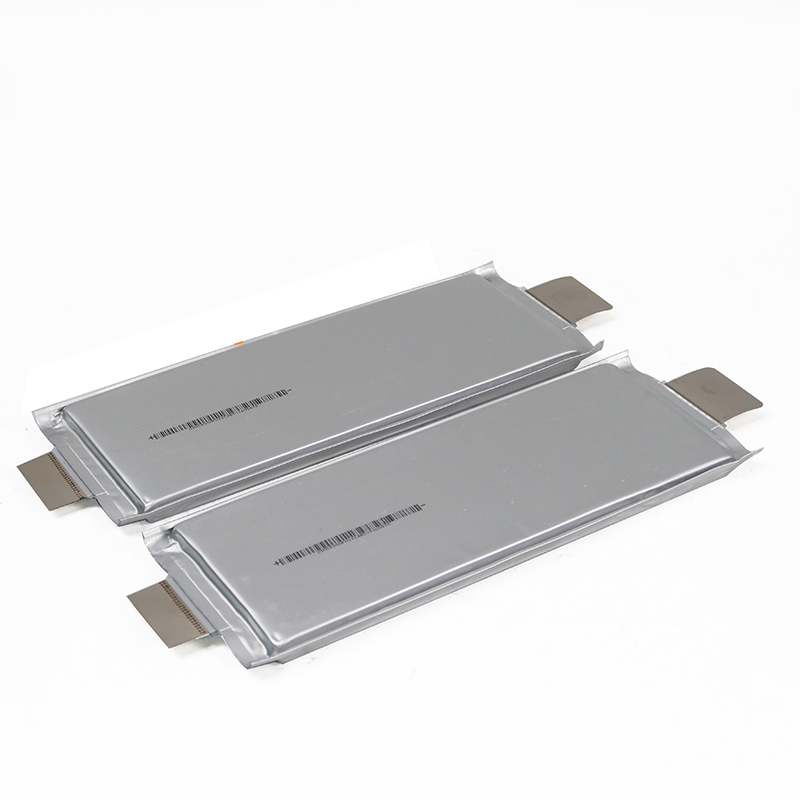

Farasis 3.7V 76Ah P76D Pouch Cell NMC Li-ion Lithium Polymer Battery

The Farasis 3.7V 76Ah NMC Pouch Cell represents the cutting edge of lithium polymer battery technology, delivering exceptional energy density, superior power output, and extended cycle life.

Brand:
Farasis
Model:
Farasis P76D
Cell Grade:
Grade A
Nominal Capacity:
76Ah
Nominal Voltage:
3.7v
Weight:
0.5kg

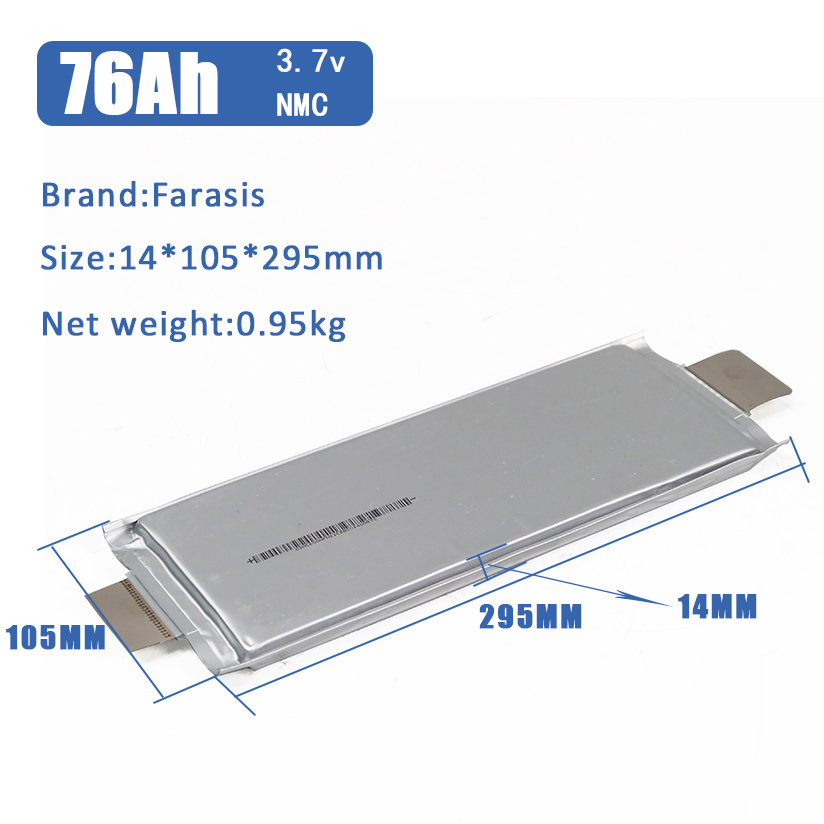

Size(mm):
14.4*105.5*294.4mm
Cycle Life:
≥ 3,000 times

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Introduction

Key Features

Application

Factory

Technical Parameters

Rated Capacity	76Ah
Nominal Voltage(V)：	3.7v
The charging ratio	1C
The discharge rate	3C
Chargeable	Yes
Nominal Capacity	76ah
Cycle Life	≥ 3,000 times
Weight	0.5kg
Dimensions (LWH)	14.4105.5294.4mm
Applications	Electric Power Systems,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle,used cars and so on.

Overview

✔ Chemistry: Advanced NMC (Nickel Manganese Cobalt Oxide)
✔ Nominal Voltage: 3.7V
✔ Rated Capacity: 76Ah (281Wh per cell)
✔ Energy Density:

Gravimetric: 250-265 Wh/kg
Volumetric: 500-530 Wh/L
✔ Cycle Life:
2,500+ cycles @ 80% DoD (0.5C/0.5C)
1,500+ cycles @ 100% DoD
✔ Power Capability:
Continuous Discharge: 1C (76A)
Peak Discharge (10s): 3C (228A)
✔ Temperature Performance:
Charge: 0°C to 45°C
Discharge: -30°C to 55°C (with derating below -10°C)

Key Features

✅ Highest Capacity in Class

76Ah rating outperforms comparable pouch cells, reducing cell count in battery packs by 15-20%

✅ Unmatched Energy Density

265Wh/kg provides more runtime per kg than most commercial alternatives

✅ Extreme Environment Capable

Operates at -30°C (with heating) – ideal for cold climate applications

✅ Automotive-Proven Reliability

Derived from Farasis' EV battery technology with millions of cells in field operation

✅ Cost-Effective Pack Design

Flexible pouch form factor enables custom-shaped modules for space-constrained applications

Application

Heavy-Duty Electric Vehicles

Electric buses & commercial trucks
Last-mile delivery vehicles
Construction/mining equipment

Grid-Scale Energy Storage

Utility-scale battery storage (50kWh-1MWh+)
Solar/wind energy buffering
Microgrid stabilization

Industrial Power Systems

AGVs & autonomous mobile robots
Portable industrial equipment
Marine & rail applications

⚡ Specialized High-Energy Uses

Aerospace power systems
Military mobile power
High-capacity UPS systems

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.

Certificate
