As electric mobility, energy storage, robotics and industrial electrification continue to expand, battery designers are increasingly looking for lithium-ion cells that combine high energy density with a compact and lightweight form factor.

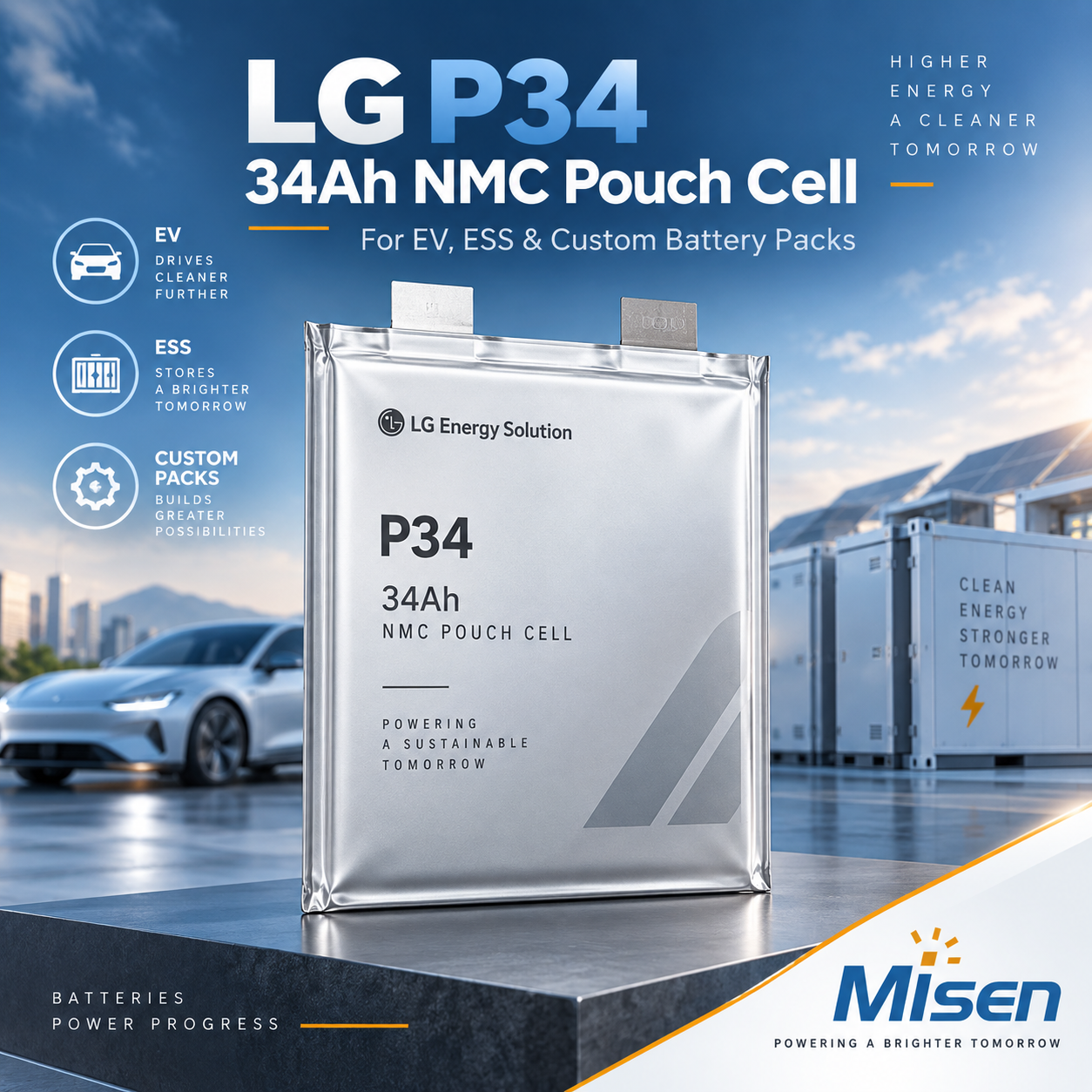

Among the available solutions, the LG P34 3.7V 34Ah NMC pouch cell is an attractive option for applications where space efficiency, energy capacity and pack flexibility are important.
With a nominal voltage of 3.7V and a nominal capacity of 34Ah, the P34 provides approximately 125.8Wh of nominal energy per cell. Its flat pouch structure also makes it possible to build compact battery modules that would be difficult to achieve with conventional cylindrical cells.
In this article, we take a closer look at the LG P34 pouch cell, its main advantages, suitable applications, battery pack configuration considerations, and how it compares with larger NMC pouch cells available for EV and energy storage projects.
The LG P34, including related P34/P34B versions, is a rechargeable lithium-ion pouch cell using NMC — nickel manganese cobalt oxide chemistry.
NMC chemistry has become widely used in electric mobility and other high-energy applications because it provides a useful balance between energy density, power capability, weight and overall pack performance.
Unlike cylindrical cells, which use a rigid metal can, pouch cells package the electrochemical layers inside a lightweight laminated aluminum-polymer enclosure. This construction allows manufacturers to produce thin, wide-format cells with a high ratio of active material to total cell weight.
For engineers designing compact battery modules, this is one of the main reasons to consider an NMC pouch cell instead of a traditional cylindrical battery.
| Parameter | LG P34 / P34B |
|---|---|
| Battery Chemistry | NMC Lithium-ion |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 34Ah |
| Nominal Energy | Approx. 125.8Wh |
| Maximum Charge Voltage | Approx. 4.2V |
| Discharge Cut-off Voltage | Approx. 2.5V |
| Internal Resistance | ≤0.6mΩ |
| Cell Dimensions | Approx. 7.5 × 164 × 232 mm |
| Cell Format | Large-format pouch cell |
Actual discharge capability, weight, cycle performance and other electrical characteristics can vary according to production batch, cell version and test conditions. For battery pack development, the latest cell specification and matching test data should always be confirmed before the final design is approved.
A 34Ah cell sits in an interesting position between small consumer lithium-polymer cells and very large EV pouch cells.
It provides considerably more capacity per cell than common cylindrical formats while remaining easier to integrate into compact modules than some 60Ah, 70Ah or 100Ah+ large-format pouch cells.
The P34 provides approximately 125.8Wh of nominal energy from a single 3.7V cell. Because pouch packaging minimizes heavy external casing material, more of the battery's volume can be dedicated to active electrochemical materials.
For projects with strict dimensional limitations, this can make pouch cells particularly attractive.
The wide and flat structure of the P34 makes it possible to stack cells into modules with relatively high space utilization.
Depending on the product design, cells can be arranged to optimize:
Battery pack thickness
Total module height
Cooling plate contact area
Vehicle chassis packaging
Weight distribution
Serviceability
This flexibility is especially valuable for electric vehicles, AGVs, robotics, motorcycles and custom industrial equipment.
One 34Ah cell can replace multiple smaller cells connected in parallel to achieve a similar total capacity.
Reducing the number of individual cells may simplify busbar design, welding points, voltage sensing and pack assembly, although the final result depends heavily on system architecture.
Individual 3.7V cells can be connected in series to create higher-voltage systems, while parallel connections can be used when additional capacity is required.
This makes P34 cells suitable for both prototype battery modules and larger custom battery systems.
The nominal voltage of a lithium-ion NMC battery pack is mainly determined by the number of cells connected in series.
| Configuration | Nominal Voltage | Capacity | Approx. Energy |
|---|---|---|---|
| 10S1P | 37V | 34Ah | 1.26kWh |
| 13S1P | 48.1V | 34Ah | 1.64kWh |
| 16S1P | 59.2V | 34Ah | 2.01kWh |
| 20S1P | 74V | 34Ah | 2.52kWh |
| 13S2P | 48.1V | 68Ah | 3.27kWh |
These examples are theoretical nominal configurations. A complete battery system also requires a suitable BMS, fuses, busbars, contactors where required, temperature sensors, insulation, structural compression or support, thermal management and a properly engineered enclosure.
For customers developing complete systems rather than purchasing individual cells, Misen also supplies EV battery modules and offers custom lithium battery design and OEM/ODM services.
Electric motorcycles and high-performance scooters require a combination of energy capacity, compact dimensions and manageable weight.
Large-format NMC pouch cells can reduce the number of individual cells needed in the pack while allowing designers to create flat modules that fit inside limited vehicle space.
P34 cells can also be considered for light electric vehicles such as utility vehicles, low-speed EVs, delivery vehicles and specialized mobility platforms.
For these applications, engineers should evaluate not only battery capacity but also required discharge current, cooling strategy, pack vibration, expected cycle life and charging conditions.
Autonomous guided vehicles and autonomous mobile robots often operate within strict dimensional and weight constraints.
A compact pouch-cell battery can provide substantial energy without requiring a large number of cylindrical cells, making the format useful for customized industrial battery systems.
High-capacity pouch cells may also be used in portable power equipment, backup systems, industrial battery packs and specialized energy storage products where energy density is more important than maximizing cycle life at very low cost.
For engineers, universities, EV conversion companies and battery developers, large-format pouch cells provide a practical way to build high-voltage prototype battery packs with fewer individual cells.
However, cells used in vehicle projects require careful mechanical support, BMS integration, thermal management and electrical protection.
The P34 is not the only suitable pouch cell for electric mobility or industrial battery systems. The correct cell depends on pack voltage, target energy, available installation space, discharge power and required cycle performance.
Misen Power supplies multiple NMC pouch-cell sizes, allowing customers to select cells according to their project rather than being limited to one capacity.
| Cell | Nominal Capacity | Best Considered When |
|---|---|---|
| LG P34 / P34B | 34Ah | Compact size and moderate capacity are important |
| LG E63 / E63B | Approx. 60–63Ah class | Higher capacity per cell is required |
| SK 60.3Ah NMC Pouch Cell | 60.3Ah | Higher-power pouch-cell applications are being evaluated |
| JH6 NCM Pouch Cell | 70Ah | A larger-capacity EV or industrial cell is preferred |
| P70A High-Energy Pouch Cell | 70Ah | High energy density and larger system capacity are priorities |
You can also browse the complete Misen NCM pouch cell range for additional capacities, brands and cell formats.
Choosing the largest available battery cell is not always the best strategy.
A smaller 34Ah pouch cell may actually provide greater design flexibility when:
The battery compartment has strict dimensional limits
The required pack capacity is relatively moderate
Weight distribution is important
The system requires more flexible voltage and capacity combinations
A very large single cell would make the module difficult to package
The battery pack must fit an existing mechanical structure
On the other hand, 60Ah, 70Ah or larger cells may reduce cell count in high-capacity EV and energy storage systems.
The optimal solution therefore depends on the complete system rather than capacity alone.
Pouch cells do not have the rigid external metal enclosure found on cylindrical or prismatic aluminum cells. The module structure therefore needs to support and protect the cells while controlling movement and expansion.
Temperature directly affects lithium-ion battery performance, lifetime and safety.
A well-designed battery system should maintain relatively uniform cell temperatures and avoid localized overheating, particularly under high load or fast charging.
The battery management system should be matched to the series configuration, operating current and charging strategy of the battery.
Typical BMS functions may include:
Overcharge protection
Over-discharge protection
Over-current protection
Short-circuit protection
Cell voltage monitoring
Temperature monitoring
Cell balancing
SOC estimation
Communication with vehicle or system controllers
Cells used in the same battery module should have closely matched capacity, voltage and internal resistance.
Good cell consistency helps improve pack balancing, usable capacity and long-term reliability.
Large-format pouch-cell tabs require a connection method designed for the cell material, current level and mechanical environment.
Pack manufacturers should also avoid placing excessive mechanical stress on the cell tabs during assembly and operation.
Both pouch and cylindrical cells are widely used in lithium-ion battery systems, but each format has different advantages.
| Factor | Pouch Cell | Cylindrical Cell |
|---|---|---|
| Packaging | Thin, flat and highly space-efficient | Rigid cylindrical metal enclosure |
| Capacity per Cell | Can be very high | Usually lower per individual cell |
| Cell Count | Potentially fewer cells | Often requires many parallel cells |
| Mechanical Protection | Requires careful module support | Strong individual cell casing |
| Pack Design Flexibility | Excellent for flat battery modules | Excellent for standardized modular arrays |
Neither format is universally better. The correct choice depends on the mechanical design, energy requirement, current requirement, cooling system, manufacturing method and target cost of the battery pack.
For more large-format battery options, visit the Misen pouch cell battery solutions page.
Before choosing the LG P34 or another pouch cell, battery designers should identify several key system requirements.
1. Required battery voltage
Determine the target nominal voltage and maximum charging voltage of the complete system.
2. Required capacity and energy
Calculate both Ah and Wh requirements rather than considering capacity alone.
3. Continuous and peak current
The cell and pack must support the real operating current of the equipment.
4. Available battery compartment dimensions
Cell thickness, width, height and tab direction can significantly affect pack feasibility.
5. Weight limitation
This is especially important for motorcycles, aircraft, robotics and mobile equipment.
6. Charging method
Confirm the required charging rate, maximum voltage and charger compatibility.
7. Operating temperature
The expected ambient environment and thermal management strategy should be defined before final cell selection.
8. Expected cycle life
An EV prototype, industrial robot and stationary storage system may have completely different lifetime requirements.
Battery projects often require more than simply finding a cell with the correct voltage and capacity.
Misen Power supplies a broad range of lithium battery products, including NMC pouch cells, cylindrical cells, prismatic cells, EV battery modules and customized lithium battery systems.
For customers evaluating the LG P34, our team can also help compare alternative pouch cells according to:
Capacity
Cell dimensions
Required discharge current
Battery pack voltage
Application
Available installation space
Project quantity
If the P34 does not perfectly match your mechanical or electrical requirements, a larger or higher-power pouch cell may provide a better solution.
Nominal energy is approximately:
3.7V × 34Ah = 125.8Wh
Actual usable energy depends on voltage range, load, temperature, battery management settings and cell condition.
Yes. Series connections increase total battery voltage. For example, 13 cells with a nominal voltage of 3.7V each create a nominal voltage of approximately 48.1V.
A properly designed BMS must be used to monitor and protect the series-connected cells.
Yes. Parallel connections increase total capacity and current capability. For example, two matched 34Ah cells connected in parallel provide approximately 68Ah nominal capacity.
Cells should be carefully matched before parallel assembly.
It can be considered for electric mobility and other high-energy battery systems when its dimensions, discharge capability, thermal characteristics and cycle performance match the requirements of the application.
The final suitability should always be evaluated at complete battery-pack level rather than from capacity alone.
Misen Power also supplies larger pouch cells including approximately 60Ah, 70Ah and higher-capacity models.
For example, you can compare the P34 with the LG E63/E63B, JH6 70Ah, or P70A 70Ah.
The LG P34 3.7V 34Ah NMC pouch cell offers a practical combination of capacity, compact dimensions and flexible battery-pack integration.
Its approximately 125.8Wh nominal energy per cell and flat pouch format make it worth considering for electric mobility, robotics, industrial equipment and customized lithium battery systems.
At the same time, cell selection should never be based on capacity alone. Voltage, continuous current, peak power, dimensions, cooling, cycle requirements and battery management must all be considered.
If your project requires a different capacity or form factor, explore our complete range of NMC pouch cells, including LG, SK, Farasis and other high-energy lithium-ion cell solutions.
Tell us your required voltage, capacity, continuous current, battery dimensions, application and estimated quantity. Misen Power can help you compare the LG P34 with other suitable NMC pouch cells and battery module solutions.
