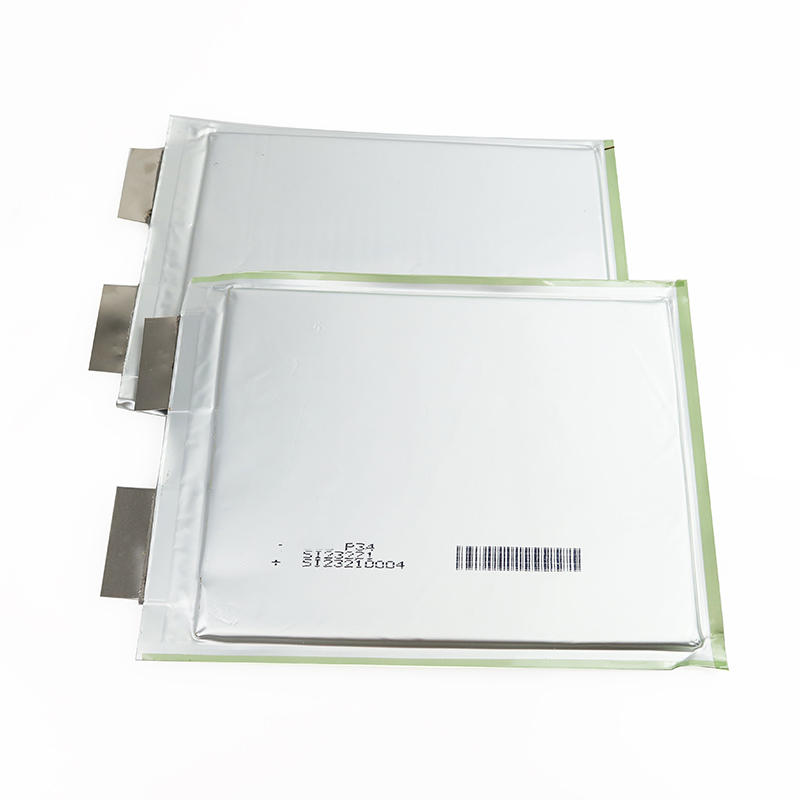

LG 3.7V 34Ah P34 P34B NMC Rechargeable Pouch Cell Battery

The LG 3.7V 34Ah P34/P34B NMC Pouch Cell Battery represents the cutting edge of lithium-ion technology, delivering exceptional energy density and reliable performance for advanced energy storage needs.

Brand:
LG
Model:
NMC P34/P34B
Cell Grade:
Grade A
Nominal Capacity:
34Ah
Nominal Voltage:
3.7V
Weight:
500-600g (estimated based on similar models)
Size(mm):
7.5*164*232mm
Cycle Life:
More than 2000 time

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

Technical Parameters

Nominal voltage	3.7V
Real Capacity	34Ah
Battery type	NMC
Internal resistance	≤ 0.6mΩ
Over charge cut-off voltage	4.2±0.05V
Continuous discharge current	34A 3C
Discharge Cut-off voltage	2.50V
Life cycles	More than 2000 time
Dimensions mm	7.5164232MM
Charge Voltage	~4.2V (standard for NMC cells)
Weight	590g (estimated based on similar models)

Overview

✔ Advanced NMC (LiNiMnCoO₂) Chemistry - Optimal balance of energy density (≈250Wh/kg), power capability, and thermal stability
✔ High Capacity (34Ah) - 26% higher capacity than standard P27 cells for extended runtime
✔ Enhanced Energy Density - Compact form factor delivers more power per unit volume
✔ Superior Cycle Life - Maintains >80% capacity after 800+ cycles at 1C charge/discharge
✔ Optimized Discharge Performance - Supports continuous 1C (34A) discharge with 3C peak capability
✔ Ultra-Thin Pouch Design - Just 7.2mm thickness enables flexible pack configurations
✔ Wide Operating Temperature - -20°C to 60°C with proper thermal management
✔ LG Chem Quality Assurance - Manufactured under ISO 9001 certified processes

Key Features

Higher Energy Storage - 34Ah capacity provides 25% more energy than standard 27Ah cells
Space-Efficient Design - Slim profile (7.2mm) allows for denser battery pack configurations
Enhanced Power Delivery - Stable 1C continuous/3C peak discharge supports demanding loads
Proven Reliability - LG's automotive-grade manufacturing ensures consistent performance
Temperature Resilient - Advanced chemistry maintains stability across wide temperature ranges

Application

Electric Mobility Solutions

High-performance electric scooters and e-motorcycles
Long-range electric bicycles and pedelecs
Last-mile delivery vehicles and light electric trucks

Energy Storage Systems

Home energy storage (paired with solar systems)
Commercial ESS for peak shaving and backup power
Portable power stations for outdoor/emergency use

Industrial & Specialized Equipment

Autonomous Guided Vehicles (AGVs) and robotics
Medical mobility devices and rehabilitation equipment
Aerospace and marine applications requiring lightweight power

Recreational & Specialty Uses

Electric watercraft (kayaks, small boats)
RV/Camping power systems
High-end drone and UAV power solutions

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
