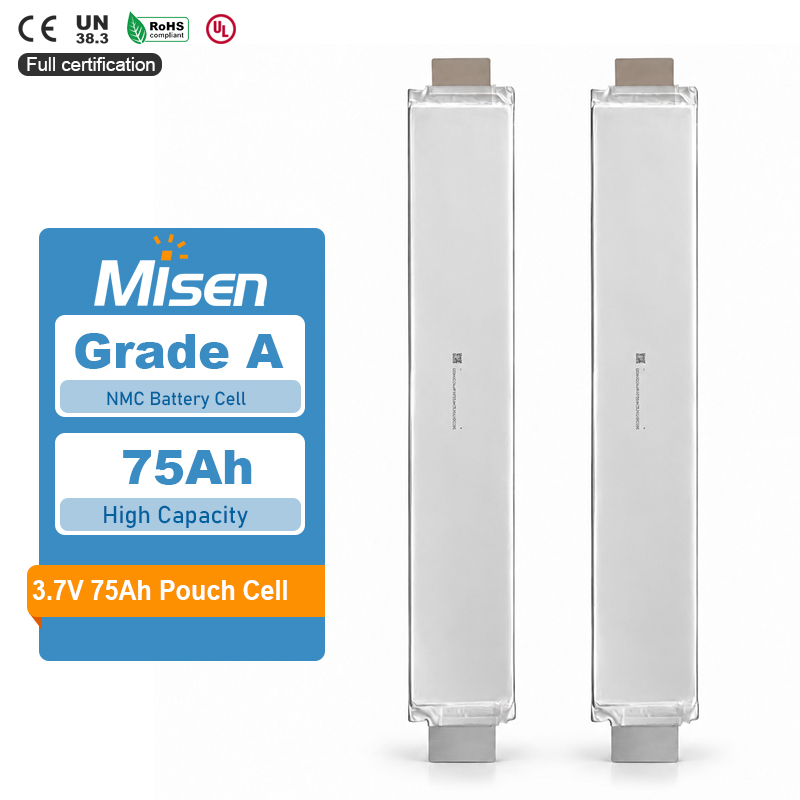

The Farasis P75 is a high-energy rechargeable NCM pouch cell with 3.68V nominal voltage, 74.9Ah nominal capacity and 267Wh/kg gravimetric energy density. Its official catalog performance includes an 18-minute charge from 10% to 80% SOC, an 8C 10-second discharge pulse and more than 5,000 standard cycles to 80% state of health under defined conditions.
01 3.68V 74.9Ah NCM Cell
The P75 combines 3.68V nominal voltage with 74.9Ah nominal capacity when measured at C/3 and 25°C. Its NCM 8 cathode and graphite anode provide approximately 275.6Wh of calculated nominal energy. The official catalog specifies an operating voltage range from 2.8V to 4.2V.
02 267Wh/kg Energy Density
Farasis specifies a gravimetric energy density of 267Wh/kg when tested at C/3 and 25°C. This high energy-density rating supports battery modules where driving range, runtime and system mass are important design priorities. Finished-pack energy density will be lower after adding compression structures, cooling, interconnects, protection components and the enclosure.
03 18-Minute Fast Charging
The catalog lists an 18-minute charging time from 10% to 80% state of charge. The cited P75 page does not publish the associated charge-current limit, temperature window or complete charging profile. Charger design, cooling requirements, voltage monitoring and allowable fast-charge conditions must therefore be confirmed directly with Farasis.
04 8C Pulse Power
The P75 supports an 8C discharge pulse for 10 seconds at 25°C and 50% SOC. This precisely qualified rating is intended for short power demands and is not an 8C continuous-current specification. Pack protection must enforce the duration, voltage, temperature and state-of-charge conditions established by the manufacturer.
05 More Than 5,000 Cycles
Standard cycle life is rated at more than 5,000 cycles before reaching 80% SOH. This result is based on C/3 charging and discharging, 90% depth of discharge and a controlled temperature of 25°C. Different current, temperature, SOC and DOD conditions can materially change service life.
06 Slim High-Capacity Pouch Format

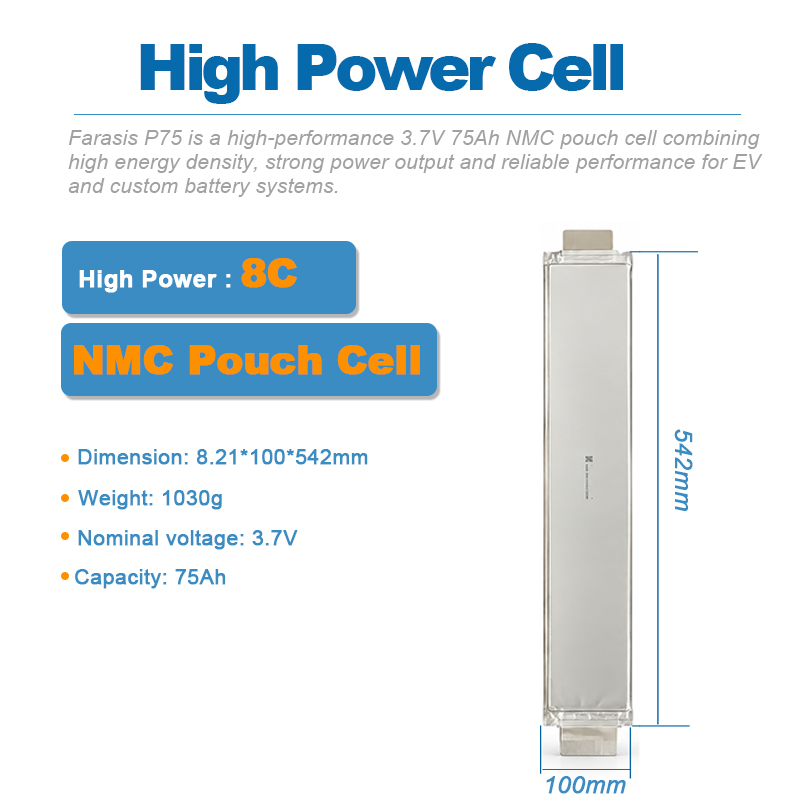

The pouch-cell body measures 542 × 102 × 8.2mm and weighs 1030±15g. Its slim format supports compact module layouts but requires controlled compression, broad-surface support, terminal strain relief, edge protection and electrical insulation. Production samples should be checked before finalizing module clearances, busbars and compression hardware.
Custom battery pack applications: The Farasis P75 may be considered for electric vehicles, commercial vehicles, marine propulsion, AGVs, robotics and high-energy custom battery modules. MisenBattery supplies cells and supports pack integration with a qualified BMS, fuses, approved terminal connections, voltage and temperature sensing, electrical insulation, controlled compression, mechanical support and thermal management. Availability and scope of CE, UN38.3, RoHS or UL documentation must be confirmed for the applicable cell batch, pack configuration and shipment.
