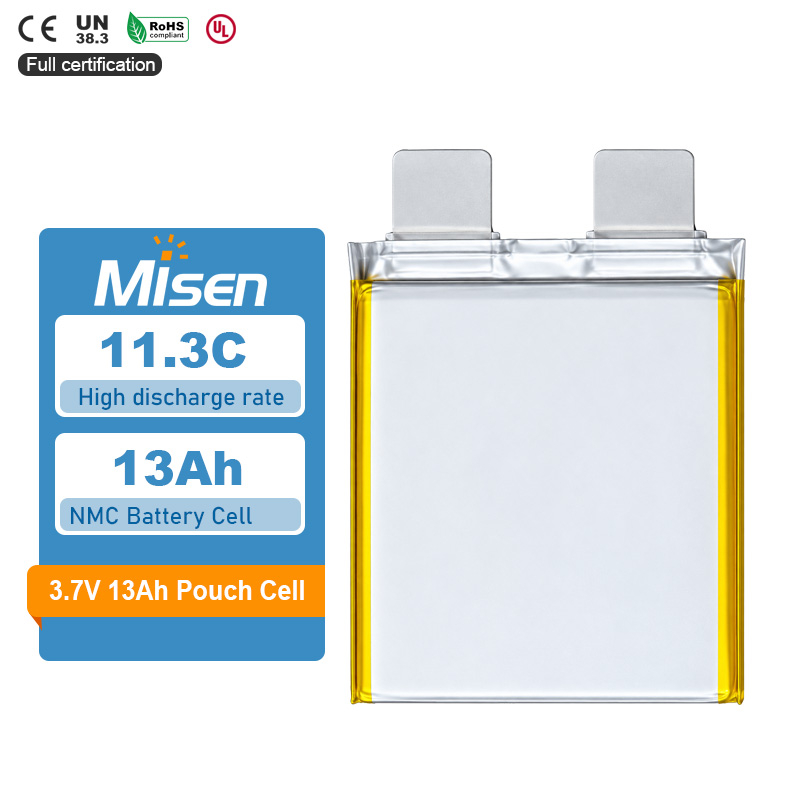

Misen 95110130 3.7V 13Ah+ 11.5C High-Rate NCM Lithium-Ion Pouch Battery Cell

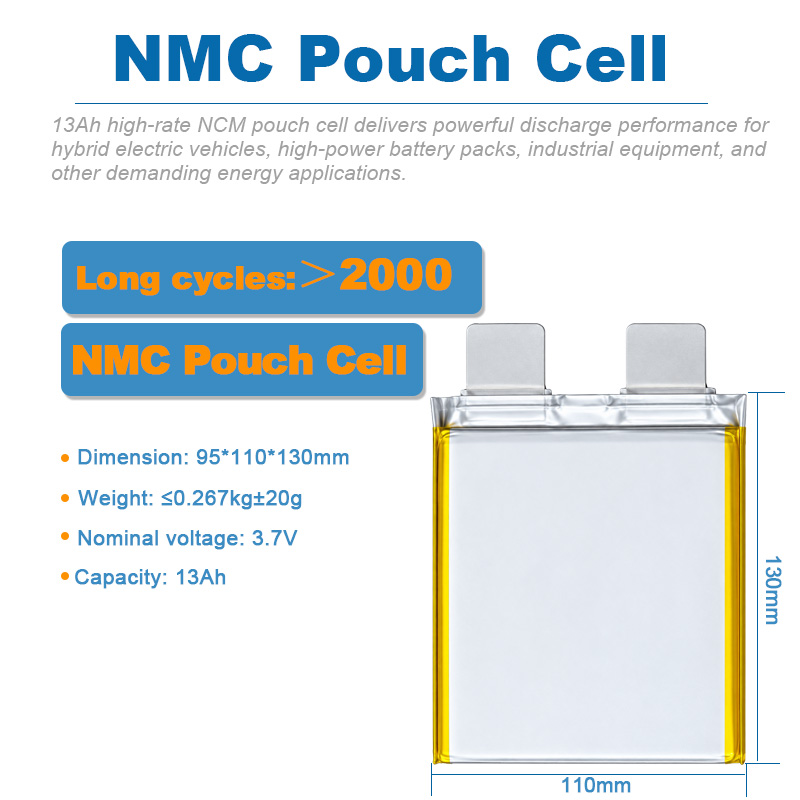

Cell Size: 9.5 × 110 × 130mm
Chemistry: NCM Lithium-ion
Capacity: 13Ah+ / 13000mAh+
Nominal Voltage: 3.7V
Max. Discharge Current: 149.5A continuous; 520A peak, duration to be confirmed

Brand:
Misen

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameters

Key Features

Applications & Selection Notes

Sourcing & Technical Support

MISEN 95110130 CELL

Product Overview

The Misen 95110130 is a high-rate NCM lithium-ion pouch cell with a nominal voltage of 3.7V and a listed capacity of 13Ah+. Its supplied specification states an 11.5C continuous discharge rate and a corresponding current of 149.5A, using a 13Ah calculation basis.

The 9.5 × 110 × 130mm format provides a starting point for custom pack layout. A separate 40C peak rating is listed at 520A; peak duration and operating conditions require confirmation. Pack suitability depends on validated thermal management, tab connections, mechanical support and protection design.

MISEN 95110130 CELL

Technical Specifications

01. Basic Specifications

Brand	Misen
Model	95110130
Battery Chemistry	NCM lithium-ion
Cell Type	High-rate pouch cell
Nominal Voltage	3.7V
Capacity	13Ah+ / 13000mAh+
Nominal Energy	≥48.1Wh, calculated nominal value 3.7V × 13Ah = 48.1Wh at the 13Ah capacity basis; not measured usable energy.
Dimensions	9.5 × 110 × 130mm

02. Discharge and Resistance

Continuous Discharge Rate	11.5C
Continuous Discharge Current	149.5A Listed current; corresponds to 13Ah × 11.5C. Operating and test conditions require confirmation.
Peak Discharge Rate	40C; peak duration and test conditions to be confirmed.
Peak Discharge Current	520A Listed peak current; corresponds to 13Ah × 40C. Not a continuous rating. Peak duration and test conditions to be confirmed.
Internal Resistance	0.6mΩ Measurement method and conditions to be confirmed.

Discharge-current conversions use a 13Ah basis. The 13Ah+ capacity notation does not authorize increasing the listed current limits. Confirm the applicable specification and validate the complete pack for its intended duty cycle.

MISEN 95110130 CELL

Key Features

0111.5C Continuous Discharge Specification

The supplied specification lists 149.5A continuous discharge, corresponding to 11.5C on a 13Ah basis. Confirm the applicable thermal conditions before selecting a sustained operating load.

0213Ah+ NCM Capacity

The listed 13Ah+ capacity and 3.7V nominal voltage provide a basis for pack capacity and energy planning. At 13Ah, calculated nominal energy is 48.1Wh per cell.

039.5 × 110 × 130mm Pouch Format

The flat pouch format can be assessed against your available installation space. Confirm dimensional tolerances, tab geometry and required assembly allowances before finalizing the pack structure.

MISEN 95110130 CELL

Applications and Selection Notes

The 95110130 may be evaluated for custom high-current battery systems. Application suitability must be established through specification review and testing in the intended pack configuration.

Potential Applications

Custom high-current battery packs: Evaluate the listed continuous discharge capability against the actual load profile, cooling arrangement and connection design.
Industrial equipment battery development: Consider the pouch format where the available space and power requirements align with a fully validated cell and pack specification.

Battery Cell Selection Notes

Confirm peak-load conditions. The 520A figure is a peak rating. Obtain permitted duration, duty cycle, temperature and voltage conditions before using it in a design.
Use the stated current basis. Both 149.5A and 520A correspond to a 13Ah basis. Do not increase these currents based on the 13Ah+ capacity notation.
Complete the integration review. Confirm charging and voltage limits, temperature conditions, tab connections, insulation, mechanical support and thermal management before setting pack protection thresholds.

Explore the Misen Power pouch cell range and battery pack support to discuss alternatives and project requirements.

Frequently Asked Questions

Is 520A the continuous discharge rating?

No. The supplied data lists 520A as 40C peak discharge and 149.5A as continuous discharge. Peak duration and operating conditions require confirmation.

Does 13Ah+ allow a higher discharge-current limit?

No higher current limit is established by that notation. Use the listed 149.5A continuous and 520A peak figures only within their confirmed conditions; both conversions use a 13Ah basis.

Can the listed 0.6mΩ resistance be used for direct cell comparisons?

Confirm the measurement method and conditions first. The supplied value does not identify AC or DC measurement, temperature or state of charge, so a like-for-like comparison is not yet established.

MISEN 95110130 CELL

Sourcing and Technical Support

Misen Power supports B2B pouch cell sourcing and custom battery pack development. Contact our team to discuss the 95110130 against your electrical, mechanical and procurement requirements.

01Bulk Cell Supply

Confirm model availability, quantity, pricing and order requirements with Misen Power before procurement.

02Technical Documentation

Request available specifications, dimensional drawings and applicable test or transport documents, subject to availability and sharing permissions. Include any required confirmation of continuous and peak discharge conditions.

03OEM Battery Pack Support

Discuss cell configuration, BMS selection, interconnections, enclosure planning and thermal design according to your application and development stage.

Request a Quotation

Use the product page inquiry form to send model 95110130, quantity, destination and application. Include the pack voltage, continuous load, peak current and peak duration for a project-specific review.
