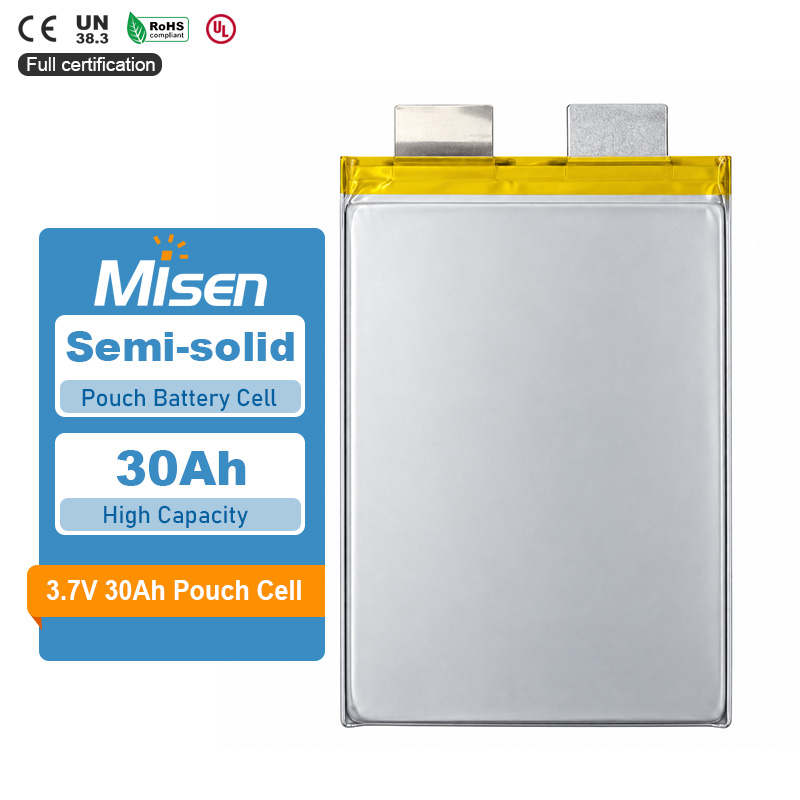

Misen 3.7V 30Ah 90A Continuous Discharge Rechargeable Lithium-Ion Pouch Battery Cell

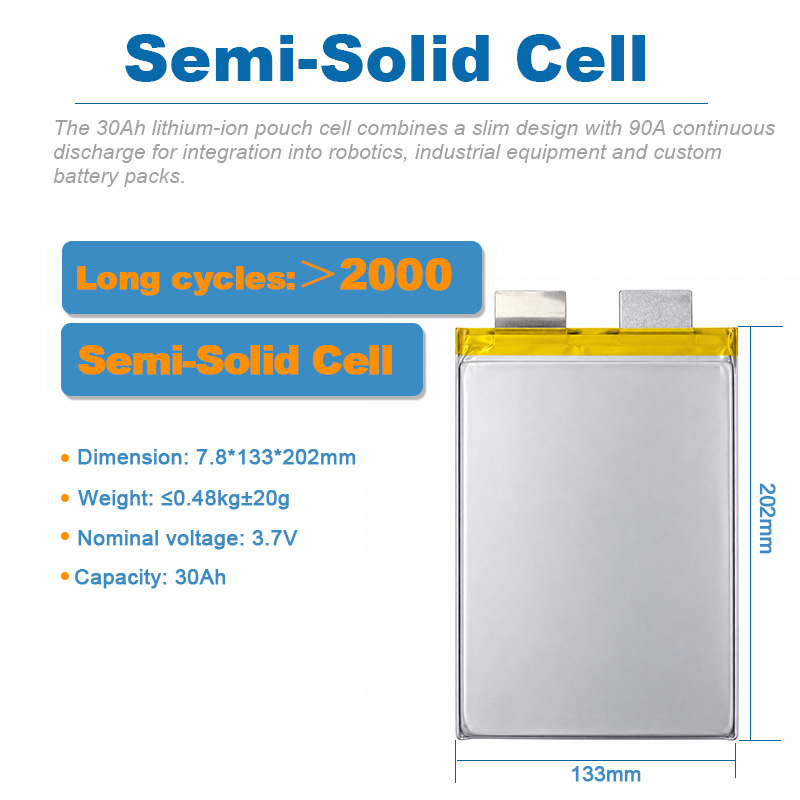

Cell Size: Pouch, 7.8 × 133 × 202mm
Chemistry: Lithium-ion
Capacity: 30Ah
Nominal Voltage: 3.7V
Max. Discharge Current: 150A maximum; 90A continuous

Brand:
Misen

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameters

Key Features

Applications & Selection Notes

Sourcing & Technical Support

GANFENG 30AH LITHIUM-ION POUCH CELL

Product Overview

The Ganfeng 30Ah lithium-ion pouch cell combines a 3.7V nominal voltage with 90A continuous discharge in a slim 7.8 × 133 × 202mm format. Its calculated nominal energy is 111Wh, with a stated cell weight of 0.48kg.

This rechargeable cell can be evaluated for robotics, industrial equipment and custom battery assemblies requiring compact packaging and current delivery. The supplied maximum discharge figure is 150A, distinct from the 90A continuous rating. Final integration requires application-specific assessment of thermal behavior, interconnections, mechanical support and BMS protection.

GANFENG 30AH LITHIUM-ION POUCH CELL

Technical Specifications

01. Basic Specifications

Brand	Ganfeng
Cell Type	Rechargeable lithium-ion pouch cell
Nominal Voltage	3.7V
Nominal Capacity	30Ah / 30000mAh
Nominal Energy	111Wh, calculated from 3.7V × 30Ah.

02. Discharge Specifications

Continuous Discharge Rate	3C
Continuous Discharge Current	90A Equivalent to 3C based on 30Ah nominal capacity.
Maximum Discharge Rate	5C, as provided.
Maximum Discharge Current	150A, equivalent to 5C based on 30Ah nominal capacity. This maximum figure is distinct from the 90A continuous rating.

03. Physical Specifications

Cell Dimensions	7.8 × 133 × 202mm
Cell Weight	0.48kg / 480g

Use 90A as the supplied continuous-discharge reference. The 150A maximum figure must not be treated as a continuous or defined pulse rating. Confirm its permitted operating conditions before using it in pack design.

GANFENG 30AH LITHIUM-ION POUCH CELL

Key Features

0190A Continuous Discharge

The supplied 3C continuous-discharge rating corresponds to 90A, providing a current reference for evaluating motor-driven equipment, robotic systems and custom battery packs with compatible loads.

02111Wh Calculated Nominal Energy

A 3.7V nominal voltage and 30Ah capacity provide 111Wh of calculated nominal energy per cell, supporting initial pack-energy sizing and series-parallel configuration planning.

03Slim 7.8mm Pouch Format

The 7.8 × 133 × 202mm format and stated 480g weight provide practical references for flat module layouts, enclosure planning and the weight budget of a custom battery assembly.

GANFENG 30AH LITHIUM-ION POUCH CELL

Applications and Selection Notes

This 30Ah lithium-ion pouch cell can be evaluated for the following projects after electrical, thermal and mechanical validation. These are potential integration directions, not approval for a particular finished device.

Potential Applications

Robotics and Automated Equipment: Evaluate for battery systems where the supplied continuous-current capability, capacity and flat dimensions match motor loads, runtime targets and installation space.
Industrial and Custom Battery Packs: Consider series-parallel assemblies for compatible equipment, allowing for interconnection losses, thermal conditions, mechanical support and protective shutdown.

Battery Cell Selection Notes

Separate continuous and maximum current. The supplied continuous figure is 90A at 3C. The 150A figure corresponds to 5C maximum discharge and must not be used as an unrestricted continuous rating or a defined pulse rating.
Plan the installed dimensions. Evaluate the 7.8 × 133 × 202mm cell format together with holders, tab connections, insulation and swelling allowance. Explore our pouch cell solutions when comparing formats and integration options.
Validate the complete system. Assess BMS protection, charger compatibility, thermal management and the actual load profile. Use the pouch cell selection guide for custom battery packs to structure the engineering review.

Frequently Asked Questions

What is the difference between the 90A and 150A figures?

90A is the supplied continuous-discharge current, equivalent to 3C. The supplied maximum discharge current is 150A, equivalent to 5C; its permitted operating conditions must be confirmed before use.

How much nominal energy does one cell provide?

Calculated nominal energy is 111Wh, based on 3.7V × 30Ah. Actual usable energy depends on the operating load, voltage window and system conditions.

GANFENG 30AH LITHIUM-ION POUCH CELL

Sourcing and Technical Support

Misen Power supports battery-cell sourcing and custom battery-pack projects. Contact our team to discuss Ganfeng 3.7V 30Ah pouch cells and the requirements of your proposed assembly.

01Cell Sourcing

Provide the required quantity, destination and purchasing schedule so our team can confirm availability, supply options and commercial terms.

02Technical Selection

Share the target pack voltage, energy, continuous load and peak-load profile. Our team can help compare the cell's supplied current ratings, dimensions and weight with your project requirements.

03Custom Battery Pack Support

Discuss series-parallel configuration, BMS integration, interconnections, wiring, enclosure design and mechanical support. Prototype evaluation should reflect the intended load profile and thermal conditions.

Request a Quotation

Send your quantity, destination country and application through the product-page inquiry form or our contact form. Include your required pack voltage, capacity, current profile and available installation space. Talk to an Engineer.
