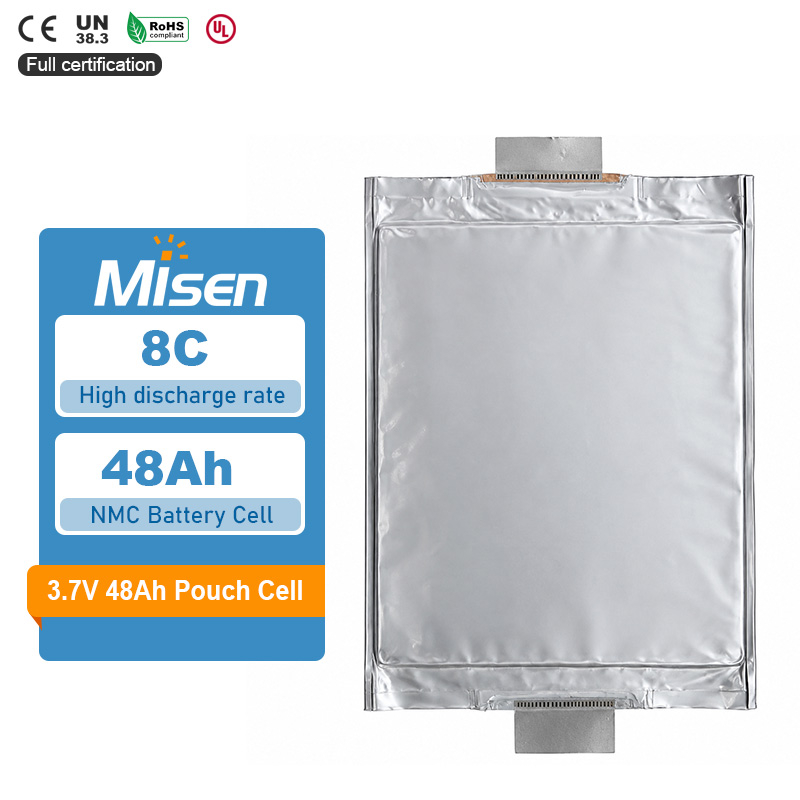

The 48 Ah NCM lithium-ion pouch cell combines 3.7 V nominal voltage with 177.6 Wh of calculated nominal energy. The supplied parameters list 192 A continuous discharge and a separate maximum discharge of 384 A for 30 seconds. MisenBattery supplies cells and supports custom battery pack evaluation using confirmed operating limits, application load profiles, mechanical drawings and thermal requirements to guide cell selection and integration.
01 48 Ah NCM Pouch Cell
The supplied parameters identify an MGL NCM lithium-ion pouch cell with 48 Ah nominal capacity and 3.7 V nominal voltage. These ratings provide a starting point for series and parallel pack configuration studies. Minimum capacity and the capacity test protocol are not supplied, so acceptance criteria should be confirmed for the intended cell batch.
02 192 A Continuous Discharge Reference
The listed continuous discharge rate is 4C, equivalent to 192 A using the nominal capacity of 48 Ah. This rating supports initial load-matching discussions for custom packs. Confirm discharge voltage limits, applicable temperatures and cooling requirements before selecting interconnects, setting protection thresholds or validating operation under the intended application duty cycle.
03 384 A Maximum Discharge for 30 Seconds
The supplied maximum discharge rating is 8C, equivalent to 384 A, for 30 seconds. Retaining this duration supports evaluation of brief load demands. SOC, temperature, repetition frequency and recovery intervals are not supplied, so the rating requires a confirmed test protocol before it is used for repeated pulse operation or pack protection settings.
04 177.6 Wh Calculated Nominal Energy
Multiplying 3.7 V nominal voltage by 48 Ah nominal capacity gives 177.6 Wh per cell. With the listed weight of 0.86 kg, calculated gravimetric energy density is approximately 206.5 Wh/kg. These figures support preliminary energy and mass studies, while usable pack energy depends on voltage limits, discharge conditions and system losses.
05 Dimensions for Mechanical Planning

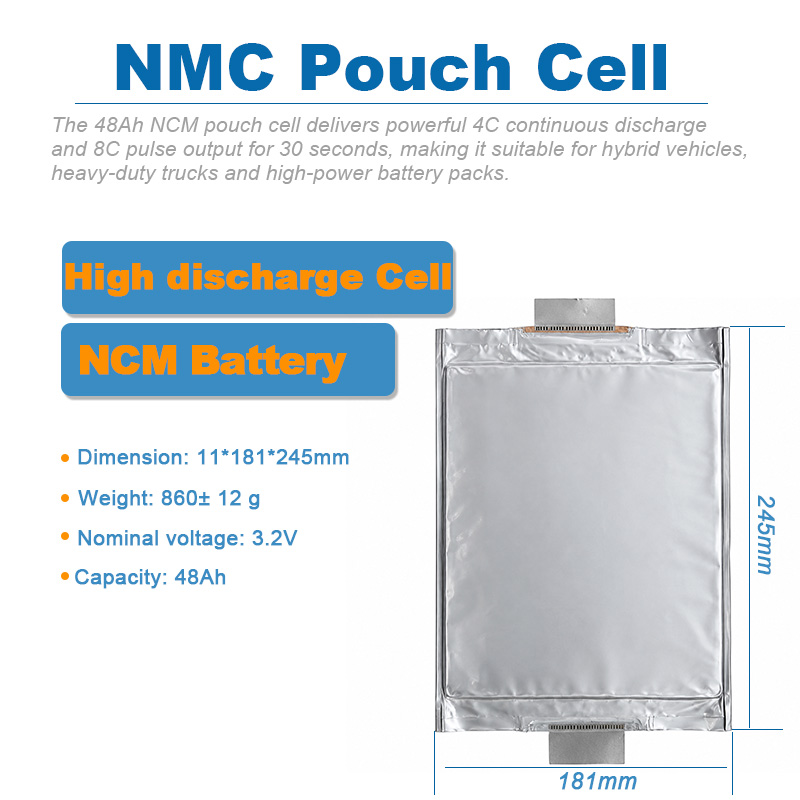

The supplied dimensions are 11 × 181 × 245 mm, giving a rectangular volume of approximately 0.4878 L and a calculated volumetric energy density of about 364.1 Wh/L. Confirm the dimensional axes, tolerances and tab inclusion, then provide suitable insulation, swelling allowance, cell support and tab strain relief in the enclosure.
06 Cycle Life and Resistance References
The table lists 2000 cycles and internal resistance of no more than 1.2 mΩ. Cycle test conditions and capacity-retention criteria are not supplied, and resistance measurement method, SOC and temperature are also unspecified. Retain these qualifications during cell comparison and confirm the applicable protocols before incoming inspection, cell matching or service-life planning.
Custom battery pack applications: MisenBattery supplies MGL cells and supports custom pack evaluation for mobility and industrial equipment projects, subject to confirmed cell specifications and application validation. Integration should include a compatible BMS, fuse protection, voltage and temperature sensing, validated tab-welding and interconnect processes, insulation, cell spacing, swelling allowance and suitable thermal and mechanical design. Confirm applicable CE, UN38.3, RoHS and UL documentation for the specific cell, pack and shipment; certification status is not established by the supplied parameter table.
