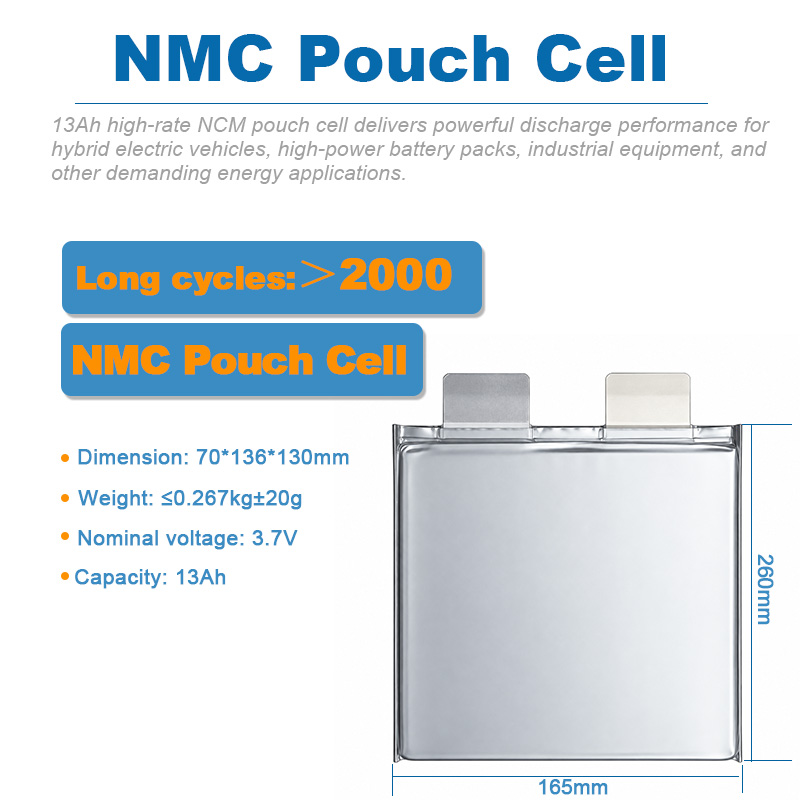

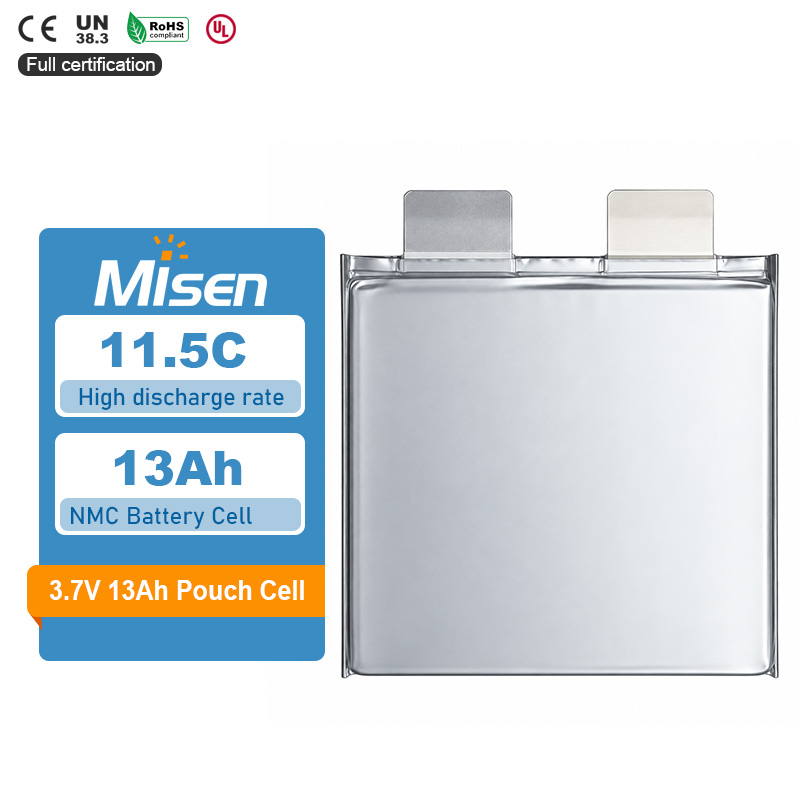

Misen 70136130 3.7V 13Ah 11.5C High-Rate NCM Lithium-Ion Pouch Battery Cell

Cell Size: 7.0 × 136 × 130mm
Chemistry: NCM Lithium-ion
Capacity: 13Ah / 13000mAh
Nominal Voltage: 3.7V
Max. Discharge Current: 149.5A continuous; 260A peak, duration to be confirmed

Brand:
Misen

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameters

Key Features

Applications & Selection Notes

Sourcing & Technical Support

MISEN 70136130 CELL

Product Overview

The Misen 70136130 is an NCM lithium-ion pouch cell with a nominal voltage of 3.7V and a capacity of 13Ah. Its supplied specification lists an 11.5C continuous discharge rate, equivalent to 149.5A, in a 7.0 × 136 × 130mm format.

For custom battery pack evaluation, distinguish continuous operation from the listed 20C peak rating. Peak duration and test conditions require confirmation. Final integration should account for cell support, tab connections, thermal management and appropriately engineered battery protection.

MISEN 70136130 CELL

Technical Specifications

01. Basic Specifications

Brand	Misen
Model	70136130
Battery Type	NCM lithium-ion pouch cell
Nominal Capacity	13Ah / 13000mAh
Nominal Voltage	3.7V
Nominal Energy	Approx. 48.1Wh Calculated from 3.7V × 13Ah.
Dimensions	7.0 × 136 × 130mm

02. Discharge and Resistance

Continuous Discharge Rate	11.5C
Continuous Discharge Current	149.5A Consistent with 13Ah × 11.5C; operating conditions require confirmation.
Peak Discharge Rate	20C; peak duration and test conditions to be confirmed.
Peak Discharge Current	260A Consistent with 13Ah × 20C; not a continuous rating. Peak duration and test conditions to be confirmed.
Internal Resistance	0.6mΩ Measurement method and conditions to be confirmed.

The listed cell currents do not define a finished battery pack rating. Confirm the applicable discharge conditions and validate the complete pack before operation.

MISEN 70136130 CELL

Key Features

0111.5C Continuous Discharge Specification

The supplied specification lists 149.5A continuous discharge, equivalent to 11.5C on a 13Ah capacity basis. Confirm thermal and test conditions for the intended duty cycle.

0213Ah Capacity for Pack Planning

A 13Ah nominal capacity at 3.7V corresponds to approximately 48.1Wh of calculated nominal energy per cell. Usable pack energy depends on the validated operating conditions.

03Flat Pouch Cell Format

The listed dimensions are 7.0 × 136 × 130mm, providing a starting point for mechanical layout. Confirm dimensional tolerances, tab geometry and assembly allowances before tooling.

MISEN 70136130 CELL

Applications and Selection Notes

The 70136130 may be evaluated for custom high-current battery projects. The following are potential design directions, subject to specification confirmation and application testing.

Potential Applications

Custom high-current battery packs: Evaluate where the required load profile can be supported within confirmed cell limits and a validated thermal design.
Industrial equipment battery development: Consider for projects requiring a flat pouch format, subject to mechanical fit, connection design and complete system qualification.

Battery Cell Selection Notes

Separate continuous and peak requirements. The listed continuous current is 149.5A. Do not use the 260A peak figure as a continuous design limit; confirm peak duration and recovery conditions.
Confirm electrical operating limits. Obtain the applicable charging specification, voltage limits and temperature conditions before selecting the charger and BMS settings.
Validate the pouch assembly. Review tab connections, insulation, mechanical support, swelling allowance and heat removal for the intended pack configuration.

For other formats and project options, explore the Misen Power pouch cell range and pack integration support.

Frequently Asked Questions

Can the 70136130 deliver 260A continuously?

No. The supplied specification lists 260A as a 20C peak figure and 149.5A as the continuous figure. Peak duration and applicable operating conditions must be confirmed before use.

Is 48.1Wh a measured energy value?

It is a calculated nominal value: 3.7V × 13Ah = 48.1Wh. It does not establish usable energy under a particular discharge current or temperature.

Can the listed dimensions be used directly for fixture design?

Use 7.0 × 136 × 130mm for preliminary layout only. Confirm the dimensional drawing, tolerances, tab dimensions and assembly allowances before finalizing the fixture.

MISEN 70136130 CELL

Sourcing and Technical Support

Misen Power supports B2B pouch cell sourcing and custom battery pack development. Share your project requirements to discuss the 70136130 and its suitability for your proposed design.

01Bulk Cell Supply

Contact Misen Power to confirm model availability, quantities, pricing and order requirements for your project.

02Technical Documentation

Request available specifications, dimensional drawings and applicable test or transport documents, subject to availability and sharing permissions. Confirm the discharge conditions for the exact cell revision.

03OEM Battery Pack Support

Discuss cell configuration, BMS selection, connection design, mechanical support and thermal planning according to your voltage, current and installation requirements.

Request a Quotation

Use the product page inquiry form to send model 70136130, quantity, destination and application. Include continuous current, peak current and peak duration so our team can review your requirements.
