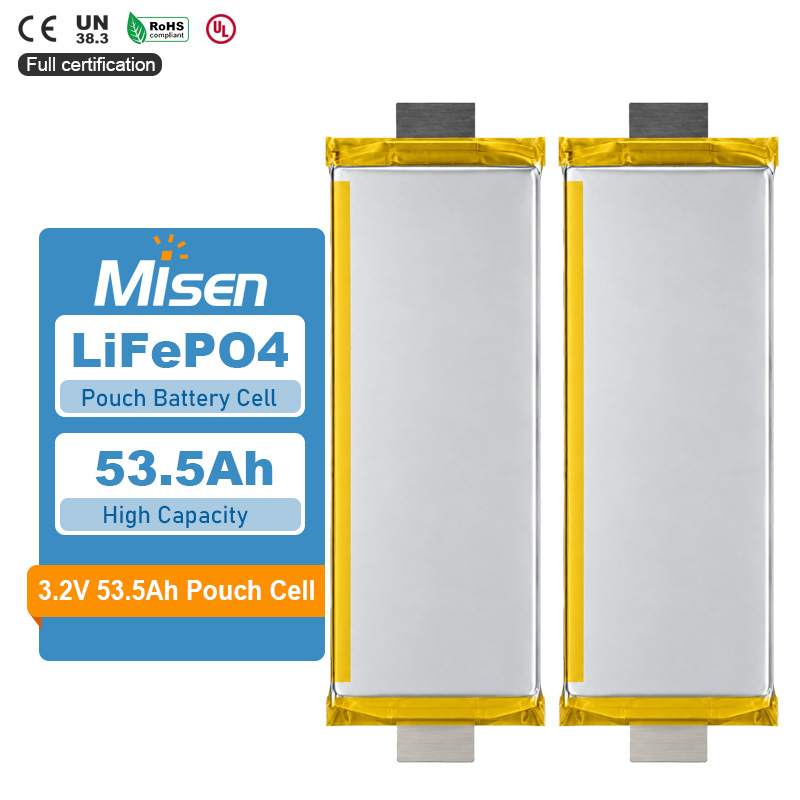

Misen 3.2V 53.5Ah Rechargeable LiFePO4 Pouch Battery Cell

Cell Size: Pouch, 11 × 120 × 350mm
Chemistry: LiFePO4 / LFP
Capacity: 53.5Ah
Nominal Voltage: 3.2V

Brand:
Misen

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameters

Key Features

Applications & Selection Notes

Sourcing & Technical Support

GANFENG 53.5AH LFP POUCH CELL

Product Overview

The Ganfeng 53.5Ah LiFePO4 pouch cell combines a 3.2V nominal voltage with 171.2Wh nominal energy in a flat 11 × 120 × 350mm format. Its stated weight is 1.45kg, with an approximate internal resistance of 0.8mΩ.

The supplied charge and discharge rates are 0.5C and 1C, corresponding to 26.75A and 53.5A based on nominal capacity. This cell can be evaluated for engineered energy storage and custom battery packs, with the final configuration selected around the application's electrical load, installation space and pack-protection requirements.

GANFENG 53.5AH LFP POUCH CELL

Technical Specifications

01. Basic Specifications

Brand	Ganfeng
Cell Type	Rechargeable lithium iron phosphate pouch cell, LiFePO4 / LFP
Nominal Voltage	3.2V
Nominal Capacity	53.5Ah / 53500mAh
Nominal Energy	171.2Wh, calculated from 3.2V × 53.5Ah.

02. Charging and Discharging

Charge Rate	0.5C
Corresponding Charge Current	26.75A, calculated from 0.5 × 53.5Ah.
Discharge Rate	1C
Corresponding Discharge Current	53.5A, calculated from 1 × 53.5Ah.

03. Physical Specifications

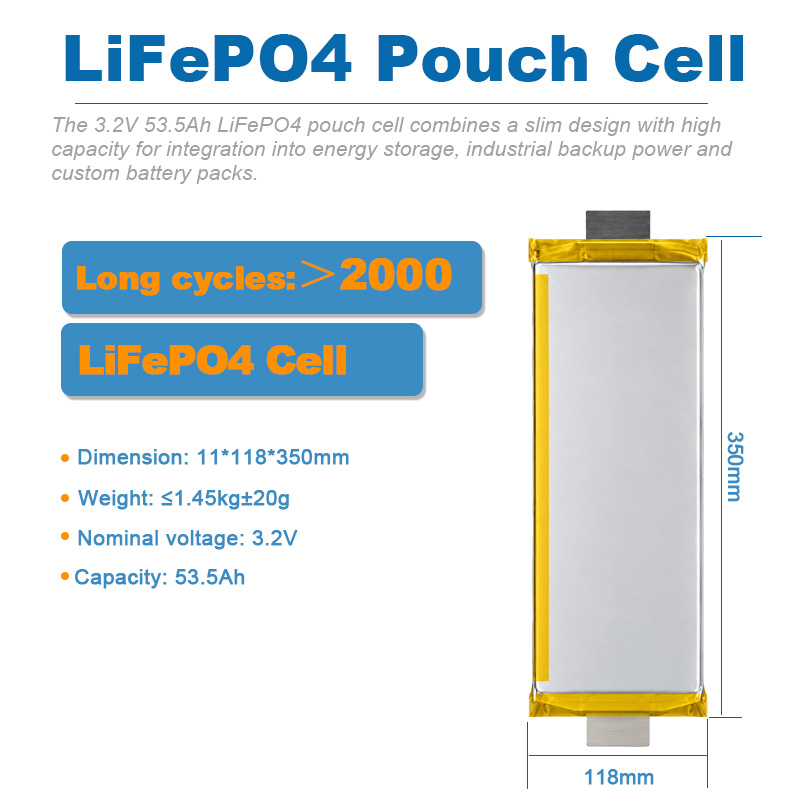

Dimensions	11 × 120 × 350mm
Cell Weight	1.45kg
Internal Resistance	Approx. 0.8mΩ
Gravimetric Energy Density	Approx. 118Wh/kg, calculated from 171.2Wh ÷ 1.45kg.

GANFENG 53.5AH LFP POUCH CELL

Key Features

0153.5Ah Capacity in a Single Pouch Cell

The 3.2V, 53.5Ah rating provides 171.2Wh of calculated nominal energy per cell, giving designers a clear basis for series-parallel configuration and battery energy planning.

02Flat 11mm Pouch Format

The stated 11 × 120 × 350mm dimensions offer a flat cell geometry for custom module layouts. Mechanical support, insulation and installation clearances should be evaluated within the finished assembly.

03Defined Charge and Discharge Rates

The supplied 0.5C charge and 1C discharge rates correspond to 26.75A and 53.5A respectively, providing initial current references for charger, BMS and interconnection evaluation.

GANFENG 53.5AH LFP POUCH CELL

Applications and Selection Notes

This Ganfeng LiFePO4 pouch cell can be considered for the following projects after pack-level engineering evaluation. Application suitability depends on the complete electrical, mechanical and thermal design.

Potential Applications

Energy Storage Modules: Evaluate series-parallel assemblies for storage projects where the 3.2V cell platform, capacity and stated charge/discharge rates match the system requirements.
Industrial Backup and Custom Equipment Packs: Consider the flat pouch format for engineered battery compartments, subject to validation of load demand, runtime, mechanical support and protection design.

Battery Cell Selection Notes

Match the pack energy and voltage. Start with the required system voltage and energy, then evaluate the series-parallel arrangement. Browse the LiFePO4 pouch cell range when comparing capacities and formats.
Use the stated rates accurately. At 53.5Ah, 0.5C corresponds to 26.75A and 1C corresponds to 53.5A. These conversions are current references for the supplied rates, not additional maximum or pulse-current claims.
Plan the complete pouch-cell assembly. Evaluate mechanical support, tab connections, insulation, thermal management and BMS integration. Refer to the pouch cell selection guide for custom battery packs when defining the module layout.

Frequently Asked Questions

What currents correspond to the stated C-rates?

Based on the 53.5Ah nominal capacity, the 0.5C charge rate corresponds to 26.75A and the 1C discharge rate corresponds to 53.5A.

How are nominal energy and specific energy calculated?

Nominal energy is 3.2V × 53.5Ah = 171.2Wh. Dividing this by the stated 1.45kg weight gives approximately 118Wh/kg at cell level; finished-pack values depend on the complete assembly.

GANFENG 53.5AH LFP POUCH CELL

Sourcing and Technical Support

Misen Power supports battery-cell sourcing and custom battery-pack projects. Contact our team to discuss Ganfeng 53.5Ah LiFePO4 pouch cells and the requirements of your proposed assembly.

01Cell Sourcing

Share the required quantity, destination and purchasing schedule so our team can confirm availability, supply options and commercial terms for your project.

02Technical Selection

Provide the target pack voltage, energy, load profile and installation space so the cell's capacity, format and stated charge/discharge rates can be compared with your requirements.

03Custom Battery Pack Support

Discuss series-parallel configuration, BMS integration, interconnections, wiring and enclosure requirements through our custom battery service.

Request a Quotation

Send your quantity, destination country and application through the product-page inquiry form or our contact form. Include your pack voltage, capacity, operating current and available space. Talk to an Engineer.
