Other
3.2V 70ah
Grade A
70Ah
3.7v
0.5kg
14.5*102*376mm
≥ 3000 times
| Availability: | |
|---|---|
| Quantity: | |
| Rated Capacity | 70Ah (224Wh) |
| Nominal Voltage(V): | 3.7v |
| The charging ratio | 4C continuous (0-45°C) |
| The discharge rate | 16C |
| Chargeable | Yes |
| Nominal Capacity | 70ah |
| Cycle Life | 3000+ cycles @ 80% DoD |
| Weight | 0.5kg |

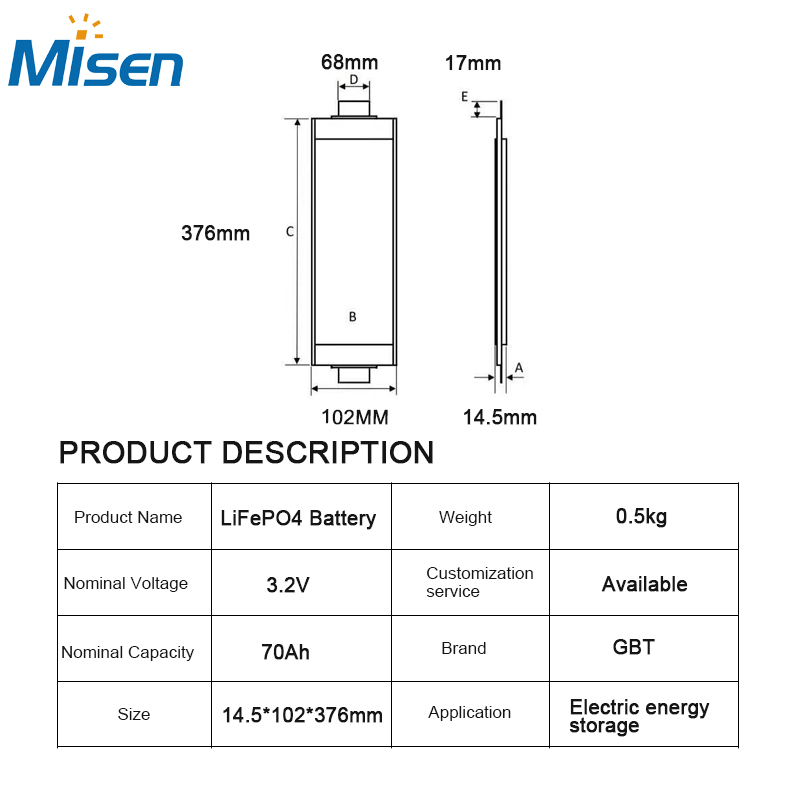

| Dimensions (L*W*H) | 14.5*102*376mm |
| Applications | Electric Power Systems,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle,used cars and so on. |
Chemistry: LiFePO4 (LFP)
Nominal Voltage: 3.2V
Rated Capacity: 70Ah

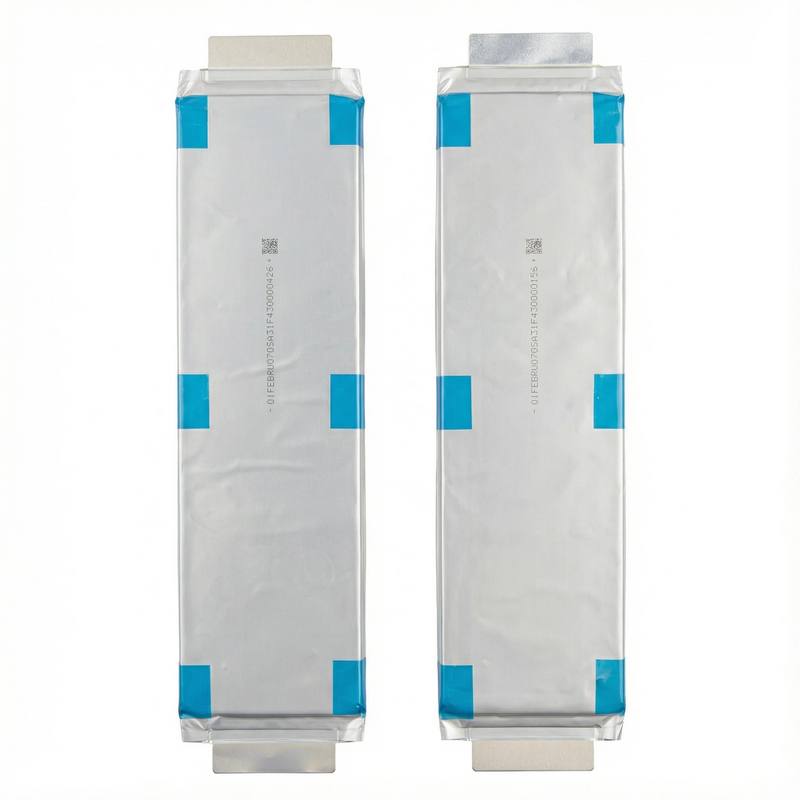

Form Factor: Pouch (Soft Cell)
Continuous Discharge Rate: 4C (280A)
Peak Discharge Rate: 16C (1120A) for ≤10s
Typical Energy: ~224 Wh
Cycle Life: >3000 cycles @ 80% DoD
Operating Temperature: -20°C to 55°C (Discharge)

Ultra-High Power LFP Technology
Exceptional 4C continuous (280A) and 16C peak (1120A) discharge rates outperform standard LFP cells.
Delivers NMC-like power with the superior safety and cycle life of LiFePO4 chemistry.
Minimal voltage sag under extreme load ensures consistent performance.
Inherent Safety & Robustness
Zero thermal runaway risk – the defining safety advantage of LFP chemistry.
Robust pouch cell construction with advanced pressure management.
Stable operation under high-current stress and wide temperature variations.
Long Cycle Life & Durability
Engineered for >3000 deep discharge cycles, even under high-rate conditions.
Resistant to degradation from frequent high-power pulses, ensuring long-term reliability.
Pouch Cell Design Benefits
Lightweight & Compact: Maximizes power-to-weight ratio critical for dynamic applications.
Thermal Efficiency: Large surface area facilitates effective heat dissipation during high-current events.
Design Flexibility: Enables custom, space-saving pack configurations.
High-Performance Electric Vehicles: Sport EVs, racing karts, and hybrid systems requiring intense power bursts.
Electric Powertrains & Drivetrain Systems: For robotics, aerial lifts, and heavy-duty industrial tools.
Uninterruptible Power Supplies (UPS) & Power Backup: Critical systems requiring high in-rush current capability.
Marine & Recreational Vehicles: High-torque trolling motors, winches, and thrusters.
Grid Support & Frequency Regulation: Rapid discharge/charge applications in energy storage systems.

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.
These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.
We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.
Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
