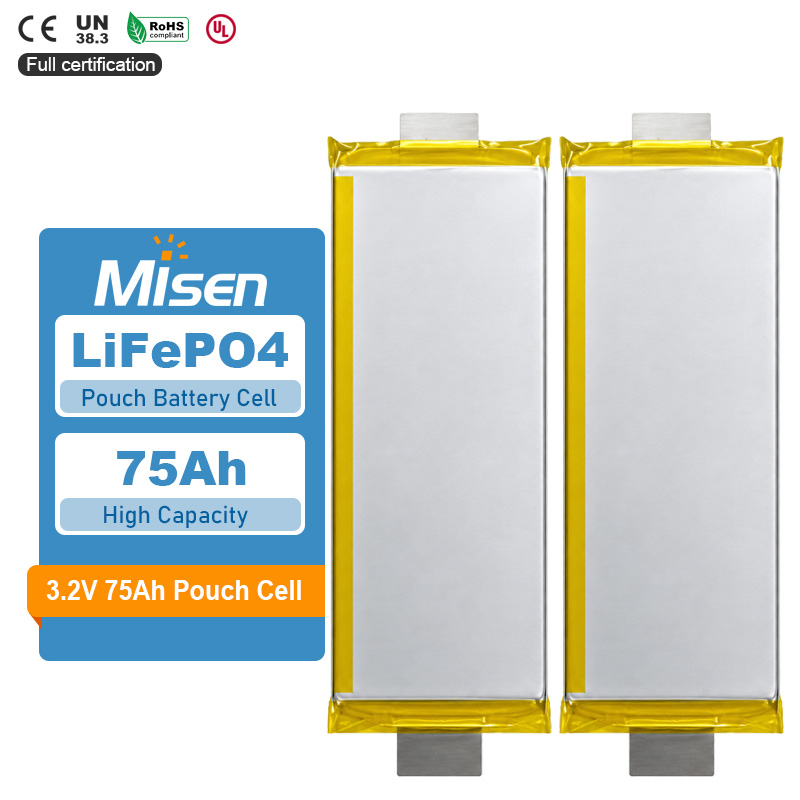

Misen 3.2V 75Ah 240Wh Rechargeable LiFePO4 Pouch Battery Cell

Cell Size: Pouch, 14.5 × 120 × 350mm
Chemistry: LiFePO4 / LFP
Capacity: 75Ah
Nominal Voltage: 3.2V

Brand:
Misen

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameters

Key Features

Applications & Selection Notes

Sourcing & Technical Support

GANFENG LIENERGY 75AH LFP POUCH CELL

Product Overview

The Ganfeng LiEnergy 75Ah LiFePO4 pouch cell combines a 3.2V nominal voltage with 240Wh nominal energy in a flat 14.5 × 120 × 350mm format. Specified dimensional tolerances and tab measurements provide useful references for module layout and interconnection planning.

This rechargeable LFP cell can be evaluated for energy storage, industrial backup power and custom battery assemblies. Final selection should account for the required load profile, mechanical support, tab connections, thermal management and BMS integration. Reported rate-discharge and cycle-performance figures should be reviewed against the intended operating conditions before production integration.

GANFENG LIENERGY 75AH LFP POUCH CELL

Technical Specifications

01. Basic Specifications

Brand	Ganfeng LiEnergy
Cell Type	Rechargeable lithium iron phosphate pouch cell, LiFePO4 / LFP
Nominal Voltage	3.2V
Nominal Capacity	75Ah / 75000mAh
Nominal Energy	240Wh, calculated from 3.2V × 75Ah.

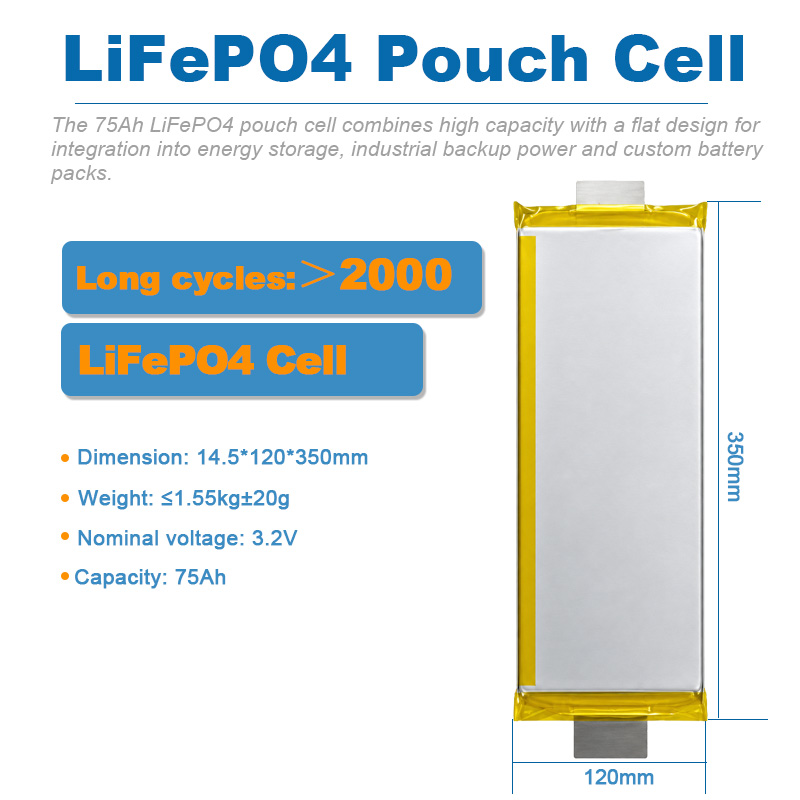

02. Cell Dimensions

Thickness — T	14.5 ± 0.3mm
Width — W	120.0 ± 1.5mm
Length — L	350.0 ± 2.0mm
Tab Width — W1	50.0 ± 0.5mm
Tab Length — N	22.5 ± 1.0mm
Tab-to-Seal Distance — E	27.8 ± 2.0mm
Top Seal Width — K	15.5 ± 1.0mm

03. Reported Performance

3C Discharge Current	225A, calculated from 3 × 75Ah for the reported 3C discharge condition.
Capacity at 3C Discharge	Approx. 90% of nominal capacity, according to the supplied information.
Cycle Performance	80% capacity retention after 2000 cycles, according to the supplied information.

Reported rate-discharge and cycle figures are preliminary selection references. Validate them under the intended application conditions. The 225A calculation does not establish a maximum continuous or pulse-current rating.

GANFENG LIENERGY 75AH LFP POUCH CELL

Key Features

0175Ah Capacity and 240Wh Nominal Energy

The 3.2V, 75Ah rating provides 240Wh of calculated nominal energy per cell, supporting initial energy sizing and series-parallel configuration planning for custom battery modules.

02Flat Pouch Format with Defined Tolerances

The cell body is specified at 14.5 ± 0.3mm thick, 120.0 ± 1.5mm wide and 350.0 ± 2.0mm long, providing dimensional references for mechanical integration.

03Specified Tab and Seal Geometry

Tab width, tab length and seal dimensions are supplied with tolerances, helping engineers assess interconnection placement, insulation coverage and the mechanical layout of the finished module.

GANFENG LIENERGY 75AH LFP POUCH CELL

Applications and Selection Notes

This 75Ah LiFePO4 pouch cell can be evaluated for the following projects after electrical, thermal and mechanical validation. These application directions do not represent approval for a particular finished system.

Potential Applications

Energy Storage Modules: Consider series-parallel assemblies where the 3.2V cell platform, 75Ah capacity and flat pouch geometry match the required system energy and installation space.
Industrial Backup and Custom Equipment Packs: Evaluate the cell against the equipment's load profile, runtime target, enclosure layout and protection requirements before selecting the final module design.

Battery Cell Selection Notes

Size the complete battery system. Compare the required pack voltage, energy and operating load with the proposed cell configuration. Browse the LiFePO4 pouch cell range when evaluating alternative capacities and dimensions.
Separate reported performance from operating limits. The 3C reference corresponds to 225A by calculation. Do not use this value alone to set continuous-current limits, peak-current limits or BMS protection thresholds. Review the reported cycle performance against the intended duty cycle.
Account for mechanical tolerances. Use the supplied body, tab and seal dimensions when planning supports, interconnections and insulation. The custom battery pack pouch-cell selection guide explains the wider integration considerations.

Frequently Asked Questions

How much nominal energy does one cell provide?

One cell provides 240Wh of calculated nominal energy, based on 3.2V × 75Ah. Actual usable energy depends on operating conditions and the system's permitted voltage window.

Does the 3C figure establish a 225A continuous rating?

No. The 225A value is calculated from 3 × 75Ah for the reported 3C discharge condition. It does not independently establish a maximum continuous or pulse-current rating.

What are the supplied tab dimensions?

Tab width W1 is 50.0 ± 0.5mm and tab length N is 22.5 ± 1.0mm. Use these together with the seal dimensions and dimensional drawing when evaluating the module interconnection layout.

GANFENG LIENERGY 75AH LFP POUCH CELL

Sourcing and Technical Support

Misen Power supports battery-cell sourcing and custom battery-pack projects. Contact our team to discuss Ganfeng LiEnergy 75Ah LiFePO4 pouch cells and the requirements of your proposed assembly.

01Cell Sourcing

Provide the required quantity, destination and purchasing schedule so our team can confirm availability, supply options and commercial terms.

02Technical Selection

Share the target pack voltage, energy, current profile and available space. Our team can help compare cell capacity, body dimensions and tab geometry with the proposed system requirements.

03Custom Battery Pack Support

Discuss series-parallel configuration, BMS integration, interconnections, wiring, mechanical support and enclosure design. Prototype evaluation should reflect the intended load and installation conditions.

Request a Quotation

Send your quantity, destination country and application through the product-page inquiry form or our contact form. Include the required pack voltage, capacity, load profile and installation dimensions. Talk to an Engineer.
