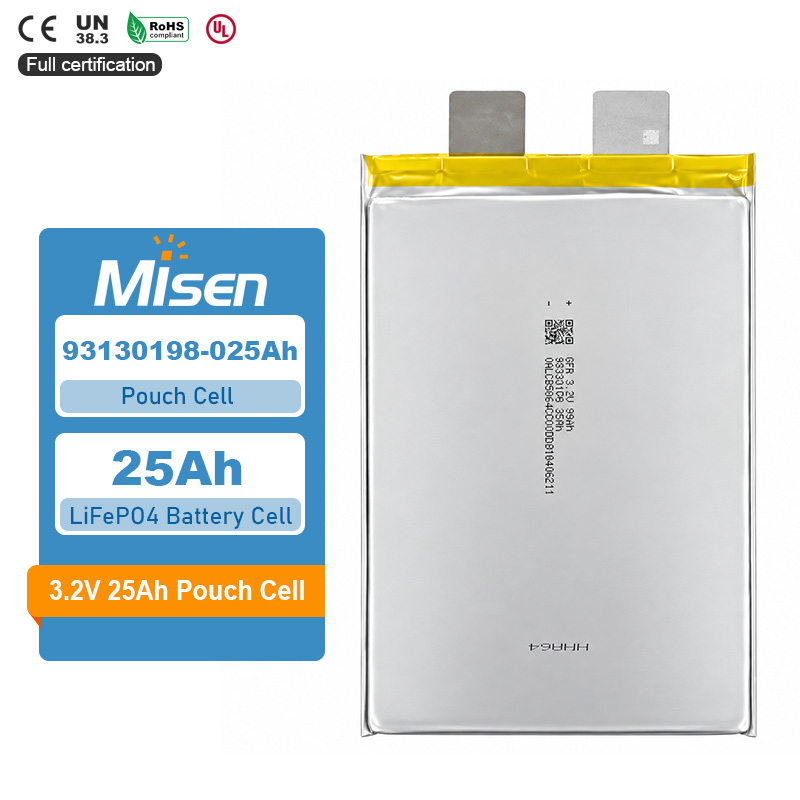

Ganfeng 93130198-025Ah Cell
The Ganfeng 93130198-025Ah is a rechargeable lithium iron phosphate pouch cell with a nominal voltage of 3.2V and a typical capacity of 25Ah. Its maximum continuous discharge rating is 1C, equivalent to 25A on the stated capacity basis. The flat pouch construction supports compact module layouts for engineered battery assemblies.
Potential applications include custom energy storage, backup power and industrial battery packs following system validation. Integration requires suitable pouch support, insulated connections, temperature monitoring and a battery management system. Continuous operation and pulse loads must follow their respective current, temperature, state-of-charge and duration requirements.
Ganfeng 93130198-025Ah Cell
| Manufacturer and Model | 93130198-025Ah |
| Cell Format and Chemistry | Rechargeable pouch cell; lithium iron phosphate (LiFePO4 / LFP) |
| Nominal Voltage | 3.2V |
| Typical Capacity | 25.0Ah 0.33C discharge at 25±2°C; fresh-cell qualification applies. |
| Calculated Nominal Energy | Approx. 80Wh, calculated from 3.2V × 25Ah |
| AC Impedance | ≤2.0mΩ at 1kHz, fresh cell |
| Standard Charge | 0.5C (12.5A) CC-CV to 3.65V, terminating at 0.05C (1.25A); 25±2°C |
| Maximum Continuous Charge | 1C (25A) at 25±2°C; confirm applicable temperature and SOC derating before use. |
| Standard Discharge | 0.5C (12.5A) at 25±2°C |
| Maximum Continuous Discharge | 1C (25A) Subject to applicable operating and thermal limits. |
| Long-Pulse Discharge | 2C (50A), up to 120 seconds, followed by a zero-current rest period of equal duration. |
| Short-Pulse Discharge | 2.5C (62.5A). The Chinese text specifies cell temperature below 50°C: up to 60 seconds above 40% SOC, or 10 seconds below 40% SOC. Exact boundary conditions require manufacturer confirmation. |
| Electrical Discharge Cut-off | 2.50V above 0°C; 2.00V from −20°C to 0°C. These electrical cut-offs are distinct from system-protection settings. |

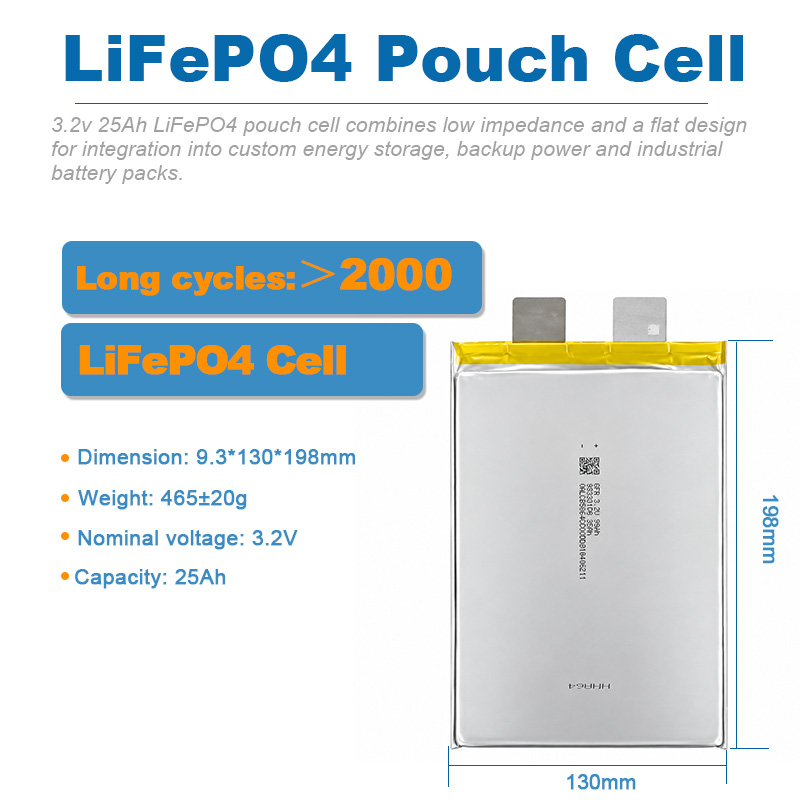

| Cell Body Dimensions | Thickness: 9.0±0.3mm Width: 130.0mm (+3.0 / −1.0mm) Height: 198.0±2.0mm, excluding protruding tabs |
| Tab Dimensions | Width: 25.0±0.5mm; height: 22.5±2.0mm; reference center spacing: 60.0±2.0mm |
| Cell Weight | 465±20g |
| Charging Temperature | 0–55°C listed range; allowable current depends on the validated operating conditions. |
| Discharging Temperature | −20–60°C listed electrical range; confirm the applicable BMS thermal shutdown requirement before design. |
| Long-Term Storage Maintenance | For storage longer than one month, adjust to approximately 50% SOC. Perform charge/discharge maintenance after three months and restore approximately 50% SOC. |
| Cycle Performance | ≥80% capacity retention after 2,000 cycles 1C charge/discharge at 25±2°C, with 30±10kgf initial fixture preload; fresh-cell qualification applies. |
| Low-Temperature Discharge Capacity | ≥16.2Ah at −20±2°C, following standard charging at 25±2°C and 1C discharge to 2.00V; fresh-cell qualification applies. |
| Self-Discharge | ≤3.5% per month; stated condition: approximately 50% SOC, storage at 25±2°C for three months. |
Ampere equivalents are calculated using the stated 25Ah capacity. The specification defines C-rate relative to the latest measured capacity. Starred criteria apply to fresh, unused cells within seven days of manufacturer delivery. Confirm the applicable revision, current-derating data and system-protection settings before pack integration.
Ganfeng 93130198-025Ah Cell
The 9mm nominal body thickness supports flat module layouts, while 25Ah typical capacity provides approximately 80Wh of calculated nominal energy per cell. Enclosure design must accommodate dimensional tolerances and protruding tabs.
The specified 1C continuous discharge equals 25A on a 25Ah basis. Separate 2C long-pulse and 2.5C short-pulse ratings support transient-load assessment only within their respective duration, temperature, SOC and rest requirements.
The specification lists at least 80% remaining capacity after 2,000 cycles at 25±2°C, using 1C charge/discharge and 30±10kgf initial fixture preload. Pack service life depends on actual electrical, thermal and mechanical conditions.
Fresh-cell testing specifies at least 16.2Ah at −20±2°C under 1C discharge to 2.00V after room-temperature charging. This discharge test does not establish suitability for charging below the listed 0°C minimum.
Ganfeng 93130198-025Ah Cell
The 93130198-025Ah may be evaluated for the following engineered battery projects. These application directions require pack-level validation and do not represent manufacturer approval for a finished system.
Browse the LiFePO4 pouch cell range for alternative capacities, or review custom battery pack services when discussing system integration.
The continuous rating is 1C, equivalent to 25A on a 25Ah basis. The 62.5A equivalent is a 2.5C short-pulse rating with temperature, SOC and duration restrictions; it must not be used as a continuous-load rating.
The drawing specifies a body height of 198.0±2.0mm. Tab height is separately listed as 22.5±2.0mm. Use the complete drawing, including tolerances and connection clearance, for enclosure design.
The listed condition is 1C charge/discharge at 25±2°C with 30±10kgf initial fixture preload and at least 80% capacity retention after 2,000 cycles. Finished-pack performance requires separate validation.
Ganfeng 93130198-025Ah Cell
Misen Power supports B2B battery cell sourcing and custom battery pack projects. Ganfeng is the manufacturer identified for this cell. Contact MISEN to confirm the applicable specification, batch information and availability for your project.
Share the required quantity, destination and purchasing schedule. Availability, batch condition, commercial terms and shipment arrangements are subject to confirmation for the specific order.
Request available specifications, drawings and applicable transport or compliance documents, subject to availability and sharing permissions. Confirm that each document covers the exact product variant and intended shipment.
Provide the target pack voltage, capacity, continuous and peak loads, operating temperatures and enclosure dimensions. MISEN can discuss project requirements and the scope of electrical, mechanical and BMS integration support.
