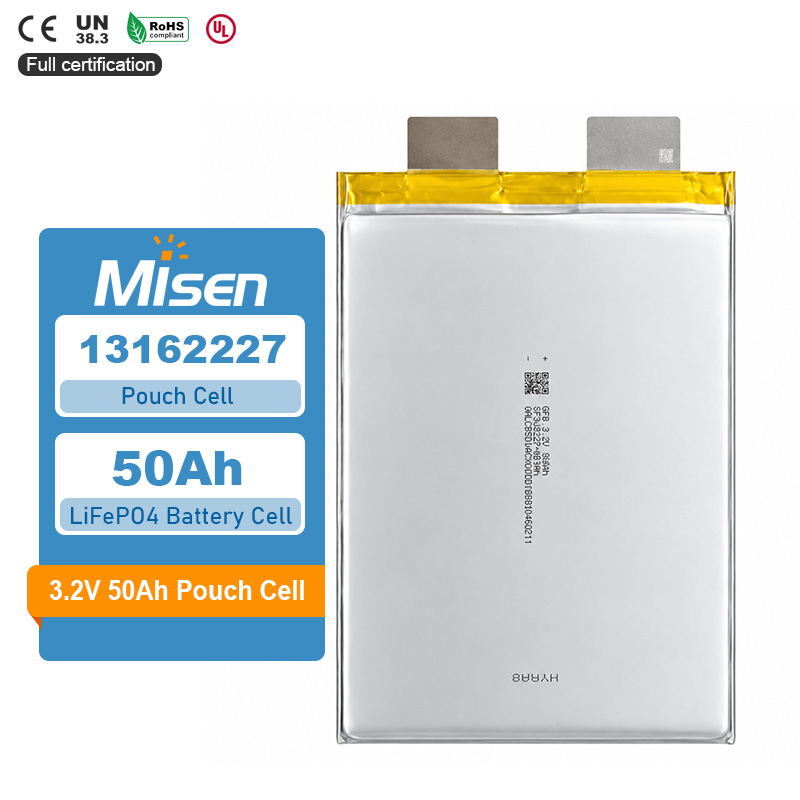

Ganfeng 13162227 Cell

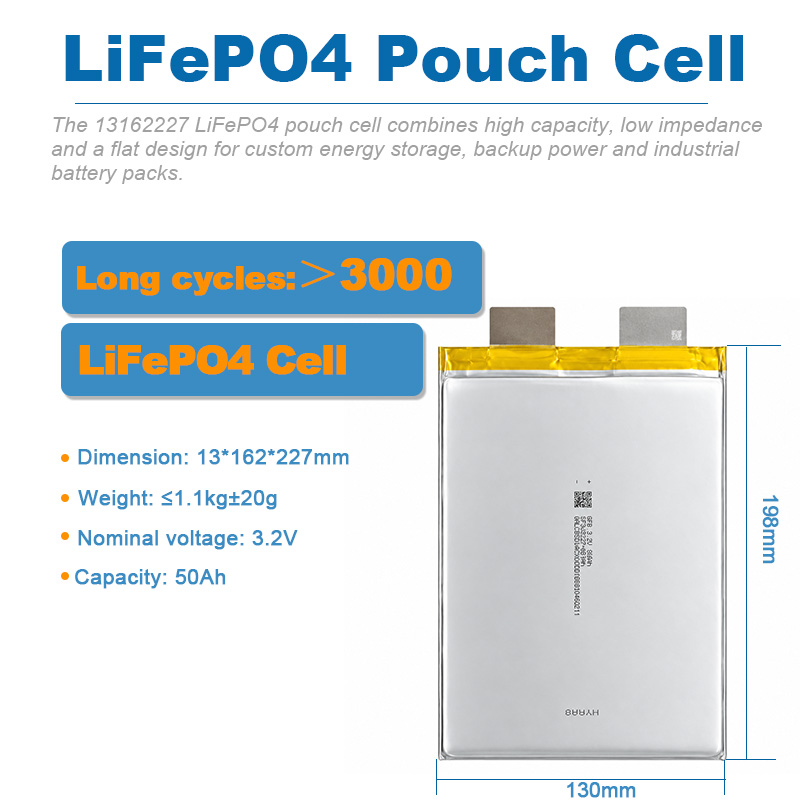

The Ganfeng 13162227 is a 3.2V rechargeable lithium iron phosphate pouch cell in the 50Ah class. The specification lists 52.3Ah typical capacity at 0.5C discharge and 25±2°C in the fresh-cell state, together with AC impedance of ≤1.5mΩ. Its flat construction provides a building block for engineered battery modules.
Potential projects include custom energy storage, backup power and industrial battery packs following application validation. Integration requires controlled mechanical support, swelling allowance, thermal monitoring and BMS protection. Allowable current depends on temperature and state of charge; confirm the applicable discharge limits before finalizing the pack load profile.
Ganfeng 13162227 Cell
| Manufacturer and Model | 13162227 |
| Cell Format and Chemistry | Rechargeable pouch cell; lithium iron phosphate (LiFePO4 / LFP) |
| Nominal Voltage | 3.2V |
| Capacity Designation and Typical Capacity | 50Ah product designation; 52.3Ah typical Typical capacity measured at 0.5C discharge, 25±2°C, fresh-cell state. |
| Calculated Energy | Approx. 160Wh using the 50Ah designation; approx. 167.4Wh using 52.3Ah typical capacity. Both calculated at 3.2V. |
| AC Impedance | ≤1.5mΩ at 1kHz; fresh cell at 25±2°C |
| Standard Charging Method | 0.5C CC-CV to 3.65V, terminating at 0.05C; standard temperature 25±2°C. Follow temperature/SOC derating. |
| Charge Current Derating | The charge matrix lists up to 0.5C at selected temperature/SOC points, with lower limits elsewhere and zero charge at 0°C. At 25°C above 80% SOC, the listed limit is 0.35C. |
| Standard Discharge | 0.5C at 25±2°C |
| Maximum Continuous Discharge | Section 2.3.2 lists 1.5C. However, the temperature/SOC matrix in Section 2.3.6 lists a maximum of 1C, with further derating. Obtain manufacturer confirmation before specifying the allowable pack current. |
| Pulse Discharge | No separate pulse-current magnitude or duration is specified in the supplied document. |
| Electrical Discharge Cut-off | 2.50V above 0°C up to 60°C; 2.00V from −20°C to 0°C. These electrical cut-offs are distinct from BMS protection requirements. |
| Cell Body Dimensions | 13.6±0.3 × 162.0±2.0 × 225.0±2.0mm Thickness × width × body height; protruding tabs excluded. A1 drawing. |
| Tab Dimensions and Materials | Width: 45.0±0.5mm; height: 24.5±2.0mm; reference center spacing: 81.0±2.0mm. Positive tab: 0.3mm aluminum; negative tab: 0.2mm nickel-plated copper. |
| Cell Weight | ≤1.1kg |
| Operating Temperatures | Charging: 0–55°C listed range; discharging: −20–60°C listed range. Optimum range: 15–35°C. Temperature/SOC matrices determine allowable current and include zero-current boundary points. |
| Mechanical Integration | Fresh-cell preload range: 500–2,000N; recommended control tolerance: ±200N. Suggested assembly gap: 0.5–1.5mm. Validate structural strength and swelling allowance for the complete module. |
| Storage and Maintenance | One month: −30–45°C; six months: −20–35°C, at 25–40% SOC without condensation. For storage beyond one month, periodic adjustment to approximately 40% SOC is recommended every three months. |
| Listed Cycle Life | 3,000 cycles 1C charge/discharge at 25±2°C with 30±10kgf initial preload. The cycle table does not state an end-of-test capacity-retention threshold. |
| Temperature-Dependent Capacity | Fresh-cell test values at 1C discharge: ≥51.5Ah at 25°C and ≥48.9Ah at 55°C over 2.50–3.65V; ≥30.9Ah at −20°C over 2.00–3.65V. Test conditions are not a blanket operating-current approval. |
| Room-Temperature Storage Retention | ≥95.5% after standard charging to 100% SOC and storage for 28 days at 25±2°C |
| Self-Discharge | ≤3.5% per month; stated condition: cells more than three months after shipment, adjusted to 40% SOC and stored at 25±2°C. |
Values follow the supplied A1 specification. Confirm the C-rate capacity basis, applicable current matrices and cycle-test acceptance criteria before qualification. The document defines fresh state as within seven days of customer receipt for domestic transport. Cell-level test results do not establish finished-pack performance.
Ganfeng 13162227 Cell
The 50Ah-class cell has a listed typical capacity of 52.3Ah under fresh-cell testing at 0.5C and 25±2°C, giving buyers a clearly defined capacity reference for module assessment.
AC impedance is specified at ≤1.5mΩ for fresh cells at 25±2°C using a 1kHz measurement. This value supports incoming-cell assessment and must not be treated as a DC resistance specification.
The A1 drawing specifies a 13.6mm nominal body thickness and 45mm-wide tabs. Aluminum positive and nickel-plated copper negative tabs require material-compatible connection methods and validated mechanical support.
The specification lists 3,000 cycles under 1C charge/discharge at 25±2°C with 30±10kgf initial preload. Confirm the capacity-retention endpoint and applicable charging protocol when defining your qualification plan.
Ganfeng 13162227 Cell
The 13162227 may be evaluated for the following battery projects when its electrical limits and mechanical requirements match the system design. These are potential integration directions, not manufacturer approvals for finished equipment.
Compare other capacities in the LiFePO4 pouch cell range, or review custom battery pack services for project integration discussions.
The cover identifies the product as 50Ah. The electrical table separately lists 52.3Ah typical capacity at 0.5C discharge and 25±2°C in the fresh-cell state. Typical capacity is not an unconditional minimum-capacity guarantee.
75A is the calculated equivalent of the listed 1.5C value using a 50Ah basis. The separate temperature/SOC matrix limits discharge to 1C or less, so 75A must not be adopted without manufacturer confirmation of the applicable conditions and capacity basis.
The A1 drawing gives a body size of 13.6 × 162 × 225mm before tolerances. Protruding tab height is separately specified as 24.5±2.0mm. Use the complete drawing for enclosure and connection design.
Ganfeng 13162227 Cell
Misen Power supports B2B battery cell sourcing and custom battery pack projects. Ganfeng is the manufacturer identified for this cell. Contact MISEN to confirm the applicable specification, batch information and availability.
Share the required quantity, destination and purchasing schedule. Availability, batch condition, commercial terms and shipping arrangements are subject to confirmation for the specific order.
Request available specifications, drawings and applicable transport or compliance documents, subject to availability and sharing permissions. Confirm that documentation covers the exact cell variant and intended shipment.
Provide the target voltage, capacity, load profile, operating temperatures and enclosure dimensions. MISEN can discuss project requirements and the scope of electrical, mechanical and BMS integration support.
Use the existing inquiry form on this product page to send the model 13162227, required quantity, destination and application. Include pack voltage, continuous load and mechanical requirements when requesting integration support.
