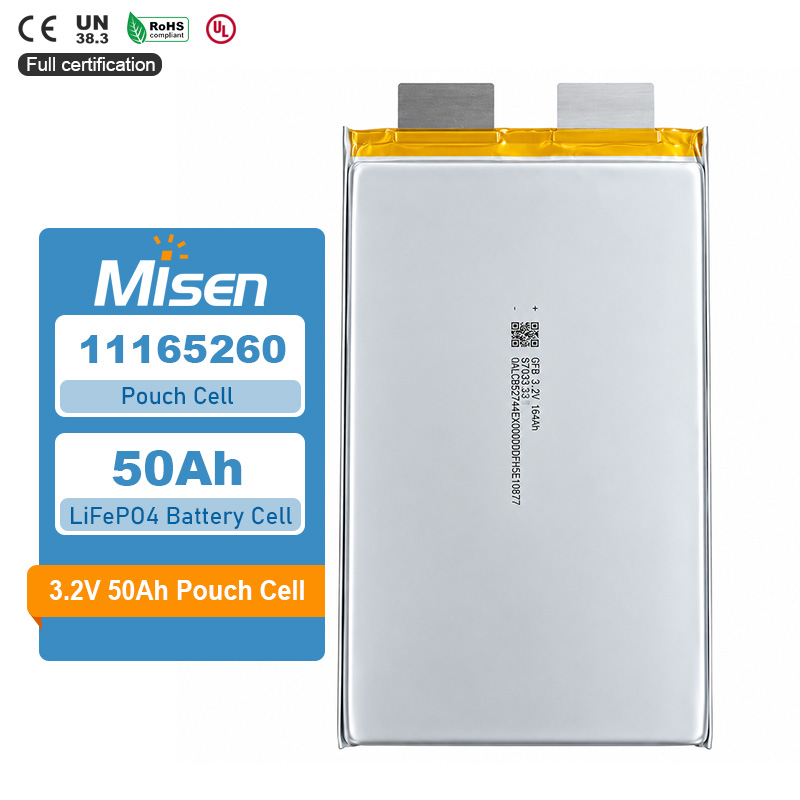

Ganfeng 11165260 Cell
The Ganfeng 11165260 is a rechargeable lithium iron phosphate pouch cell with a nominal voltage of 3.2V and a listed typical capacity of 50Ah. Its maximum continuous discharge rating is 1C, equivalent to 50A on the stated capacity basis, subject to temperature and state-of-charge derating. Fresh-cell AC impedance is specified at ≤2.0mΩ.
The slim pouch format may be evaluated for custom energy storage, backup power and industrial battery modules. Integration requires validated compression, swelling allowance, insulated connections, thermal monitoring and BMS protection. The specified thickness is measured under pressure and should not be treated as an unloaded dimensional guarantee.
Ganfeng 11165260 Cell
| Manufacturer and Model | 11165260 |
| Cell Format and Chemistry | Rechargeable pouch cell; lithium iron phosphate (LiFePO4 / LFP) |
| Nominal Voltage | 3.2V |
| Typical Capacity | 50.0Ah Using the standard charge/discharge procedures in Sections 2.2 and 2.3. |
| Calculated Nominal Energy | Approx. 160Wh, calculated from 3.2V × 50Ah |
| AC Impedance | ≤2.0mΩ at 1kHz, fresh-cell state |
| Standard Charging Method | 0.5C CC-CV to 3.65V, terminating at 0.05C; standard temperature 25±2°C. Calculated equivalents: 25A initial current and 2.5A termination current. |
| Charging Derating | The temperature/SOC matrix lists up to 0.5C at selected points, with lower limits elsewhere and zero charging at 0°C. At 25°C above 80% SOC, the listed limit is 0.35C. Apply the validated charging protocol. |
| Standard Discharge | 0.5C at 25±2°C; 25A calculated on a 50Ah basis |
| Maximum Continuous Discharge | 1C; 50A calculated Subject to the applicable temperature/SOC derating and thermal limits. |
| Pulse Discharge | No separate pulse-current magnitude or duration is specified in the supplied document. |
| Electrical Discharge Cut-off | 2.50V above 0°C up to 60°C; 2.00V from −20°C to 0°C. Electrical cut-offs are distinct from system-protection thresholds. |

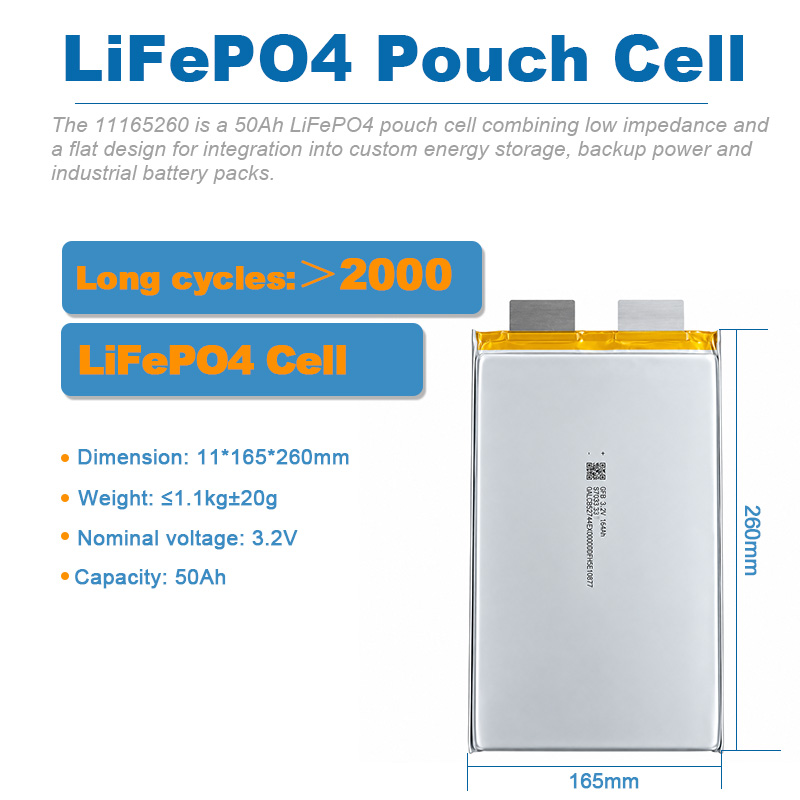

| Cell Body Dimensions | 10.5±0.3 × 165.0±2.0 × 260.0±2.0mm Thickness × width × body height, excluding protruding tabs. Thickness measured using a thickness gauge under 150±50kgf pressure. |
| Tab Dimensions and Materials | Width: 45.0±0.5mm; height: 22.0±3.0mm; reference center spacing: 72.0±2.0mm. Positive tab: 0.3mm aluminum; negative tab: 0.2mm nickel-plated copper. |
| Cell Weight | ≤1.0kg |
| Operating Temperatures | Charging: 0–55°C listed range; discharging: −20–60°C listed range. Optimum charging/discharging range: 15–35°C. Current derating and zero-current matrix points apply. |
| Mechanical Integration | Fresh-cell preload range: 500–2,000N; recommended control tolerance: ±200N. Suggested assembly gap: 0.5–1.5mm. Validate module strength, force distribution and swelling allowance. |
| Storage Temperature | One month: −30–45°C; six months: −20–35°C. Specified SOC: 25–40%; avoid condensation. |
| Listed Cycle Life | 2,000 cycles 1C charge/discharge at 25±2°C with 30±10kgf initial preload. The cycle table does not state an end-of-test capacity-retention threshold. |
| Temperature-Dependent Capacity | Fresh-cell test values: ≥50.0Ah at 25°C and ≥47.5Ah at 55°C, using 0.33C over 2.50–3.65V; ≥30.0Ah at −20°C, using 1C over 2.00–3.65V. Test conditions do not replace operating-current limits. |
| Self-Discharge | ≤3.5% per month; stated condition: cells more than three months after shipment, adjusted to 40% SOC and stored at 25±2°C. |
Ampere equivalents are calculated using 50Ah. Confirm the applicable C-rate capacity basis and complete operating matrices before qualification. The 1C charging condition in the cycle test is separate from the normal charging matrix and must not be adopted as routine charging permission.
Ganfeng 11165260 Cell
The 50Ah cell provides approximately 160Wh of calculated nominal energy. Its specified 10.5mm thickness supports flat module assessment, with the measurement pressure and dimensional tolerances retained for accurate mechanical planning.
The maximum continuous discharge rating is 1C, equivalent to 50A using the stated 50Ah capacity. Temperature and SOC derating apply; no separate pulse-current rating is established in the supplied specification.
Fresh-cell AC impedance is listed at ≤2.0mΩ using a 1kHz measurement. This provides a defined incoming-inspection reference and must not be presented as a DC resistance value.
The specification lists 2,000 cycles under 1C charge/discharge at 25±2°C with 30±10kgf initial preload. Confirm the capacity-retention endpoint and approved test protocol before establishing project acceptance criteria.
Ganfeng 11165260 Cell
The 11165260 may be evaluated for the following engineered battery projects when its current limits, dimensions and mechanical requirements match the system design. These application directions require pack-level validation.
Explore the LiFePO4 pouch cell range for other formats and capacities, or review custom battery pack services for integration discussions.
50A is the calculated equivalent of the listed 1C maximum continuous discharge rating using 50Ah. Temperature/SOC derating applies. The document does not provide a separate pulse-current rating or pulse duration.
The drawing specifies 10.5±0.3mm measured under 150±50kgf pressure. It does not establish the same thickness for an unloaded cell. Confirm the measurement and assembly conditions before fixing enclosure dimensions.
260.0±2.0mm is the cell body height. Protruding tab height is separately specified as 22.0±3.0mm, and the reference tab center spacing is 72.0±2.0mm. Use the complete drawing for connection design.
Ganfeng 11165260 Cell
Misen Power supports B2B battery cell sourcing and custom battery pack projects. Ganfeng is the manufacturer identified for this cell. Contact MISEN to confirm the applicable specification, batch information and availability.
Share the required quantity, destination and purchasing schedule. Availability, batch condition, commercial terms and shipment arrangements are subject to confirmation for the specific order.
Request available specifications, drawings and applicable transport or compliance documents, subject to availability and sharing permissions. Confirm that each document covers the exact product variant and intended shipment.
Provide the target pack voltage, capacity, load profile, operating temperatures and enclosure dimensions. MISEN can discuss project requirements and the scope of electrical, mechanical and BMS integration support.
Use the existing inquiry form on this product page to send the model 11165260, required quantity, destination and application. Include your pack voltage, continuous load and mechanical requirements when requesting integration support.
