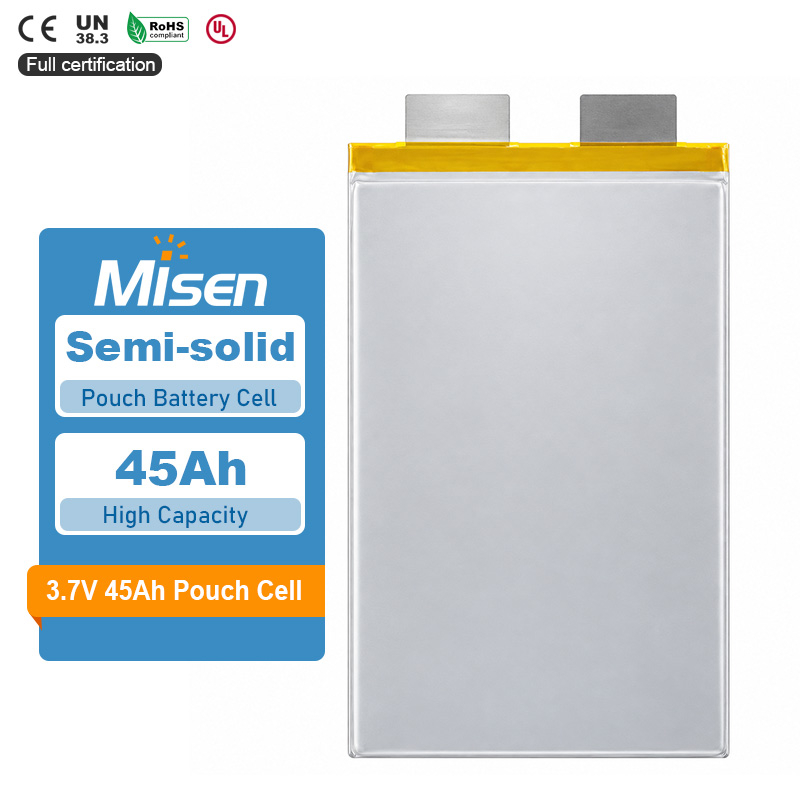

3.7V 45Ah 135A Continuous Discharge Semi-Solid NCM Pouch Battery Cell

Cell Size: Pouch, approx. 8.2 × 158 × 240mm
Chemistry: NCM / NMC, semi-solid
Capacity: 45Ah
Nominal Voltage: 3.7V
Max. Discharge Current: 135A continuous

Brand:
Misen

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameters

Key Features

Applications & Selection Notes

Sourcing & Technical Support

GANFENG 45AH SEMI-SOLID NCM CELL

Product Overview

The Ganfeng 45Ah semi-solid NCM pouch cell combines a 3.7V nominal voltage with 135A maximum continuous discharge. Its calculated nominal energy is 166.5Wh, with approximate dimensions of 8.2 × 158 × 240mm and a stated weight of around 700g.

Maximum charging is specified at 1C, equivalent to 45A, while internal resistance is listed at ≤2.0mΩ. This rechargeable cell can be evaluated for robotics, industrial equipment and custom battery assemblies. Final selection should account for the operating load, thermal management, mechanical support, interconnections and BMS protection requirements.

GANFENG 45AH SEMI-SOLID NCM CELL

Technical Specifications

01. Basic Specifications

Brand	Ganfeng
Cell Type	Rechargeable NCM / NMC lithium-ion pouch cell
Technology	Semi-solid
Nominal Voltage	3.7V
Nominal Capacity	45Ah / 45000mAh
Nominal Energy	166.5Wh, calculated from 3.7V × 45Ah.

02. Charging and Discharging

Maximum Charge Rate	1C
Maximum Charge Current	45A, equivalent to 1C based on 45Ah nominal capacity.
Maximum Continuous Discharge Rate	3C
Maximum Continuous Discharge Current	135A Equivalent to 3C based on 45Ah nominal capacity.

03. Physical and Performance Data

Cell Dimensions	Approx. 8.2 × 158 × 240mm
Cell Weight	Approx. 700g
Internal Resistance	≤2.0mΩ
Reported Cycle Life	≥2000 cycles, according to the supplied information.

GANFENG 45AH SEMI-SOLID NCM CELL

Key Features

01135A Maximum Continuous Discharge

The supplied 3C maximum continuous-discharge rating corresponds to 135A, providing a current reference for evaluating motor-driven equipment and custom battery packs with compatible electrical and thermal requirements.

0245Ah Semi-Solid NCM Design

This semi-solid NCM pouch cell combines 45Ah nominal capacity with a 3.7V voltage platform, providing 166.5Wh of calculated nominal energy for battery-system sizing.

03Flat Format for Module Integration

Approximate dimensions of 8.2 × 158 × 240mm and a weight of around 700g provide initial references for flat module layouts, enclosure planning and pack-weight assessment.

GANFENG 45AH SEMI-SOLID NCM CELL

Applications and Selection Notes

This 45Ah semi-solid NCM pouch cell can be evaluated for the following projects after electrical, thermal and mechanical validation. These are potential engineering applications, not approval for a particular finished system.

Potential Applications

Robotics and Industrial Mobility: Evaluate the cell's capacity, continuous-discharge capability and flat format against motor loads, runtime targets and the available battery compartment.
Custom Equipment Battery Packs: Consider series-parallel assemblies for compatible industrial equipment, allowing for current sharing, interconnection losses, cell heating and mechanical support.

Battery Cell Selection Notes

Match the charge and discharge requirements. The supplied maximum charge current is 45A, while maximum continuous discharge is 135A. Evaluate the actual duty cycle and thermal behavior before selecting pack operating limits.
Use approximate dimensions for initial screening. The stated 8.2 × 158 × 240mm format and approximate 700g weight support preliminary layout evaluation. Include supports, insulation, interconnections and swelling allowance in the installed assembly.
Compare the complete specification. Review alternative NCM pouch cells against your energy, current and space requirements. Use the custom battery pack pouch-cell selection guide to plan BMS integration, thermal management and prototype validation.

Frequently Asked Questions

What currents correspond to the supplied C-rates?

At 45Ah nominal capacity, 1C corresponds to the 45A maximum charge current and 3C corresponds to the 135A maximum continuous-discharge current.

How much nominal energy does one cell provide?

Calculated nominal energy is 166.5Wh, based on 3.7V × 45Ah. Actual usable energy depends on the operating load, voltage window and system conditions.

GANFENG 45AH SEMI-SOLID NCM CELL

Sourcing and Technical Support

Misen Power supports battery-cell sourcing and custom battery-pack projects. Contact our team to discuss Ganfeng 3.7V 45Ah semi-solid NCM pouch cells and the requirements of your proposed assembly.

01Cell Sourcing

Provide the required quantity, destination and purchasing schedule so our team can confirm availability, supply options and commercial terms.

02Technical Selection

Share the target pack voltage, energy, charging requirements and operating-current profile. Our team can help compare the cell's supplied specifications with your project requirements.

03Custom Battery Pack Support

Discuss series-parallel configuration, BMS integration, interconnections, wiring, enclosure design and mechanical support. Prototype testing should reflect the intended load profile and installation conditions.

Request a Quotation

Send your quantity, destination country and application through the product-page inquiry form or our contact form. Include your required pack voltage, capacity, current profile and installation space. Talk to an Engineer.
