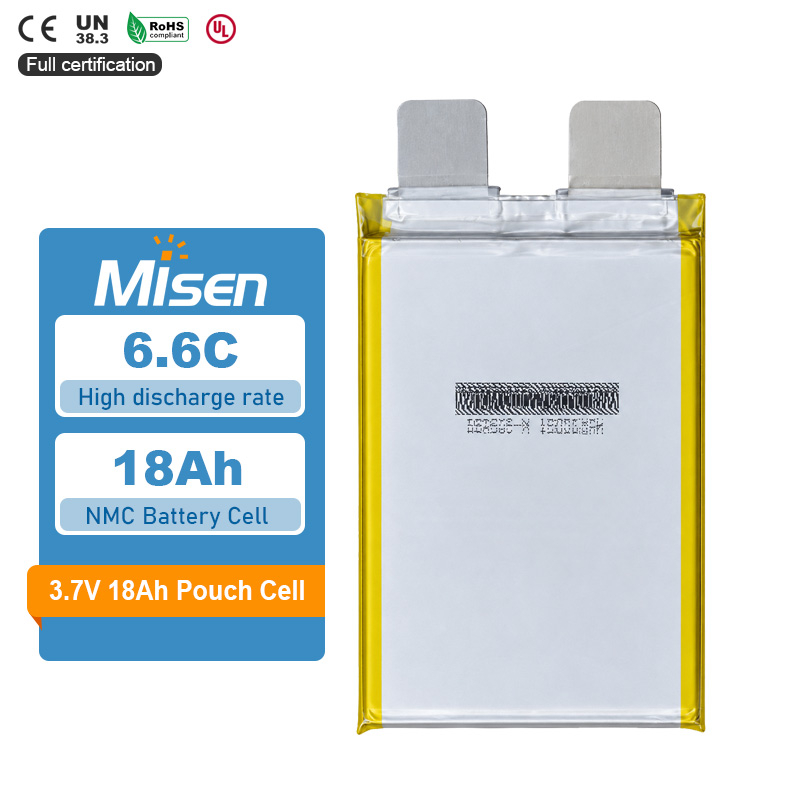

Misen 88105165 3.7V 18Ah+ 10C High-Rate Lithium-Ion Pouch Battery Cell

Cell Size: 8.8 × 105 × 165mm
Chemistry: Lithium-ion
Capacity: 18Ah+ / 18000mAh+
Nominal Voltage: 3.7V
Max. Discharge Current: ≥180A continuous; conditions to be confirmed

Brand:
Misen

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameters

Key Features

Applications & Selection Notes

Sourcing & Technical Support

MISEN 88105165 CELL

Product Overview

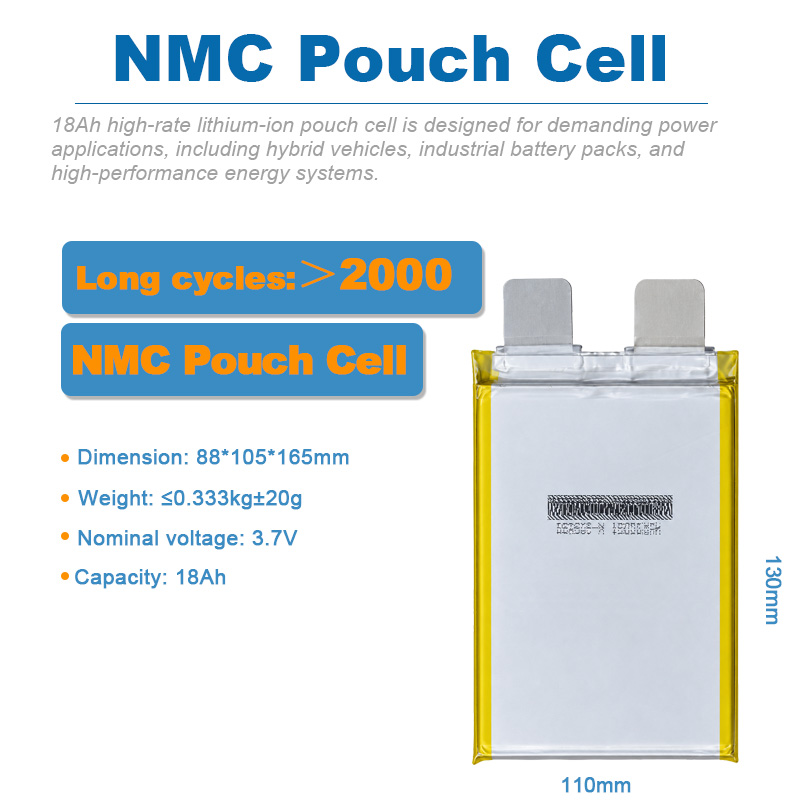

The Misen 88105165 is a lithium-ion pouch cell with a nominal voltage of 3.7V and a listed nominal capacity of 18Ah+. Its supplied specification states a 10C continuous discharge rate and a continuous discharge current of ≥180A.

The 8.8 × 105 × 165mm format provides a starting point for custom battery pack layout. Buyers should confirm the applicable discharge conditions and dimensional drawing before integration. Final pack performance depends on cell matching, tab connections, mechanical support, thermal management and appropriately engineered protection.

MISEN 88105165 CELL

Technical Specifications

01. Basic Specifications

Brand	Misen
Model	88105165
Battery Type	Lithium-ion pouch cell
Nominal Capacity	18Ah+ / 18000mAh+
Nominal Voltage	3.7V
Nominal Energy	≥66.6Wh, calculated nominal value 3.7V × 18Ah = 66.6Wh at an 18Ah capacity basis; not measured usable energy.
Dimensions	8.8 × 105 × 165mm

02. Discharge and Resistance

Continuous Discharge Rate	10C
Continuous Discharge Current	≥180A, as listed in the supplied specification 18Ah × 10C = 180A. Confirm the exact permitted current and operating conditions before design.
Internal Resistance	0.6mΩ Measurement method and conditions to be confirmed.

The ≥180A notation does not establish an unrestricted upper current limit. Confirm the applicable cell specification, thermal conditions and discharge protocol before defining the pack operating current.

MISEN 88105165 CELL

Key Features

0110C Continuous Discharge Specification

The supplied data lists a 10C continuous discharge rate and ≥180A continuous current. Confirm the permitted operating conditions and thermal requirements for the intended sustained load.

0218Ah+ Nominal Capacity

The listed 18Ah+ capacity supports preliminary pack capacity planning. At 3.7V and an 18Ah basis, calculated nominal energy is 66.6Wh per cell; usable energy requires application testing.

03Flat Pouch Format for Mechanical Layout

The listed dimensions are 8.8 × 105 × 165mm. Evaluate this format against the available pack space, then confirm tab geometry, tolerances and assembly allowances before finalizing the enclosure.

MISEN 88105165 CELL

Applications and Selection Notes

The 88105165 may be evaluated for custom high-current battery systems. These are potential design directions, subject to confirmation of the complete cell specification and testing in the intended application.

Potential Applications

Custom high-current battery packs: Evaluate the continuous discharge specification against the required load profile, current-sharing arrangement and cooling design.
Industrial equipment battery development: Consider the flat pouch format where installation space and electrical requirements align with a validated cell and pack design.

Battery Cell Selection Notes

Confirm the discharge-current limit. The supplied data states ≥180A at 10C. Establish the exact permitted current, temperature conditions and discharge protocol before selecting the operating load.
Obtain the electrical operating specification. Confirm charging requirements, voltage limits and temperature conditions before configuring the charger and BMS.
Validate the pouch assembly. Review dimensional tolerances, tab connections, insulation, mechanical support, swelling allowance and heat removal for the proposed pack.

Explore the Misen Power pouch cell range and battery pack integration support to discuss suitable options for your project.

Frequently Asked Questions

How does the 10C rating relate to 180A?

Using an 18Ah capacity basis, 18Ah × 10C = 180A. The supplied specification states ≥180A, but the exact upper operating limit and applicable conditions require confirmation.

Is ≥66.6Wh measured usable energy?

It is a calculated nominal value based on the listed capacity and nominal voltage. At 18Ah, 3.7V × 18Ah equals 66.6Wh; usable energy depends on discharge conditions and the system voltage window.

Can the listed dimensions be used directly for enclosure tooling?

Use 8.8 × 105 × 165mm for preliminary layout. Confirm the dimensional drawing, tolerances, tab geometry and assembly allowances before finalizing tooling.

MISEN 88105165 CELL

Sourcing and Technical Support

Misen Power supports B2B pouch cell sourcing and custom battery pack development. Share your requirements to discuss the 88105165 for your proposed battery system.

01Bulk Cell Supply

Contact Misen Power to confirm model availability, quantities, pricing and order requirements before procurement.

02Technical Documentation

Request available specifications, dimensional drawings and applicable test or transport documents, subject to availability and sharing permissions. Confirm the discharge-current conditions and resistance measurement method for the exact cell revision.

03OEM Battery Pack Support

Discuss cell configuration, BMS selection, interconnections, mechanical support and thermal design according to your application and development stage.

Request a Quotation

Use the product page inquiry form to send model 88105165, quantity, destination and application. Include the required pack voltage, operating current, duty cycle and installation space for a project-specific review.
