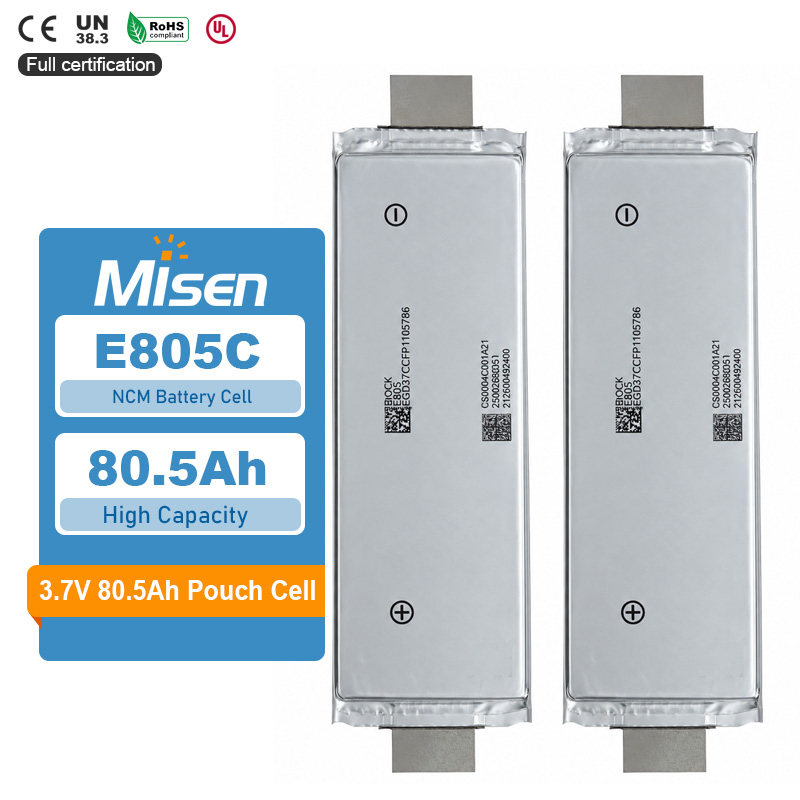

SK Innovation E805C is listed by the supplier as an NMC lithium-ion pouch cell with 80.5 Ah nominal capacity, 3.64 V nominal voltage and 293 Wh energy. The supplied information gives maximum charge and discharge currents of 160 A and 300 A, without defining duration or test conditions. MisenBattery supplies cells and supports custom pack evaluation with confirmed current ratings, protection settings and mechanical integration requirements.
01 80.5 Ah Capacity and 293 Wh Listed Energy
The supplier lists 80.5 Ah nominal capacity and 3.64 V nominal voltage, with 293 Wh energy. Multiplying voltage by capacity gives 293.02 Wh, consistent with the rounded listing. These values support preliminary pack configuration, while delivered energy should be evaluated under the intended load, temperature, voltage window and protection settings.
02 4.2 V Charge and 2.5 V Discharge Cut-offs
The supplied charge cut-off is 4.2 V and discharge cut-off is 2.5 V. These endpoints provide a reference for charger and BMS evaluation. Final settings should account for measurement accuracy, cell balancing and confirmed manufacturer requirements, with appropriate overcharge and over-discharge protection validated in the complete battery pack.
03 160 A Listed Maximum Charge Current
Maximum charging current is listed as 160 A on the supplier page. No duration, SOC range, temperature or cooling conditions are supplied, so this value should remain a maximum listing rather than a confirmed continuous charge rating. Obtain the applicable charging procedure and operating conditions before selecting a charger or setting pack limits.
04 300 A Listed Maximum Discharge Current
The supplier lists 300 A maximum discharge current without specifying sustained operation, duration or pulse conditions. This entry supports preliminary load evaluation only after the rating basis is confirmed. Pack design should validate interconnect capacity, protection response and temperature behavior under the intended duty cycle before establishing a permissible operating current.

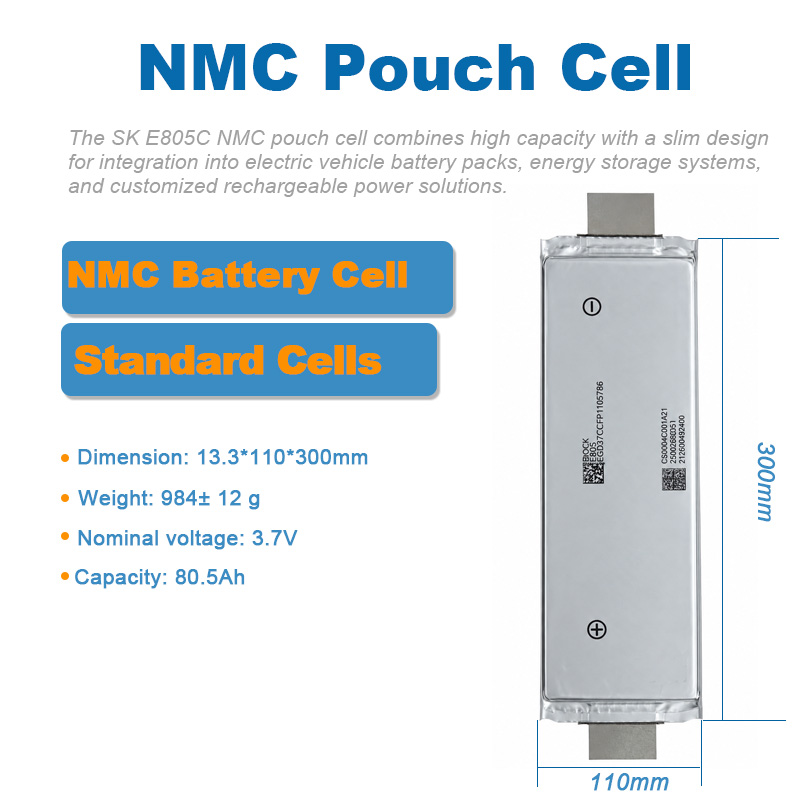

05 Listed Dimensions and 984 g Cell Weight
Dimensions are listed as 301 × 110 × 13.4 mm, with a weight of 984 g. Retain the original dimension sequence until the applicable drawing confirms axis order, tab boundaries and tolerances. Mechanical integration should provide suitable cell support, insulation, swelling allowance and a validated tab-connection process, with clearances confirmed before tooling.
06 NMC Pouch Cell for Custom Pack Evaluation
The supplier identifies E805C as an NMC, or ternary lithium-ion, rechargeable pouch cell. MisenBattery supplies cells and supports evaluation for custom battery pack projects. Confirm the model, manufacturer specifications, charging method and temperature limits before application selection, followed by electrical, thermal and mechanical validation of the assembled pack.
Custom battery pack applications: MisenBattery supplies SK Innovation E805C cells and supports custom pack evaluation for mobility, industrial equipment and energy storage projects, subject to application validation. Integration should include a compatible BMS, fuse protection, voltage and temperature sensing, validated tab-welding and interconnect processes, insulation, cell spacing, swelling allowance and thermal and mechanical design. Confirm applicable CE, UN38.3, RoHS and UL documentation for the specific cell, pack and shipment; certification status is not established by the supplied supplier-page parameters.
