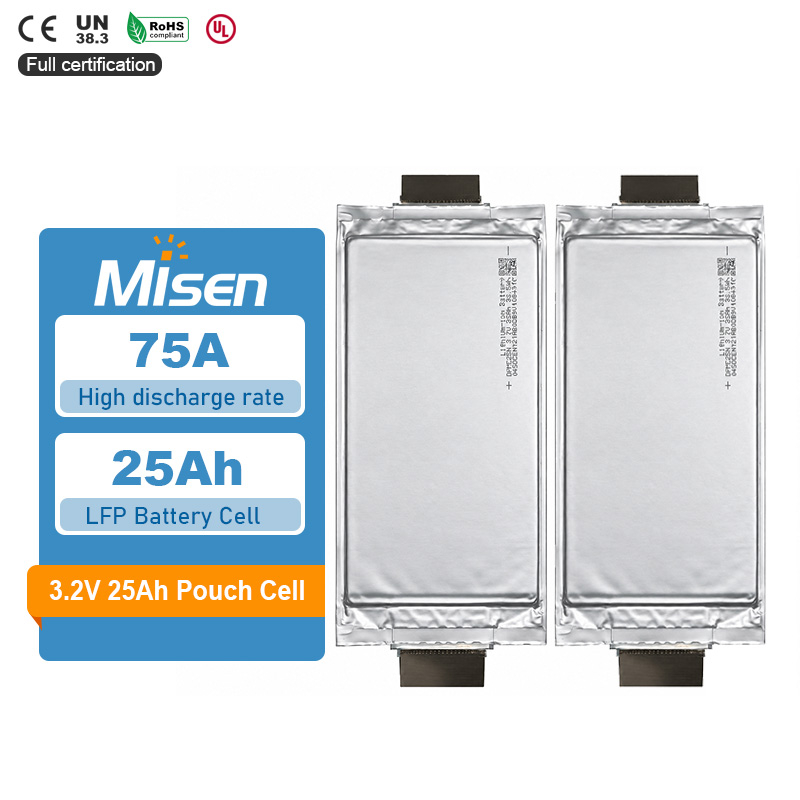

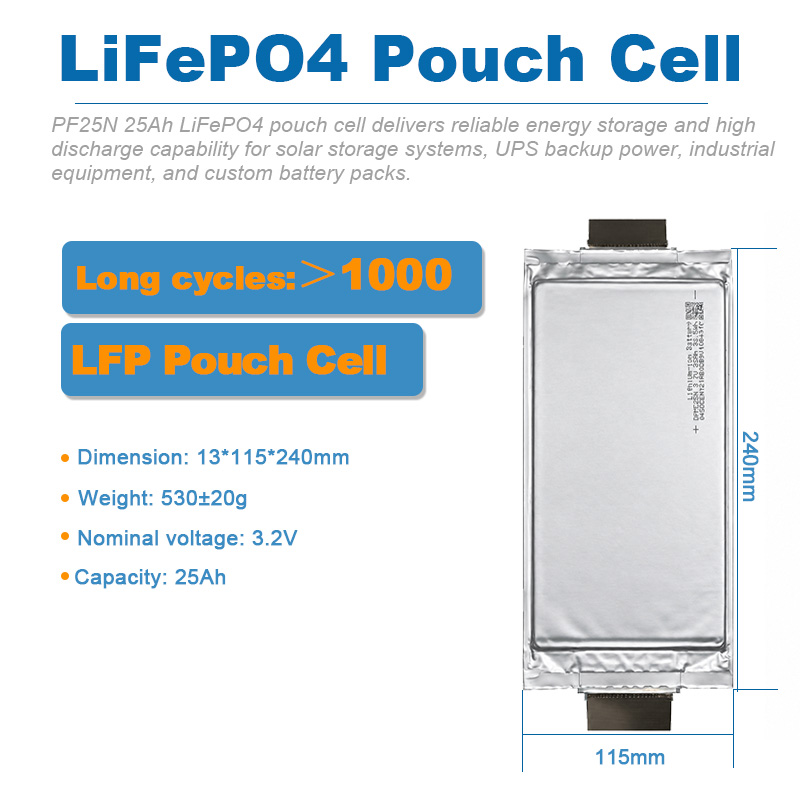

PF25N 25N 3.2V 25Ah 75A Continuous Discharge LiFePO4 Pouch Battery Cell

Chemistry: LiFePO4
Capacity: 25Ah / 25000mAh (0.2C test)
Nominal Voltage: 3.2V
Max. Discharge Current: 75A continuous; 100A pulse for 10 seconds

Brand:
Misen

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameters

Key Features

Applications & Selection Notes

Sourcing & Technical Support

PYLONTECH PF25N / 25N CELL

Product Overview

The Pylontech PF25N / 25N is a rechargeable LiFePO4 pouch cell with a nominal voltage of 3.2V and a 25Ah capacity specified at 0.2C. The supplied information lists 75A continuous discharge and a separate 100A pulse discharge rating lasting 10 seconds.

Standard charging and discharging are listed at 5A, while calculated nominal energy is approximately 80Wh. For custom battery pack evaluation, distinguish standard test conditions from maximum-current operation. Confirm the applicable specification, thermal limits and pulse duty cycle before finalizing cell configuration, connections, cooling and battery protection.

PYLONTECH PF25N / 25N CELL

Technical Specifications

01. Basic Specifications

Brand / Listed Model	Pylontech / PF25N / 25N
Cell Type	LiFePO4 pouch cell
Nominal Voltage	3.2V
Nominal Capacity	25Ah / 25000mAh, at 0.2C.
Calculated Nominal Energy	Approx. 80Wh, calculated from 3.2V × 25Ah; not measured usable energy.
AC Internal Resistance	Below 1.2mΩ at 1kHz AC. Measurement SOC and temperature require confirmation.

02. Charging and Discharging

Standard Charge	0.2C / 5A
Standard Discharge	0.2C / 5A
Fast Charge Rate	0.5C / 12.5A, as supplied; not identified as a separate maximum charge-current limit.
Maximum Continuous Discharge	75A / 3C Confirm the applicable thermal and test conditions.
Maximum Pulse Discharge	100A / 4C for 10 seconds. Not a continuous rating; SOC, temperature and recovery interval require confirmation.
Charge Cut-Off Voltage	3.65V
Discharge Cut-Off Voltage	2.50V
Charge Termination Current	0.02C / 0.5A

03. Physical and Operating Conditions

Charging Temperature	5–45°C
Discharging Temperature	−20–60°C
Storage Temperature	−30–60°C, as listed in the supplied material. Storage duration and SOC conditions require confirmation.
Cell Weight	Approx. 530g
Listed Cell Volume	291.2cm³

04. Cycle Information

Promotional Cycle-Life Claim

≥6000 cycles, as stated in promotional material.
Capacity-retention threshold, depth of discharge, charge/discharge rates and temperature are not provided. Not established as a guaranteed result for this application or at maximum current.

Confirm the exact model designation and applicable manufacturer specification before qualification. Current ratings must remain tied to their voltage, temperature, SOC and duty-cycle conditions and must not be assumed to apply throughout the full temperature range.

PYLONTECH PF25N / 25N CELL

Key Features

0125Ah Capacity at a Stated Test Rate

Capacity is listed at 0.2C, equivalent to 5A. This provides a defined rate reference for comparison; usable capacity at higher loads requires application-specific evaluation.

02Separate Continuous and Pulse Ratings

The supplied data distinguishes 75A continuous discharge from 100A discharge for 10 seconds. Match both limits to the load profile and confirmed thermal conditions.

03Specified 1kHz AC Resistance

AC resistance is listed below 1.2mΩ at 1kHz. Preserve the measurement method when comparing cells; this value should not be substituted for an unmeasured DC resistance.

PYLONTECH PF25N / 25N CELL

Applications and Selection Notes

Evaluate the PF25N / 25N against the required energy, load profile and service conditions. These are potential engineering directions rather than manufacturer application approvals.

Potential Applications

Custom energy-storage and backup modules: Assess usable energy, charging requirements, discharge duration and lifecycle expectations under a confirmed test protocol.
Industrial equipment battery packs: Evaluate continuous and transient current demand together with installation space, mechanical support and thermal management.

Battery Cell Selection Notes

Separate standard tests from maximum operation. The 5A standard discharge differs from the 75A continuous maximum. The 100A pulse rating is limited to 10 seconds and requires confirmation of recovery conditions.
Respect the separate temperature ranges. Charging is listed at 5–45°C, while discharge is listed at −20–60°C. Confirm whether limits refer to ambient or cell-surface temperature and establish suitable BMS settings.
Confirm mechanical and lifecycle requirements. Obtain the dimensional drawing, tab details and cycle-test protocol before approving the pack layout or service-life expectations.

For model identification and integration review, contact MisenBattery about your Pylontech PF25N / 25N project.

Frequently Asked Questions

Can the cell discharge at 100A continuously?

No. The supplied information lists 100A for a 10-second pulse and 75A as maximum continuous discharge. Pulse repetition and thermal conditions require confirmation.

Is 12.5A the maximum charging current?

The supplied table identifies 12.5A as a fast-charge rate. It does not separately establish the maximum permitted charging current.

Does the ≥6000-cycle claim guarantee a specific capacity retention?

No retention threshold or test protocol is provided with that promotional claim. Confirm the original conditions before applying it to service-life estimates or comparing it with another cell.

PYLONTECH PF25N / 25N CELL

Sourcing and Technical Support

MisenBattery supports B2B cell sourcing and custom battery pack projects. Pylontech is the listed cell brand; MISEN can discuss sourcing and integration requirements for your application.

01Bulk Cell Supply

Confirm exact model designation, specification revision, availability, quantities and commercial terms before procurement.

02Technical Documentation

Request available manufacturer specifications, dimensional drawings and applicable test or transport documents, subject to availability and sharing permissions. Confirm current-rating conditions and the original cycle-life protocol for the exact cell revision.

03OEM Battery Pack Support

Discuss series-parallel configuration, BMS integration, interconnections, mechanical support and thermal planning according to your load profile and installation requirements.

Request a Quotation

Use the product page inquiry form to send PF25N / 25N, quantity, destination and application. Include pack voltage, continuous and pulse loads, pulse repetition rate and installation space for review.
