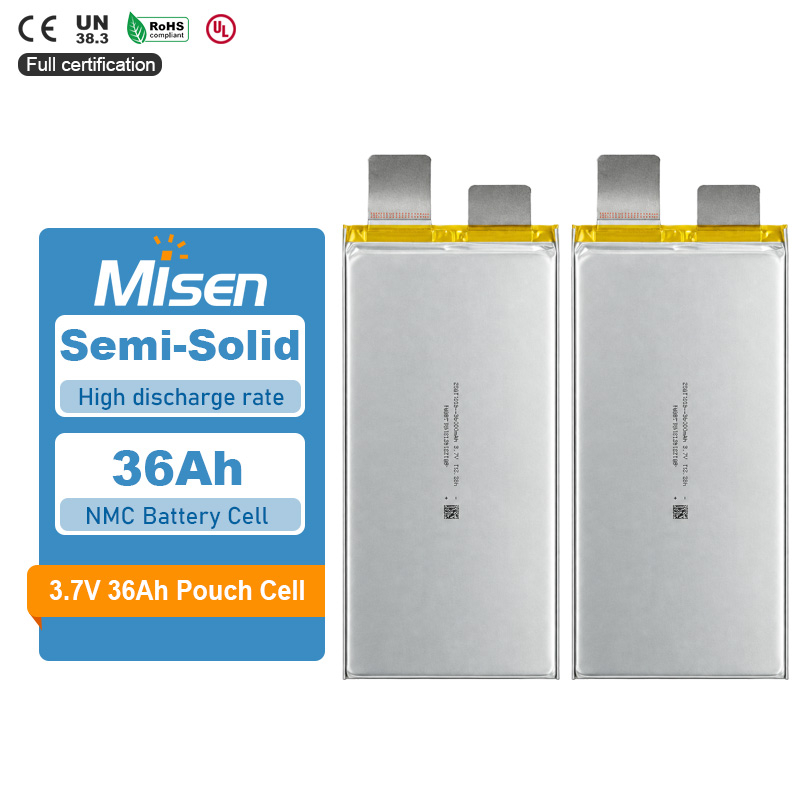

Misen 10487191 3.7V 36Ah 180A Continuous Discharge Semi-Solid NCM Pouch Battery Cell

Cell Size: 10.4 × 87 × 191mm
Chemistry: Semi-Solid NCM
Capacity: 36Ah / 36000mAh
Nominal Voltage: 3.7V
Max. Discharge Current: 180A continuous; 360A maximum, duration unspecified

Brand:
Misen

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Specifications

Key Features

Applications & Selection Notes

Sourcing & Technical Support

MISEN 10487191 CELL

Product Overview

The Misen 10487191 is a semi-solid NCM pouch cell with a nominal voltage of 3.7V and a nominal capacity of 36Ah. Its supplied continuous discharge rate is 5C, corresponding to 180A. Calculated nominal energy is approximately 133.2Wh per cell.

The listed 10.4 × 87 × 191mm dimensions support preliminary custom pack layout. A separate 10C maximum discharge figure corresponds to 360A, but its permitted duration and operating conditions require confirmation. Final integration should account for tab connections, mechanical support, thermal management and appropriately engineered battery protection.

MISEN 10487191 CELL

Technical Specifications

01. Basic Specifications

Brand	Misen
Model	10487191
Cell Type	Semi-solid NCM lithium-ion pouch cell
Nominal Voltage	3.7V
Nominal Capacity	36Ah / 36000mAh
Calculated Nominal Energy	Approx. 133.2Wh, calculated from 3.7V × 36Ah; not measured usable energy.

02. Discharge and Resistance

Continuous Discharge Rate	5C
Continuous Discharge Current	180A, calculated from 36Ah × 5C. Confirm the applicable thermal and discharge conditions.
Maximum Discharge Rate	10C; permitted duration and duty cycle are unspecified.
Maximum Discharge Current	360A, calculated from 36Ah × 10C. Not established as a continuous rating or a pulse rating with a defined duration.
AC Internal Resistance	Below 0.9mΩ. Measurement frequency, SOC and temperature require confirmation.

03. Physical and Operating Conditions

Cell Dimensions	10.4 × 87 × 191mm
Cell Weight	0.304kg / 304g
Charging Temperature	5–45°C
Discharging Temperature	−20–60°C

Current conversions use the supplied 36Ah capacity. Confirm the applicable product specification before qualification. The listed discharge currents must not be assumed to apply across the entire temperature range without confirmation of derating and thermal limits.

MISEN 10487191 CELL

Key Features

015C Continuous Discharge Specification

The supplied 5C continuous discharge rate calculates to 180A on a 36Ah basis. Validate sustained loads together with tab connections, cooling and the confirmed cell operating limits.

0236Ah Semi-Solid NCM Cell

The cell is identified as semi-solid NCM with 36Ah nominal capacity. At 3.7V, calculated nominal energy is approximately 133.2Wh; actual usable energy requires application-specific testing.

03Flat Pouch Format for Pack Layout

The listed 10.4 × 87 × 191mm dimensions support preliminary module planning. Confirm dimensional tolerances, tab geometry and assembly allowances before finalizing fixtures or enclosures.

MISEN 10487191 CELL

Applications and Selection Notes

Evaluate the 10487191 against the required energy, sustained load and installation space. The following are potential engineering directions, subject to specification confirmation and complete pack testing.

Potential Applications

High-power industrial battery modules: Assess continuous current demand, heat removal, connection design and protection requirements under the actual equipment duty cycle.
Custom mobility battery development: Evaluate usable energy, controller demand and mechanical fit after confirming electrical and thermal compatibility.

Battery Cell Selection Notes

Distinguish continuous and maximum discharge. The 5C continuous figure corresponds to 180A. The 10C maximum figure corresponds to 360A, but duration and duty cycle must be established before use.
Confirm charging and temperature conditions. Obtain the complete charging profile and voltage limits before selecting a charger. Respect the separate listed charging and discharging temperature ranges.
Validate the complete pouch assembly. Review mechanical support, swelling allowance, insulation, tab connections, cooling and BMS settings. The semi-solid designation alone does not establish pack safety or application approval.

For a project-specific review, contact MisenBattery about your 10487191 battery pack requirements.

Frequently Asked Questions

Can the 10487191 deliver 360A continuously?

That is not established by the supplied data. Continuous discharge is listed at 5C, calculated as 180A. The separate 10C maximum figure calculates to 360A and requires confirmation of permitted duration and operating conditions.

Is 133.2Wh measured usable energy?

It is calculated nominal energy: 3.7V × 36Ah = 133.2Wh. Usable energy depends on current, temperature, voltage limits and aging.

Can the AC resistance be used as DC resistance?

No. The supplied value is AC resistance below 0.9mΩ. Confirm its measurement frequency, SOC and temperature, and obtain suitable DC data for load and thermal calculations.

MISEN 10487191 CELL

Sourcing and Technical Support

MisenBattery supports B2B cell supply and custom battery pack projects. Share your application requirements to discuss the Misen 10487191 and its suitability for your proposed design.

01Bulk Cell Supply

Confirm model availability, applicable specification, quantities and commercial terms before procurement.

02Technical Documentation

Request available product specifications, dimensional drawings and applicable test or transport documents, subject to availability and sharing permissions. Confirm maximum-current duration, charging requirements and thermal limits for the exact cell revision.

03OEM Battery Pack Support

Discuss series-parallel configuration, BMS integration, interconnections, mechanical support and thermal planning according to your load profile and installation requirements.

Request a Quotation

Use the product page inquiry form to send model 10487191, quantity, destination and application. Include pack voltage, sustained and transient loads, load duration and installation space for review.
