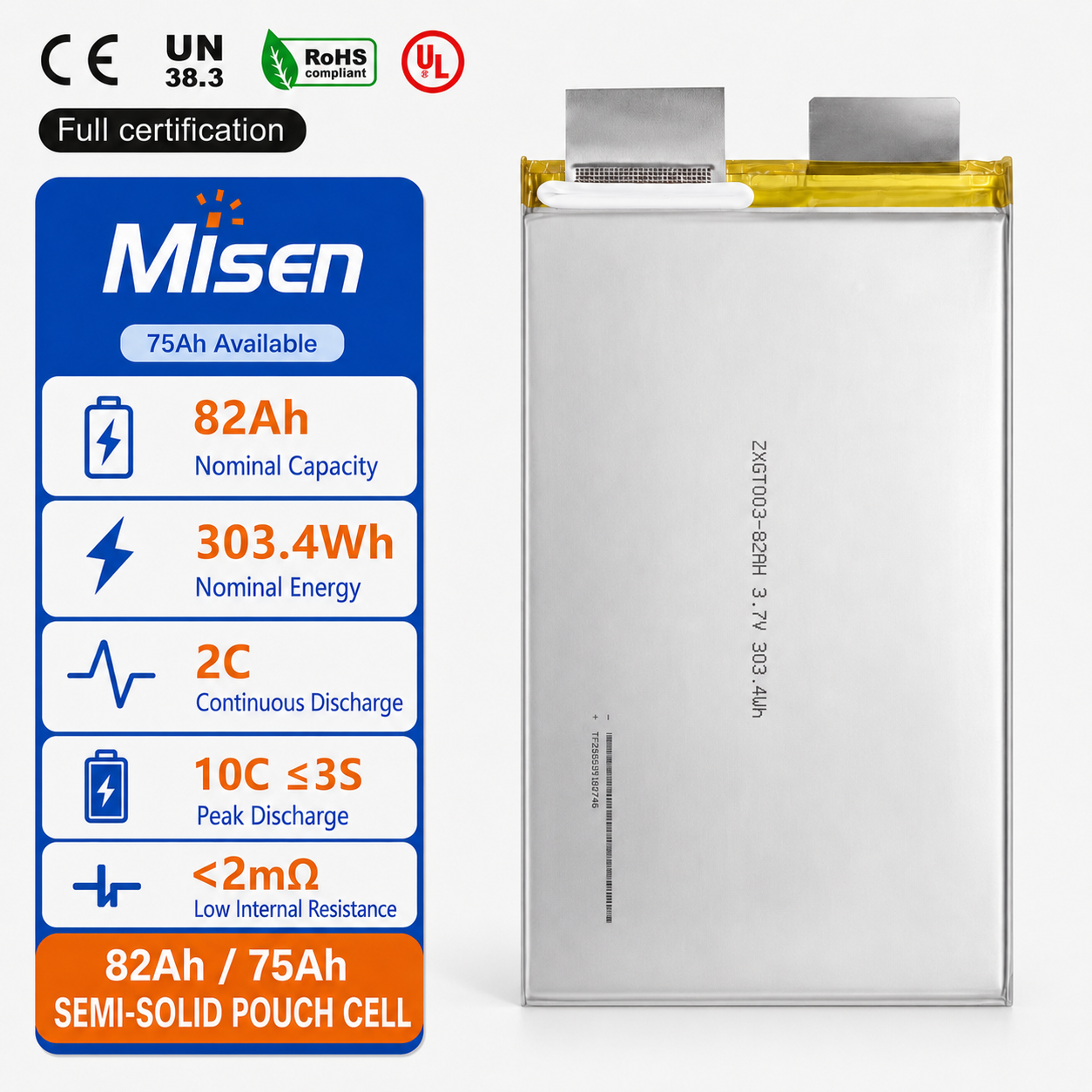

Misen 82Ah / 75Ah Semi-Solid NCM Lithium-ion Pouch Cell

Model: K82
Cell Chemistry: NMC Lithium-ion Pouch Cell
Cell Grade: Grade A

Brand:
Misen
Cell Grade:
Grade A
Nominal Capacity:
82Ah
Nominal Voltage:
3.7v
Weight:
794g
Size(mm):
269 × 151 × 9.4 mm
Cycle Life:
≥ 3000 times

Quantity:
Availability:





Inquire Add to Basket

Product Overview

Key Features

Technical Parameters

Design & Dimensions

Application

Product Overview

The Misen 82Ah / 75Ah Semi-Solid NCM Lithium-ion Pouch Cell Series is designed for electric vehicles, energy storage systems, UAVs, robotics, AGV, portable power equipment, industrial battery packs and customized high-energy battery modules. The 82Ah cell is the main model, while the 75Ah version provides an additional option for projects requiring a different voltage platform, cell size or discharge profile.

The main ZXGT003-82AH cell features a nominal voltage of 3.7V, a rated capacity of 82Ah and nominal energy of 303.4Wh. Standard charging is specified at 16.4A (0.2C), while the maximum continuous charging current is 41A (0.5C). The cell uses CC/CV charging to a 4.2V charge limit and has a 2.5V discharge cut-off voltage.

The 82Ah cell supports 164A continuous discharge at 2C, 246A discharge at 3C for 3–5 minutes and up to 820A pulse discharge at 10C for no more than 3 seconds, subject to terminal and battery system limits. Its AC internal resistance is <2mΩ at 1kHz, helping reduce voltage drop, heat generation and power loss during high-current operation.

Cycle life is rated at 800 cycles under 0.2C charge and 0.2C discharge conditions and 500 cycles under 0.2C charge and 1C discharge conditions. Both cycle references are based on 100% DOD and the test conditions specified in the product datasheet.

The 82Ah cell measures approximately 269±2 × 151±2 × 9.4±0.5 mm and weighs 794±10g. Its slim pouch construction supports compact module layouts and can be integrated with busbars, insulation materials, compression structures, temperature sensors, wiring, connectors, BMS and protective housings according to different project requirements.

The optional 75Ah model provides a nominal voltage of 3.85V, a nominal capacity of 75Ah and approximately 288.75Wh of nominal energy. It supports 2.5C continuous discharge and uses a 4.4V charge limit. The cell measures approximately 245±2 × 120±1 × 11.0±0.3 mm and weighs approximately 775g.

For the 82Ah model, the specified charging temperature range is 0°C to 45°C, the discharge temperature range is -20°C to 55°C, and the recommended storage temperature range is -10°C to 35°C with humidity below 75% RH. The 75Ah model supports discharge temperatures from -20°C to 60°C. Confirm the required voltage, dimensions, tab structure, current, operating temperature and BMS settings before model selection.

Specifications and performance data are based on the corresponding product datasheets and specified laboratory test conditions. Actual performance may vary depending on cell configuration, battery system design, operating temperature and test method. Final specifications, drawings and batch test records should be confirmed before module design or mass production.

Key Features

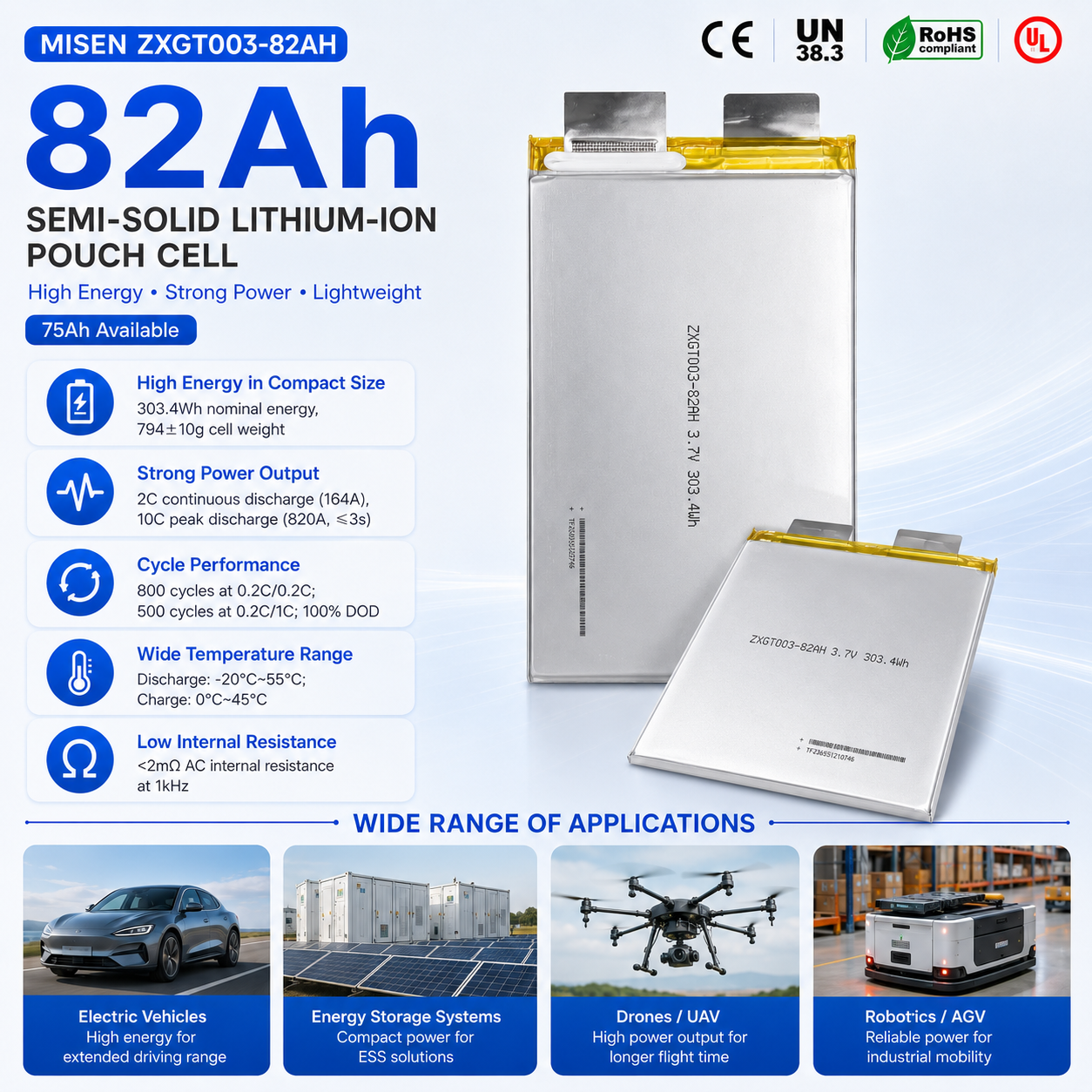

82Ah Semi-Solid NCM Pouch Cell
The Misen ZXGT003-82AH is a semi-solid NCM lithium-ion pouch cell designed for electric vehicles, energy storage systems, UAVs, AGV, robotics, industrial equipment and customized high-energy battery modules. A 75Ah model is also available.
82Ah Capacity and 303.4Wh Nominal Energy
Features 3.7V nominal voltage and 82Ah rated capacity, delivering approximately 303.4Wh nominal energy. The charge limit voltage is 4.2V, and the discharge cut-off voltage is 2.5V.
High-Power Discharge Performance
Supports 164A (2C) continuous discharge, 246A (3C) discharge for 3–5 minutes and up to 820A (10C) peak discharge for no more than 3 seconds, subject to cell terminal and battery system limits.
Stable Charging and Low Internal Resistance
Uses 16.4A (0.2C) as the standard charging current and supports up to 41A (0.5C) continuous charging. AC internal resistance is <2mΩ at 1kHz, helping reduce voltage drop, heat generation and power loss during high-current operation.
Reliable Cycle Performance
Cycle life reaches 800 cycles under 0.2C charge and 0.2C discharge conditions and 500 cycles under 0.2C charge and 1C discharge conditions, both at 100% DOD under the specified test conditions.
Compact Size and Wide Discharge Temperature Range
The 82Ah cell measures approximately 269±2 × 151±2 × 9.4±0.5mm and weighs 794±10g. It supports charging from 0°C to 45°C and discharging from -20°C to 55°C.

Technical Parameter

Brand	Misen	Model	ZXGT003-82AH
Cell Chemistry	Semi-Solid NCM Lithium-ion	Cell Type	Lithium-ion Pouch Cell
Nominal Voltage	3.7V	Rated Capacity	82Ah
Charge Limit Voltage	4.2V	Discharge Cut-off Voltage	2.5V
Nominal Energy	303.4Wh	AC Internal Resistance	<2mΩ at 1kHz
Standard Charge Current	16.4A / 0.2C	Max. Continuous Charge	41A / 0.5C
Continuous Discharge	164A / 2C	High-Rate Discharge	246A / 3C, 3–5 min
Peak Discharge Current	820A / 10C, ≤3s	Cycle Life	800 Cycles at 0.2C/0.2C; 500 Cycles at 0.2C/1C, 100% DOD
Charge Temperature	0°C to 45°C	Discharge Temperature	-20°C to 55°C
Storage Temperature	-10°C to 35°C, <75% RH	Low-Temperature Capacity	≥60% at -20°C under specified conditions
Dimensions (L × W × T)	269±2 × 151±2 × 9.4±0.5mm	Cell Weight	794±10g
Capacity Option	75Ah Semi-Solid Pouch Cell Available	Application	EV, ESS, UAV, AGV, Robotics and Industrial Battery Packs
Certification	Please confirm the available certification and transport documents for the selected model before ordering.

All parameters are based on the ZXGT003-82AH product datasheet and specified laboratory test conditions. The optional 75Ah model has different voltage, dimensions, charging limits and discharge specifications. Please confirm the selected model, cell drawing, tab structure and BMS settings before battery module design or mass production.

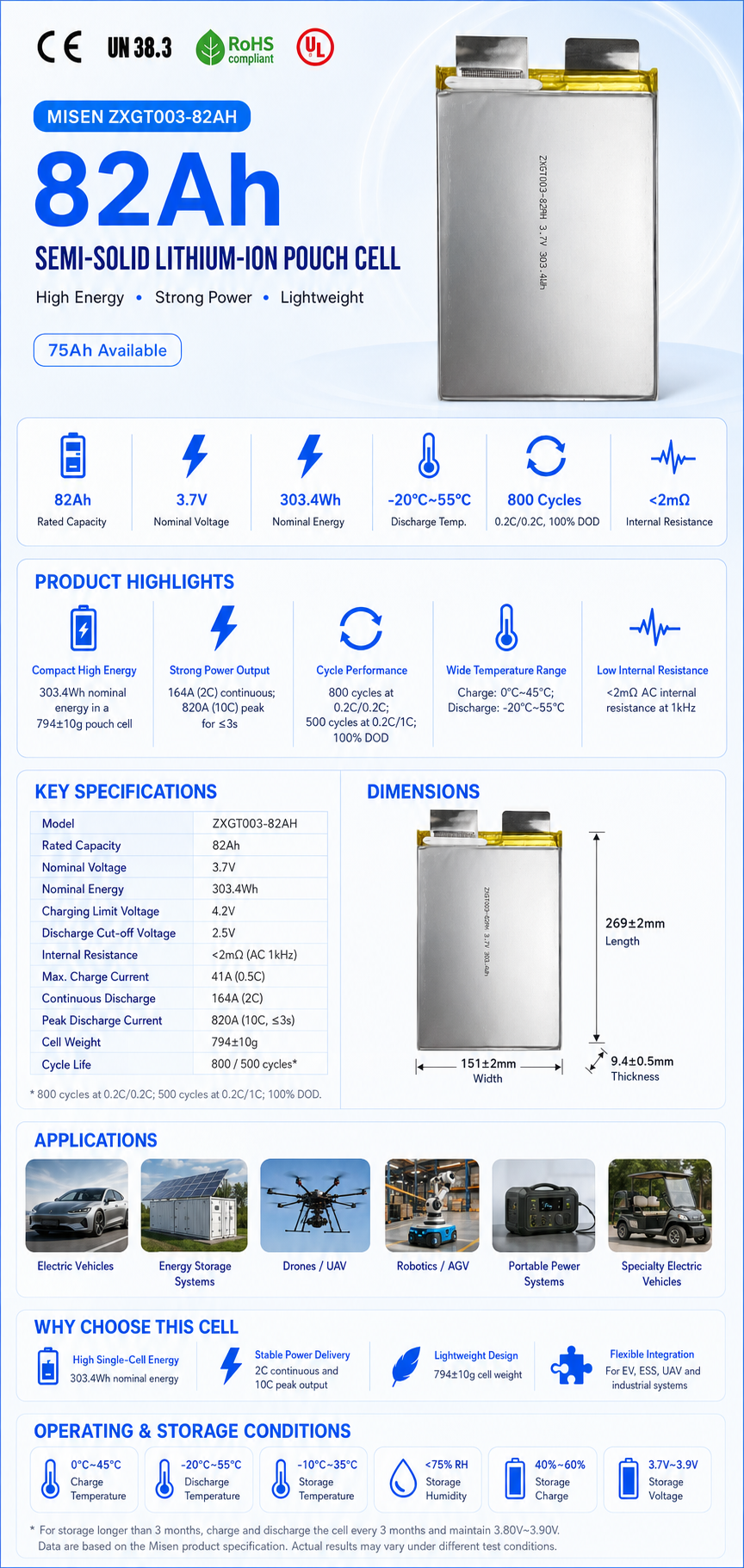

Design & Dimensions

The Misen ZXGT003-82AH semi-solid NCM lithium-ion pouch cell is designed for electric vehicles, energy storage systems, UAVs, AGV, robotics and industrial battery modules. Its large-format, thin pouch structure supports efficient cell arrangement and flexible module integration. The dimensions below provide important references for cell layout, compression structures, electrical connections, insulation and customized battery pack development.

Cell Dimensions (L × W × T): 269±2 × 151±2 × 9.4±0.5mm
Cell Length: 269±2mm
Cell Width: 151±2mm
Cell Thickness: 9.4±0.5mm
Cell Weight: 794±10g
Electrical Configuration: 3.7V nominal voltage, 82Ah rated capacity and approximately 303.4Wh nominal energy.
Design Advantage: The thin pouch structure and 303.4Wh single-cell energy help reduce the number of parallel cells required while supporting compact, lightweight and application-specific battery module designs.
Assembly Suggestion: Reserve sufficient space for pouch-cell expansion, compression fixtures, tab connections, busbars, insulation materials, BMS wiring, temperature sensors, thermal management and protective structures during module and battery pack assembly.

Notes: Dimensions and weight are based on the ZXGT003-82AH product datasheet and specified measurement conditions. The optional 75Ah model has different dimensions, voltage and charging specifications. Confirm the selected model, latest engineering drawing, tab dimensions, dimensional tolerances and compression requirements before tooling, module design or mass production.

Application

The Misen 82Ah semi-solid NCM lithium-ion pouch cell is designed for high-energy and high-power battery systems requiring large single-cell capacity, strong discharge performance and efficient module integration. The cell provides 3.7V nominal voltage, 82Ah rated capacity and approximately 303.4Wh nominal energy. An optional 75Ah model is also available for different battery system requirements.

Electric Vehicles & EV Battery Retrofit
Suitable for electric vehicles, specialty vehicles and battery retrofit projects requiring 303.4Wh single-cell energy, 164A (2C) continuous discharge and strong short-duration power output.
Energy Storage Systems
Applicable to commercial energy storage, solar energy storage, backup power and mobile energy storage systems requiring compact cell arrangement, stable output and flexible series-parallel module configurations.
UAV, Drones & Unmanned Systems
Suitable for large UAVs, industrial drones and other unmanned equipment requiring a balance of high single-cell energy and strong pulse discharge. Peak discharge reaches 820A (10C) for no more than 3 seconds under specified conditions.
Marine & Specialized Electric Mobility
Can be used in electric boats, unmanned surface vehicles, utility vehicles and specialized electric platforms when matched with appropriate compression, protection and thermal management structures.
AGV, Robotics & Industrial Equipment
Suitable for AGV battery packs, autonomous mobile robots, industrial robots and automated equipment where reliable discharge performance and extended operating time are important.
Customized Battery Modules & Packs
Can be integrated into customized battery modules using a matched BMS, busbars, insulation materials, compression fixtures, temperature sensors, wiring, connectors, thermal management components and protective housings according to project requirements.

Application suitability depends on the selected cell model, system voltage, series-parallel configuration, current demand, compression structure, thermal management, operating environment and regulatory requirements. The 82Ah and 75Ah models have different nominal voltages, charge limits, dimensions and discharge specifications. Please confirm the selected model and complete sample testing before module design or mass production.
