Calculating a pouch cell battery pack starts with a few simple formulas, but a usable design requires more than multiplying voltage and capacity.
Series connections determine pack voltage. Parallel connections determine pack capacity and contribute to current capability. Cell chemistry, voltage limits, discharge rate, internal resistance, temperature, mechanical compression and the Battery Management System (BMS) then determine whether the calculated configuration can work safely in the intended application.
This guide explains how to calculate series and parallel counts, nominal voltage, Ah, Wh and usable kWh. A P70A 3.7V 70Ah NMC pouch cell is used as the main example.
The calculations are suitable for preliminary battery sizing. Final module and pack designs must be verified against the latest cell datasheet, the complete load profile and pack-level test results.
Cells connected in series increase voltage; they do not increase Ah capacity.
Cells connected in parallel increase Ah capacity; they do not increase voltage.
Pack energy in Wh equals nominal pack voltage multiplied by pack capacity.
Divide Wh by 1,000 to convert the result into kWh.
Nameplate energy and usable energy are not the same.
Continuous current must be checked at the lowest operating voltage, not only at nominal voltage.
Maximum charge and discharge voltages must come from the selected cell datasheet.
Pouch cells require cell-specific mechanical restraint, swelling allowance and thermal design.
Final BMS, fuse, contactor and conductor ratings cannot be selected from a single percentage rule.
A battery pack should be calculated backward from the application. Before selecting a cell or deciding the series and parallel configuration, define the following requirements:
Target nominal system voltage
Maximum permitted input voltage
Minimum operating voltage
Required nameplate or usable energy
Required operating time
Continuous power and current
Peak power, peak current and peak duration
Charging power and charging time
Available installation dimensions
Maximum battery weight
Operating and storage temperature
Expected cycle life
Cooling method
Applicable certification and transportation requirements
A system advertised as “48V,” for example, may accept very different maximum and minimum voltages depending on the motor controller, inverter, DC/DC converter or other connected equipment. The advertised system voltage alone is not enough to determine the correct series count.
The calculation must use the approved specifications of the selected cell. The most important inputs include:
| Cell parameter | Why it matters |
|---|---|
| Nominal voltage | Used for preliminary pack voltage and energy calculations |
| Recommended charge cut-off voltage | Used to calculate charger output and maximum normal pack voltage |
| End-of-discharge voltage | Used to evaluate the lower voltage limit |
| Rated or standard capacity | Determines preliminary Ah and energy |
| Continuous discharge rating | Helps determine current capability |
| Peak discharge rating and duration | Used for short load events such as acceleration or motor starting |
| DC internal resistance | Helps estimate voltage sag and resistive heat under load |
| Charge and discharge temperature | Determines permitted operation and current derating |
| Dimensions and weight | Required for module layout and pack-level energy-density calculations |
| Mechanical preload and swelling allowance | Required for pouch cell module design |
| Cycle-life test conditions | Needed to compare service-life expectations correctly |
Cells with the same chemistry can still have different voltage limits, current ratings and temperature ranges. Do not apply one universal voltage setting to every NMC, LFP or LTO pouch cell.
Misen supplies multiple pouch cell battery chemistries and capacities for electric mobility, AGVs, robotics, industrial equipment, marine systems and energy-storage projects.
Chemistry affects the voltage calculation, number of cells in series, energy density, cycle-life target, power capability and thermal strategy.
| Chemistry | Typical preliminary nominal voltage | Common selection priority |
|---|---|---|
| NMC pouch cell | Approximately 3.6–3.73V, depending on the cell | High energy density and compact, lightweight battery systems |
| LiFePO4 pouch cell | Commonly around 3.2V | Cycle life, thermal stability and industrial or stationary applications |
| LTO pouch cell | Commonly around 2.3–2.4V | High power, fast charging, low-temperature operation and long cycle life |
These are preliminary reference values, not universal design settings. Always use the nominal voltage, charge limit and discharge limit stated in the selected cell specification.
For the main calculation example, we use the large-format P70A NMC pouch cell.
For simple preliminary calculations, the market-facing values are:
Nominal voltage: 3.7V
Nominal capacity class: 70Ah
Preliminary nominal energy: 3.7V × 70Ah = 259Wh
Maximum continuous discharge rate: up to 3C at 25°C under the specified conditions
Approximate current corresponding to 3C: 70Ah × 3C = 210A
The detailed cell data provides more specific test conditions:
Nominal voltage: 3.73V at 0.33C or 3.70V at 0.5C
Standard capacity: at least 68.7Ah at 0.33C or at least 67.8Ah at 0.5C
Calculated energy: approximately 256.3Wh based on 3.73V × 68.7Ah
Recommended charge cut-off voltage: 4.3V
End-of-discharge voltage: 2.75V under the stated normal-temperature condition
AC internal resistance: no more than 1.2mΩ under the specified test condition
DC internal resistance: no more than 3.0mΩ under the specified test condition
The 3.7V and 70Ah values make the basic formulas easier to follow. For final engineering calculations, procurement specifications and performance guarantees, use the applicable datasheet value and test condition.

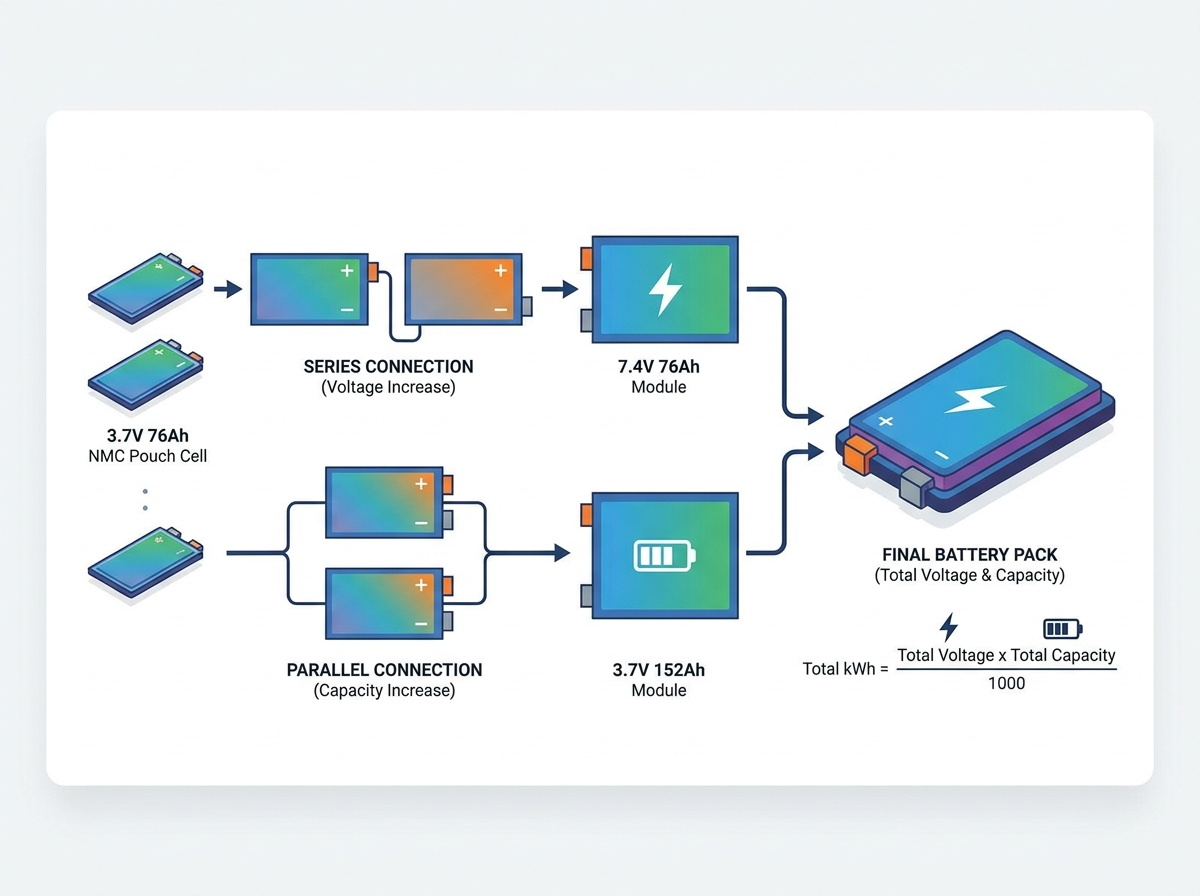

When cells are connected in series, the positive terminal of one cell or parallel group is connected to the negative terminal of the next.
Series connections increase voltage, while Ah capacity remains unchanged.
Nominal pack voltage = Number of cells in series × Nominal cell voltage
Using the market-facing P70A values in a 14S configuration:
14 × 3.7V = 51.8V nominal
A 14S1P pack therefore has:
Nominal voltage: 51.8V
Capacity: 70Ah
Total number of cells: 14
The complete voltage range must also be checked.
Using the recommended P70A charge cut-off voltage:
14 × 4.3V = 60.2V
Using the stated 2.75V end-of-discharge voltage:
14 × 2.75V = 38.5V
The preliminary voltage range is therefore approximately 38.5V to 60.2V under the applicable conditions.
A 14S NMC battery may be marketed as a 48V-class system, but that does not automatically make it compatible with every 48V controller or inverter. All connected equipment must be checked against the complete battery voltage range.
For a more detailed explanation, see NMC Pouch Cell Voltage: Limits and BMS Settings.
When cells are connected in parallel, all positive terminals are connected together and all negative terminals are connected together.
Parallel connections increase Ah capacity, while voltage remains equal to one cell or one series group.
Pack capacity = Number of cells in parallel × Cell capacity
Using four P70A cells in parallel:
4 × 70Ah = 280Ah
A 4P group therefore has:
Nominal voltage: 3.7V
Capacity: 280Ah
Total number of cells: 4
Parallel connections can also increase current capability. For preliminary sizing:
Parallel-group current capability ≈ Number of parallel cells × Approved single-cell current
If one 70Ah-class P70A cell supports approximately 210A at 3C under the specified test conditions, a four-cell parallel group has a theoretical cell-level current capability of approximately 840A.
However, this is not automatically the safe pack current.
The final current limit is determined by the lowest approved limit among:
Cells
Cell tabs
Busbars or flexible connectors
Welded or bolted joints
BMS
Contactors
Fuses
Cables and connectors
Cooling system
Permitted temperature rise
Parallel current sharing also depends on cell resistance, connection resistance, busbar symmetry, temperature and cell matching. A theoretical multiplication should always be followed by electrical and thermal validation.
A 14S4P configuration contains 14 series-connected groups, with four cells connected in parallel inside each group.
The total cell count is:
Total cells = Series count × Parallel count
14 × 4 = 56 cells
For the P70A example:
Series count: 14
Parallel count: 4
Total cells: 56
Nominal pack voltage: 51.8V
Pack capacity: 280Ah
The term “14S4P” should be supported by an electrical diagram showing the parallel groups, BMS sensing points, main current path and protection devices. Do not rely only on the written configuration name when reviewing a supplier drawing.
Some battery systems use separately protected series strings connected in parallel at pack level. This arrangement can provide redundancy, but it requires careful coordination between BMS units, contactors, fuses and communication systems. The correct topology depends on the project’s safety, service and fault-isolation requirements.
Battery energy is normally expressed in watt-hours or kilowatt-hours.
Pack energy (Wh) = Nominal pack voltage × Pack capacity
The same result can be calculated directly from the cell count:
Pack energy (Wh) = S × P × Cell nominal voltage × Cell capacity
For the 14S4P P70A example:
Nominal pack voltage: 51.8V
Pack capacity: 280Ah
51.8V × 280Ah = 14,504Wh
Convert Wh into kWh:
14,504Wh ÷ 1,000 = 14.504kWh
The preliminary nameplate energy is therefore approximately:
14.50kWh
Using the more conservative datasheet test values of 3.73V and 68.7Ah:
14 × 4 × 3.73V × 68.7Ah = approximately 14.35kWh
The difference illustrates why a market-facing capacity class and a datasheet-tested minimum capacity should not be treated as identical. For guaranteed pack performance, use the applicable specification value.
You can learn more about the difference between cell-level and pack-level energy in Pouch Cell Energy Density Explained: Wh/kg, Wh/L and Usable Pack Energy.
The following values use 3.7V and 70Ah for preliminary sizing.
| Configuration | Cell count | Nominal voltage | Capacity | Nameplate energy | Approximate energy at an 80% usable SOC window |
|---|---|---|---|---|---|
| 14S1P | 14 | 51.8V | 70Ah | 3.63kWh | 2.90kWh |
| 14S2P | 28 | 51.8V | 140Ah | 7.25kWh | 5.80kWh |
| 14S3P | 42 | 51.8V | 210Ah | 10.88kWh | 8.70kWh |
| 14S4P | 56 | 51.8V | 280Ah | 14.50kWh | 11.60kWh |
These values are preliminary. Actual deliverable energy depends on the approved voltage window, load current, temperature, cell aging, BMS settings and system losses.
Nameplate energy is calculated from nominal voltage and capacity. Usable energy is the amount the application can access within the selected operating window.
For an early estimate:
Usable energy ≈ Nameplate energy × Usable SOC window
If a 14S4P P70A pack has 14.50kWh of preliminary nameplate energy and operates through an 80% SOC window:
14.50kWh × 0.80 = approximately 11.60kWh
This is an estimate, not a guaranteed output.
Actual usable energy is affected by:
Cell discharge curve
Charge and discharge limits
Discharge rate
Voltage sag
Ambient and cell temperature
Cell-to-cell variation
State of Health
BMS cut-off strategy
Cable and contactor losses
DC/DC converter, motor controller or inverter efficiency
If usable energy must still be achieved near the end of the battery’s service life, early sizing may also consider the end-of-life capacity target and conversion efficiency:
Required nameplate energy ≈ Target usable energy ÷ (usable SOC window × end-of-life capacity fraction × system efficiency)
This formula is useful for preliminary sizing. Final performance must be validated from cell discharge data and pack-level testing.
Battery pack designers often begin with a required power value in kW rather than a current value in amps.
The relationship is:
Power = Voltage × Current
Therefore:
Current = Power ÷ Voltage
For a 10kW load at the nominal voltage of a 14S P70A pack:
10,000W ÷ 51.8V = approximately 193A
If the controller tries to maintain 10kW as the battery voltage falls to 38.5V:
10,000W ÷ 38.5V = approximately 260A
This shows why current should not be calculated only at nominal voltage. For constant-power loads, current rises as battery voltage falls.
The cells, BMS, busbars, contactors, fuses and cables must be evaluated at the worst relevant combination of voltage, power, temperature and duration.
Cell voltage under load is lower than its relaxed open-circuit voltage. A simplified voltage-sag estimate is:
Voltage sag ≈ Current × DC resistance
Real pack resistance includes more than cell resistance. It also includes:
Tabs
Busbars
Joints
Fuses
Contactors
Cables
Connectors
Parallel current-distribution differences
A simplified estimate of resistive heat is:
Power loss ≈ Current² × Resistance
Heat therefore rises approximately with the square of current in a simplified resistive model, not exponentially. Actual heat generation and temperature rise also depend on SOC, cell temperature, resistance changes, cooling conditions and duty cycle.
ACIR measured at 1kHz should not automatically be used to predict load voltage sag. DCIR measured under a defined load condition is generally more relevant for preliminary voltage-sag and heat calculations.
Mathematical calculations assume that every cell performs identically. Real cells have differences in capacity, internal resistance, open-circuit voltage, self-discharge and aging.
Cells intended for one pack should normally be matched by:
Chemistry and model
Production batch where practical
Capacity
AC and DC resistance
Open-circuit voltage
State of Charge
Self-discharge
Age and usage history
Cells at significantly different SOC levels should not be connected directly in parallel. The voltage difference can cause a high equalization current limited mainly by cell and connection resistance.
Different-capacity cells do not automatically divide current according to capacity. Current distribution is strongly affected by internal resistance, interconnection resistance, temperature and busbar layout. For a new production pack, using matched cells of the same approved model is the preferred approach.
A BMS balancing circuit cannot compensate quickly for large differences in capacity or resistance inside a high-capacity pouch cell pack. Cell grading remains important before assembly.
Pouch cells do not have a rigid metal can. The module structure must manage cell expansion, provide uniform support, protect the laminate film and maintain reliable thermal contact.
There is no universal swelling allowance or preload pressure that can be applied to every pouch cell.
For the P70A, the available specification indicates:
Initial preload: 400–500N
Specified swelling coefficient: 6%
Long-term operation without mechanical restraint is not permitted
Pressure should be distributed evenly across the cell surface
These values apply to the P70A and should not automatically be copied to another pouch cell model.
The module design should consider:
End plates and frame stiffness
Preload method
Compression or swelling pads
Cell thickness tolerance
End-of-life expansion
Electrical insulation
Tab and seal protection
Cooling-surface contact
Manufacturing and service tolerances
For more information, see Why Pouch Cells Require Compression in Battery Pack Design.
Cooling requirements cannot be selected from C-rate alone. A 1C system in a tightly packed enclosure may have more difficult thermal conditions than a higher-current system with short duty cycles and an effective cooling structure.
Thermal design should consider:
Cell DC resistance
Continuous current
Peak current and duration
Charge current
Module geometry
Cell spacing
Heat-transfer direction
Ambient temperature
Maximum permitted cell temperature
Maximum cell-to-cell temperature difference
Cooling-system failure conditions
Possible strategies include natural convection, forced air, conductive cooling plates and liquid cooling. The correct solution should be selected from a heat-generation model and confirmed by module-level temperature testing.
Temperature sensors should be placed at representative locations, including likely hot spots and areas where connection resistance may create additional heat.
The BMS must support the exact series count and approved cell voltage range. For a 14S pack, the BMS must monitor 14 series-connected cell groups.
BMS selection should consider:
Cell chemistry
Series count
Normal charge-voltage target
Overvoltage protection threshold
Undervoltage protection threshold
Continuous current
Peak current and duration
Short-circuit detection
Charge and discharge temperature
Sensor quantity and placement
Balancing strategy
Voltage and current measurement accuracy
Contactor control
Fault logging and recovery
The BMS overvoltage threshold is an emergency protection setting, not the normal charger target. The charger should regulate voltage and current correctly without depending on routine BMS disconnection.
There is also no universal rule that every BMS, contactor or fuse should be rated at exactly 125% of the expected current. Appropriate design margin depends on the component, temperature, duty cycle, service life and applicable standard.
Fuse selection should consider:
Continuous load current
Cable and busbar protection
DC rated voltage
Maximum available fault current
DC interrupt rating
Time-current curve
I²t performance
Coordination with the BMS and contactors
High-voltage or high-power systems may also require main contactors, pre-charge circuits, service disconnects, insulation monitoring and coordinated fault isolation.
A reliable preliminary calculation can follow this sequence:
Define the equipment’s complete voltage range.
Define the required usable energy, continuous power and peak load.
Select the cell chemistry and cell model.
Use the approved cell voltage limits and capacity test conditions.
Calculate the series count from the required voltage range.
Calculate the parallel count from both energy and current requirements.
Calculate total cell count, nominal voltage, Ah, Wh and kWh.
Estimate usable energy within the intended SOC window.
Check the current requirement at the lowest operating voltage.
Check voltage sag, heat generation and current sharing.
Select the BMS, conductors, contactors and protection devices.
Design the mechanical restraint, insulation and cooling structure.
Build and test a prototype under the intended load and temperature conditions.
Complete the required safety, transportation and application certification.
A spreadsheet can produce the first calculation, but testing is required to confirm the final battery system.
To evaluate a pouch cell or customized battery project, provide as much of the following information as possible:
Application
Target nominal voltage
Maximum and minimum system voltage
Required usable energy or operating time
Continuous power or current
Peak power/current and duration
Charging time or charging current
Maximum dimensions
Maximum weight
Operating temperature
Expected cycle life
Cooling method
BMS communication requirements
Certification requirements
Prototype and annual order quantity
Misen supports cell selection, grading, module configuration and customized battery solution development for electric mobility, AGVs, robotics, industrial equipment, marine systems and energy-storage applications.
The basic battery pack formulas are straightforward:
Nominal pack voltage = Series count × Cell nominal voltage
Pack capacity = Parallel count × Cell capacity
Pack energy (Wh) = Pack voltage × Pack capacity
Pack energy (kWh) = Pack energy in Wh ÷ 1,000
Using a 3.7V 70Ah P70A cell as a preliminary example, a 14S4P configuration provides:
51.8V nominal voltage
280Ah nominal capacity
14.50kWh preliminary nameplate energy
Approximately 11.60kWh at an assumed 80% usable SOC window
These numbers are only the start of the design process. Final performance depends on voltage limits, discharge conditions, temperature, cell matching, current distribution, mechanical compression, thermal management, BMS settings and system losses.
For projects requiring a high-energy NMC pouch cell, review the P70A 3.7V 70Ah pouch cell specifications and send Misen your voltage, energy, current, space and temperature requirements for a project-based evaluation.
Multiply the nominal pack voltage by the pack capacity in Ah to obtain Wh. Divide the Wh result by 1,000 to obtain kWh.
For example:
51.8V × 280Ah = 14,504Wh = 14.504kWh.
No. Series connections increase voltage. The Ah capacity remains equal to one cell or one parallel group.
No. Parallel connections increase Ah capacity and contribute to current capability. The voltage remains equal to one cell or series string.
A 14S4P pack contains 14 series-connected groups with four cells in each parallel group:
14 × 4 = 56 cells.
Not automatically. Using the P70A reference values, a 14S pack has a nominal voltage of approximately 51.8V, a recommended charge cut-off calculation of 60.2V and an end-of-discharge calculation of 38.5V under the applicable conditions. The connected equipment must support the complete operating range.
The available specification lists a maximum continuous discharge rate of 3C at 25°C under the stated conditions. Based on the market-facing 70Ah capacity class, this corresponds to approximately 210A per cell. Final current limits must follow the applicable datasheet conditions and pack-level thermal validation.
It is not recommended for a new production pack. Cells should normally use the same approved chemistry and model and should be matched for capacity, resistance, voltage, SOC and aging condition.
No. Nameplate kWh is calculated from nominal voltage and capacity. Usable energy depends on the permitted SOC and voltage window, current, temperature, aging, BMS settings and system efficiency.
There is no universal percentage for every pouch cell. The mechanical design must follow the selected cell’s preload, thickness tolerance and end-of-life swelling requirements. The available P70A specification indicates a 6% swelling coefficient and an initial preload of 400–500N.
