Unlike rigid cylindrical or prismatic metal-can cells, lithium-ion pouch cells use a flexible laminated enclosure. That makes them attractive for lightweight, space-efficient battery packs, but it also means the module must manage changes in cell thickness during charge, discharge, and aging. Controlled mechanical support is therefore an important part of pouch cell pack design.
A compression structure can help maintain consistent contact and manage swelling. However, more pressure is not automatically better. The correct preload, allowable expansion, and support arrangement depend on the specific cell construction, operating conditions, and manufacturer guidance.
A pouch cell contains stacked or wound electrodes inside a thin multilayer film. The film provides an enclosure, but it does not function like a rigid metal housing. As the electrodes react during operation, the cell changes thickness. A module must accommodate that movement while keeping the broad faces aligned and protecting the tabs, edge seals, and electrical insulation.
Depending on the cell and pack architecture, a carefully designed support structure may help with three practical goals:
Contact consistency: Maintain reasonably uniform contact between the cell stack, support plates, and any intended thermal interfaces.
Dimensional control: Accommodate reversible thickness changes without uncontrolled local deformation.
Module durability: Reduce avoidable loading of tabs, pouch seals, insulation, and neighboring hardware during service.

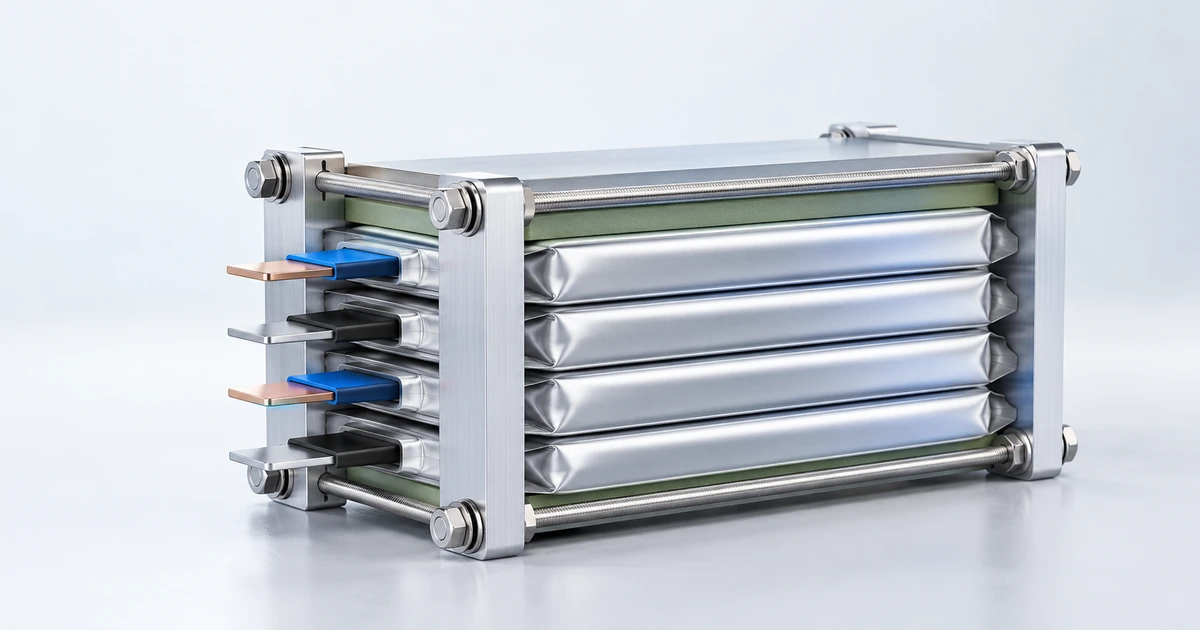

Figure 1 illustrates a conceptual support arrangement, not a universal construction drawing. Plate stiffness, electrical clearances, tab orientation, thermal interfaces, and load distribution must be checked against the actual product drawing.
Two different thickness changes matter when engineering a pouch module:
Reversible expansion: The electrodes expand and contract as lithium moves during normal cycling. The magnitude depends on chemistry, state of charge (SOC), electrode formulation, and temperature.
Irreversible thickness growth: Aging processes can produce lasting dimensional changes. These accumulate differently with calendar aging, cycle count, temperature, and usage profile.
Gas generation is another possible cause of swelling, particularly under abusive or degraded conditions. External compression is not a remedy for abnormal gas generation or a substitute for safety qualification. The design must allow for fault management and follow the cell maker’s swelling and mechanical limits.
Compression should also be considered alongside electrical duty. Depth of discharge, C-rate, and temperature all influence aging; our related guide explains the interaction in pouch cell cycle life, DOD, C-rate, temperature, and compression.
| Design objective | Potential benefit | Important limitation |
|---|---|---|
| Electrode-stack support | More consistent mechanical boundary conditions | Excessive pressure can adversely affect cell behavior |
| Thermal interface | May improve intended contact with cooling surfaces | Thermal performance still requires testing |
| Stack geometry | Limits uncontrolled movement or bowing | Aging growth still needs accommodation |
| Service life | Can influence degradation mechanisms | No universal cycle-life improvement is guaranteed |
The key variable is not just the initial assembly force. Real operating pressure changes with cell thickness, fixture stiffness, temperature, and the number of cells sharing the load path. Local force concentration is especially undesirable near tabs and heat-sealed pouch edges.

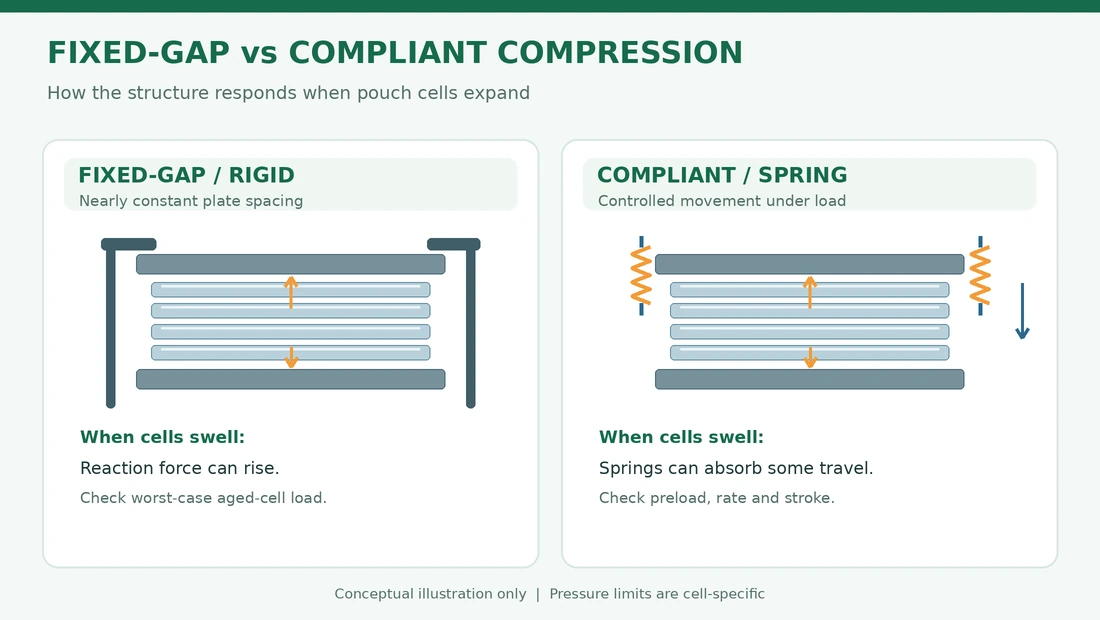

There are two common ways to constrain a pouch cell stack. Neither should be selected solely by habit; the choice must reflect the validated cell pressure-versus-expansion behavior.
| Feature | Fixed-gap (rigid) fixture | Compliant (spring-supported) fixture |
|---|---|---|
| Mechanical principle | Plates maintain approximately fixed distance | Plates move within a controlled travel range |
| As cells expand | Reaction force can rise substantially | Spring system absorbs some expansion |
| Main engineering concern | High loads at peak swelling or late life | Load drift, travel limits, and packaging complexity |
| What to validate | Peak reaction force and pressure uniformity | Spring rate, preload, travel, and end-of-life force |
In a controlled 2024 study of 5 Ah NMC622/graphite pouch cells, researchers observed differences between rigid and flexible pressure fixtures, with some flexible conditions improving average cycle life. This is useful evidence that fixture mechanics matter; it does not establish one best architecture for every pouch cell.
There is no reliable universal pressure setpoint for NMC and LiFePO4 pouch cells. A pressure that performs well in one cell model may be inappropriate for another because of differences in electrode design, thickness, pouch dimensions, and operating window.
For context, the above-mentioned 2024 study compared several pressures for a specific 5 Ah NMC622/graphite cell and found favorable results for selected flexible-fixture conditions around 0.2–0.5 MPa. Those values are research conditions, not MisenPower product specifications and should not be copied into an EV or storage pack drawing without cell-specific qualification.
In preliminary mechanical calculations, mean face pressure is related to the applied load and effective supported area:
The calculation alone cannot confirm that loading is uniform. Plate deflection, uneven shims, thermal pads, and local pouch geometry may create pressure peaks. Confirm actual contact and force behavior experimentally, including after swelling and thermal cycling.

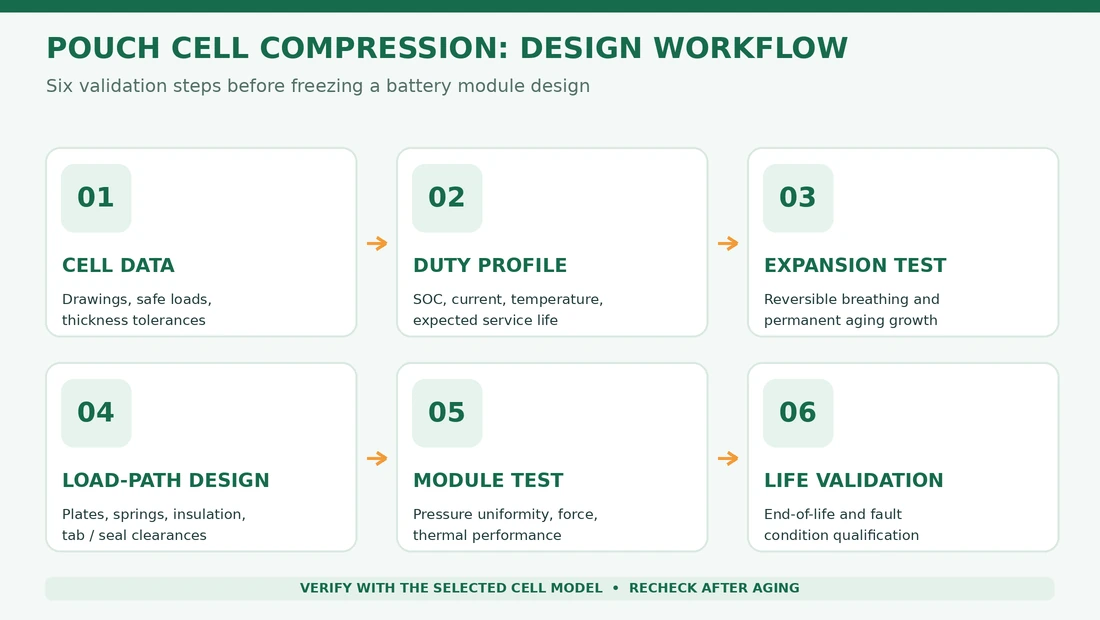

Before freezing a module design, use the following sequence with the selected battery cell and pack application.
Collect cell-specific limits. Request the cell drawing, allowed mechanical loads, thickness tolerance, swelling data, operating temperature, and recommended module support method.
Define the use profile. Record SOC window, charging rate, discharge peaks, temperature exposure, expected cycle life, and storage conditions.
Characterize expansion. Measure reversible thickness changes and permanent growth over the representative SOC and temperature ranges.
Design the load path. Size the end plates, insulation, compliant elements if used, and clearances around tabs and heat seals.
Verify mechanical and thermal behavior. Check initial preload, pressure distribution, displacement, fixture travel, contact resistance, and cooling performance.
Validate over life and fault conditions. Repeat measurements through aging and environmental testing, and complete the appropriate pack-level safety assessments.
Both NMC and LFP chemistries can be packaged as flexible pouch cells, but chemistry alone does not determine compression requirements. Electrode composition, cell format, thickness, tab design, and manufacturer limits matter at least as much when selecting an assembly method.
For example, engineers evaluating an SK Innovation E777 NMC pouch cell should work from that model’s mechanical data—not pressure values published for a small laboratory cell. The same applies to an S47 LiFePO4 pouch cell; its chemistry and energy profile do not, by themselves, establish a safe compression load.
If the cell manufacturer does not publish adequate force, expansion, or dimensional tolerance data, request clarification or perform qualified testing before selecting the fixture preload.
Copying a pressure number from another cell: Different constructions can respond differently even at the same nominal pressure.
Ignoring end-of-life thickness growth: A fixture that fits new cells may become overstressed after aging.
Applying load near tabs or seals: Compression should follow the qualified support area, with appropriate edge and electrical clearances.
Using thin end plates without deflection checks: A nominally uniform assembly force may produce nonuniform face pressure.
Assuming compression solves thermal or gas issues: Cooling design and safety analysis are separate validation tasks.
Not necessarily the same type or amount. Many multi-cell designs need mechanical support and dimensional management, but the required preload or fixture method must come from the specific cell’s validated use conditions.
No. Research shows that the relationship is cell- and condition-dependent. Excessive pressure can harm electrochemical behavior and, in some circumstances, contribute to unwanted degradation mechanisms.
No. A fixed-gap structure limits displacement and its reaction force can rise as the cells swell. A compliant structure allows controlled movement and can moderate force changes, depending on its spring characteristics and available travel.
No. That range appeared under specific test conditions in one research study. It is not a universal recommendation and must not replace the manufacturer’s mechanical specification and module testing.
The broad electrode-stack faces are the usual area for controlled support. Detailed contact zones, insulation, seal clearances, tab access, and allowable loads must follow the particular cell design and applicable safety requirements.
No. Review the full intended SOC and temperature range and aging state. New-cell assembly force alone cannot establish the peak force or minimum contact pressure the module will experience in service.
Good pouch cell compression design balances electrode-stack support, controlled movement, uniform loading, safe clearances, and long-term mechanical behavior. Begin with cell-specific information, then confirm the selected fixture through mechanical, electrical, thermal, aging, and safety testing.
