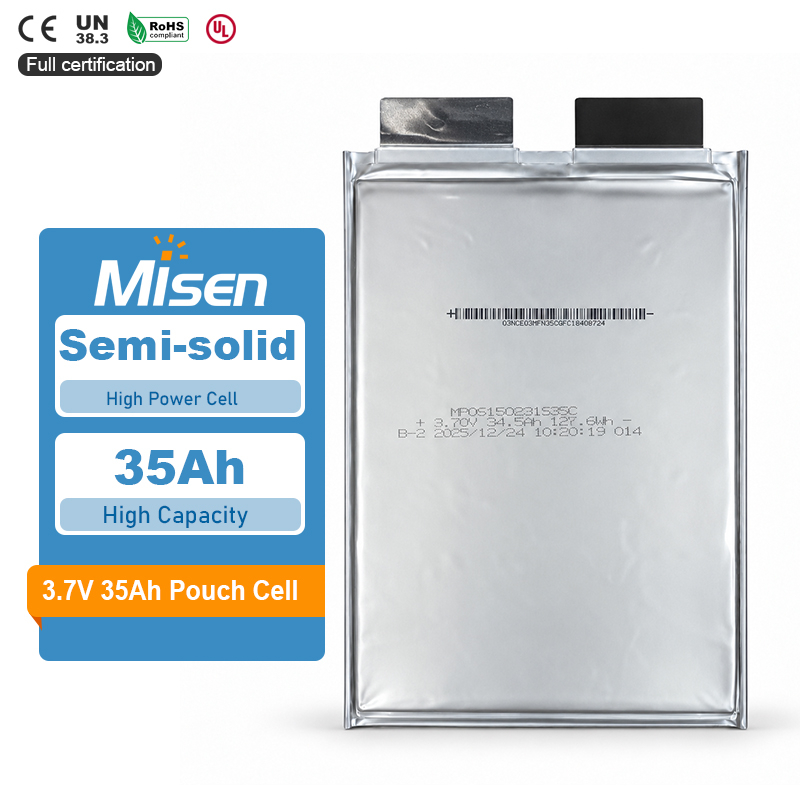

The Farasis MP06160231S35C is a slim, high-power rechargeable lithium-ion pouch cell with 35Ah-class capacity. It provides 130.55Wh at 1/3C, supports 100A continuous discharge and delivers up to 167A for a defined 10-second pulse. Wide charge and discharge temperature ranges, 2,000-cycle performance and a 6.10mm cell thickness support demanding custom battery-module designs.
01 Capacity Verified at Multiple Rates
The cell provides at least 35Ah at 1/3C, 34.5Ah at C/2 and 33.5Ah at 1C. Publishing each capacity together with its test rate gives pack designers a clearer basis for estimating usable capacity under different load profiles.
02 High Energy in a Slim Format
At 1/3C, the cell delivers 130.55Wh with 266Wh/kg gravimetric and 588Wh/L volumetric energy density. Its combination of stored energy and 6.10mm thickness supports compact modules where enclosure volume and battery weight are tightly controlled.
03 100A Continuous Discharge
Maximum continuous discharge is specified at 100A, equivalent to 3C, at 25°C. For short power demands, the cell supports 167A or 5C for 10 seconds at 25°C and 50% SOC. The pulse rating must not be treated as continuous current.
04 Wide Temperature Capability
The published operating range supports charging from −15°C to 55°C and discharging from −30°C to 60°C. A 67A or 2C charge pulse is specified for 10 seconds at 25°C and 50% SOC, subject to proper BMS and thermal control.
05 2,000-Cycle Service Life
Cycle life is specified at 2,000 cycles while maintaining at least 80% SOH under 25°C, 0.5C charge, 1C discharge and a 4.3–3.0V voltage window. Actual service life depends on temperature, SOC window, current demand and pack-level mechanical control.
06 Compact Pouch-Cell Construction

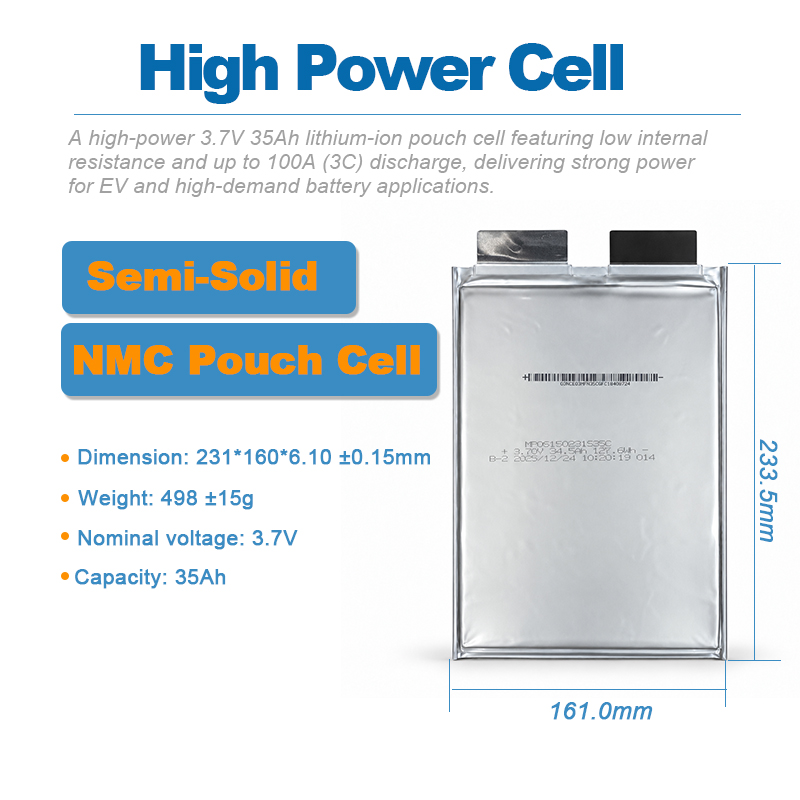

The cell body measures 231 ±1 × 160 ±1 × 6.10 ±0.15mm, with an overall length of 240 ±2mm and a weight of 498 ±15g. The opposed tab layout supports compact module construction with appropriately designed spacing, insulation and welded connections.
Custom battery pack applications: This high-power pouch cell may be considered for electric mobility, commercial vehicles, marine systems, AGVs, robotics and other high-output battery modules after application-specific validation. MisenBattery supplies cells and supports custom pack integration, including BMS selection, fuse protection, welded tab interconnects, voltage and temperature sensing, insulation, spacing, compression control, thermal management and mechanical enclosure design. Supporting CE, UN38.3, RoHS and UL documentation can be provided where applicable to the selected product and shipment.
