SVOLT
3.2V 131h
Grade A
131Ah
3.2V
2.42Kg ± 5 g

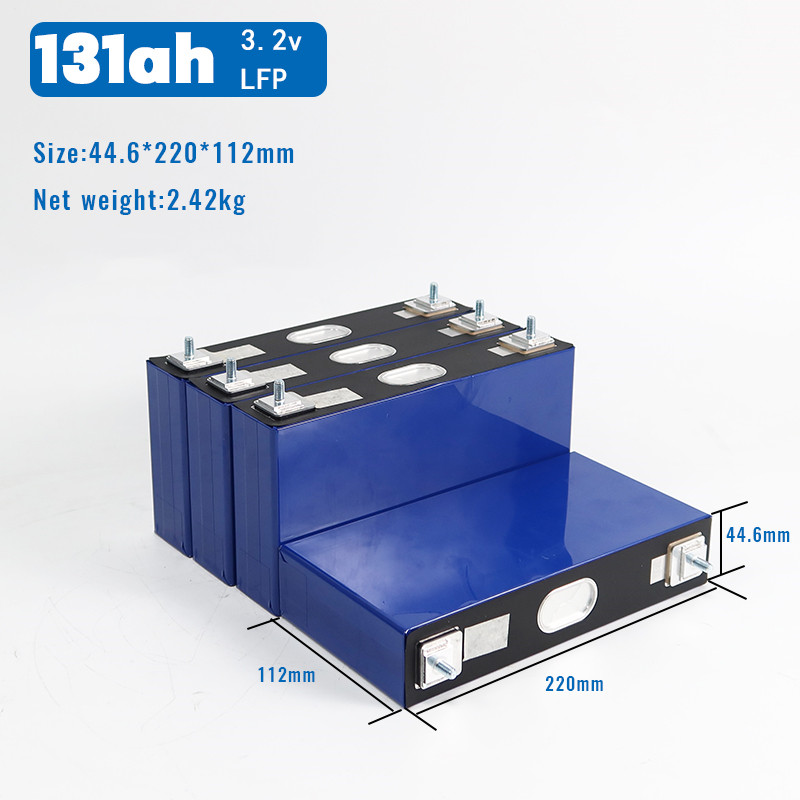

44.6*220*112MM
3000 times (80% of initial capacity at 0.2C rate, IEC Standard)
| Quantity: | |
|---|---|
Electrical Performance
Energy efficiency: >98% @ 0.5C rate
Internal resistance: ≤0.5mΩ
Self-discharge: <3% per month
Standard charge: 0.5C (65.5A)
Maximum continuous discharge: 1C (131A)
Mechanical Specifications
Robust aluminum alloy casing
Laser-welded terminals
IP67 level protection available in pack design
Extended Cycle Life
Specifically engineered for daily charge-discharge cycles
6000 cycles at 80% depth of discharge
Minimal capacity degradation over 10+ years of service
High Efficiency Performance
98% round-trip efficiency for maximum solar energy utilization
Low internal resistance minimizes energy loss
Excellent partial state of charge (PSOC) performance
Enhanced Safety for Home Use
Non-toxic, non-hazardous materials safe for residential installation
Thermal runaway prevention design
Stable chemistry eliminates fire risks
Wide Temperature Operation
Charge temperature: 0°C to 55°C
Discharge temperature: -20°C to 60°C
Maintains performance in varying climate conditions
Solar-Specific Design
Optimized for solar charge profiles and irregular charging patterns
Excellent tolerance for partial state of charge operation
Minimal self-discharge for extended storage periods
Electric Vehicles: Structural battery packs for passenger EVs, commercial vehicles
Utility-Scale Energy Storage: Containerized ESS, grid-level storage projects
Marine Propulsion: High-capacity marine battery systems
Commercial Transport: Electric buses, trucks, and specialty vehicles
Stationary Storage: Large commercial and industrial backup power
