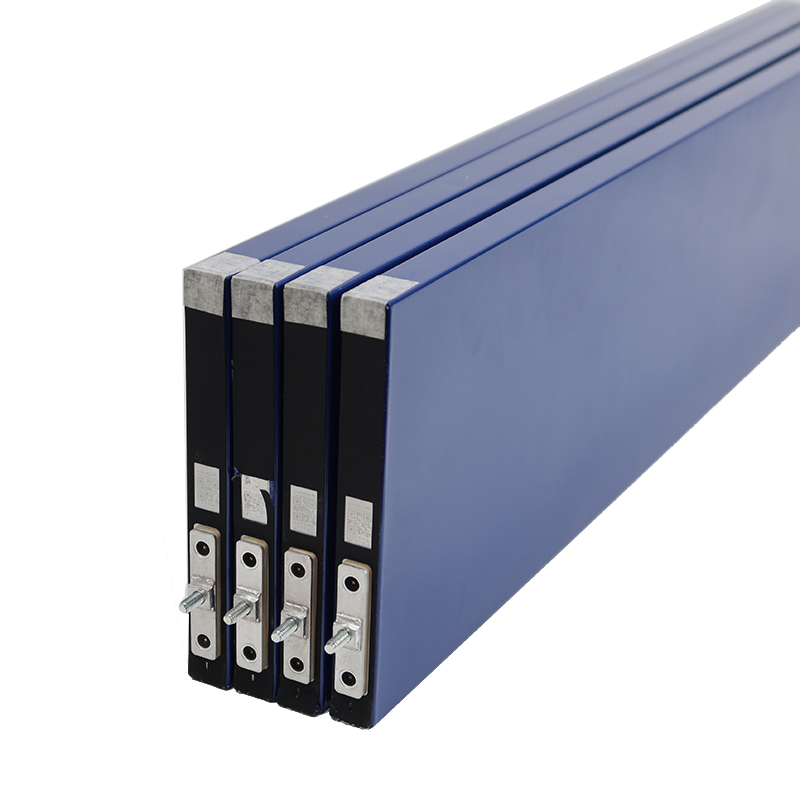

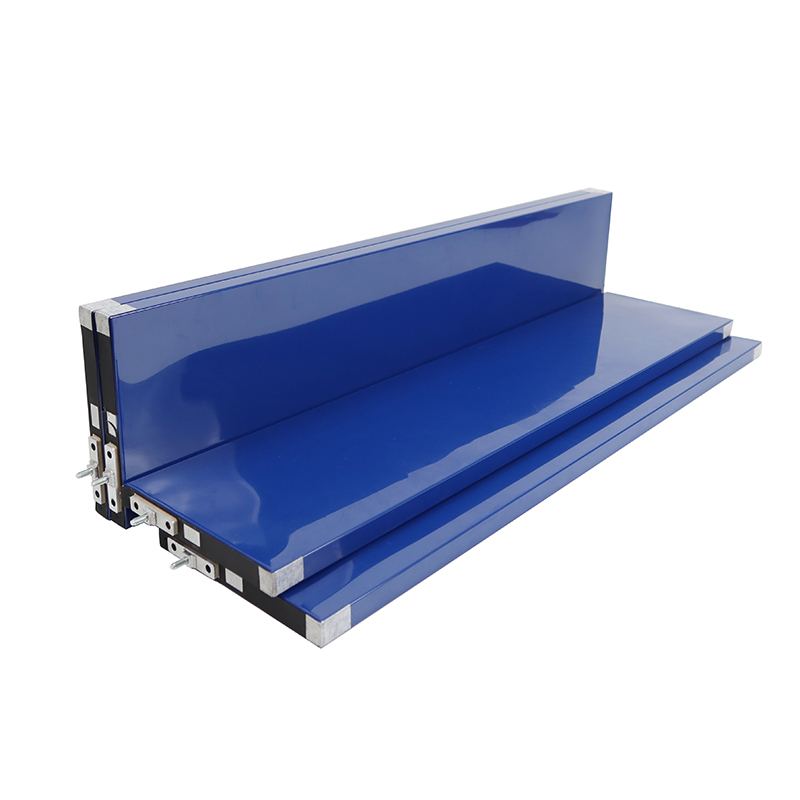

SVOLT
3.2V 142Ah
Grade A
142Ah
3.2V
2.51Kg ± 5 g

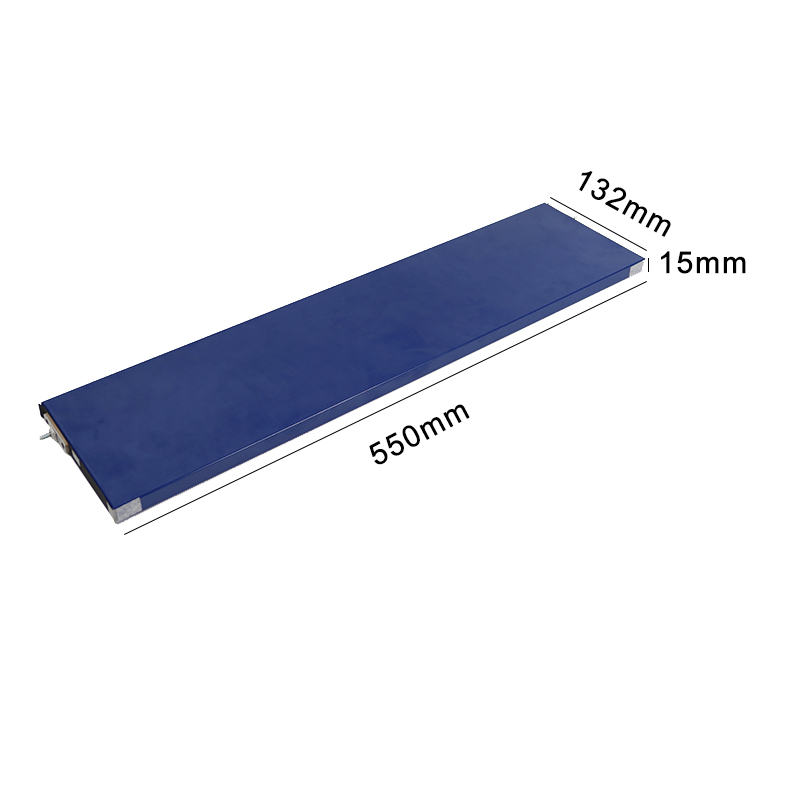

15*555*132MM
3000 times (80% of initial capacity at 0.2C rate, IEC Standard)
| Quantity: | |
|---|---|
Structural Design
Optimized electrode design for minimal internal resistance
Integrated connection system for simplified assembly
Enhanced mechanical strength for structural applications
Performance Characteristics
Energy efficiency: >96% @ 0.5C rate
Internal resistance: ≤0.8mΩ
Self-discharge rate: <2% per month
Operating temperature: -30°C to 60°C
Optimized Structural Integration
Blade form factor enables direct cell-to-pack (CTP) integration
35% higher space utilization compared to conventional prismatic cells
Reduced pack components and simplified assembly process
Enhanced Safety Performance
Integrated thermal propagation resistance system
Multi-directional pressure relief design for enhanced safety
Stable LFP chemistry with built-in safety features
Exceptional Cycle Life
Engineered for over 6000 deep discharge cycles
Maintains >80% capacity after extensive cycling
Superior calendar life for reduced total cost of ownership
Advanced Thermal Management
Integrated thermal channels for efficient heat dissipation
Uniform temperature distribution across cell surface
Excellent performance in varied environmental conditions
Superior Rate Performance
Continuous discharge capability: 1.5C (213A)
Peak discharge capability: 3C (426A) for 10 seconds
Fast charging supported up to 1C (142A)
Electric Vehicles: Structural battery packs for passenger EVs, commercial vehicles
Utility-Scale Energy Storage: Containerized ESS, grid-level storage projects
Marine Propulsion: High-capacity marine battery systems
Commercial Transport: Electric buses, trucks, and specialty vehicles
Stationary Storage: Large commercial and industrial backup power
Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.
These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.
We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.
Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
