SVOLT
3.2V 106Ah
Grade A
106Ah
3.2V
1.95Kg ± 5 g

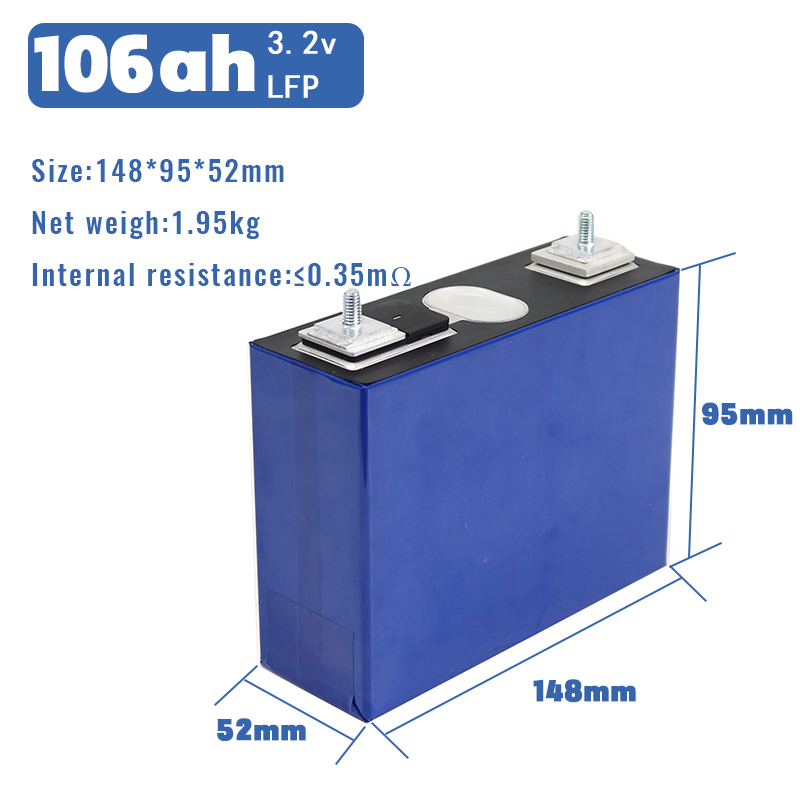

148*95*52MM
3000 times (80% of initial capacity at 0.2C rate, IEC Standard)
| Quantity: | |
|---|---|
Structural Design
Laser-welded aluminum alloy casing
Optimized internal structure for minimal resistance
Precision manufacturing for consistent performance
Performance Characteristics
Energy efficiency: >96% @ 0.5C rate
Self-discharge rate: <2% per month at 25°C
Low internal resistance for minimal voltage drop
106Ah capacity provides ideal balance of power and runtime
Compact prismatic design maximizes space utilization
Reduced system complexity with fewer parallel connections
Enhanced Safety Performance
Multi-protection safety design including pressure relief valve
Stable LFP chemistry with excellent thermal stability
Comprehensive certification portfolio (UN38.3, CE, etc.)
Long Cycle Life
Engineered for over 4000 deep discharge cycles
Maintains >80% capacity after extensive use
Superior calendar life for reduced total cost of ownership
Advanced Thermal Management
Wide operating temperature range: -20°C to 55°C
Excellent thermal conductivity for efficient heat dissipation
Consistent performance in varying environmental conditions
Superior Rate Performance
Continuous discharge capability: 1C (106A)
Peak discharge capability: 2C (212A) for 30 seconds
Excellent charge acceptance with fast charging capability
This versatile and robust LFP cell is ideally suited for applications that prioritize safety, cycle life, and reliability:
Energy Storage Systems (ESS):
Perfect for solar energy storage, residential and commercial backup power systems, and off-grid power solutions.
Electric Vehicles (EVs):
Well-suited for electric buses, low-speed electric vehicles (LSEVs), electric trucks, and other commercial and specialty vehicles.
Material Handling Equipment:
Powers electric forklifts, pallet jacks, automated guided vehicles (AGVs), and other industrial lifting equipment.
Marine and RV:
Provides reliable house power for boats, yachts, and recreational vehicles, supporting navigation systems and onboard appliances.
Telecommunications:
Serves as backup power for 5G base stations, communication towers, and data centers.
Consumer Power Products:
Used in high-capacity portable power stations and solar generators.
Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.
These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.
We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.
Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
