Energy density is one of the first specifications engineers look at when comparing lithium battery cells. But a number such as 270Wh/kg or 600Wh/L does not tell the whole story.
To select the right battery for an EV, energy storage system, UAV, robot or industrial battery pack, you need to understand three different questions:
How much energy does the cell store for its weight?
How much energy does it store for its volume?
How much of that energy remains available after the cells are integrated into a complete battery pack?
These questions correspond to gravimetric energy density (Wh/kg), volumetric energy density (Wh/L) and usable pack energy.

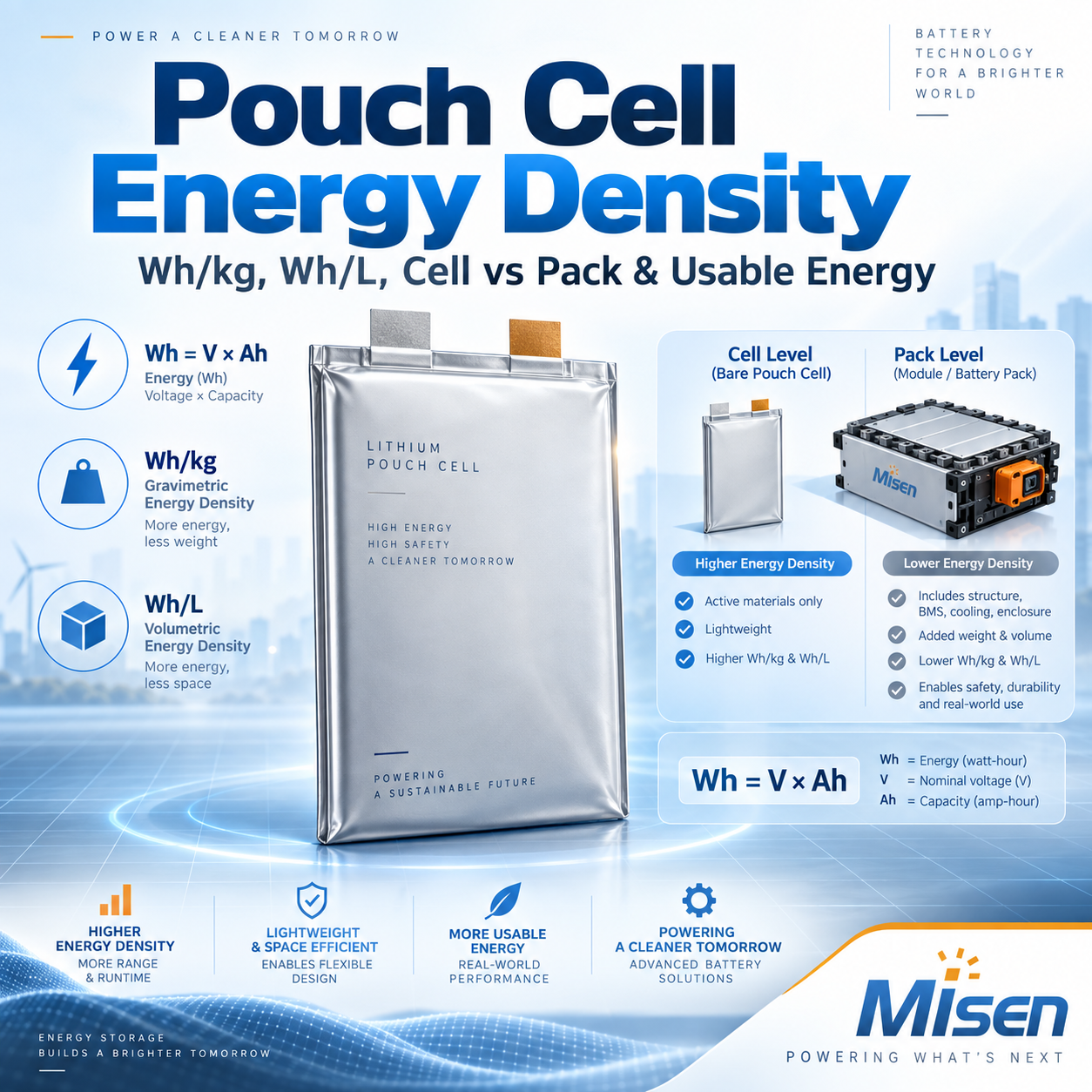

This guide explains how each metric is calculated, why cell-level and pack-level energy density are different, and how to compare large-format lithium pouch cellsfor real battery projects.
Wh/kg tells you how much energy a battery stores relative to its weight.
Wh/L tells you how much energy fits into a given physical volume.
Cell energy density describes the bare battery cell, while pack energy density includes the BMS, enclosure, busbars, cooling system, insulation, compression structure and other components.
Usable energy is the portion of the battery's nominal energy that the system actually allows the application to use.
Battery energy density describes how much electrical energy can be stored within a certain amount of weight or space. It should not be confused with battery capacity alone.
For example, a 100Ah cell is not automatically more energy-dense than a 70Ah cell. The larger cell may simply be heavier or physically larger.
To compare different cells correctly, engineers normally evaluate the cell's energy in watt-hours and then relate that energy to either mass or volume.
The first calculation is straightforward:
For an illustrative 3.7V 70Ah lithium-ion cell:
The cell therefore stores approximately 259Wh of nominal energy. This is the starting point for calculating both Wh/kg and Wh/L.
Gravimetric energy density measures how much energy a battery stores relative to its mass. It is expressed in watt-hours per kilogram.
Suppose an illustrative cell stores 259Wh and weighs 0.95kg:
A higher Wh/kg value means more energy can be carried for the same battery weight.
This is particularly important in weight-sensitive applications such as:
Electric vehicles
Electric motorcycles
UAVs and drones
Robotics
Marine propulsion systems
Portable industrial equipment
For an EV, reducing battery mass may help improve range, payload capacity and vehicle efficiency. For a UAV, even a relatively small change in battery weight can significantly affect flight time and usable payload.
Volumetric energy density measures how much energy can be stored within a given physical volume. It is expressed in watt-hours per liter.
If a cell measures 400mm × 100mm × 14mm, its approximate rectangular volume is:
If the same illustrative cell stores 259Wh:
Wh/L becomes especially important when the battery compartment has a strict dimensional limit. A system may tolerate a slightly heavier battery but still have no additional physical space available.
Examples include EV battery trays, motorcycles, robots, AGVs, compact energy storage cabinets and specialized industrial equipment.
Neither metric is universally more important. The correct priority depends on the application.
| Application | Main Priority | Why |
|---|---|---|
| EV / Electric Motorcycle | Wh/kg + Wh/L | Both vehicle weight and battery tray space matter. |
| UAV / Drone | Wh/kg | Battery mass directly affects endurance and payload. |
| Robot / AGV | Wh/L + Power | Battery compartments are often compact and peak current may be important. |
| Stationary ESS | Cycle Life + Safety + Cost | Maximum energy density is often less important than lifetime and system economics. |
| EV Retrofit | Wh/L + Dimensions | The new battery frequently has to fit an existing enclosure or chassis. |
A lithium pouch cell uses a laminated flexible package rather than the rigid metal can used by cylindrical and many prismatic cells. This can reduce some inactive packaging mass and gives battery manufacturers more freedom to design the cell's width, length and thickness.
The flat shape can also help battery designers use available space efficiently because cells can be arranged in relatively compact stacks.
However, it is important not to assume that every pouch cell automatically has a higher energy density than every cylindrical or prismatic cell.
Actual performance depends on:
Cell chemistry
Electrode formulation
Cell capacity
Packaging design
Required discharge rate
Safety margins
Cycle-life targets
Operating temperature
Manufacturing process
The cell format is only one part of the energy-density equation.
For customers comparing high-energy lithium-ion options, Misen provides a range of NCM pouch cellsfor EV, mobility, robotics and industrial battery applications.
Two pouch cells with almost identical dimensions can have very different energy density, power capability, cycle life and thermal behavior. The reason is that the internal chemistry and cell design are different.
| Chemistry / Technology | Typical Design Priority | Main Considerations |
|---|---|---|
| NMC | High energy and compact battery systems | Energy density, power, thermal management and cycle life must be balanced. |
| LiFePO4 / LFP | Long-cycle and stationary applications | Often selected when cycle life, stability and system economics are prioritized over maximum Wh/kg. |
| LTO | Fast charge and long-cycle applications | Usually selected for power, low-temperature performance and service life rather than maximum energy density. |
| Semi-Solid / Advanced Lithium Systems | Lightweight, high-energy applications | Specifications should be evaluated model by model, including power, cycle life and safety test data. |
This is why choosing a battery only by the highest Wh/kg number can lead to the wrong result. The best cell is the one that satisfies the complete system requirement.
This is one of the most important concepts in battery design.
A manufacturer's cell specification normally describes the bare cell. A finished battery pack contains many additional components that store no electrical energy but are necessary for safe and reliable operation.
| Level | Typically Includes |
|---|---|
| Cell | Electrodes, electrolyte, separator, tabs and cell packaging |
| Module | Cells, busbars, insulation, cell holders, compression structure, sensors and module housing |
| Pack | Modules or cells plus BMS, contactors, fuses, wiring, cooling system, enclosure, connectors and protection components |
Every additional component adds mass and volume without adding cell energy. As a result, pack-level Wh/kg and Wh/L will always be lower than the corresponding bare-cell figures when measured on the same energy basis.
Consider a simplified battery using 20 cells. Assume each cell has:
250Wh nominal energy
0.95kg weight
0.55L cell volume
The cells together provide:
At the cell-only level:
Now assume the finished pack requires an additional 7kg and 5L for its enclosure, BMS, electrical connections, structural components and thermal management.
The finished battery becomes approximately:
26kg total mass
16L total volume
5kWh nominal energy
Pack-level nominal energy density is therefore approximately:
The cells have not changed. The difference comes entirely from the components required to create a usable battery system.
Note: This is an illustrative calculation only. Real battery pack architecture, overhead and usable energy vary significantly by application and design.
Several necessary system components reduce the final pack-level Wh/kg and Wh/L.
The BMS monitors cell voltage, temperature, current and state of charge while controlling battery protection functions. The electronics, sensing wires and associated hardware add mass and require physical space.
High-current battery systems require properly sized electrical conductors and protection devices. The higher the operating current, the more important electrical resistance, conductor cross-section and heat generation become.
Pouch cells use flexible laminated packaging and therefore normally require an engineered support structure. The module must protect the cell from excessive bending, vibration and mechanical damage while maintaining appropriate cell positioning and compression.
High-power or high-energy battery systems may require cooling plates, thermal interface materials, air channels or other thermal management components. These components occupy both weight and volume.
A complete battery may need protection against impact, vibration, dust, moisture and external electrical hazards. The enclosure can represent a meaningful part of the finished system's weight.
Another common mistake is treating nominal battery energy and usable energy as the same number.
A pack rated at 100kWh does not necessarily provide 100kWh of energy during normal operation. The BMS may reserve energy at the top and bottom of the state-of-charge range to protect the battery and support the required service life.
For preliminary planning, usable energy can be estimated as:
For example, if a 100kWh battery is operated over an 80% usable SOC window:
This is a simplified engineering estimate. Actual delivered energy also depends on cell voltage behavior, temperature, current, aging, BMS limits and system efficiency.
Returning to the previous 5kWh battery example, suppose the BMS allows an approximately 80% usable energy window.
The simplified usable energy becomes:
Using the complete 26kg, 16L battery:
This example shows why three numbers should not be confused:
Bare-cell energy density
Nominal finished-pack energy density
Usable finished-pack energy density
They answer different engineering questions.
A high-energy cell is not automatically a high-power cell.
Energy density tells you how much energy can be stored.Power capability describes how quickly that energy can be delivered or accepted.
For example, two 70Ah pouch cells may have similar Wh/kg values but very different:
Continuous discharge current
Peak discharge current
Fast-charge capability
Internal resistance
Heat generation
A UAV, performance EV or high-power marine system may therefore require a slightly lower energy-density cell if it provides much stronger discharge capability.
This is why cell selection should compare energy, power, cycle life, dimensions and thermal performance together.
Large-format pouch cells can simplify some battery architectures because each cell stores more energy than a small cylindrical cell. This can reduce the number of parallel cells and electrical connection points required to reach a target pack capacity.
However, larger cells also require careful consideration of:
Heat distribution across the cell surface
Tab temperature and connection resistance
Mechanical support
Cell compression
Cell consistency
Serviceability
Failure containment
Fewer cells do not automatically mean a better battery pack. The correct cell size depends on the electrical and mechanical architecture of the complete system.
Misen supplies multiple large-format pouch cell options rather than limiting customers to a single capacity. Examples include the P70A 70Ah pouch cell,119Ah NMC pouch cellandK103 103Ah NMC pouch cell.
Datasheet comparisons can be misleading if the measurements are not based on the same conditions. Before ranking two cells by Wh/kg or Wh/L, check exactly what each value represents.
For a meaningful comparison, confirm:
Nominal voltage: Is the same voltage definition being used?
Capacity: Under what discharge rate and temperature was capacity measured?
Cell weight: Does it include tabs, insulation or additional hardware?
Dimensions: Are tabs included or excluded?
Thickness: At what SOC and mechanical pressure was thickness measured?
Energy calculation: Is energy calculated using nominal V × Ah or measured by integrating the discharge curve?
Temperature: Were the cells tested under comparable conditions?
Cell condition: Are both cells new and from comparable production batches?
Without a consistent measurement boundary, comparing two advertised energy-density numbers can easily produce the wrong conclusion.
No.
Energy density is only one design variable. A cell with a very high Wh/kg figure may not be the best option if your project requires:
Very high continuous current
High peak power
Extremely long cycle life
Fast charging
Low-temperature operation
A specific cell thickness or footprint
Lower system cost
Different safety or certification requirements
Battery selection is therefore a multi-variable optimization problem rather than a competition for the highest specification number.
Before selecting a cell, define the requirements of the complete battery system.
| Parameter | Questions to Ask |
|---|---|
| Voltage | What nominal and maximum pack voltage is required? |
| Energy | How many usable kWh must the finished battery provide? |
| Power | What are the continuous and peak currents? |
| Dimensions | What is the maximum available battery space? |
| Weight | Is total battery mass a critical limitation? |
| Cycle Life | How many cycles or years of service are expected? |
| Temperature | What are the charging and operating temperature ranges? |
| Cooling | Will the pack use air, passive or liquid thermal management? |
If you are comparing cells for an EV or other high-energy application, you can also explore Misen'sEV battery module solutions.
The cell with the best datasheet number does not necessarily produce the best complete battery.
A slightly heavier cell may simplify cooling. A larger cell may reduce busbar and connection complexity. A lower-energy chemistry may provide a longer service life. A thinner cell may allow a much better module layout.
That is why professional battery design should optimize the whole system, not only the bare cell.
For projects requiring BMS selection, cell matching, module structure, busbar planning or customized battery pack development, Misen also providesOEM and ODM battery engineering support.
There is no single Wh/kg value that defines a good pouch cell. The appropriate target depends on chemistry, discharge requirement, cycle life, temperature, safety design and application. Cells should be compared under equivalent test conditions.
Wh/kg measures energy relative to weight, while Wh/L measures energy relative to physical volume. Wh/kg is particularly important for weight-sensitive systems, while Wh/L becomes critical when the available battery space is limited.
First calculate nominal cell energy using voltage × capacity. Divide this energy by cell weight in kilograms for Wh/kg, or divide it by cell volume in liters for Wh/L.
A finished pack contains components such as the BMS, enclosure, busbars, wiring, cooling structure, insulation, compression system and protection devices. They increase pack weight and volume without increasing cell energy.
No. Pouch packaging can reduce inactive packaging mass and provide flexible dimensions, but actual energy density depends on the complete cell design and chemistry. Individual cell models should be compared directly rather than assuming one format is always superior.
Not necessarily. Energy density and power capability are different specifications. A high-energy cell may be optimized for runtime rather than extremely high current. Always check continuous current, peak current, internal resistance and thermal limits separately.
Usable energy is the amount of nominal energy that the battery system allows the application to access during normal operation. BMS voltage limits, SOC limits, temperature, aging and system efficiency can all affect actual usable energy.
Pouch cell energy density cannot be evaluated from a single number.
Wh/kg tells you how efficiently a cell stores energy by weight, while Wh/L tells you how efficiently it uses space. But neither value directly represents the performance of a finished battery pack.
Once the cells are integrated with structural support, busbars, BMS electronics, thermal management and a protective enclosure, pack-level energy density decreases. The usable energy available in daily operation may be lower again because of SOC limits and other system constraints.
For EV, ESS, UAV, robotics and industrial battery projects, the best approach is therefore to evaluate:
Wh/kg
Wh/L
Continuous and peak current
Cycle life
Cell dimensions
Temperature range
Pack integration requirements
Total usable system energy
You can browse Misen's full range oflarge-format pouch cellsor contact our team for cell selection and battery pack engineering support.
Send us your required voltage, capacity, continuous current, peak current, available dimensions, target weight, application and estimated quantity. Misen can help compare suitable pouch cells and evaluate cell-level or battery-pack solutions for your project.
