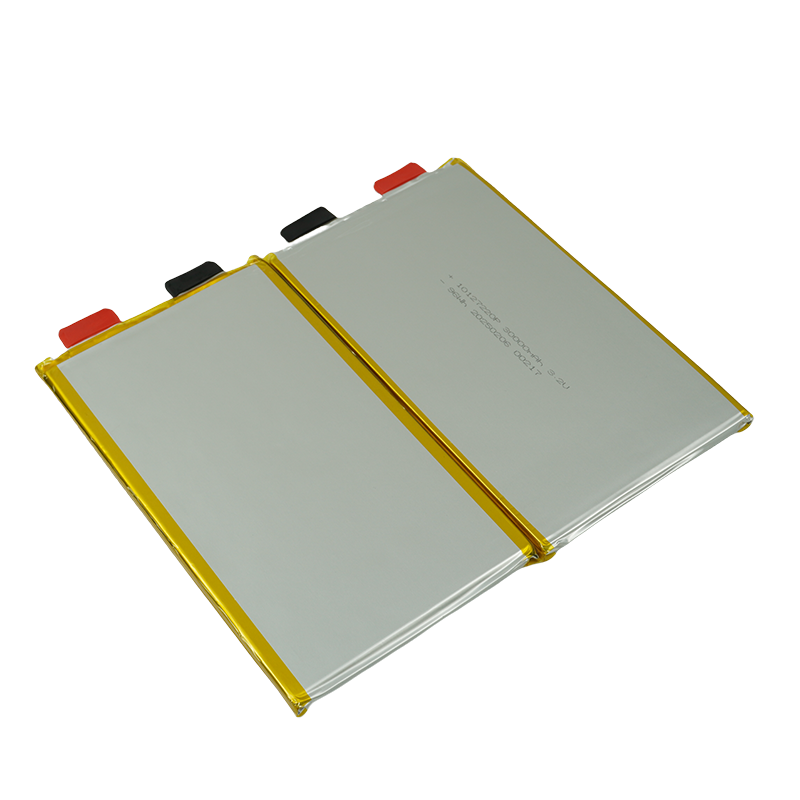

OEM 3.2V 30Ah LFP Lithium Iron Phosphate Pouch Cell Battery

✅ Performance vs. Alternatives

✅ Economic Benefits

• 60% Lower Lifetime Cost vs. lead-acid (fewer replacements, no maintenance).

• Space-Saving: Enables slim battery packs for constrained designs (e.g., e-bike downtubes).

✅ Customization Ready

• OEM/ODM support for tab positioning, thickness, and BMS integration.

• Scalable for 12V/24V/48V packs (e.g., 4S1P = 12.8V/30Ah).

1. High-Performance LiFePO4 Chemistry

• 3.2V Nominal Voltage | 30Ah Capacity (96Wh) – Optimized for energy density and efficiency.

• 4,000+ Deep Cycles (to 80% capacity @ 1C/1C) – 5× longer lifespan than lead-acid batteries.

• Flat Discharge Curve: Maintains >3.0V for 90% of discharge, ensuring stable power delivery.

2. Superior Safety & Stability

• Inherently Non-Combustible: LiFePO4 chemistry resists thermal runaway (no fire/explosion risk).

• Wide Temp Range: -20°C to 60°C operation (with heating support below 0°C).

• Certified Safety: UL 1973, IEC 62619, UN38.3 compliant (passes nail penetration, crush, and short-circuit tests).

3. Fast Charging & High Efficiency

• 1C Continuous / 3C Pulse Discharge: Supports 30A continuous (90A peak) output.

• 0–100% Charge in 1 Hour (1C charging) with minimal capacity degradation.

4. Compact & Customizable Design

• Dimensions: 10mm (Thick) × 127mm (W) × 220mm (L) – Slim, stackable pouch for high-density packs.

• Lightweight (≈550g): 30% lighter than prismatic cells of similar capacity.

• Flexible Terminal Options: Laser-weldable tabs (Al/Cu) for easy pack assembly.

•


Application Scenarios

Electric Bikes & Scooters

• 48V/20Ah Pack (16S1P): 1,000W motor support with 60–80km range.

• Fast Swappable Batteries: 2,000+ cycles @ 100% DoD daily.

☀️ Solar Energy Storage

• 51.2V/100Ah Home ESS (16S4P): 5.12kWh capacity, 10+ year lifespan.

• Off-Grid Power: Stable performance in extreme temperatures.

Industrial & Backup Power

• UPS Systems: Maintenance-free backup for telecom towers.

• AGV Robots: High efficiency for 24/7 warehouse logistics.

Marine & RV Power

• 12V/300Ah House Battery (4S10P): Safe for confined spaces, no venting needed.

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
