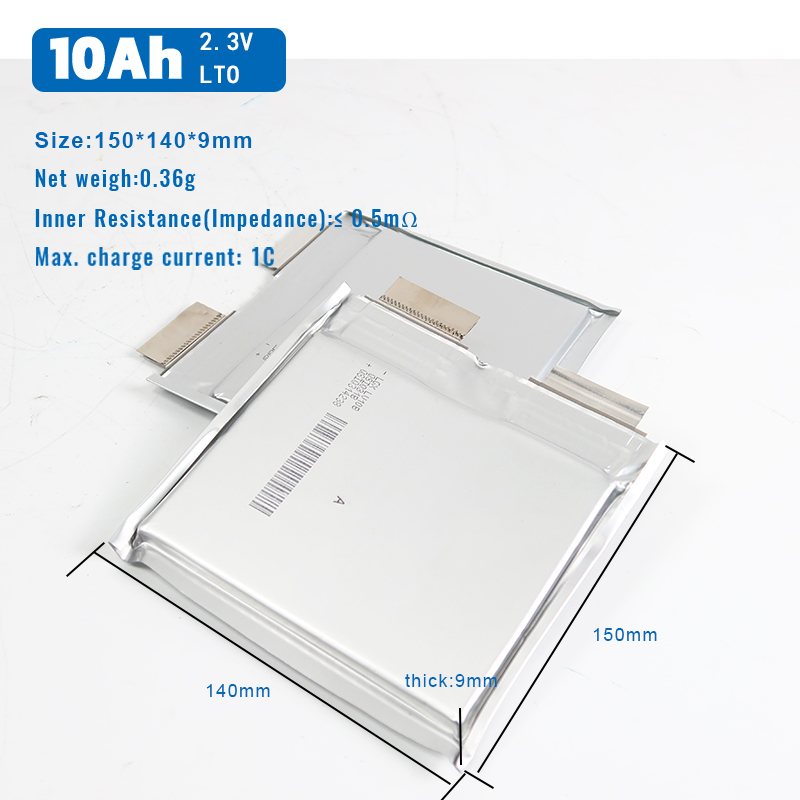

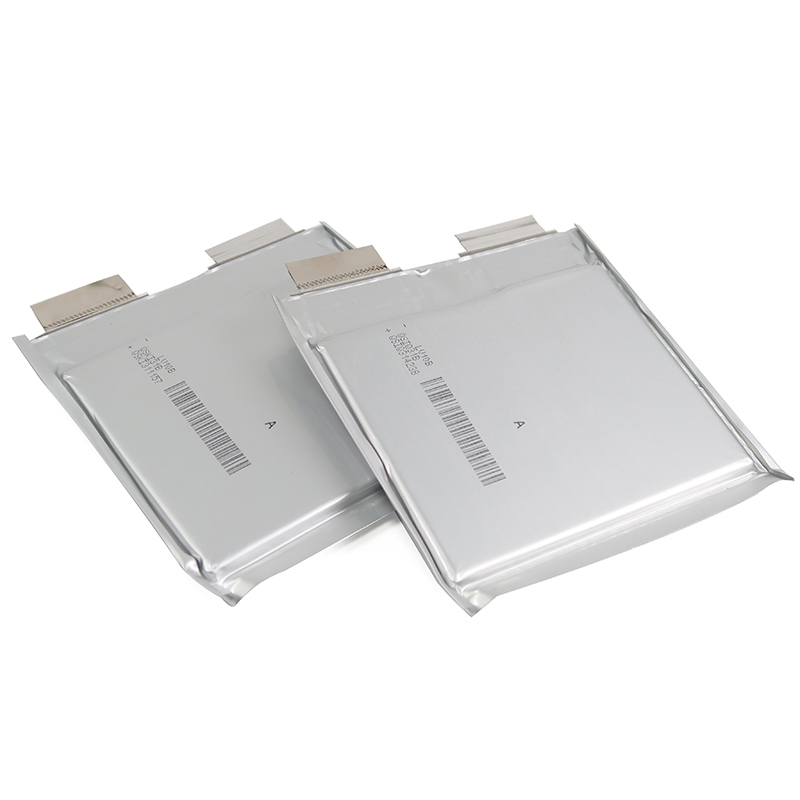

LG 2.3V 10Ah 10D Pouch Cell Lithium Titanate Battery

Engineered for applications demanding uncompromising safety and lifetime value, the LG 10Ah LTO Pouch Cell leverages lithium titanate oxide (LTO) chemistry to deliver unmatched cycle life, instant charging, and frost-to-fire resilience. Ideal for heavy-duty industrial, renewable energy, and transportation systems where downtime is not an option.

Brand:
LG
Model:
LG 10D
Cell Grade:
Grade A
Nominal Capacity:
10Ah
Nominal Voltage:
2.3V
Weight:
0.36kg
Size(mm):
9*140*150mm
Cycle Life:
≥ 3,000 times

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Introduction

Key Features

Application

Factory

Technical Parameters

Rated Capacity	10Ah (23Wh)
Nominal Voltage(V)：	2.3v
The charging ratio	1C continuous (0-45°C)
The discharge rate	3C
Chargeable	Yes
Nominal Capacity	10ah
Cycle Life	3,000+ cycles @ 80% DoD
Weight	0.36kg
Dimensions (LWH)	9140150mm
Applications	Electric Power Systems,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle,used cars and so on.

Overview

1. Legendary Cycle Life & Stability

25,000+ Cycles (to 80% capacity @ 1C/1C, 25°C) – 10× longer than NMC/LFP cells.
Zero Degradation at High SOC: Can operate at 100% state-of-charge indefinitely without swelling.
Ultra-Flat Voltage Curve: Maintains 2.2–2.3V across 95% discharge (minimizing BMS complexity).

2. Hyper-Fast Charging & Extreme Power

10C Continuous / 50C Pulse Discharge: Sustains 100A continuous (500A peak) for surge loads.
0–100% in 6 Minutes: 10C charging capability with no lithium plating risk.

3. Fail-Safe Thermal Performance

Inherently Non-Combustible: LTO anode eliminates thermal runaway risk (tested at 300°C+ without ignition).
Wide Temp Range: -50°C to 65°C operation – Delivers >80% capacity at -30°C (no heating needed).
Certified Safety: UL 1973, IEC 62619, UN38.3 (passes nail penetration/crush tests at full charge).

4. Zero Maintenance & Eco-Compliance

No Voltage Monitoring: Tolerant to overcharge/overdischarge (±50% voltage window).
100% Recyclable: Contains no cobalt, nickel, or PFAS chemicals (RoHS/REACH certified).

Key Features

✅ Total Cost of Ownership (TCO) Dominance

Metric	LG LTO 10Ah	NMC 10Ah	Lead-Acid 10Ah
Cycle Life	25,000+	2,000	500
Charge Time	6 min	60 min	8+ hours
Temp Range	-50°C to 65°C	-20°C to 45°C	-10°C to 40°C
20-Year TCO	$0.001/cycle	$0.05/cycle	$0.10/cycle

✅ Design Simplification

Eliminates BMS Safety Circuits: No need for cell balancing or overvoltage protection.
30% Lighter than lead-acid equivalents (2.1kg/cell).

Application

⚡ Industrial Power Backup

UPS for Data Centers: 48V/100Ah pack (4.8kWh) with 25-year lifespan.
Robotic Forklifts: 1,000+ rapid charges/day in 24/7 warehouses.

️ Renewable Energy Buffer

Wind Turbine Pitch Control: 500A pulse support during grid faults.
Solar Microgrids: 20,000+ cycles in desert/arctic environments.

Electric Transportation

E-Bus Regenerative Braking: Absorbs 50C charge bursts (500A+) in 2 seconds.
Tramway Backup Power: Fire-safe operation in underground tunnels.

️ Mission-Critical Systems

Military Comms Gear: Functions at -50°C without heaters.
Offshore Drilling Sensors: Salt-corrosion resistant encapsulation.

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.

Certificate
