Other
3.2V 100Ah
Grade A
100Ah
3.2V
1.92Kg ± 5 g

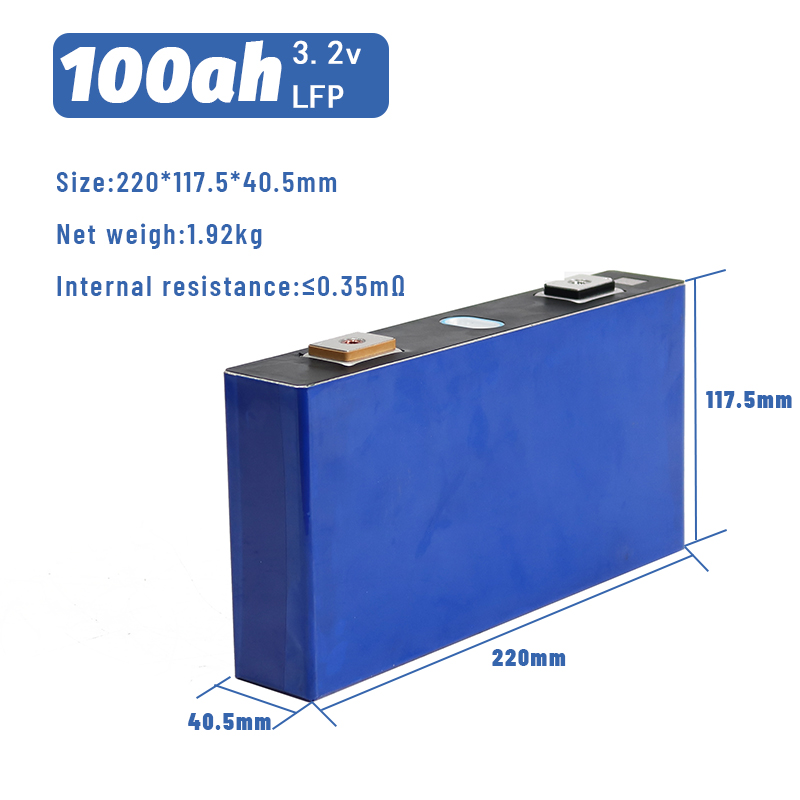

40.5*220*112MM（Excluding ear tips）
3000 times (80% of initial capacity at 0.2C rate, IEC Standard)
| Quantity: | |
|---|---|
Electrical Performance
Standard charge: 0.5C (50A)
Fast charge: 1C (100A) with proper thermal management
Maximum continuous discharge: 1C (100A)
Peak discharge (≤30s): 2C (200A)
Energy efficiency: >95% @ 0.5C rate
Mechanical Specifications
Robust aluminum alloy casing
Laser-welded terminals for secure connections
Compact design for high-density pack integration
Long Cycle Life
Engineered for >4000 deep discharge cycles at 80% DoD
Maintains >80% capacity after extensive cycling
Excellent calendar life for reduced long-term costs
Enhanced Safety
Stable LiFePO4 chemistry resistant to thermal runaway
Integrated pressure relief valve and thermal protection
UL1642 and UN38.3 certified
Consistent Performance
Low internal resistance: ≤0.8 mΩ
High discharge rate capability: 1C continuous, 2C pulse
Wide operating temperature: -20°C to 55°C
Maintenance-Free Operation
No memory effect, no periodic calibration required
Minimal self-discharge: <3% per month
Simple series/parallel configuration
Electric Vehicles: Structural battery packs for passenger EVs, commercial vehicles
Utility-Scale Energy Storage: Containerized ESS, grid-level storage projects
Marine Propulsion: High-capacity marine battery systems
Commercial Transport: Electric buses, trucks, and specialty vehicles
Stationary Storage: Large commercial and industrial backup power
Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.
These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.
We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.
Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
