Other

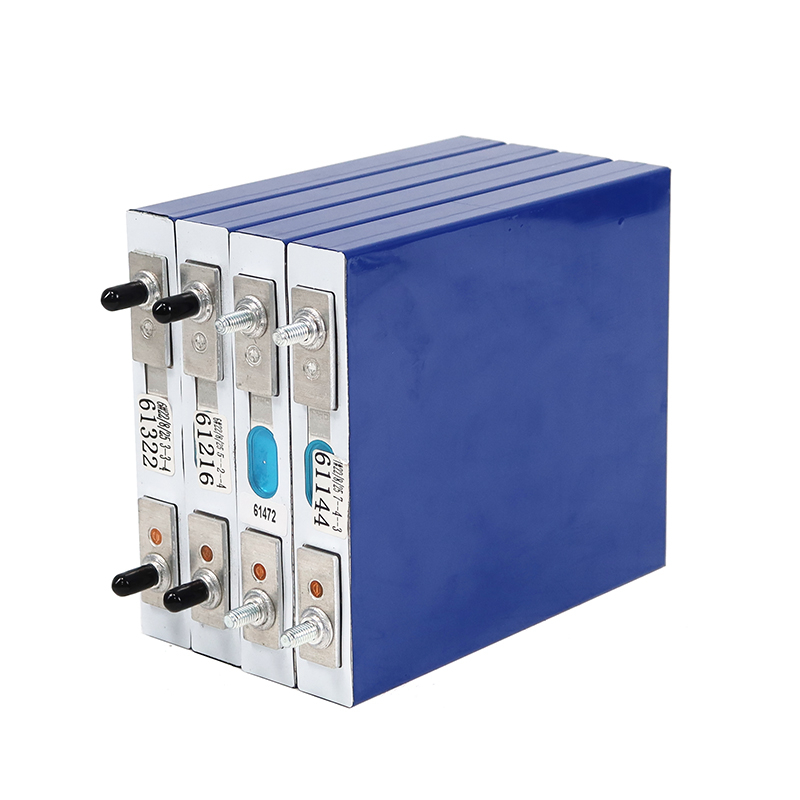

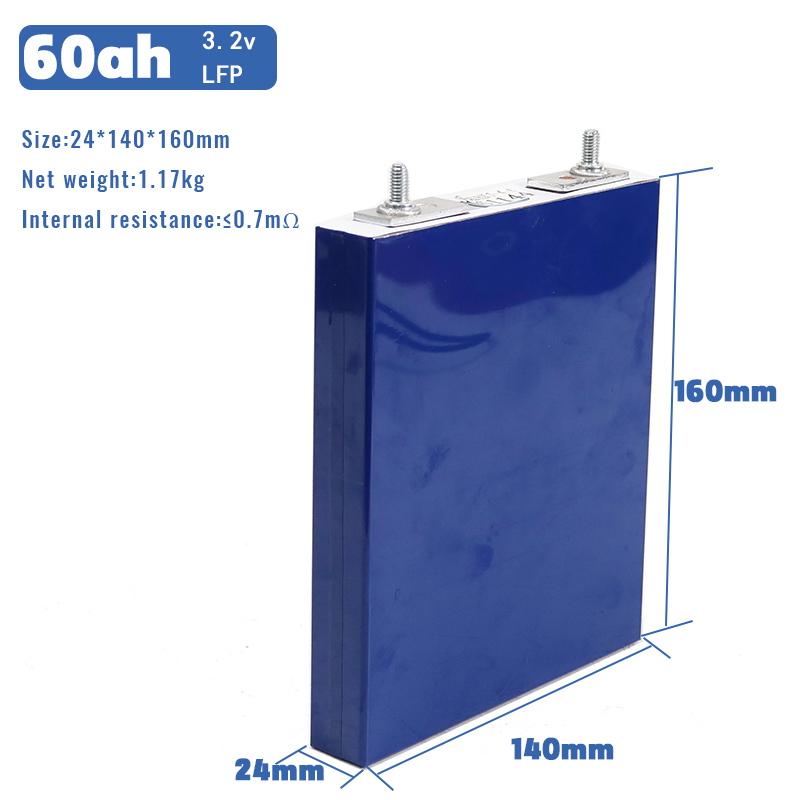

3.2V 60Ah
Grade A
60Ah
3.2V
1.71Kg ± 5 g
160*140*24MM（Excluding ear tips）
3000 times (80% of initial capacity at 0.2C rate, IEC Standard)
| Quantity: | |
|---|---|
Electrical Performance
Standard charge: 0.5C (30A)
Fast charge: 1C (60A) with temperature monitoring
Maximum continuous discharge: 3C (180A)
Peak discharge (≤30s): 5C (300A)
Internal resistance: ≤1.0 mΩ
Mechanical Specifications
Robust aluminum alloy casing
Laser-welded terminals for vibration resistance
Compact design for easy pack assembly
Optimized for Tricycle Use
Perfect capacity for daily tricycle operations (80-100 km range)
Robust construction withstands rough road vibrations
Maintains stable performance in frequent start-stop cycles
Extended Service Life
4000 deep discharge cycles at 80% depth of discharge
Maintains >80% capacity after years of heavy use
Excellent cycle life reduces total cost of ownership
Enhanced Safety
Non-flammable LiFePO4 chemistry safe for passenger transport
Built-in pressure relief valve and thermal protection
Stable performance even in high-temperature environments
Superior Performance
High discharge capability: 3C continuous (180A)
Excellent charge retention: <3% self-discharge per month
Wide operating temperature: -20°C to 55°C
Low Maintenance
No periodic maintenance required
Simple series/parallel configurations
Compatible with most tricycle motor controllers
Electric Vehicles: Structural battery packs for passenger EVs, commercial vehicles
Utility-Scale Energy Storage: Containerized ESS, grid-level storage projects
Marine Propulsion: High-capacity marine battery systems
Commercial Transport: Electric buses, trucks, and specialty vehicles
Stationary Storage: Large commercial and industrial backup power
Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.
These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.
We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.
Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
