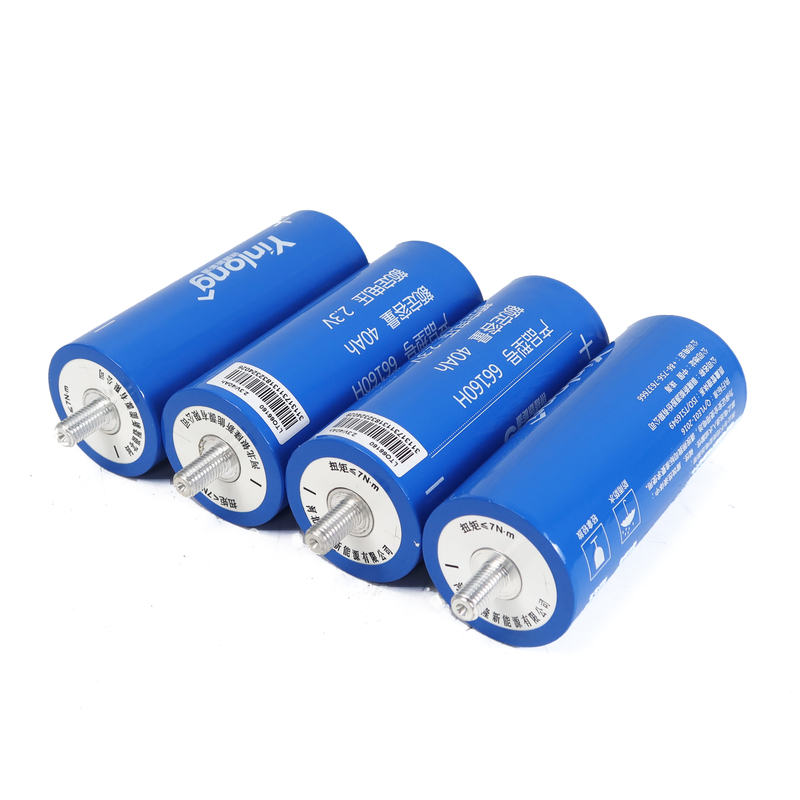

Yinlong Lithium Titanate 30000 Cycle Life 66160 40Ah LTO Battery Cell

Why Choose Yinlong LTO?

✅ 30,000 Cycles – Lowest lifetime cost per kWh (<$0.01/cycle). ✅ 10C Power Density – Outperforms LiFePO4/NMC in high-rate scenarios. ✅ -40°C Operation – The only battery technology reliable in polar climates. ✅ Certifications: UN38.3, IEC62619, CE, and GB/T.

Technical Comparison

1. Industry-Leading Cycle Life

• 30,000+ full cycles (at 100% DoD) – 10x longer than LiFePO4 and 20x longer than lead-acid batteries.

• Zero capacity degradation even after 15+ years of daily use.

2. Ultra-Fast Charging & Discharging

• 10C continuous discharge (400A for 40Ah cell) – Ideal for high-power bursts.

• 5C rapid charging (200A) – Fully recharges in 12 minutes.

• Low internal resistance (<0.3mΩ) minimizes energy loss.

3. Extreme Temperature Performance

• Operates from -40°C to +60°C – No heating/cooling systems required.

• Winter-proof: Maintains >90% capacity at -30°C.

4. Unrivaled Safety

• Zero thermal runaway risk – Stable even under nail penetration, overvoltage (3.0V max), or short circuits.

• Non-flammable electrolyte – Safer than LiFePO4 in thermal abuse tests.

5. Maintenance-Free & Eco-Friendly

• Titanium-based anode – No lithium plating, no dendrite formation.

• 100% recyclable – No cobalt, nickel, or other conflict minerals.

6. Robust Mechanical Design

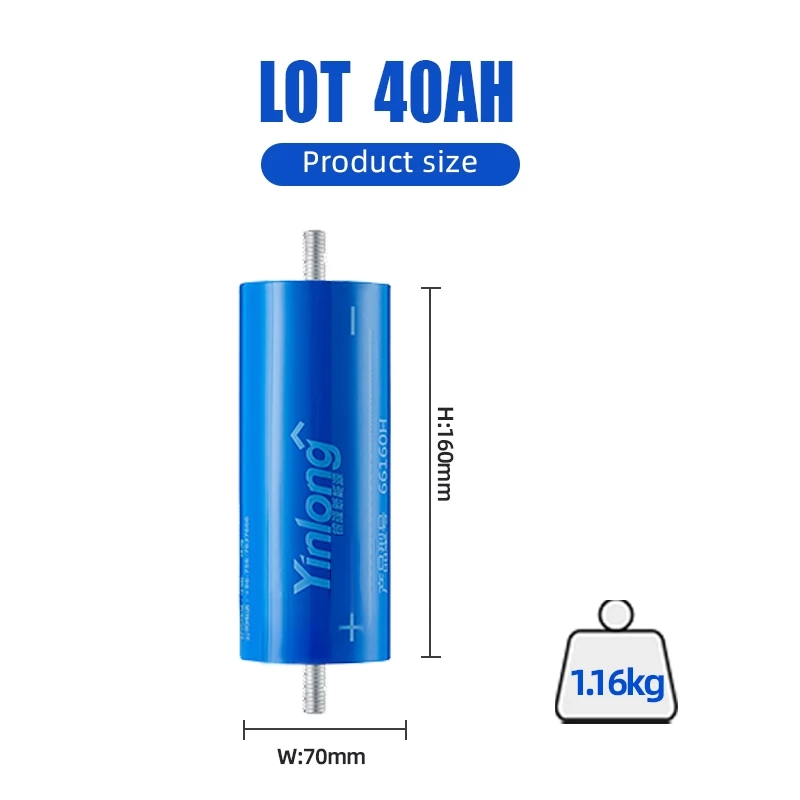

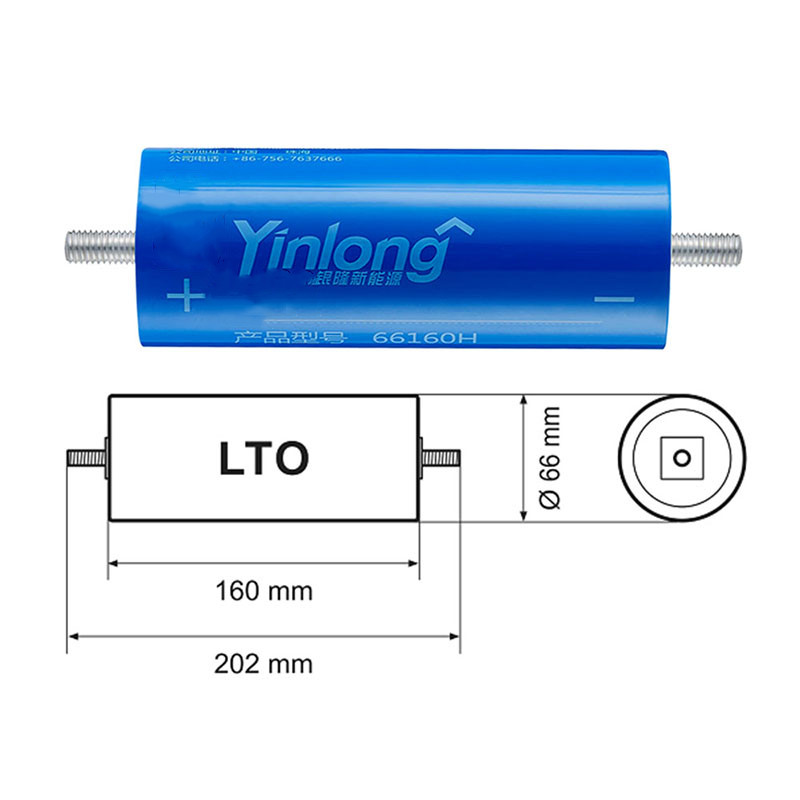

• Cylindrical 66160 form factor (66mm diameter × 160mm height).

• Vibration/shock-resistant – Meets MIL-STD-810G for military applications.

1. Heavy-Duty Transportation

• Electric Buses & Trucks: 15-year lifespan reduces fleet TCO (Total Cost of Ownership).

• Railway & Marine: Cold-weather reliability for traction/auxiliary power.

2. Grid-Scale Energy Storage

• Frequency Regulation: 10C discharge stabilizes renewable grids.

• Peak Shaving: 30,000-cycle endurance cuts long-term costs.

3. Industrial Power

• Cranes & Forklifts: Instant torque for heavy lifting.

• Mining Equipment: Performs in -40°C to +60°C extremes.

4. Military & Aerospace

• Subzero UAVs/Drones: Reliable power in Arctic missions.

• Mobile Command Centers: Rapid-deployment energy systems.

5. Automotive Start-Stop Systems

• Replaces lead-acid in luxury vehicles (e.g., Lamborghini Sián hybrid).
