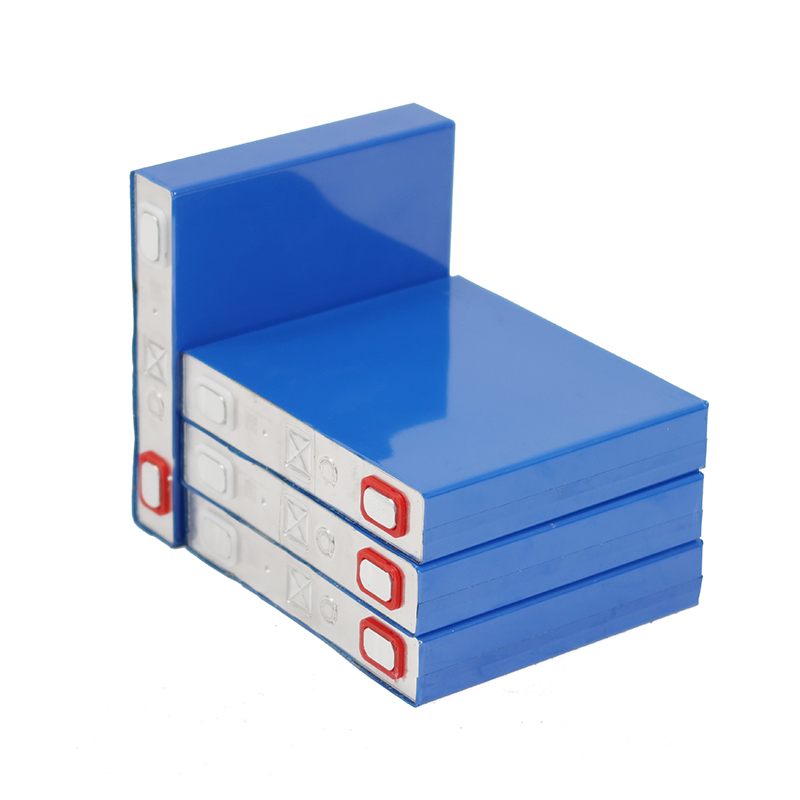

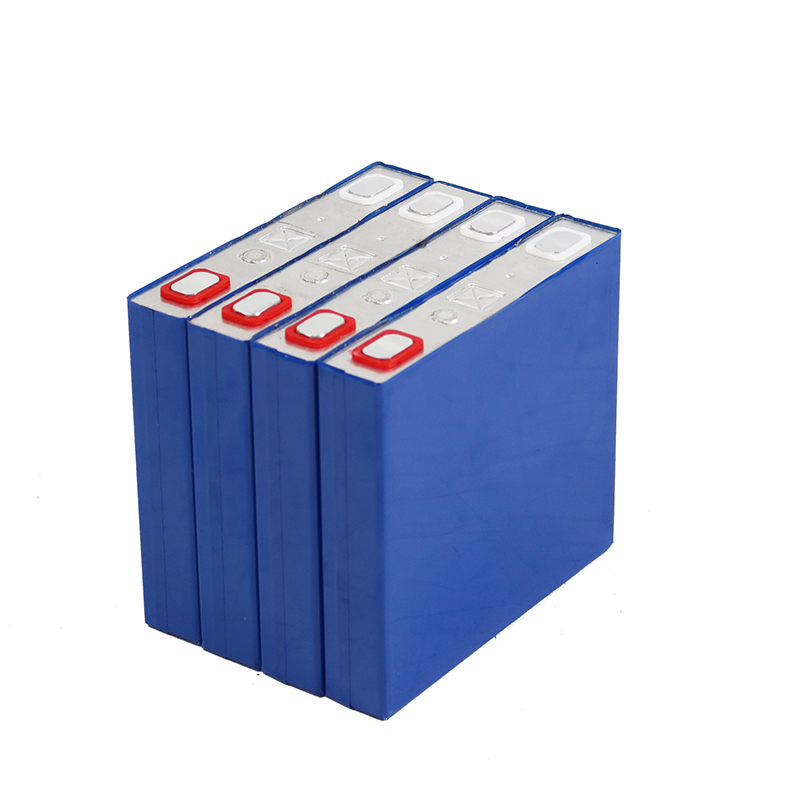

Toshiba 2.3V 20Ah 20000 Cycle Life Prismatic SCIB LTO Battery Cell

The LTO Toshiba SCiB 2.3V 20Ah is a lithium titanate oxide (LTO) battery cell developed by Toshiba for applications requiring ultra-fast charging and extreme durability

Brand:
Other
Manufacture:
Toshiba
Model:
Toshiba 2.3V 20Ah
Cell Grade:
Grade A
Nominal Capacity:
20Ah
Nominal Voltage:
2.3V
Weight:
About 0.545Kg
Size(mm):
22*115*105mm
Cycle Life:
5 years

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

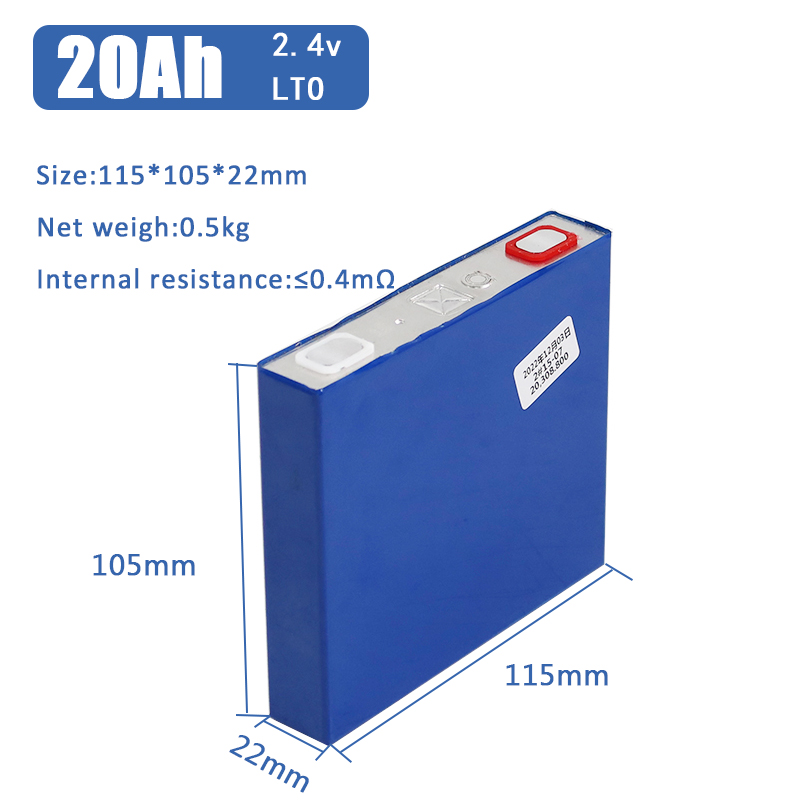

Technical Parameters

Nominal Voltage	2.3V
Nominal Capacity	20Ah (46Wh)
Battery dimension:	22115105mm
Battery weight:	About 0.545Kg
Chemistry	Lithium Titanate Oxide (LTO)
Cycle Life	20,000+ cycles (to 80% capacity)
Charge/Discharge Rate	10C continuous / 20C peak
Operating Temp	-30°C to 60°C (no heating/cooling)
Self-Discharge	<1% per month
ISafety Certification	UL 1973, UN38.3, IEC 62619
Calendar life at 25°C:	5 years
Operating and storage temperature range:	-50°C ~65°C

Overview

✔ Zero Thermal Runaway – Inherently non-combustible chemistry
✔ Ultra-Fast Charging – 0-100% in 6 minutes (10C rate)
✔ Wide Voltage Tolerance – Safe operation at 0-3.8V (no overcharge risk)
✔ Maintenance-Free – No cell balancing required
✔ Prismatic Design – Space-efficient stacking for high-density packs

1189

Key Features

⚡ Unmatched Longevity

50+ year service life in daily cycling applications (vs. 5-8 years for NMC/LFP)

❄️ Extreme Environment Operation

Functions at -30°C without performance degradation – Ideal for arctic/industrial settings

⏱️ Industry-Fastest Charging

Full recharge in 6 minutes eliminates operational downtime

️ Fail-Safe Safety

Passes nail penetration/crush tests without fire or explosion

Application

Industrial & Heavy Equipment

Electric forklifts (24/7 warehouse operations)
Automated Guided Vehicles (AGVs)
Cranes & construction machinery

Transportation Infrastructure

Railway backup power (signaling, emergency systems)
Electric bus starter batteries
Marine navigation systems

Energy & Critical Systems

Grid frequency regulation
UPS for data centers/hospitals
Off-grid renewable storage

Specialized Environments

Arctic research equipment
Mining/explosive atmosphere devices
Military field systems
