The transition to large-format battery architectures amplifies the engineering stakes for tab-to-busbar interconnections. Minor inefficiencies at these junctions compound rapidly into critical pack failures. High continuous current draws in large-format cells mean that even fractional increases in contact resistance generate severe localized heat. This thermal buildup accelerates cell degradation, drastically increases the risk of thermal runaway, and bottlenecks overall power delivery to the drivetrain or inverter.
Selecting the optimal connection method requires a rigorous evaluation of electrical performance, mechanical durability, and manufacturing scalability. You must navigate the complex material science of joining dissimilar metals while protecting fragile internal cell seals. Whether utilizing mechanical busbar clamping, resistance welding, or laser welding, the chosen methodology dictates the safety and operational lifespan of the entire energy storage system. We evaluate connection technologies, break down the physics of contact resistance, and provide actionable frameworks for mitigating assembly risks.
Contact Resistance is the Primary Failure Vector: Minimizing micro-ohm resistance at the tab-to-busbar interface is non-negotiable for thermal management and pack longevity.
Dissimilar Metals Require Specialized Joining: Connecting aluminum (cathode) and copper (anode) tabs demands specific mitigation strategies against galvanic corrosion and brittle intermetallic compound formation.
Mechanical vs. Welded Trade-offs: Mechanical connections offer serviceability and simpler prototyping, while advanced welding (Laser, Ultrasonic, Resistance) provides superior long-term reliability and lower resistance for mass production.
Scalability Dictates the Method: The transition from low-volume builds to automated manufacturing necessitates shifting from bolted busbars to highly controlled, automated welding processes.

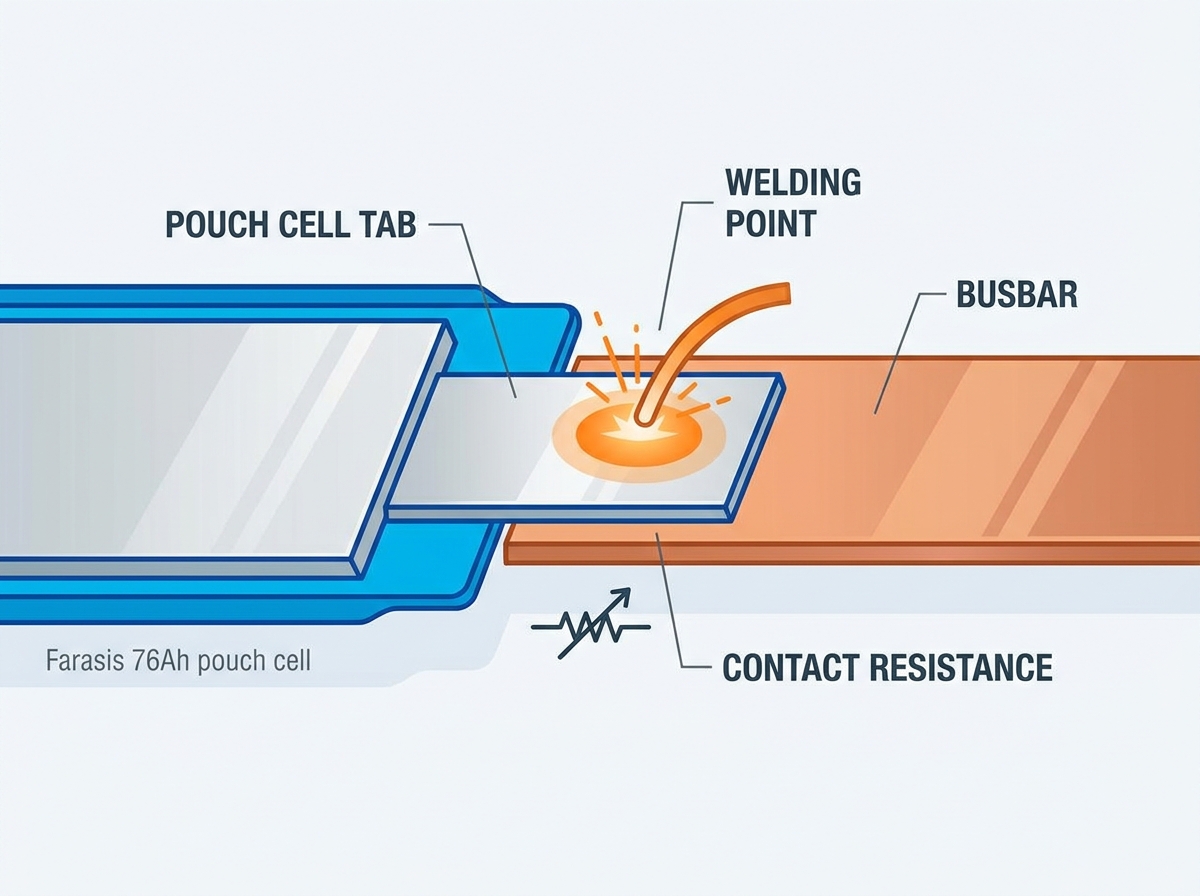

Designing robust connections for a pouch cell requires balancing competing physical demands. The baseline requirements for a successful tab connection are strict. Assemblies must achieve ultra-low electrical resistance to prevent power loss. They require high mechanical strength to withstand continuous automotive or industrial vibration. The joint must maintain long-term stability under aggressive thermal cycling without degrading over thousands of charge and discharge cycles.
Large-format cells utilize specific materials for their current collectors. The positive terminal (cathode) consists of aluminum, while the negative terminal (anode) utilizes copper or nickel-plated copper. These tabs are exceptionally thin, often ranging from 0.1mm to 0.5mm in thickness. This thinness maximizes energy density and reduces weight, but it introduces severe mechanical fragility during handling and assembly.
The highest risk during assembly is transferring mechanical stress to the tab root. The tab exits the cell through a delicate polymer seal. Any twisting, pulling, or excessive vibration applied to the exposed tab easily tears this seal. A compromised seal allows atmospheric moisture to enter the cell. Moisture reacts with the electrolyte to form hydrofluoric acid, which instantly destroys the internal cell architecture and leads to catastrophic failure.
Contact resistance dictates the thermal behavior of the battery module. When two metal surfaces meet, they do not touch perfectly. Microscopic surface roughness means actual contact only occurs at specific peaks, known as asperities. Oxidation layers naturally form on aluminum and copper. These oxides act as electrical insulators that further restrict electron flow. Applying clamping force crushes these asperities and breaks through the oxide layers, increasing the true contact area.
The thermal impact of high contact resistance is absolute. Joule heating follows the formula P = I⊃2;R. If a module draws 200 amps continuously, and a poor connection adds just 1 milliohm (0.001 ohms) of resistance, that single joint generates 40 watts of localized heat. In a tightly packed module, this heat cannot dissipate fast enough. It conducts directly down the tab into the cell core, accelerating chemical degradation.
| Tab Material | Electrical Conductivity (% IACS) | Thermal Conductivity (W/m·K) | Oxidation Characteristics |
|---|---|---|---|
| Copper (Anode) | 100% | 390 | Forms conductive but resistive cupric oxide slowly. |
| Aluminum (Cathode) | 61% | 235 | Forms highly insulating aluminum oxide instantly upon air exposure. |
| Nickel-Plated Copper | ~95% (Bulk) | ~350 | Resists oxidation, providing stable long-term contact resistance. |
Mechanical connections rely on physical pressure to maintain electrical contact. This category includes the use of threaded fasteners, punched holes, folded tabs, and various configurations of rigid or flexible busbars. Mechanical methods dominate prototyping, stationary storage, and applications requiring frequent module serviceability.
Bolting directly through thin tabs is prone to failure. You mitigate this by folding the tabs over themselves, creating a U-fold or Z-fold. This doubles or triples the material thickness, significantly increasing the cross-sectional area and tear resistance. Once folded, precision tooling punches holes through the tab stack to accommodate hardware.
Heavy-duty hardware integration is necessary for high-current loads. Assemblies often utilize M5 or M6 bolts threaded securely into massive copper busbars. The fastener material must offer high tensile strength to maintain clamping force over the lifespan of the pack. Stainless steel fasteners are common, though they require careful isolation to prevent galvanic issues.
Fold the cell tab using a precision die to prevent micro-cracking at the bend radius.
Punch the mounting hole through the folded stack to ensure perfect alignment.
Apply a specialized conductive anti-oxidant paste to the mating surfaces.
Install the Belleville washer and thread the fastener into the busbar.
Torque the fastener to the exact specification using a calibrated digital torque wrench.
Busbar material dictates the efficiency of the power distribution network. Solid copper offers exceptional conductivity but adds significant weight. Aluminum busbars reduce module weight drastically but require larger cross-sections to match copper's current-carrying capacity. Nickel-plated copper provides an optimal middle ground, offering high conductivity while preventing surface oxidation.
Rigid busbars transfer mechanical shock directly to the cell tabs. To prevent seal damage, you frequently specify flexible busbars. These consist of braided copper wire or stacked, laminated copper sheets. Flexible busbars absorb cell swelling during charge cycles and isolate the delicate tab roots from external mechanical shock.
Mechanical connections require precise execution to remain viable under load. Fastener torque must be strictly controlled. Thermal expansion and contraction cause standard bolted joints to loosen over time. You integrate Belleville washers (conical spring washers) to maintain continuous contact pressure as the metals expand and contract.
Mechanical connections allow technicians to unbolt and replace individual cells or modules. This drastically simplifies rework during manufacturing and facilitates end-of-life recycling. DIY or unverified assembly methods fail catastrophically under load. Using cyanoacrylate glue, nylon structural rods, or insufficient clamping pressure leads to rapid oxidation and thermal failure. High continuous currents instantly expose the flaws in makeshift mechanical joints.
Integrating a high-capacity unit like the Farasis 76Ah pouch cell highlights the realities of mechanical connections. A 76Ah cell features wide, thick tabs designed to carry massive current. Folding these tabs requires specialized tooling to prevent micro-cracking at the bend radius. Aligning multiple 76Ah tabs for a bolted busbar assembly demands precise dimensional tolerances. Any misalignment during bolting introduces shear stress directly to the cell seal, increasing the risk of premature failure during operation.
Transitioning from mechanical pressure to metallurgical bonds is mandatory for high-reliability commercial EV and ESS battery packs. Welding creates permanent, ultra-low-resistance joints that remain stable under extreme vibration and thermal stress. Automated manufacturing lines rely entirely on advanced welding techniques to achieve high throughput and consistent quality.
Resistance welding utilizes electrical current passed through the tabs to generate localized heat, melting the metals together. Modern manufacturing relies on DC inverter closed-loop systems to precisely control the weld waveform. RW is highly cost-effective and adaptable across a wide range of battery types.
The primary advantage of RW is its established technology base and relatively low capital expenditure. However, it struggles with highly conductive metals. Because pure copper offers very little electrical resistance, generating enough heat to melt it requires massive current. This rapidly degrades the welding electrodes. Electrode wear necessitates frequent maintenance downtime in automated lines.
Laser beam welding employs high-power fiber lasers to achieve high-speed, precision joining. LBW is the standard for high-throughput automotive battery production. The laser melts the tab and busbar materials, creating a deep, highly conductive weld pool.
The engineering challenge in LBW is controlling penetration depth. The laser must penetrate the busbar and the tab without burning through to the underlying cell packaging or active materials. You utilize specialized laser wavelengths, such as green or blue lasers, to maximize energy absorption in highly reflective copper tabs. This ensures consistent weld quality without excessive heat input.
Ultrasonic welding is the premier method for joining dissimilar metals, specifically aluminum to copper. USW utilizes high-frequency acoustic vibrations applied under pressure. The friction scrubs away surface oxides and creates a solid-state metallurgical bond without actually melting the base metals.
Because USW operates below the melting point, it prevents the formation of brittle intermetallic phases that plague fusion welding of aluminum and copper. The resulting joint boasts exceptionally low electrical resistance and high mechanical fatigue strength. USW also imparts minimal thermal stress to the delicate tab seal.
| Welding Method | Primary Advantage | Primary Limitation | Best Application |
|---|---|---|---|
| Resistance Welding (RW) | Low equipment cost, established process. | High electrode wear, struggles with pure copper. | Low-to-medium volume nickel tab joining. |
| Laser Beam Welding (LBW) | Extremely fast throughput, zero contact wear. | High initial capital cost, requires strict fit-up tolerances. | High-volume automated EV module production. |
| Ultrasonic Welding (USW) | Bonds dissimilar metals without melting. | Requires rigid anvil support, limits joint geometry. | Aluminum to copper tab-to-busbar connections. |
Even with optimal connection methods, systemic risks threaten the lifespan of the battery pack. You must design proactive mitigations into the assembly process to ensure long-term reliability. Failure to account for environmental and mechanical stressors leads to premature pack degradation.
Galvanic corrosion is a severe risk at bimetallic joints. When aluminum and copper connect directly in the presence of an electrolyte, such as atmospheric moisture, the aluminum rapidly corrodes. You mitigate this by applying dielectric conformal coatings or potting compounds over the completed joint to block moisture ingress. Alternatively, integrating bimetallic clad busbars allows the transition between aluminum and copper to occur safely within a factory-bonded strip, keeping the final assembly joints mono-metallic.
Thermal expansion causes joint fatigue. Cell tabs, busbars, and fasteners all possess different coefficients of thermal expansion. As the pack heats and cools, these components expand at different rates, creating shear stress that eventually fractures rigid welds or loosens bolted joints. Utilizing flexible busbars and integrating expansion gaps within the module housing absorbs this dimensional shifting.
Automated production lines require robust Non-Destructive Testing to guarantee joint integrity. Inline resistance checking utilizes 4-wire Kelvin measurements to verify the micro-ohm resistance of every connection before the module advances. Optical inspection systems analyze weld seams for porosity, spatter, or incomplete penetration.
The chosen connection method must survive rigorous compliance testing. UN38.3 certification requires the battery pack to withstand severe shock and vibration profiles without electrical discontinuity or physical damage. Automotive standards demand even higher resilience against continuous road vibration. Metallurgical bonds generally pass these tests with higher margins of safety than purely mechanical clamping. If you encounter persistent failures during vibration testing, we recommend you contact us to review your busbar geometry and clamping force calculations.
Mechanical connections provide necessary serviceability for stationary storage, prototyping, and low-volume builds. However, metallurgical bonds achieved through advanced welding are mandatory for high-current, high-reliability commercial deployments. You should specify bolted or clamped assemblies when field maintenance is the priority. Conversely, ultrasonic or laser welding must be deployed for mobility applications requiring maximum energy density, vibration resistance, and automated manufacturing scalability.
To finalize the tab-to-busbar interconnection strategy, execute the following steps:
Perform finite element analysis on the proposed busbar design to evaluate localized thermal buildup and mechanical stress distribution under peak loads.
Conduct destructive shear testing on prototype joints to verify the mechanical strength and failure modes of the selected joining method.
Execute thermal imaging on fully assembled prototype modules under peak continuous discharge to identify and eliminate high-resistance bottlenecks.
Implement inline non-destructive testing protocols, including 4-wire resistance measurements, for all automated production lines to ensure zero-defect manufacturing.
A: You utilize ultrasonic welding to create solid-state bonds without melting the metals, avoiding brittle intermetallic phases. For mechanical joints, bimetallic clad strips and specialized conductive pastes are deployed to prevent galvanic corrosion between the dissimilar materials.
A: Acceptable contact resistance typically falls between 10 and 50 micro-ohms per joint. This threshold scales strictly with the continuous discharge rating of the cell. Higher currents demand lower resistance to prevent dangerous localized Joule heating.
A: Soldering is highly discouraged for large-format tabs. The extensive heat required melts the delicate polymer seal of the cell, causing electrolyte leakage. Furthermore, standard solder cannot effectively bond with aluminum tabs without using highly corrosive fluxes.
A: Folding tabs provides critical strain relief against mechanical shock and cell swelling. It also doubles the material thickness, increasing the cross-sectional area. This reinforces the tab for punching holes or applying high clamping forces during bolted assembly.
A: Nickel-plated copper is generally the best material. It offers the optimal balance of exceptional electrical conductivity and robust corrosion resistance. Aluminum busbars provide a viable alternative when weight savings are prioritized over maximum volumetric energy density.
A: Cell swelling transfers severe mechanical stress directly to the fragile tab roots and the internal polymer seal. To mitigate this, you must integrate flexible braided busbars or design expansion gaps into the module to absorb dimensional changes.
