EVE
MB58
Grade A
628Ah
3.2v
11.5kg

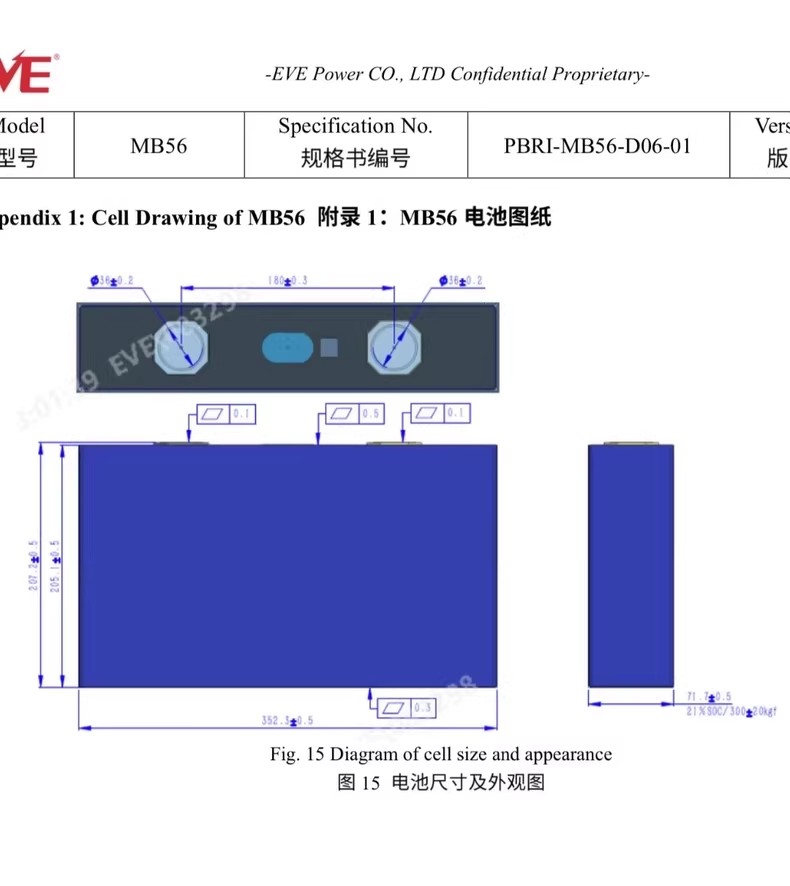

207.2mm x 352.3mm x 71.7mm
≥8000 times
| Quantity: | |
|---|---|

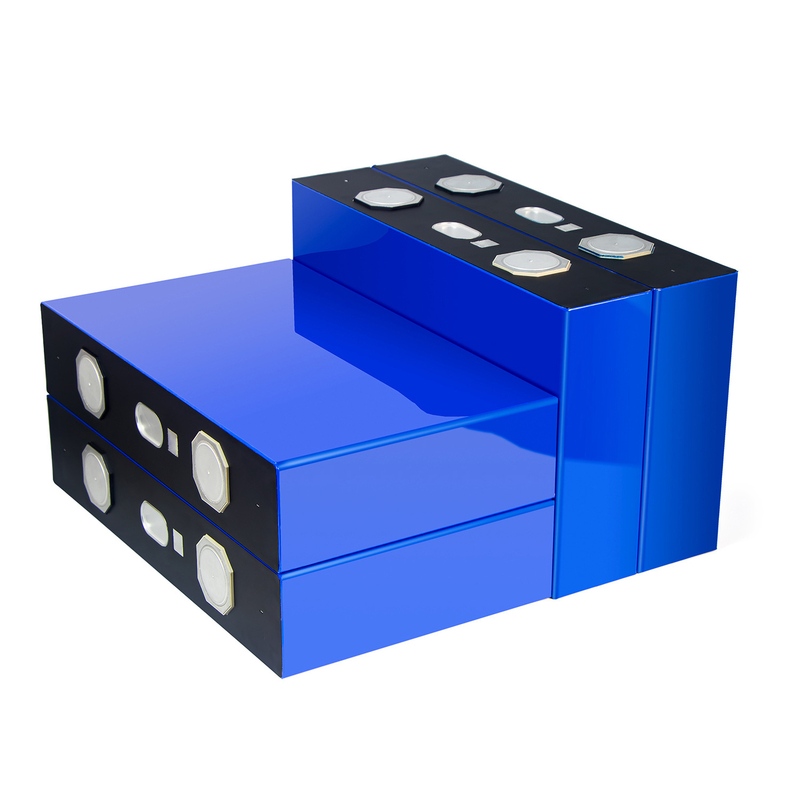

The MB56 is a prismatic lithium iron phosphate (LFP) cell from EVE Power Co., Ltd. Engineered with a robust aluminum‑shell design, it delivers a nominal capacity of 628 Ah and nominal energy of 2009.6 Wh, making it an ideal choice for high‑capacity energy storage and demanding power applications where reliability, safety, and lifecycle performance are critical.
Ultra‑Long Cycle Life – Rated for 8,000 cycles to 70% state of health (SOH), significantly reducing total cost of ownership over the system lifetime.
Exceptional Safety – LFP chemistry combined with rigorous testing (overcharge, short circuit, crush, thermal runaway) ensures no fire or explosion under defined conditions; validated to GB/T 36276‑2018 standards.
High Power Capability – Supports continuous 0.5P charge and discharge at 25°C, with flexible power adjustment as SOH degrades, maintaining performance throughout the product life.
Wide Operating Temperature Range – Reliable charging from 0°C to 60°C and discharging from -30°C to 60°C, enabling deployment in diverse climates.
Optimized Mechanical Design – Clear guidelines on compression force (3000 N–7000 N recommended) and swelling force (up to 55 kN at end‑of‑life) allow straightforward integration into modules and packs.
Low Self‑Discharge – ≤3.5% in the first month at 25°C, ensuring good shelf life and reduced maintenance during storage.
Superior Thermal Conductivity – Mean thermal conductivity of 9–11 W/(m·K) in the X/Z direction facilitates efficient heat dissipation in pack designs.
The MB56 cell is designed for use in battery modules and packs that demand high capacity, extended cycle life, and intrinsic safety. Typical applications include:
Grid‑scale and commercial energy storage systems
Electric vehicles (EVs) and heavy‑duty transportation
Industrial backup power and peak‑shaving systems
Any application requiring strict battery management system (BMS) supervision – the cell must be operated within specified voltage, current, and temperature limits with appropriate BMS protection
Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.
These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.
We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.
Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
