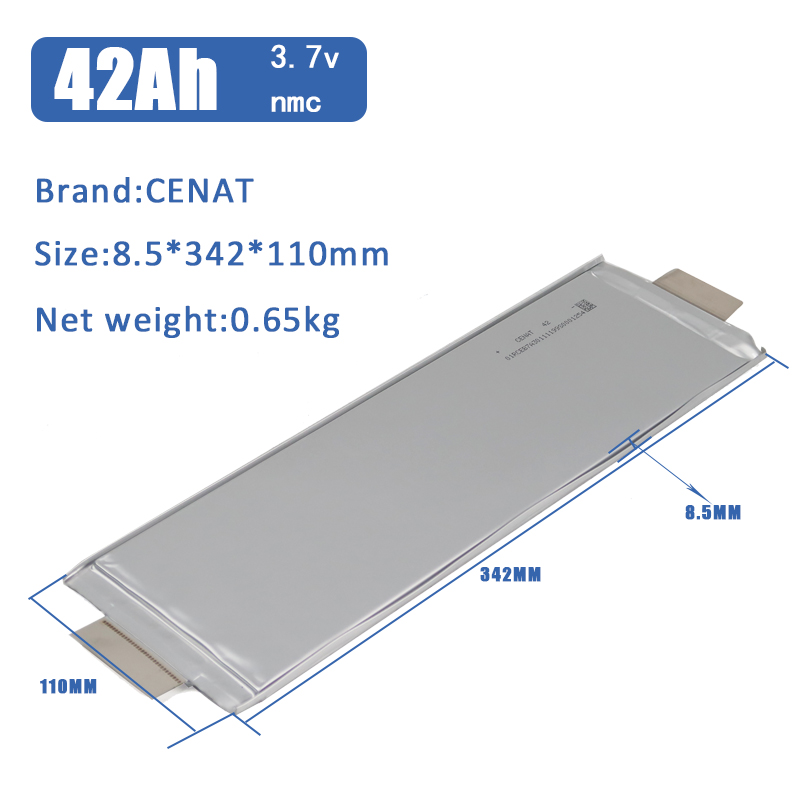

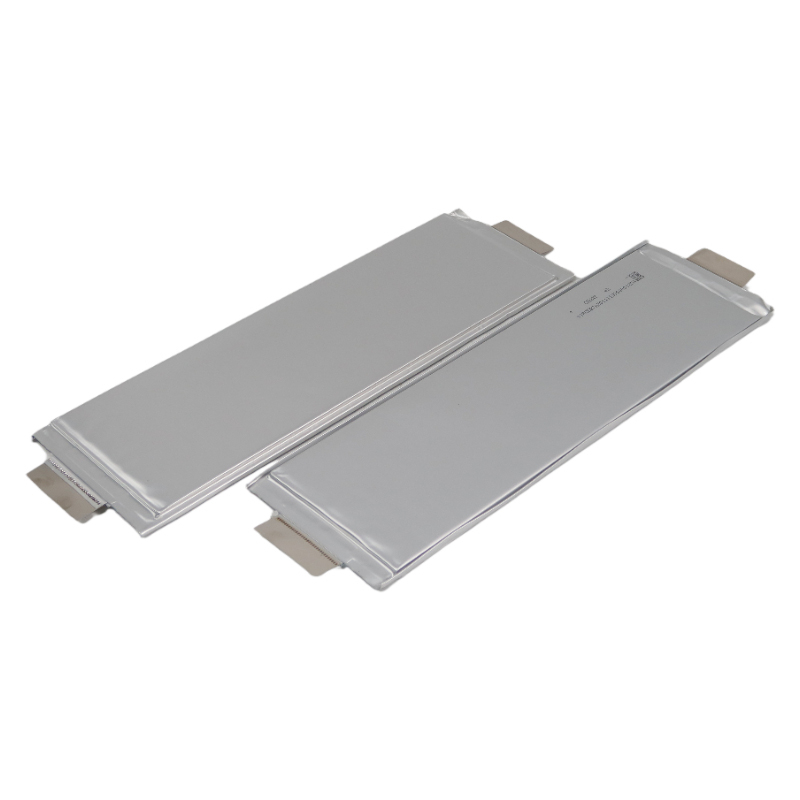

CENAT 3.7V 42Ah Pouch Cell NMC Lithium Polymer Battery

1. High Energy & Power Density

• 3.7V Nominal Voltage | 42Ah Capacity (155.4Wh) – Optimized for long-duration applications.

• Ultra-Lightweight (0.65kg): 239Wh/kg energy density, reducing overall system weight.

• Flat Discharge Curve: Maintains >3.5V for 85% of discharge, ensuring stable power delivery.

2. Fast Charging & High Discharge Performance

• 1C Continuous / 3C Pulse Discharge: Supports 42A continuous (126A peak) for high-power demands.

• 0–80% Charge in 45 Minutes (1C charging) with optimized thermal management.

3. Superior Safety & Durability

• Thermal Stability: Advanced NMC chemistry with ceramic-reinforced separator (160°C thermal cutoff).

• Robust Pouch Design: Multi-layer aluminum laminate casing for swelling resistance and mechanical durability.

• Certified Safety: Complies with UL 1642, IEC 62133, UN38.3 (passes nail penetration, crush, and short-circuit tests).

4. Wide Operating Temperature Range

• -20°C to 60°C Performance: Reliable in extreme climates (heating support recommended below 0°C).

• Low Self-Discharge (<3% per month): Long shelf life for backup power applications.

Electric Vehicles (EVs & E-Buses)

• 96S1P Pack (355V/42Ah): ~15kWh for light electric trucks & urban delivery vans.

• Fast Recharge: 1-hour full charge for fleet operations.

⚡ Energy Storage Systems (ESS)

• 48V/210Ah Pack (4S5P): 10kWh for solar/wind energy buffering.

• Long Cycle Life: 2,000+ deep cycles for 10+ years of service.

Marine & RV Power

• 24V/84Ah Pack (2P): 2kWh for off-grid living & electric boats.

• Water-Resistant Encapsulation (optional IP67 rating).

Industrial & Robotics

• AGVs & Logistics Robots: High energy density for 24/7 warehouse automation.

• Low Heat Generation: Safe for enclosed battery compartments.

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
