When a battery system needs to charge frequently, deliver high power, operate for years, or work reliably in demanding environments, conventional lithium-ion chemistry is not always the best choice.
This is where Lithium Titanate (LTO) batteries become especially interesting. Instead of focusing primarily on maximum energy density, LTO technology is designed around long cycle life, rapid charge/discharge capability, high power performance and durability.

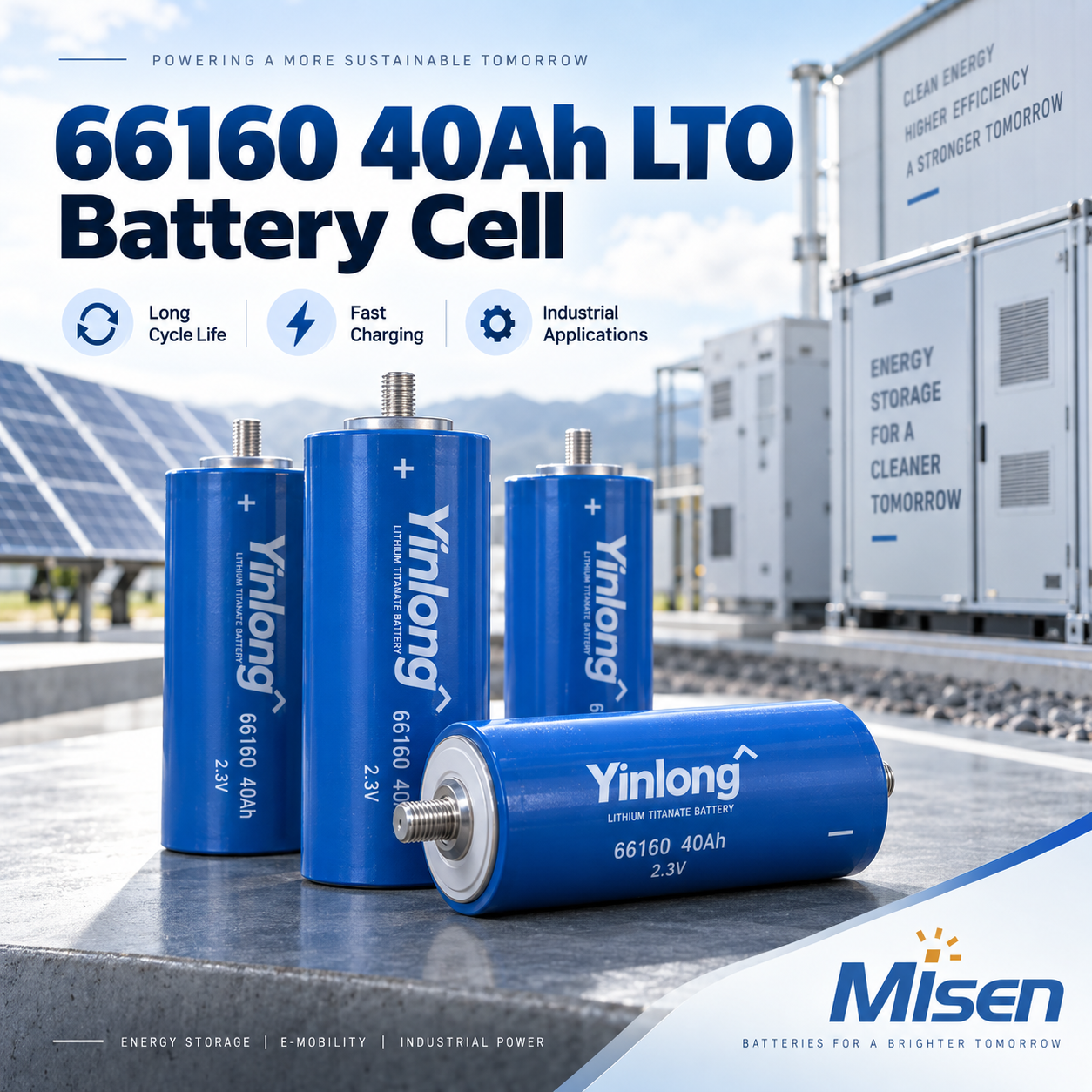

One of the most widely recognized large-format LTO cells is the Yinlong 66160 40Ah 2.3V LTO battery cell. Its cylindrical format makes it suitable for battery packs used in industrial equipment, energy storage, transportation, UPS systems and other applications where frequent cycling is more important than minimum size or weight.
The term 66160 describes the approximate cylindrical cell form factor: approximately 66 mm in diameter and 160-162 mm in body length. Depending on the terminal design, the total installed length including threaded terminals can be longer, so the latest mechanical drawing should always be confirmed before designing a battery enclosure.
Unlike conventional lithium-ion cells that normally use graphite-based anodes, LTO batteries use lithium titanate material in the anode. This difference gives LTO cells several distinctive characteristics, particularly when they are repeatedly charged and discharged at high rates.
| Cell Type | Lithium Titanate (LTO) |
| Model / Form Factor | 66160 |
| Nominal Voltage | 2.3V |
| Nominal Capacity | 40Ah |
| Nominal Energy | Approx. 92Wh |
| Charging Limit Voltage | Up to 2.8V/cell* |
| Discharge Cut-off Voltage | Around 1.6V/cell* |
| Cell Body Size | Approx. diameter 66 mm x 160-162 mm* |
| Cycle Life | Up to 30,000 cycles under specified operating/test conditions* |
| Terminal Type | Threaded terminal |
* Exact electrical and mechanical specifications can vary by production version and test conditions. Please confirm the latest cell specification before designing a battery pack.
LTO should not simply be considered a higher-priced alternative to NMC or LiFePO4. It solves a different engineering problem.
If your priority is the smallest possible battery or the highest Wh/kg, another lithium chemistry may be more suitable. But when the battery is expected to complete thousands of charge/discharge cycles, accept frequent fast charging or repeatedly provide high power, LTO can offer significant advantages over the complete service life of the system.
| Characteristic | LTO | LiFePO4 | NMC |
|---|---|---|---|
| Typical Nominal Cell Voltage | Approx. 2.3V | Approx. 3.2V | Approx. 3.6-3.7V |
| Main Strength | Cycle life and power | Balanced life, safety and cost | High energy density |
| Fast-Charge Potential | Excellent | Good | Application dependent |
| High-Cycle Applications | Excellent fit | Very common | Usually secondary priority |
| Energy Density | Lower | Medium | Higher |
| Best Suited For | Frequent cycling, fast charge, high power | ESS, RV, solar, general EV | EV, mobility, compact high-energy packs |
The most important advantage of LTO chemistry is its cycling durability.
The lithium titanate anode undergoes very small structural changes during lithium-ion insertion and extraction. This characteristic helps reduce mechanical stress on the electrode during repeated cycling.
For an application that charges and discharges several times per day, this difference can become much more important than the initial battery purchase price.
Typical high-cycle applications include:
Grid frequency regulation
Industrial energy storage
Regenerative energy recovery
Electric buses and commercial vehicles
AGV and automated warehouse equipment
Forklifts and material-handling equipment
UPS and backup systems with frequent cycling
Solar and renewable-energy buffering systems
For the 66160 40Ah product, Misen offers an ultra-long-cycle LTO solution designed for demanding battery systems. Actual service life depends on depth of discharge, temperature, charging rate, discharge rate and voltage limits.
Another major advantage of LTO is its ability to support high-rate charge and discharge operation.
This makes LTO especially useful when equipment cannot remain offline for several hours waiting for a battery to recharge. Instead of increasing battery capacity simply to extend operating time, some systems can use a different strategy:
Operate for a shorter period
Recharge quickly during scheduled breaks
Return to operation without long charging downtime
This operating model is particularly attractive for commercial fleets, automated equipment and industrial machines that must operate for many hours every day.
However, the maximum charging and discharging current should never be selected only from the chemistry name. The exact current must be confirmed from the specification of the actual cell version, together with pack cooling, busbar design, BMS capability and connection resistance.
Low-temperature operation is a common challenge for battery-powered equipment. Conventional lithium-ion batteries can experience increased internal resistance, reduced available power and charging restrictions as temperature falls.
LTO chemistry is widely considered for applications that require a broader practical temperature range, particularly when combined with a properly engineered battery pack and charging strategy.
Examples include:
Outdoor telecommunications equipment
Cold-region energy storage
Railway and transportation equipment
Industrial vehicles operating outdoors
Remote power systems
Please note that low-temperature charging limits still need to follow the specific cell datasheet and battery-pack design. Cell chemistry alone does not eliminate the need for temperature monitoring and proper BMS control.
A common mistake when replacing lead-acid or conventional lithium batteries with LTO is to select the same number of cells.
Because an LTO cell has a nominal voltage of approximately 2.3V, the series configuration is different from 3.2V LiFePO4 and 3.6-3.7V NMC batteries.
| Configuration | Nominal Pack Voltage | Approx. Max Voltage at 2.8V/Cell | 40Ah Pack Energy |
|---|---|---|---|
| 5S1P | 11.5V | 14.0V | Approx. 460Wh |
| 10S1P | 23.0V | 28.0V | Approx. 920Wh |
| 20S1P | 46.0V | 56.0V | Approx. 1.84kWh |
| 21S1P | 48.3V | 58.8V | Approx. 1.93kWh |
These are configuration examples rather than universal replacement recommendations. Before deciding the series count, engineers should confirm:
Equipment operating-voltage range
Original battery voltage
Maximum charger voltage
Minimum system cut-off voltage
Required continuous and peak current
BMS configuration
Available installation space
If you are replacing a lead-acid, LiFePO4 or NMC battery, send Misen the original battery voltage, capacity, dimensions, current requirement and charger information. We can help evaluate an appropriate LTO series/parallel configuration.
Industrial batteries often experience more demanding operating cycles than consumer batteries. Forklifts, AGVs, cranes and automated production equipment may operate continuously and recharge multiple times per day.
For these applications, reducing charging downtime and battery replacement frequency can be more important than minimizing battery size.
Some energy-storage systems are designed for occasional backup operation, while others charge and discharge continuously.
LTO is particularly interesting for the second category, including applications such as frequency regulation, power buffering and regenerative-energy capture, where the battery may experience a very high number of shallow or partial cycles.
LTO cells can be considered for buses, industrial vehicles, special-purpose EVs and other applications where high power and repeated charging are important.
Conventional backup batteries may spend most of their life on standby. However, some UPS, telecom and remote-power applications cycle much more frequently. In these systems, LTO can provide an alternative when long cycling life and rapid recovery are priorities.
LTO can also be used in renewable-energy systems that experience frequent charge/discharge transitions. The final chemistry choice should be based on total lifecycle requirements rather than initial cell cost alone.
Even when a battery chemistry is capable of very long cycle life, the finished pack can only perform properly when the individual cells are well matched.
Important matching parameters include:
Cell capacity
Open-circuit voltage
Internal resistance
Self-discharge characteristics
Production batch consistency
A weak or mismatched cell can reach the upper or lower voltage limit before the rest of the pack. This causes the BMS to stop charging or discharging early and reduces the usable capacity of the complete battery system.
For project orders, Misen can help confirm the required testing and matching requirements before shipment, particularly when the cells will be connected into larger series/parallel battery systems.
You can view the current Yinlong 66160 40Ah LTO battery cell specifications and product information here.
One of the most important parts of battery selection is understanding the trade-off.
LTO provides excellent durability and high-power capability, but it generally has lower energy density than NMC and requires more cells in series because of its lower nominal cell voltage.
LTO is especially suitable when your priorities are:
Very high cycle count
Frequent charging and discharging
Fast-charge capability
High power output
Long system service life
Industrial reliability
Operation in demanding environments
Another chemistry may be more suitable when your priorities are:
Minimum battery weight
Maximum energy in a limited space
Lowest initial purchase cost
Very compact consumer electronics
In other words, the correct question is not: "Is LTO better than LiFePO4 or NMC?"
The better question is: "Which battery chemistry matches the operating profile of my equipment?"
If you are purchasing individual 66160 cells or developing a complete LTO battery pack, providing the following information will make technical evaluation much faster:
Required quantity
Target pack voltage
Required capacity or energy
Continuous discharge current
Peak discharge current and duration
Required charging current / charging time
Available battery dimensions
Application or equipment model
Existing charger specifications
Whether a complete BMS-equipped battery pack is required
For replacement projects, photos and the specification label of the original battery are also extremely useful.
Yes. The Yinlong 66160 40Ah LTO cell has a nominal voltage of approximately 2.3V. This is lower than LiFePO4 and NMC cells, so battery-pack series configuration must be recalculated when changing chemistry.
Nominal energy can be estimated using Voltage x Capacity = 2.3V x 40Ah = approximately 92Wh.
It can be used to design a replacement system, but it is not normally a one-cell-for-one-cell replacement. The series count, BMS, charger voltage, low-voltage cut-off and available installation space must all be checked first.
A common starting point is a 5S configuration, which provides approximately 11.5V nominal voltage and up to approximately 14.0V if the selected cell version is charged to 2.8V per cell. Compatibility with the actual equipment and charger must still be confirmed.
Fast charging is one of the principal advantages associated with LTO chemistry. The permitted charging rate, however, must follow the specification of the exact cell and the thermal, BMS and electrical design of the complete battery pack.
Yes. In addition to individual cells, battery-pack solutions can be evaluated according to required voltage, capacity, BMS, current, enclosure, connector and application requirements.
The biggest value of Lithium Titanate is not simply one impressive specification. It is the combination of cycle life, power capability, fast charging and long-term durability.
For a lightly used battery that is replaced only occasionally, this advantage may not justify the additional initial investment.
But for equipment that cycles every day, charges repeatedly, requires high power, or needs to remain in service for many years, the total lifecycle economics can be very different.
That is why the 66160 LTO format continues to be used in industrial power, energy storage, transportation, backup power and other demanding applications.
