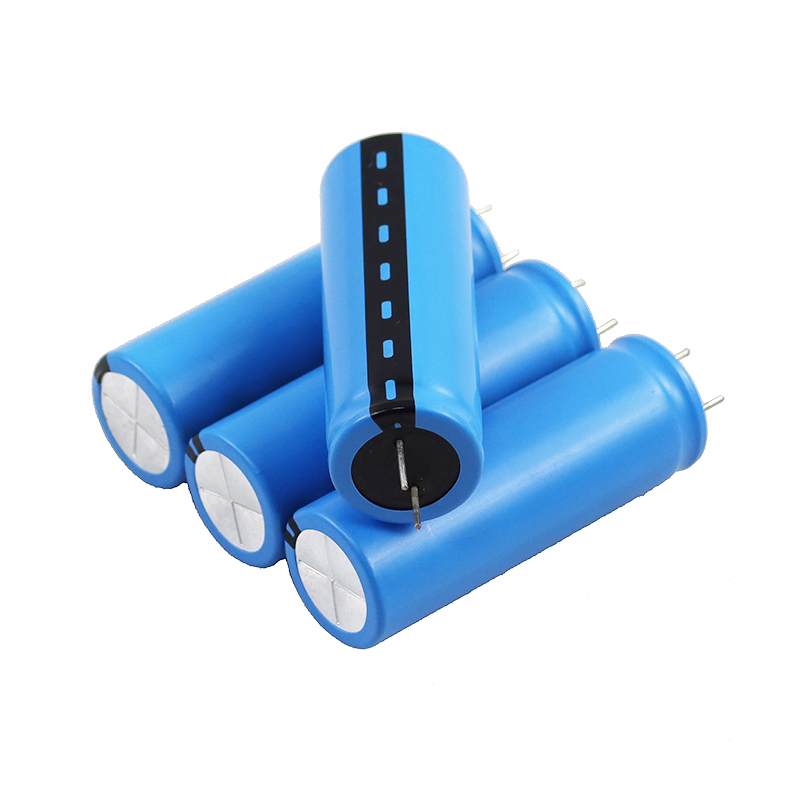

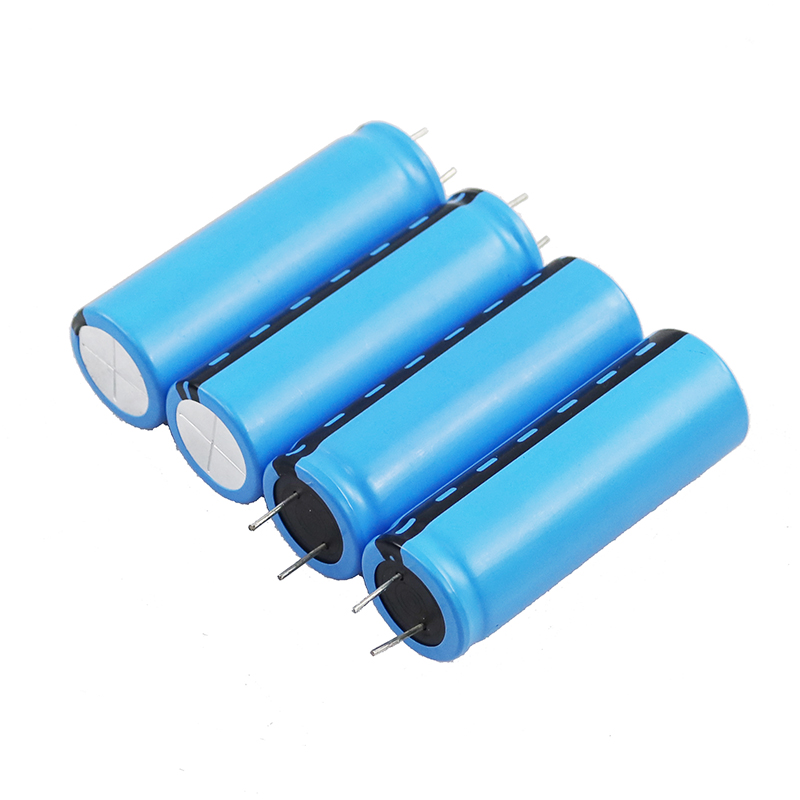

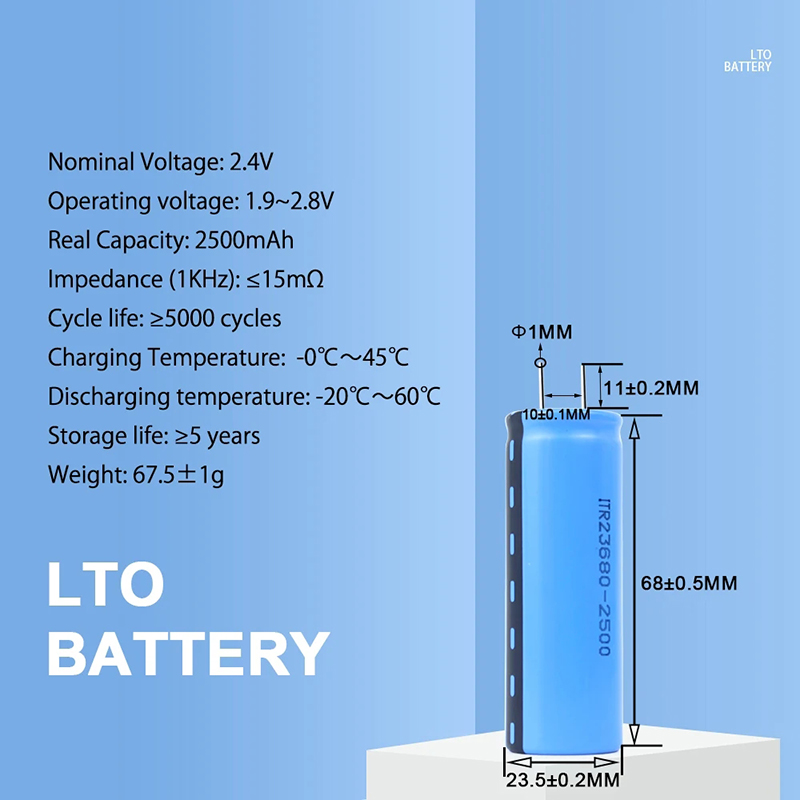

23680 2.4v 2500mAh LTO Battery Cell

• Electrical Performance

Standard Charge: 1C (2.5A) to 2.8V

Fast Charge: 10C (25A) – 80% SOC in 5 minutes

Max Continuous Discharge: 10C (25A)

Peak Discharge (10s): 30C (75A)

Internal Resistance: ≤2.0 mΩ (AC 1kHz)

Self-Discharge: <5% per month at 25°C

• Mechanical & Environmental

Case Material: Nickel-plated steel with laser welding

Terminal: Flat top (suitable for spot welding or spring contact)

Weight: ~67.5g

• Extreme Longevity

  >5,000 full depth-of-discharge cycles – up to 20× longer than standard Li-ion

  Minimal capacity fade over lifetime – typically <10% after 10,000 cycles

  Calendar life exceeding 20 years under normal conditions




• Ultra-Fast Charging & High Power

  10C continuous charge/discharge capability – full charge in 6 minutes

  Extremely low internal resistance (<2 mΩ) for minimal voltage sag

  Maintains high power capability even at low state-of-charge




• Unrivaled Safety & Stability

  Zero risk of lithium plating or thermal runaway

  Exceptional chemical stability – can operate at high temperatures without degradation

  Can withstand overcharge, over-discharge, and short-circuit conditions without catastrophic failure




• Extreme Temperature Performance

  Operates from -50°C to 65°C without heating/cooling systems

  Maintains >80% capacity at -30°C

  No capacity loss from cold storage – ready to use immediately after freezing




• Maintenance & Reliability

  No battery management system (BMS) required for basic applications

  Consistent performance across entire state-of-charge range

  Flat discharge curve (2.4V to 1.8V) for stable power delivery

Industrial Power Tools & Equipment: High-cycle, fast-charge demands

Cold Climate Energy Storage: Arctic, aerospace, and high-altitude systems

Automotive Start-Stop Systems & Regenerative Braking: 12V/24V battery replacement

Public Transportation & Heavy Machinery: Bus, tram, and mining equipment power buffers

High-Power Portable Devices: Professional video, medical, and tactical equipment

Energy Buffer for Renewable Systems: Solar/wind power smoothing and frequency regulation

UPS & Emergency Power Systems: Critical backup where downtime is unacceptable
