Home / Product / NCM Battery / NCM Prismatic Cell / CATL 3.7V 180Ah NCM Prismatic Lithium Ion Batteries Rechargeable Cell for Golf Carts

CATL 3.7v 180ah Ncm Prismatic Lithium Ion Batteries Rechargeable Energy Storage Battery for Golf Carts

CATL 3.7V 180Ah NCM Prismatic Lithium Ion Batteries Rechargeable Cell for Golf Carts

High-performance 3.7V 180Ah NCM prismatic lithium-ion batteries ideal for energy storage in golf carts. Reliable rechargeable solution for extended usage. Optimal power output for enhanced performance and longevity.

Brand:
CATL
Cell Grade:
Grade A
Nominal Capacity:
180Ah
Nominal Voltage:
3.7v
Weight:
2.6KG

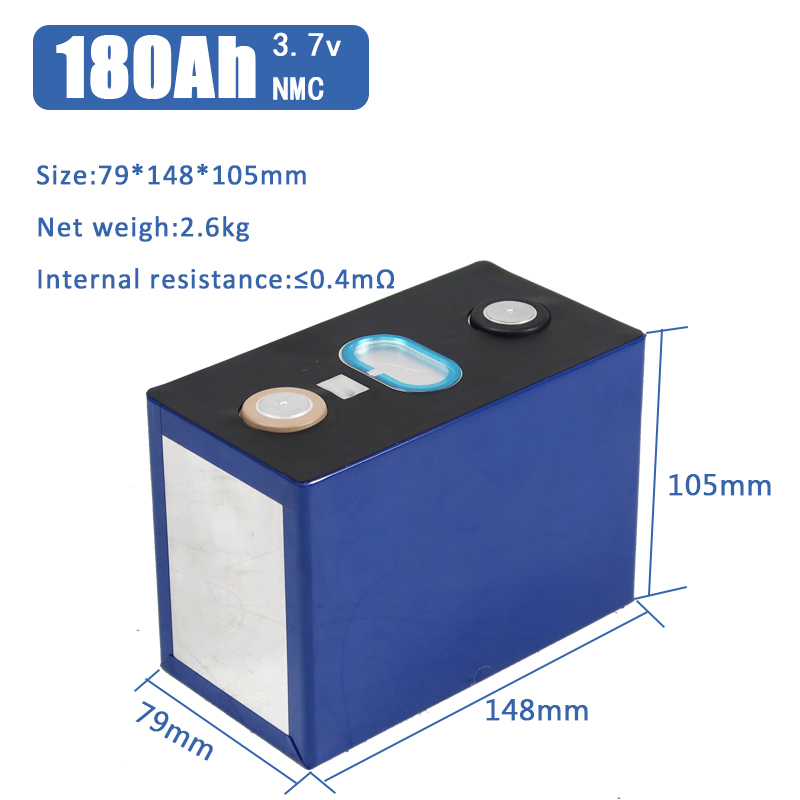

Size(mm):
79*148*105mm
Cycle Life:
4000

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

Technical Parameters

Rated Capacity	180Ah
Nominal Voltage	3.7V
Max Discharge Current	1C/ 180A
Max Charge Voltage	4.2V
AC Impedance Resistance	≤0.4mΩ
Charging Temperature	-5-60℃
Discharging Temperature	-30-60℃
Cycle Life	≥4000 times
Weight	2.15kg
Dimensions (LWH)	117.5mm
Applications	Electric Power Systems,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle,used cars and so on.

Introducing the CATL 3.7v 180ah Ncm Prismatic Lithium Ion Batteries, the ideal rechargeable energy storage solution for golf carts. These high-quality batteries from CATL are designed to deliver reliable power performance, ensuring a seamless and efficient operation for your golf cart. With a capacity of 180ah and a voltage of 3.7v, these lithium-ion batteries are built to last and provide long-lasting power for your golf cart needs. Upgrade your energy storage system with CATL 3.7v 180ah Ncm Prismatic Lithium Ion Batteries and experience enhanced performance and durability like never before.

91189

Key Features

Key Features

High Energy Density

NCM (Nickel Cobalt Manganese) cathode material delivers superior energy storage capacity (180Ah, 666Wh)
Compact prismatic design (79mm148mm106mm) optimizes space efficiency for modular integration .

Long Cycle Life & Durability

Supports 3,000+ charge cycles at 1C discharge rate, ensuring long-term performance for energy storage applications .
Stable chemical structure with ≤0.5mΩ internal resistance, minimizing energy loss .

Safety & Reliability

Built-in multi-protection against overcharge/discharge, short circuit, and temperature extremes

Robust prismatic aluminum casing prevents deformation/leakage, compliant with UL/IEC safety standards

Flexible Performance

Charging ratio: 0.5C; Discharge rate: 1C (suitable for high-power demands) .
Operating temperature range: -30°C to 60°C, adaptable to harsh environments .

Quality Assurance

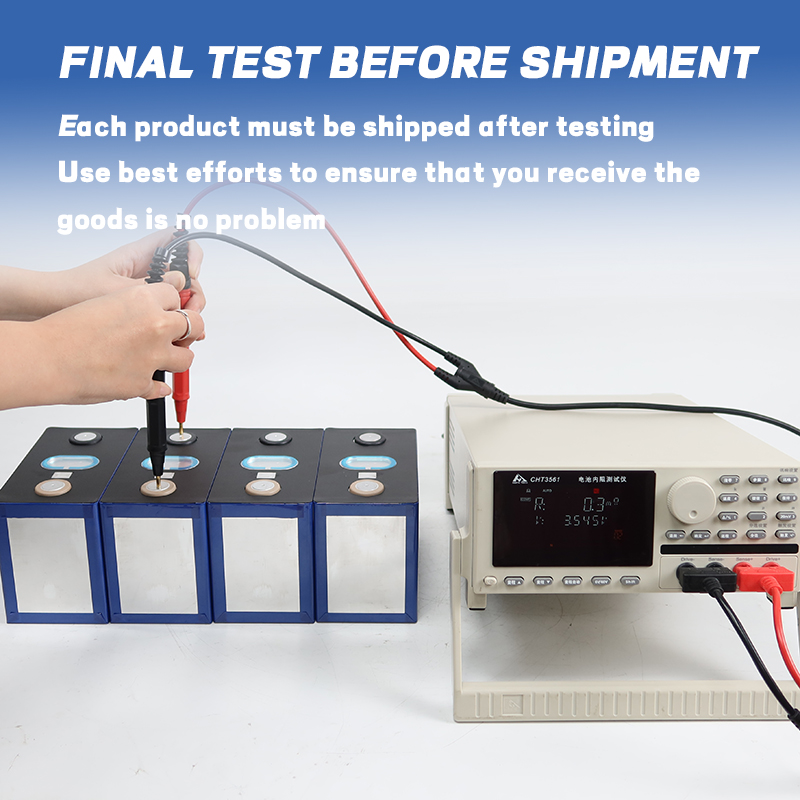

Grade A+ cells with pre-shipment testing (voltage, capacity, IR) and intact QR code traceability .
Optional wooden packaging for safe transport .

Application

Energy Storage Systems (ESS): Ideal for solar/wind power storage, microgrids, and grid stabilization .
Electric Vehicles (EVs): Powers commercial EVs, forklifts, and hybrid systems due to high energy density
Industrial & Backup Power: Supports data centers, telecom base stations, and marine/RV power solutions .
Customizable Solutions: Available for OEM/ODM projects with busbars and bolts included for easy assembly .

大电芯应用

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
