Home / Product / NCM Battery / NCM Prismatic Cell / CATL Lithium Ion NMC CATL 3.7V 62Ah Li-ion Rechargeable Prismatic Battery Cell

CATL Lithium Ion NMC CATL 3.7V 62Ah Li-ion Rechargeable Prismatic Battery Cell for 12v 48v Solar Systems

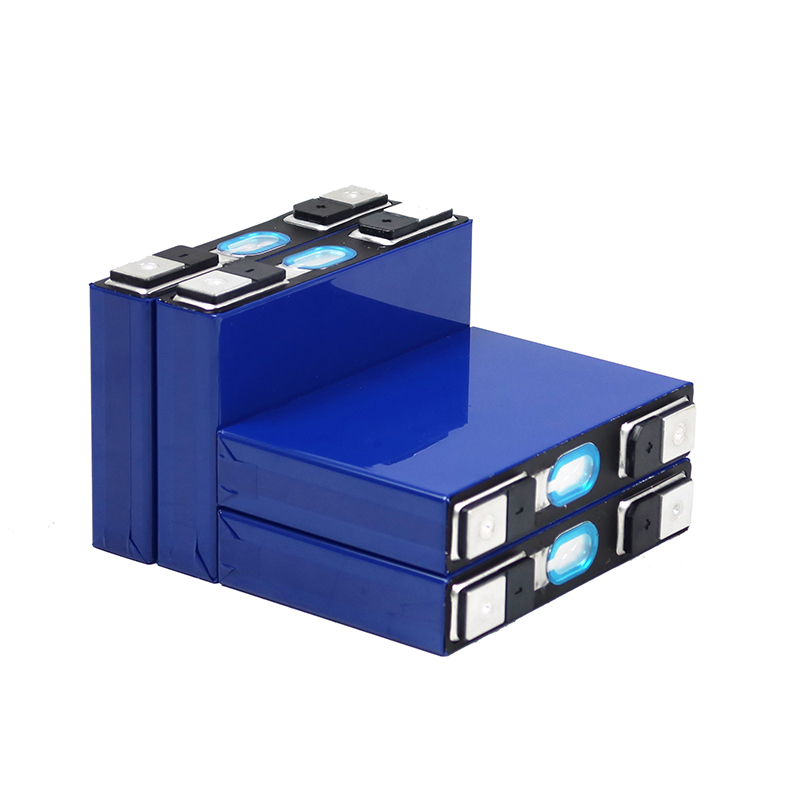

CATL Lithium Ion NMC CATL 3.7V 62Ah Li-ion Rechargeable Prismatic Battery Cell

High-performance lithium-ion battery cell for solar systems. Features 3.7V voltage and 62Ah capacity. Ideal for 12V and 48V setups. Reliable, rechargeable, and long-lasting solution for off-grid power needs.

Brand:
CATL
Cell Grade:
Grade A
Nominal Capacity:
62Ah
Nominal Voltage:
3.7v
Weight:
0.95KG
Size(mm):
147*28*98mm
Cycle Life:
4000

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

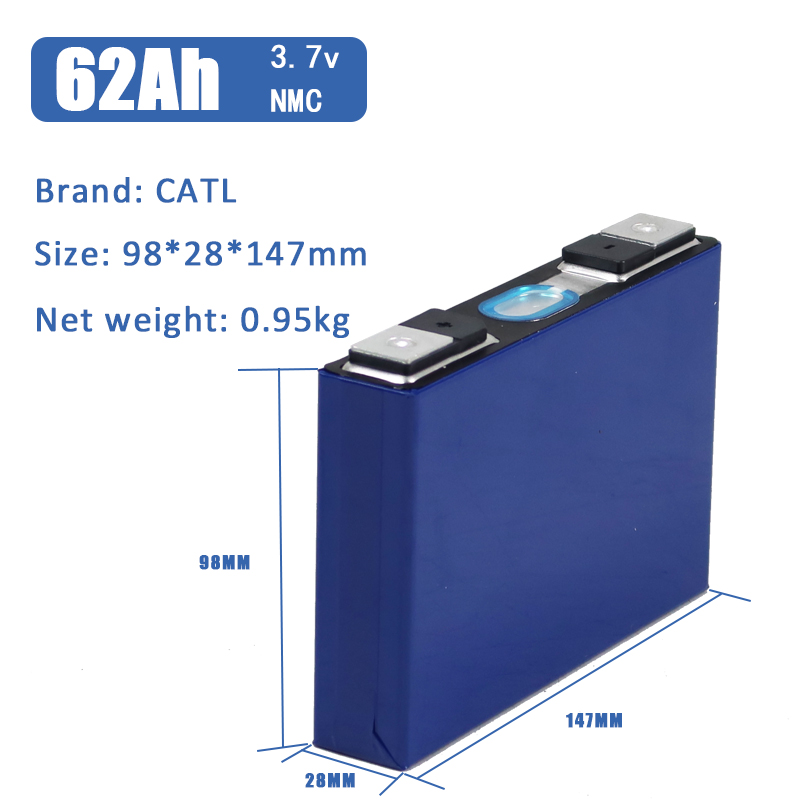

Technical Parameters

Rated Capacity	62Ah
Nominal Voltage	3.7V
Max Discharge Current	3C/ 186A
Max Charge Voltage	4.2V
AC Impedance Resistance	≤0.4mΩ
Charging Temperature	-5-60℃
Discharging Temperature	-30-60℃
Cycle Life	≥4000 times
Weight	0.95kg
Dimensions (LWH)	1472898mm
Applications	Electric Power Systems,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle,used cars and so on.

Introducing the CATL Lithium Ion NMC 3.7V 62Ah Li-ion Rechargeable Prismatic Battery Cell, designed for use in 12v and 48v solar systems. This high-quality battery cell from CATL offers reliable and efficient power storage solutions for your solar energy needs. Built with advanced lithium-ion technology, this battery cell ensures long-lasting performance and durability. Upgrade your solar system with the CATL Lithium Ion NMC 3.7V 62Ah Li-ion Rechargeable Prismatic Battery Cell for reliable and sustainable energy storage.

3.7v 62ah battery (1)

Key Features

Key Features

Optimized High-Capacity Design (62Ah)

Delivers 229.4Wh energy per cell (3.7V nominal), enabling extended operational runtime between charges.
Superior energy density: 30% higher than standard LFP cells in equivalent form factors.

Advanced NMC Chemistry (LiNiMnCoO₂)

Nickel-Manganese-Cobalt cathode balances energy density, thermal stability, and lifecycle performance.
Voltage range: 2.8V–4.25V with stable discharge plateau for consistent power delivery.

Industrial-Grade Cycle Life

≥4,000 cycles at 80% DoD (vs. 1,200–1,500 cycles for lead-acid).
Maintains >80% capacity retention after 2,000 full cycles in 25°C environments.

Prismatic Form Factor Efficiency

Space-saving rectangular design enables >95% pack volumetric efficiency for streamlined integration.
Laser-welded terminals ensure low impedance (<0.5mΩ) and vibration resistance (IEC 62660-2 certified).

Enhanced Safety Architecture

Multi-level protection: CID (Current Interrupt Device), thermal fuses, and venting mechanisms.
Passes UL1642, UN38.3, and GB/T 31485 safety standards.

Wide Operating Temperature Range

Discharge: -20°C to 60°C | Charge: 0°C to 55°C
Integrated thermal management compatibility for extreme environments.

Application

Application Scenarios

Commercial Electric Vehicles

Primary power source for electric buses, delivery vans, and light commercial vehicles requiring high energy density and daily deep cycling.

Industrial Energy Storage Systems (ESS)

Grid-scale storage units (up to MWh capacity) for peak shaving and renewable energy buffering.
Backup power for telecom stations and critical infrastructure.

Material Handling Equipment

Extended-range packs for Class I/II electric forklifts and automated guided vehicles (AGVs) in 24/7 warehouse operations.

Marine & Recreational Vehicles

House battery banks for electric boats, RVs, and off-grid power systems requiring deep-cycle endurance.

Specialty Electric Machinery

Mobile construction equipment, airport ground support units (GPU), and street sweepers.

大电芯应用

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.

Certificate
